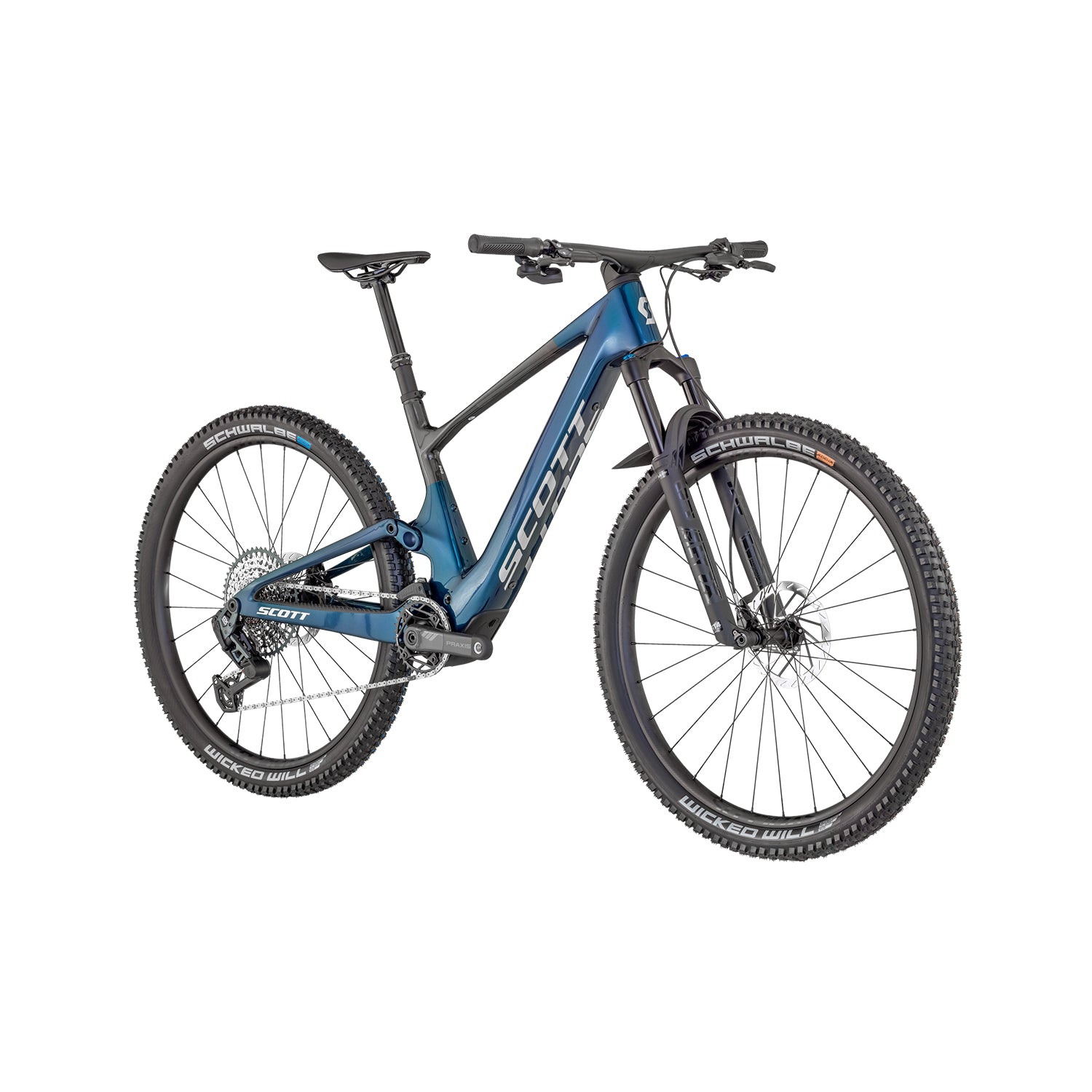

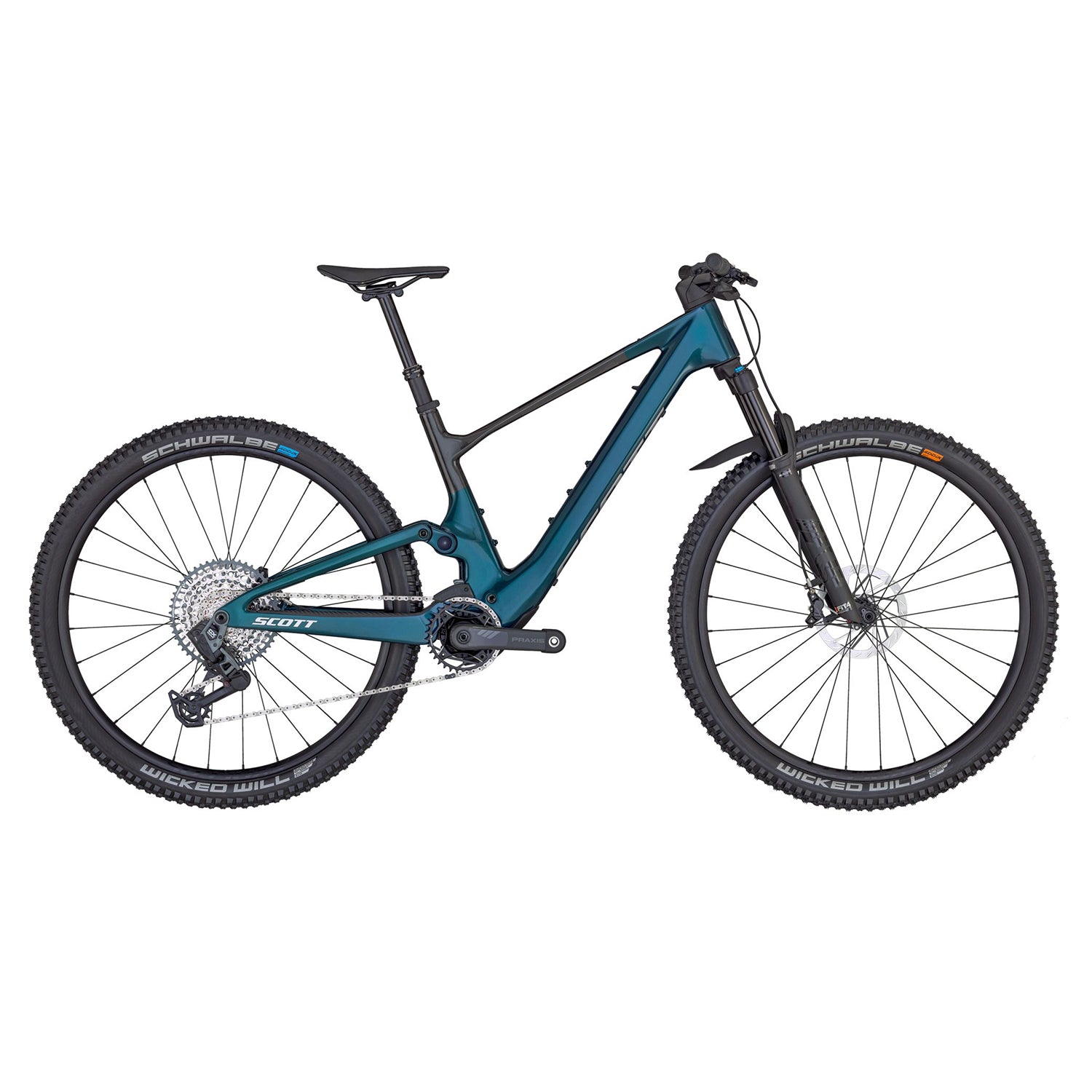

The Scott Lumen eRide 900 lightweight e-MTB delivers the agile feel of a traditional trail bike, now enhanced with powerful and virtually silent electric assist. Built on an HMX carbon chassis with Integrated Suspension Technology and Flex Pivot construction, it balances responsive handling with advanced e-performance. Featuring a 130 mm FOX suspension setup front and rear, a compact yet potent TQ HPR50 motor paired with a 360 Wh internal battery (upgradeable to 520 Wh with an optional range extender), and a slick SRAM GX Eagle AXS drivetrain for seamless wireless shifting—this e-bike is engineered for fiercely fast and long-lasting trail adventures.
FEATURES
Featherlight carbon frame – HMX carbon with flex pivot and integrated suspension for agile XC feel
Balanced 130 mm travel – FOX 34 Float Performance Elite with FIT4 fork and FOX NUDE 6T Evol rear shock tuned for descents and climbs
Silent, agile power – TQ HPR50 motor delivering 50 Nm torque in a compact package
Modular battery system – 360 Wh internal battery with optional 160 Wh range extender for extended range
Wireless transmission – SRAM GX Eagle AXS 12-speed groupset offers precise, cable-free shifting
Clean cockpit layout – Syncros-integrated cables and TwinLoc remote ensure minimal clutter and maximum function
Quick suspension tuning – TwinLoc system allows seamless switching between Descend, Traction, and Lockout modes
SPECIFICATIONS
Frame: Carbon HMX, Integrated Suspension Technology, Flex Pivot, adjustable head angle, Syncros Cable Integration System, TQ HPR50 / UDH interface, 12×148 mm with 55 mm chainline
Travel: Front: 130 mm / Rear: 130 mm
Fork: FOX 34 Float Performance Elite Air FIT4, 3 modes with low-speed adjust, Kabolt 15×110 mm axle, 44 mm offset, tapered steerer, rebound adjust, lockout, 130 mm travel
Rear shock: FOX NUDE 6T EVOL Trunnion, SCOTT custom with travel/geo adjust, 3 modes (Lockout–Traction Control–Descend), low-speed adjust, custom large air volume, rebound adjust, bearing hardware, travel 130-90-Lockout, T165×45 mm
Remote system: SCOTT TwinLoc 2 Technology, suspension & dropper remote, 3 suspension modes
Drive unit: TQ HPR50 mid motor, 50 Nm max torque, EU: 25 km/h, US: 20 mph
Battery: TQ internal 360 Wh
Display: TQ HPR, Bluetooth / ANT+ connectivity, dedicated smartphone app
Charger: TQ 100–240 V, 4 A
Rear derailleur: SRAM GX Eagle AXS Transmission, 12-speed, wireless electronic shift system
Shifters: SRAM GX Eagle AXS Rocker Controller
Crankset: FSA carbon crankset, 175 mm, 34T
Chainguide: e*thirteen e-spec Slider
Chainring: SCOTT custom spider with SRAM Eagle Transmission 34T chainring
Chain: SRAM CN GX Eagle Transmission
Cassette: SRAM GX Eagle XS-1275 Transmission, 10–52T
Brakes: SRAM Level Silver Stealth, 4-piston hydraulic disc
Rotors: SRAM HS2 CL, 180 mm front & rear
Handlebar: Syncros Fraser iC SL DC carbon, 760 mm width, 0° rise, 8° backsweep, mini rise; Syncros Performance XC lock-on grips
Seatpost: FOX Transfer dropper, 31.6 mm — S: 125 mm / M: 140 mm / L: 150 mm / XL: 175 mm
Seat: Syncros Tofino 1.5 Regular, titanium rails
Headset: Syncros–Acros angle-adjust & cable-routing HS system, stainless, ±0.6° head-angle adjustment, ZS56/28.6 – ZS56/40 MTB
Wheelset: Syncros Silverton 1.5-30 CL — Front 15×110 mm, Rear 12×148 mm, 30 mm tubeless-ready rim, 28H, XD driver; Syncros axle with removable lever (6 mm Allen, T30 & T25 tools)
Front tire: Schwalbe Wicked Will 29×2.4″ EVO, Super Race, TLE, 67 EPI, Addix Speed Soft
Rear tire: Schwalbe Wicked Will 29×2.4″ EVO, Super Race, TLE, 67 EPI, Addix Speed Grip
Extras: SRAM AXS Powerpack, Syncros fork fender
Accessories: Syncros Eco Sealant, transport axle
Approx weight: 16kg (with tubes)
