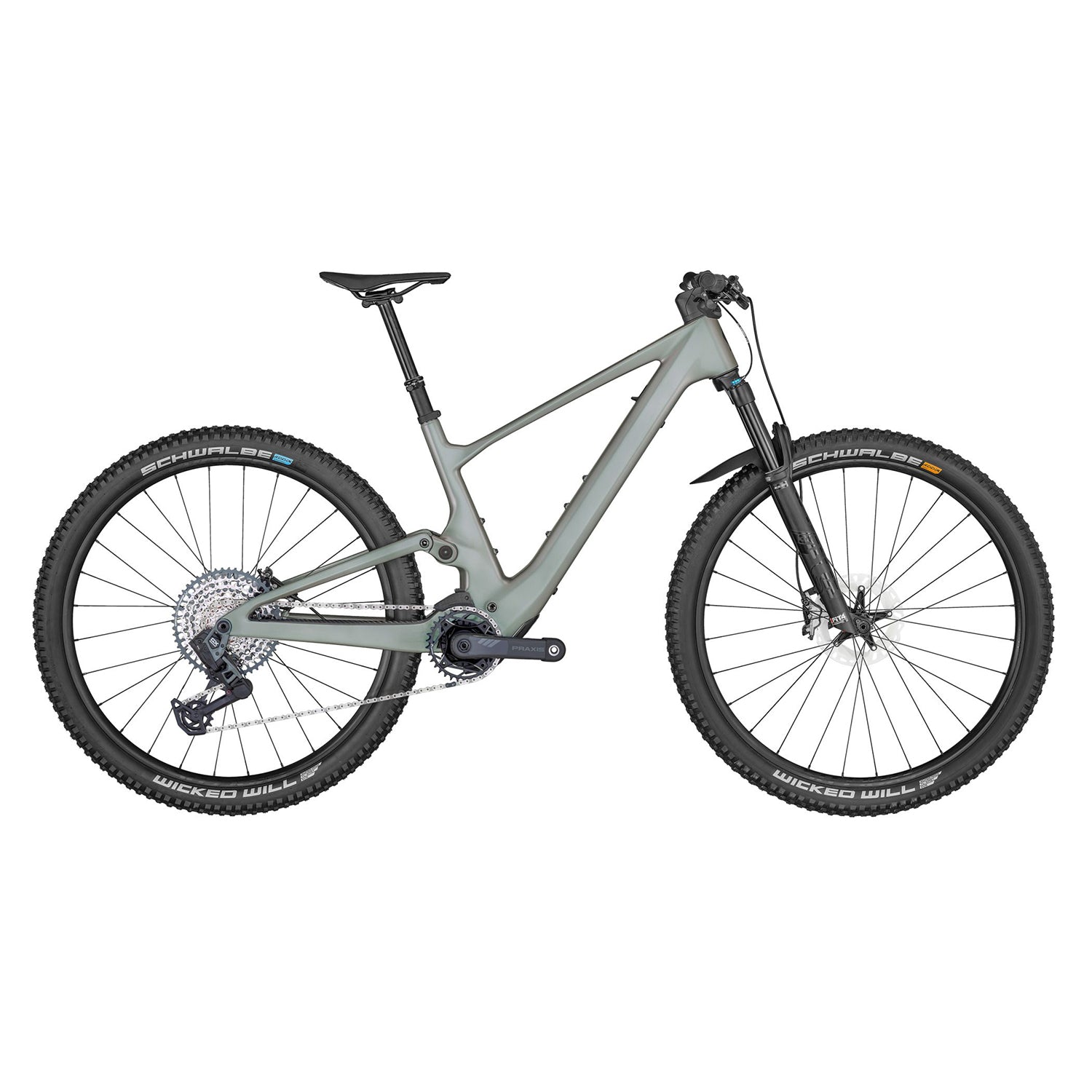

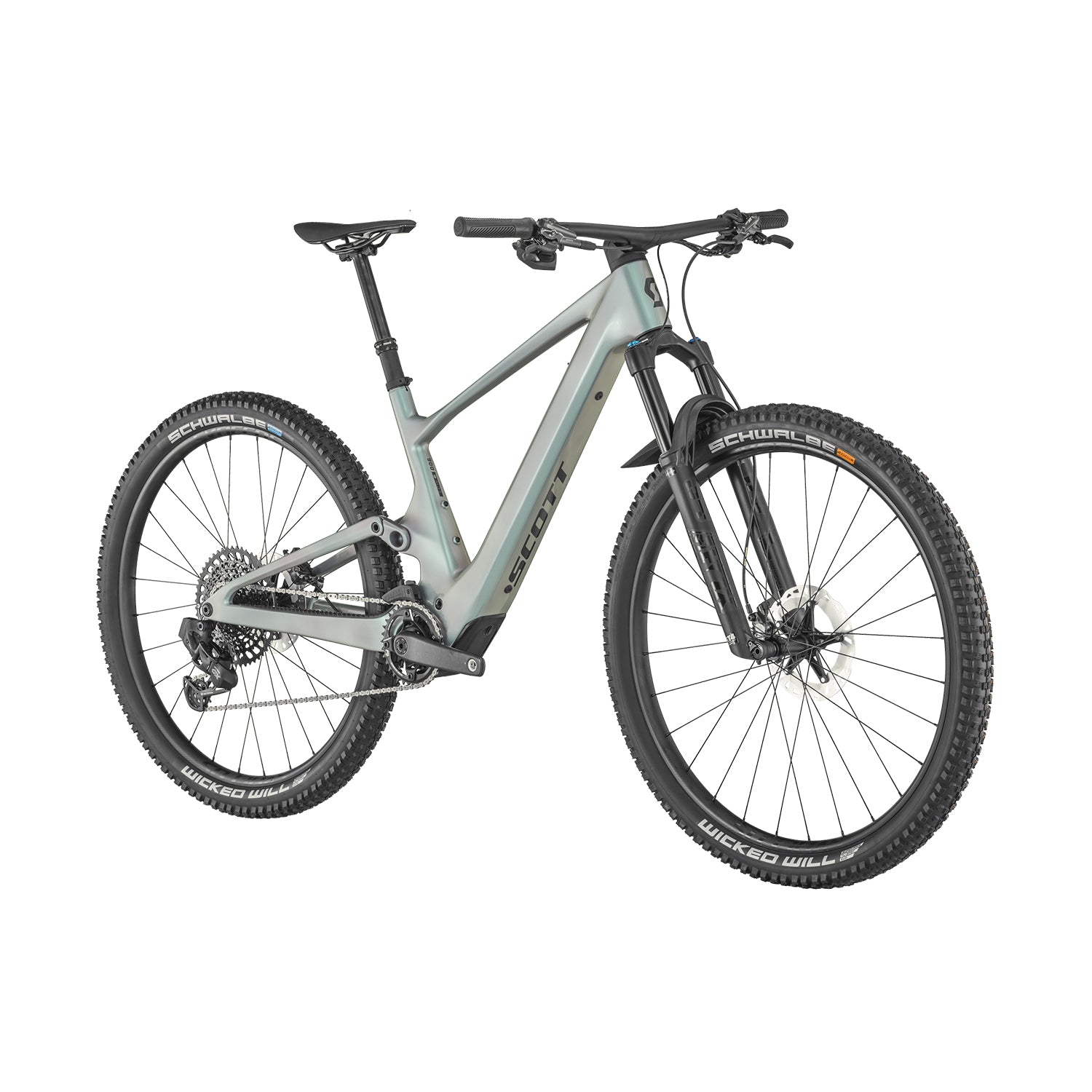

The Scott Lumen eRide 900 TR pushes the boundaries of lightweight e‑MTB performance. Built on a feather‑light HMX carbon frame with integrated suspension and clean cable routing, this bike maintains trail‑bike agility while adding silent electric support. With high‑end hardware like FOX suspension, SRAM GX Eagle AXS drivetrain, and Shimano XT brakes, it delivers top-tier performance in an ultra‑responsive package. Perfect for riders craving long-distance endurance, effortless climbs, and uncompromised handling.
FEATURES
Lightweight carbon chassis – HMX carbon frame with Integrated Suspension Technology, Flex Pivot, adjustable head angle, and Syncros cable integration
Responsive suspension – FOX 34 Float Performance Elite Air FIT4 fork and FOX NUDE 5T EVOL rear shock, paired with TwinLoc remote for lockdown, traction, or full descend modes
Stealth motor system – Powerful yet quiet TQ HPR50 mid-drive (50 Nm), with internal 360 Wh battery and optional range extender capability
Seamless wireless shifting – SRAM GX Eagle AXS 12-speed ensures fast and precise gear changes with no clutter
Powerful stopping performance – Shimano XT 4-piston hydraulic brakes with 180 mm rotors deliver confident control
Premium rolling kit – Syncros Silverton 1.5 TR tubeless-ready wheels with top-tier components and comfort-enhancing Schwalbe Wicked Will tires
SPECIFICATIONS
Frame: Carbon HMX; Integrated Suspension Technology; Flex Pivot with adjustable head angle; Syncros Cable Integration System; TQ HPR50 / UDH interface; 12×148 mm axle spacing; 55 mm chainline
Travel: Front: 130 mm / Rear: 130 mm
Fork: FOX 34 Float Performance Elite Air FIT4; 3-mode with low-speed adjust; Kabolt 15×110 mm axle; 44 mm offset; tapered steerer; rebound adjust; lockout; 130 mm travel
Rear Shock: FOX NUDE 5T EVOL Trunnion; custom travel/geo; 3 modes (Lockout, Traction Control, Descend); large air volume; DPS; rebound adjust; travel 130→90→Lockout; T165×45 mm
Remote System: SCOTT TwinLoc 2 Technology; suspension and dropper control; 3 modes
Drive Unit: TQ HPR50 mid-drive; 50 Nm max torque; EU: 25 km/h | US: 20 mph
Battery: TQ internal 360 Wh (compatible with optional 160 Wh range extender)
Display: TQ HPR; Bluetooth & ANT+; compatible with dedicated smartphone app
Charger: TQ 100–240 V, 4 A
Rear Derailleur: SRAM GX Eagle AXS Transmission; 12-speed, wireless
Shifters: SRAM GX Eagle AXS Rocker Controller
Crankset: FSA Carbon, 175 mm, 34T
Chainguide: ethirteen espec Slider
Chainring: SCOTT custom spider / SRAM Eagle 34T
Chain: SRAM CN GX Eagle Transmission
Cassette: SRAM GX Eagle XS 1275 Transmission 10–52T
Brakes: Shimano XT 4-piston hydraulic disc
Rotors: Shimano XT level; 180 mm front & rear
Handlebar: Syncros Fraser iC SL DC Carbon; 0° rise; 8° backsweep; mini rise; 760 mm; with Syncros Performance XC grips
Seatpost: FOX Transfer Dropper; 31.6 mm — S: 125 mm | M: 140 mm | L: 150 mm | XL: 175 mm
Saddle: Syncros Tofino 1.5 Regular; titanium rails
Headset: Syncros–Acros adjustable angle headset; stainless; ±0.6° head-angle adjustment; ZS56/28.6 – ZS56/40 MTB
Wheelset: Syncros Silverton 1.5-30 CL alloy rims; 15×110 mm front; 12×148 mm rear; 30 mm internal width; tubeless-ready; XD driver; Syncros removable lever axle (6 mm Allen, T30/T25)
Front Tire: Schwalbe Wicked Will 29×2.4″ EVO – Speed Soft, Super Race, TLE, 67 EPI
Rear Tire: Schwalbe Wicked Will 29×2.4″ EVO – Speed Grip, Super Race, TLE, 67 EPI
Extras: SRAM AXS Powerpack; Syncros Fork Fender; Syncros Eco Sealant; Transport Axle
Approx Weight: 16.3 kg / 35.94 lb (tubeless setup)
