Moulton TSR 22 Full Suspension Folding Bike

Behold the Moulton TSR 22, where exquisite craftsmanship meets uncompromising velocity in one of the world's most advanced bicycles. The iconic space frame, meticulously crafted and hand-polished from aerospace-grade stainless steel, offers unparalleled stiffness and a breathtaking aesthetic. The true genius of its design lies in the advanced full-suspension system.

Featuring a floating front fork and dry cone rear suspension—which delivers a uniquely silky ride without sacrificing raw power. Outfitted with a professional-grade Shimano 105 drivetrain, this lightweight marvel provides lightning-fast acceleration and nimble handling, making it the ultimate choice for the cyclist who demands the pinnacle of innovation, comfort, and speed.

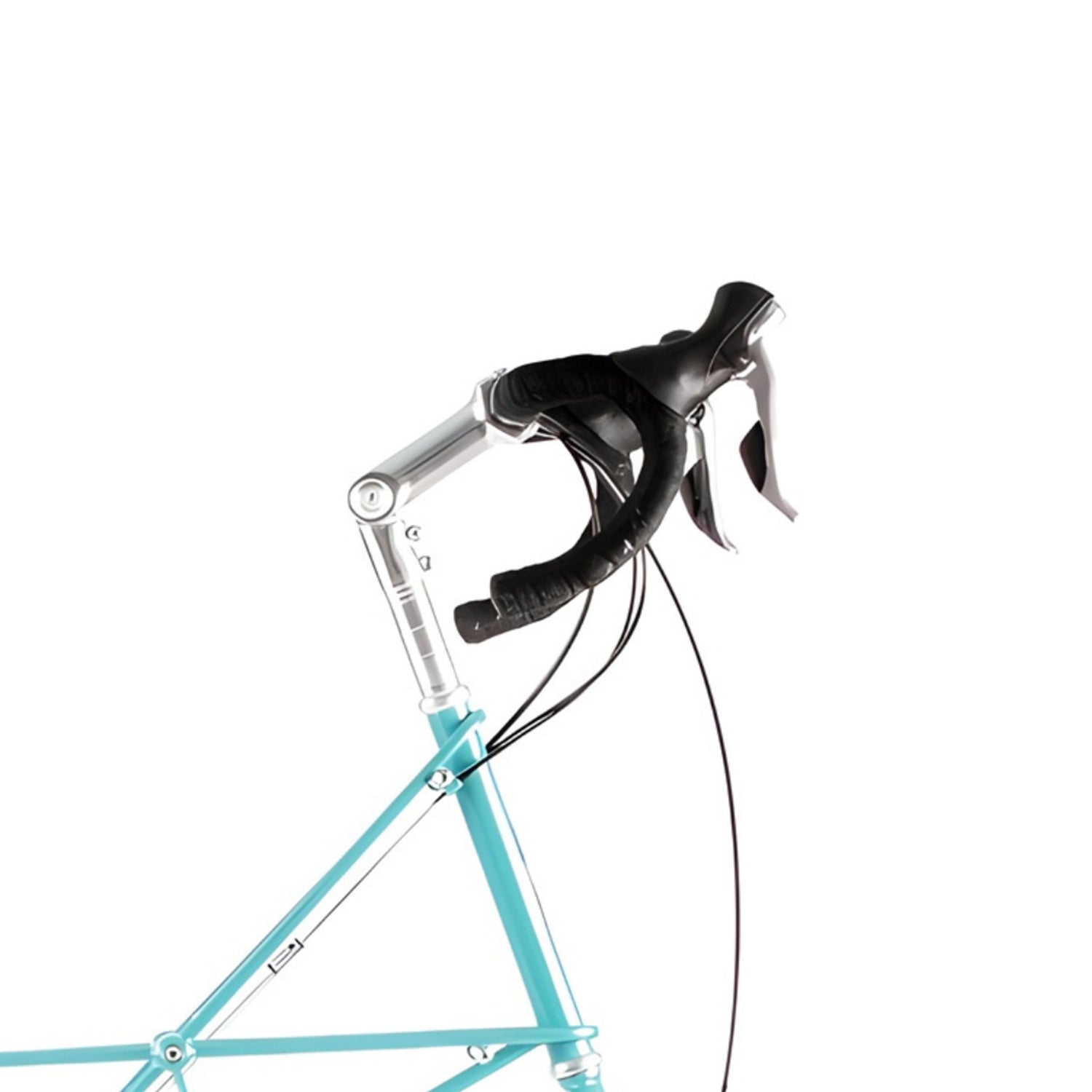

NOTE: Please be advised the listed image is the only available asset at the time of product listing. Please take note the handlebar for this model is a road bike drop down handlebar with Shimano 105 Levers & Groupset, refer to image 2.

FEATURES

20" Wheels

Small wheels are at the heart of the Moulton concept. Strong and light, low moment of inertia resulting in quick acceleration and nimble fast handling, creating low aerodynamic drag.

Leading Link Front Fork

Equipped with a floating front fork stirrup is used to keep unsprung weight to a minimum. Stainless steel leading links pivot on composite bearings. Damping is by rigid polyurethane coulumb discs. Damping & Ride Height is adjustable.

Separable Frame

This model features a separable frame, allowing the bicycles to be easily packed for transprtation or storage. Separation is straightforward and takes no more than 3 minutes. The separation feature in no way compromises the performance of the bicycles, other than adding a little weight.

Dry Cone Rear Suspension

The hollow cone shape reacts to load the rubber in compression and shear, providing a smoothly rising spring rate with integral damping. No maintenance required.

SPECIFICATIONS

Frame Material: Columbus Spirit and Reynolds 525 CrMo steels

Stem: Raised adjustable alloy, 31.8 mm

Handlebar: GB Carter Bar

Grips: Deda traforato tape (black)

Seatpost: Moulton custom alloy, 31.6 mm, two-bolt

Saddle: fi’zi:k Aliante

Shifters: Shimano 105 STI

Rear Derailleur: Shimano 105 - 2 x 11 Speed

Bottom Bracket: Shimano Hollowtech II

Pedals: Not Included

Crankset: Shimano 105, 53/39

Hub Rear: Shimano 105

Rim: Double-wall alloy semi-aero, Black/CNC

Tyre: Schwalbe Durano 28-406

Brake Levers: Shimano 105 STI

Brake: TRP RX6 V-brakes

Weight: 11.9 kg

Wheel Size: 20″
