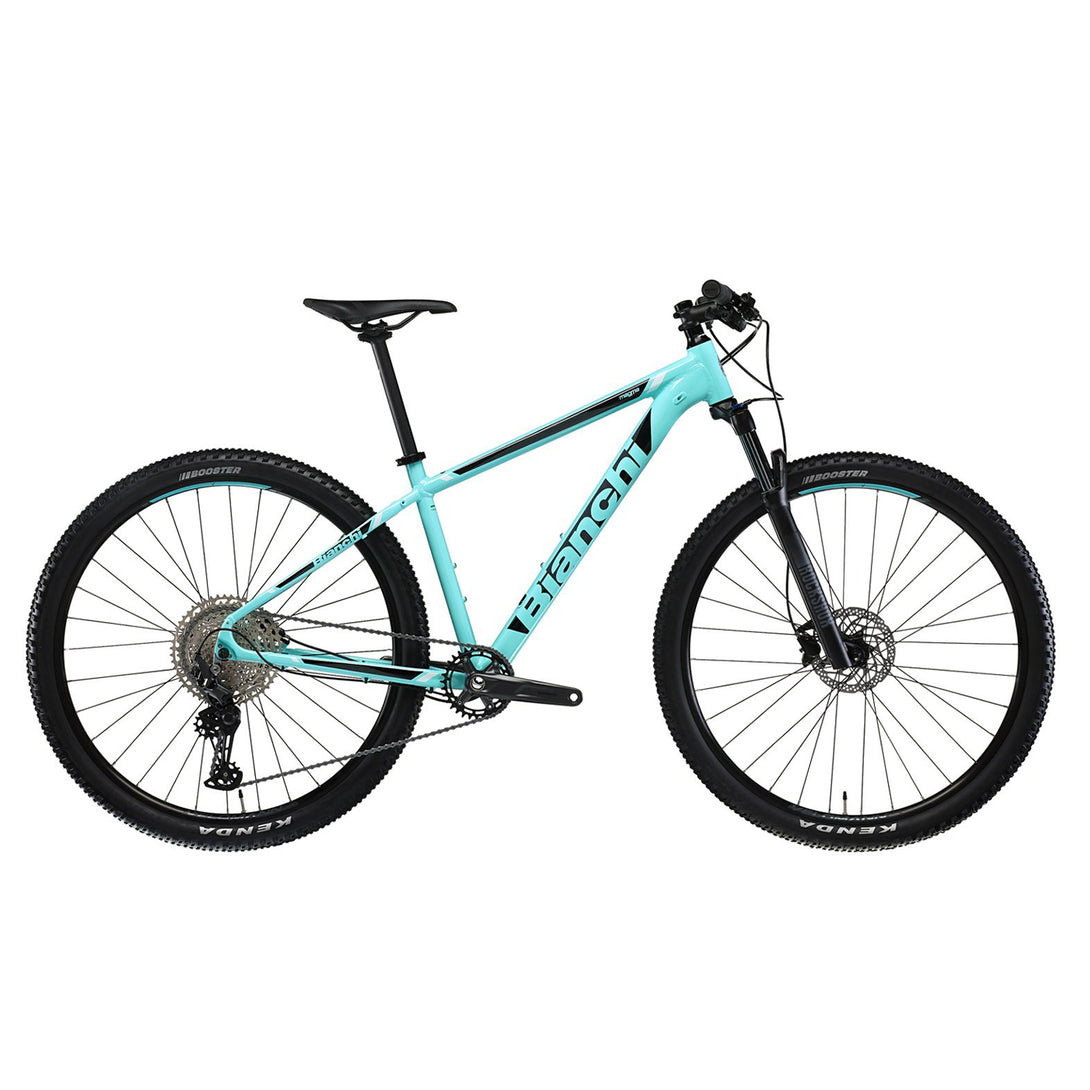

The Bianchi MAGMA 9.0 BOOST Deore 1x11 is a versatile and capable mountain bike designed for off-road adventures
Constructed using advanced aluminum lay-up technology, the Magma 9 frame uses highly-tuned tube profiles, from the head tube to the dropouts. Achieving an outstanding stiffness to weight ratio, pinpoint steering & sublime levels of rider comfort.
Developed with help from the Bianchi World Cup race team, the Magma 9s features new, revised ‘race ready’ geometry to help riders gain a competitive advantage in speed and agility – to rail every singletrack turn, and nail every drop, even at full race speed.
The Magma 9s features ultra-reliable race ready drivetrain components. The versatile component specification includes internal routing 2x Shimano side-swing front derailleur. Choose to run it 1x or 2x according to your preferences; you’ll never miss a gear.
Fork with matched graphics add style and lightweight pro-level bump taming performance. With Rock Shox Judy TK 29" 100mm travel and a remote lockout switch, the Magma 9s is ready to descend fast on trails and attack the climbs, at the riders command.
|Frame||Magma 29 alu, 1.1/8" HT, BSA 68mm, seatpost diam. 27,2mm, HDM bottom pull or Side-Swing, PM 160mm, BOOST 9x141mm QR, internal cable routing, sizes 15-17-19-21"||Fork||Rock Shox Judy TK 29" 100mm w/Remote Lockout,1,1/8" steel HT, alloy crown, coil spring w/pre-load adjust, steel 30mm stanchions, magnesium lowers w/PM 160mm disc mount, 9mm QR|
|Headset||FSA TH888 forged steel cups ID diam.34mm, stack height 12,8+11=23,8mm, w/15mm cap||Shifters||Deore SL-M5100-R 1x11, clamp band|
||FH-MT200-B for Center Lock, 32h 141mm OLD BOOST||Front Derailleur
||Formula CL-1420 for Center Lock, 32h 100mm OLD, loose balls, axle length 108mm, w/QR|
|Crankset||Shimano FC-M5100-1, 32T, crank length: 170mm-15", 175mm-17/21"||Bottom Bracket
||included in the crankset|
||Kmc X11 EPT finish, 11sp||Cassette
||Shimano CS-M5100-11, 11sp, 11-13-15-18-21-24-28-33-39-45-51T|
|Brakes||Shimano BR-MT200, resin pad||Rotor||
Shimano SM-RT10, 160mm front & rear, Center Lock, for resin pad only
|Wheels||VelomannDP2.5, 622x25c, pin joint, 32h, anodized, no eyelet, Presta valve hole||Rear Hub
||FH-MT200-B for Center Lock, 32h 141mm OLD BOOST|
|Front Hub||Formula CL-1420 for Center Lock, 32h 100mm OLD, loose balls, axle length 108mm, w/QR||Tyre||Kenda Booster 29x2.20, DTC compound, 30Tpi, wire, ETRTO 56-622|
|Stem||Velomann 3D forged Alloy 6061, +/-7°, 1.1/8mm, diam. 31.8mm, ext: 80mm-15/17", 90mm-19/21"||Handlebar||
Velomann Flat top DB Alloy 6061-T6, width 720mm, diam. 31,8mm, 9° backsweep
|Tyres||T-one T-GP48B, one piece grip, TPR material, 130mm||Seatpost||Velomann AL2014 shaft w/alloy head, diam. 27.2mm, 0mm seatback, length 350mm|
|Saddle||Velomann, steel rails, PVC soft touch cover, 140mm width|
