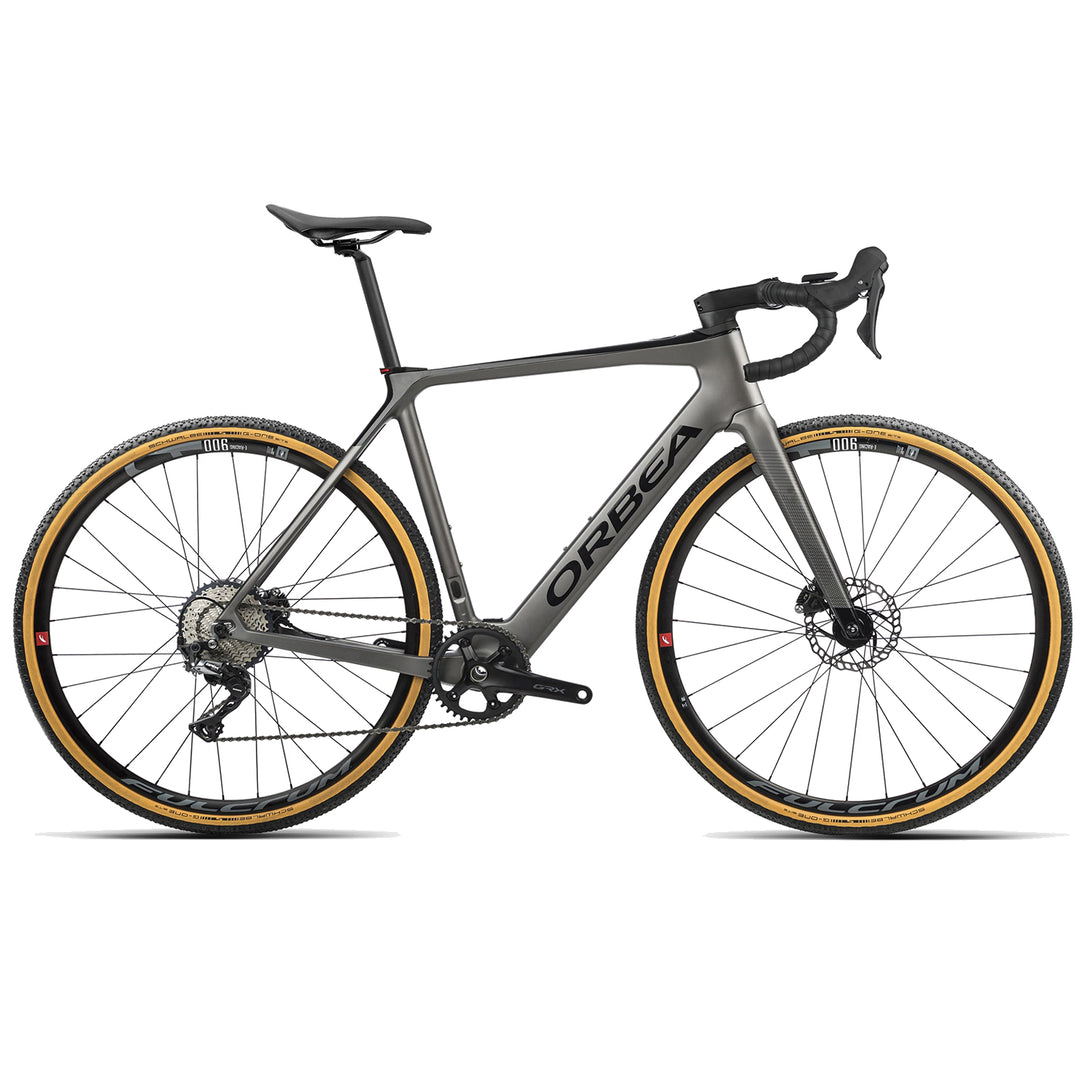

The Orbea Gain M30 1X 20MPH is a top-quality electric road bicycle that boasts a sleek and sturdy carbon frame, an 11-speed Shimano GRX drivetrain, and a powerful Mahle X35 Plus motor system. This bike can provide up to 20 mph of pedal assist, making it ideal for long-distance commuting or leisurely weekend rides. With its hydraulic disc brakes, the Orbea Gain M30 1X 20MPH delivers reliable stopping power and offers great control on varied terrain. It also features 700x38c tires that provide a comfortable and smooth ride, even on rough roads. Overall, the Orbea Gain M30 1X 20MPH is an outstanding electric road bicycle that offers riders the best of both worlds: the convenience of electric power and the high-performance and feel of a traditional road bike.
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximun tyre, 1" 1/2 semi head set, BB386 EVO.
Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40 maximun tyre, flat mount disc mount, 12x100mm Thrue Axle, with down tube aero integration.
The MAHLE X35+ rear hub motor offers up to 40 Nm of natural and almost drag-free support and is powered by a 250 Wh internal battery. Iwoc Remote allows the rider to toggle between the different support levels, while the colours of the LED ring indicate the support intensity, battery level and if a Bluetooth connection is established. The 250Wh battery capacity is engineered for the ideal weight and efficiency ratio. It has enough power to give the rider support for the whole day
Instead of telling gravel riders what they needed, Shimano asked them what they wanted for their offroad adventures. The result are the Shimano GRX components which represent the first series especially developed for riding on rough roads and through gravel. The Shimano GRX sets itself apart from the rest of the component world with its gravel specific ergonomics, optimized gearing options, rugged reliability as well as a quiet and stable drivetrain.
|Frame||Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximun tyre, 1" 1/2 semi head set, BB386 EVO.||Fork||Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40 maximun tyre, flat mount disc mount, 12x100mm Thrue Axle, with down tube aero integration.|
|Headset||Acros Alloy 1-1/2" Internal Cable Routing|
Shimano GRX RX600 40t
Shimano CS-M7000 11-40t 11-Speed
|Rear Derailleur||Bontrager Switch thru axle, removable lever|
|Chain||Shimano HG 601||
OC GR30 Gravel, Reach 80, Drop 125, Flare 12, w/Di2 hole
OC RP10 Road Performance ICR, -8º, IFC01 Computer mount interface
Shimano RX400 Hydraulic disc
FULCRUM E-Racing 900
|Tyres||Schwalbe G-ONE Bite, 40-622, 700x38C, Performance Line RaceGuard, TLE, ADDIX Classic Skin|
|Front Wheel Axle||Orbea Thru Axle 12x100mm M12x2 P1 Lite|
Fizik Aliante R5
|Front Light||Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO||Handlebar Plugs||Orbea Anti-Slippery/Shock Proof|
|Motor||Mahle motor hub X35 Plus 20mph||Battery||Mahle 36V/6.9A 248Wh ANT+|
|Display||Mahle Pulsar One monochrome ANT+ LEV||Charger||Mahle X35|
|Remote||Mahle iWoc ONE|
