Trek Marlin 4 Gen 2 MTB 2023
Need help choosing a bike or technical advice?
Feel free to call us on 800 - CYCLE(29253)
Frequently Bought Together

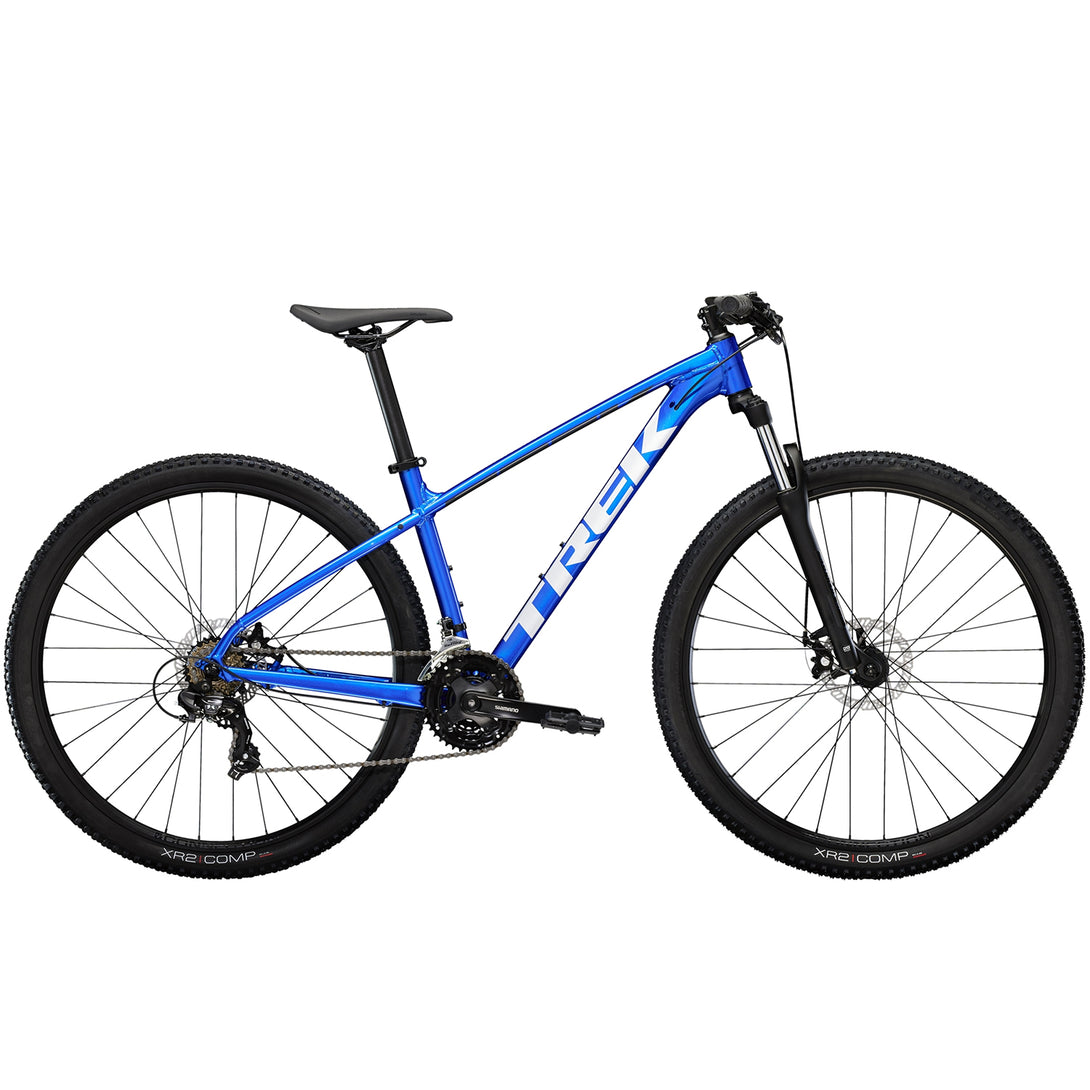

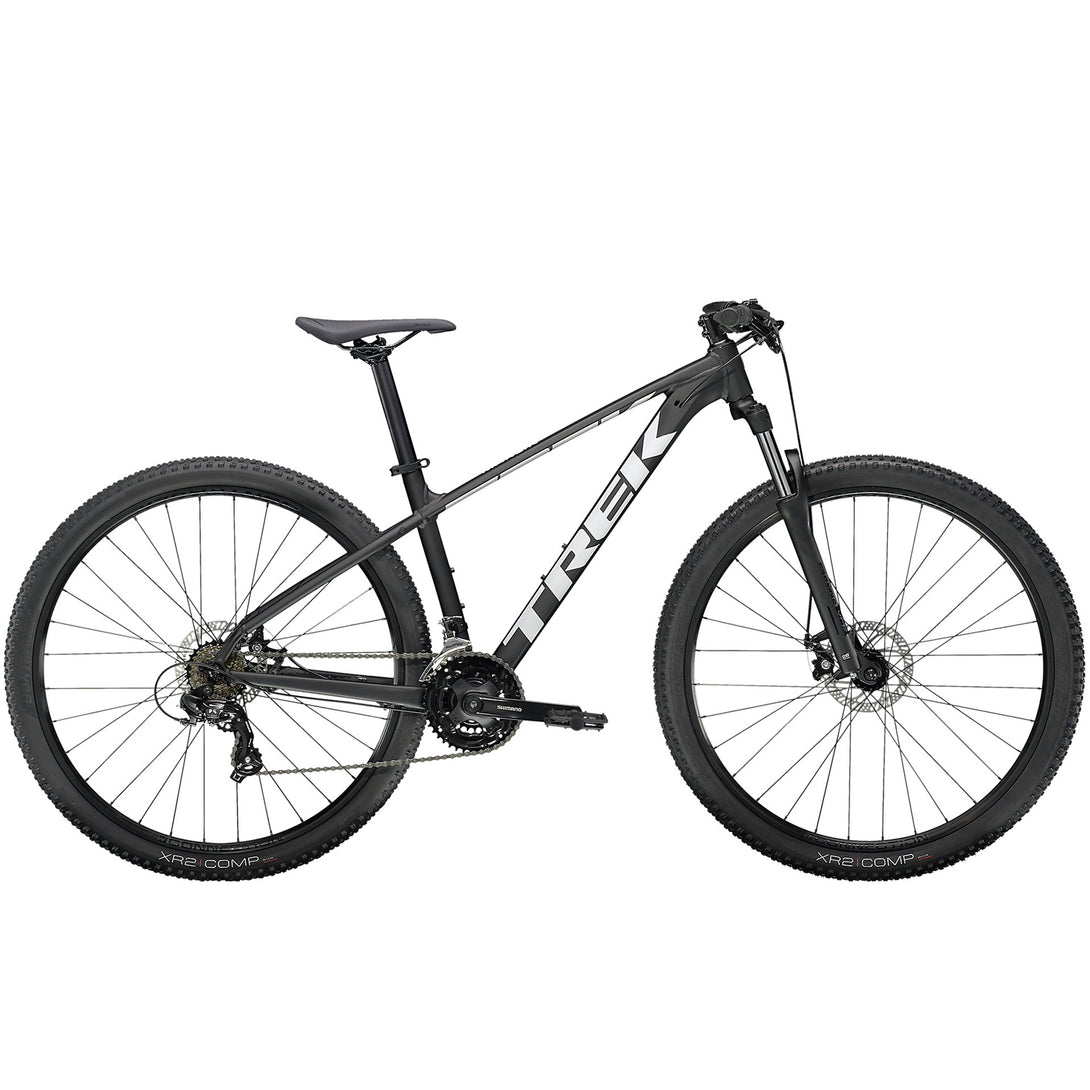

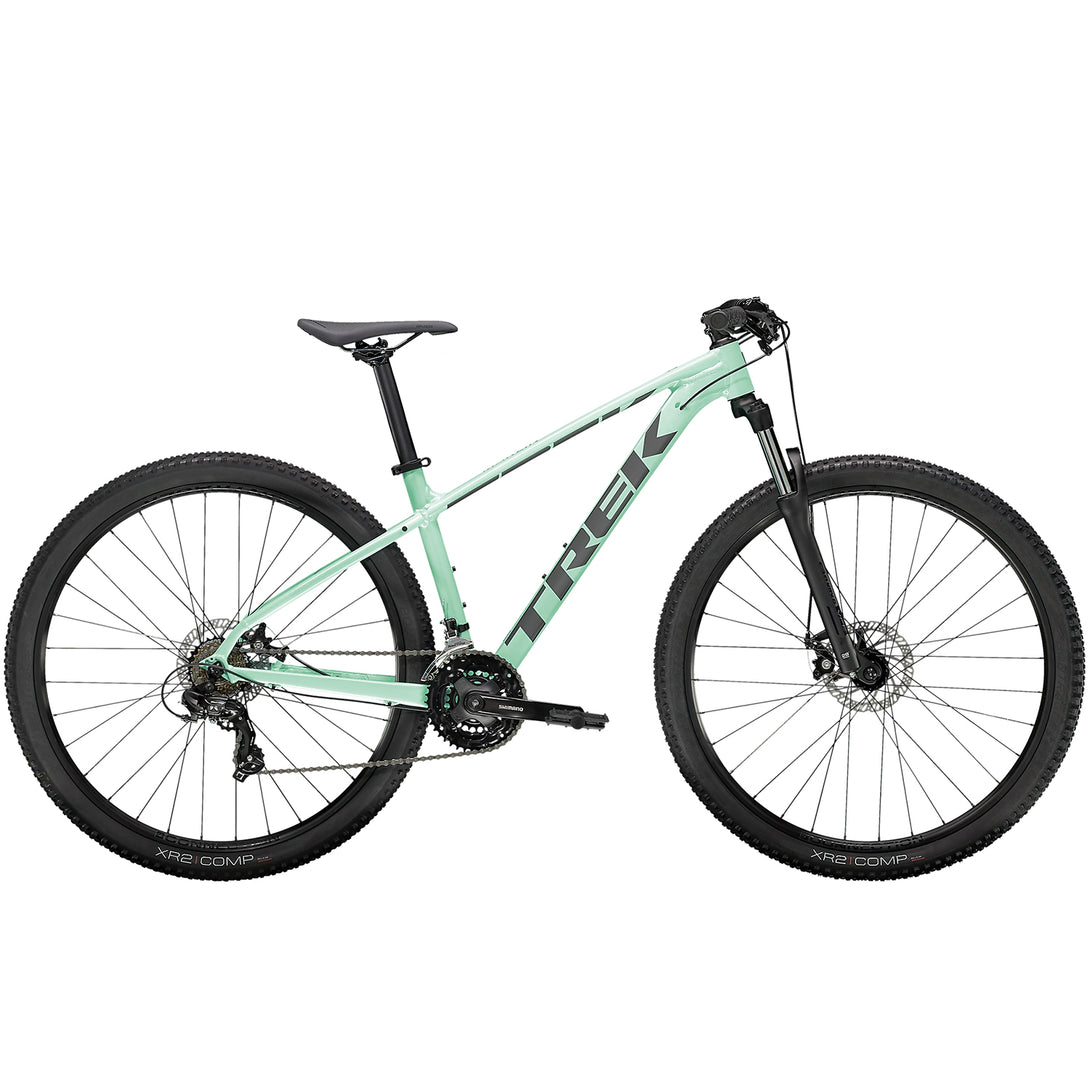

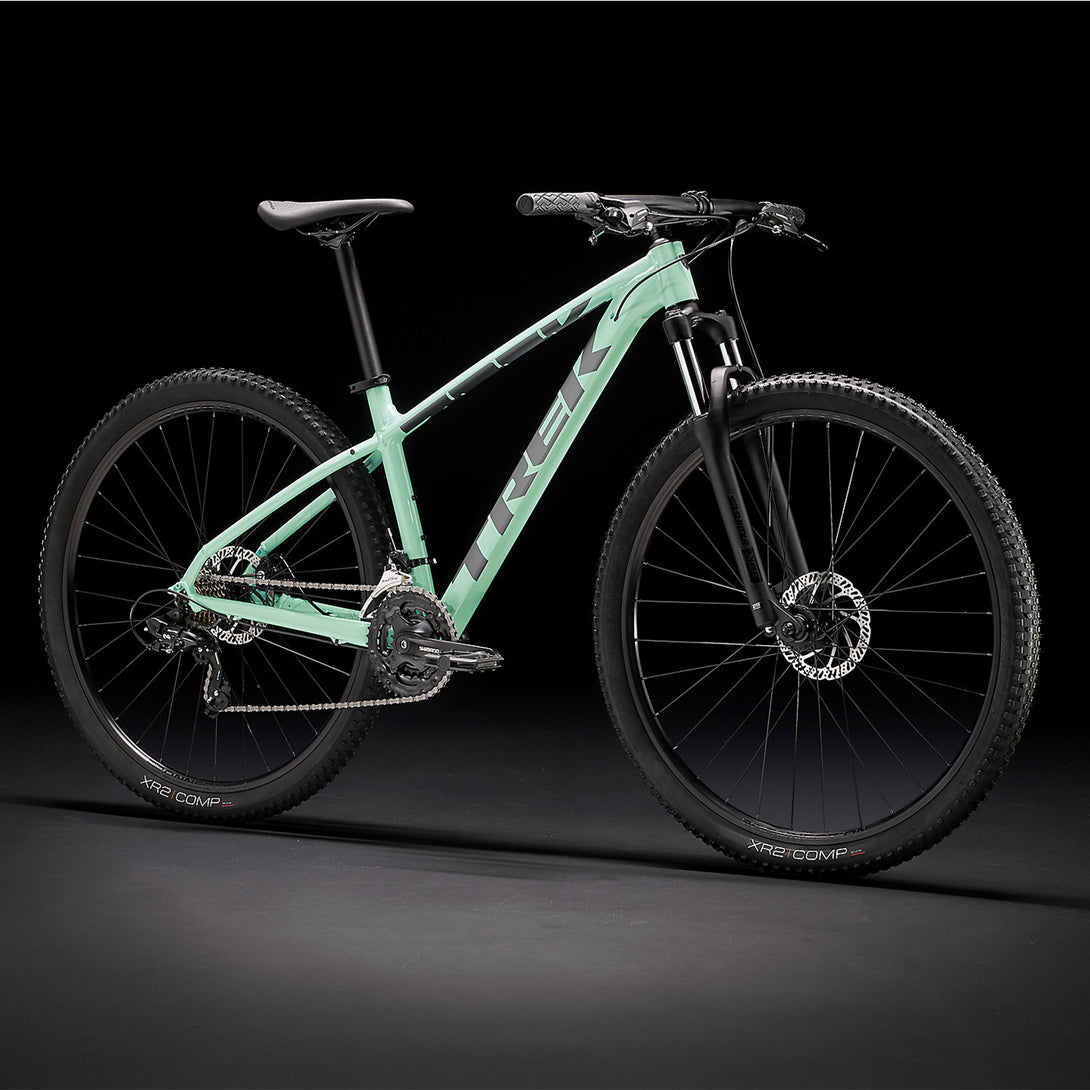

Marlin 4 Gen 2 2023 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
PRODUCT HIGHLIGHTS
Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.

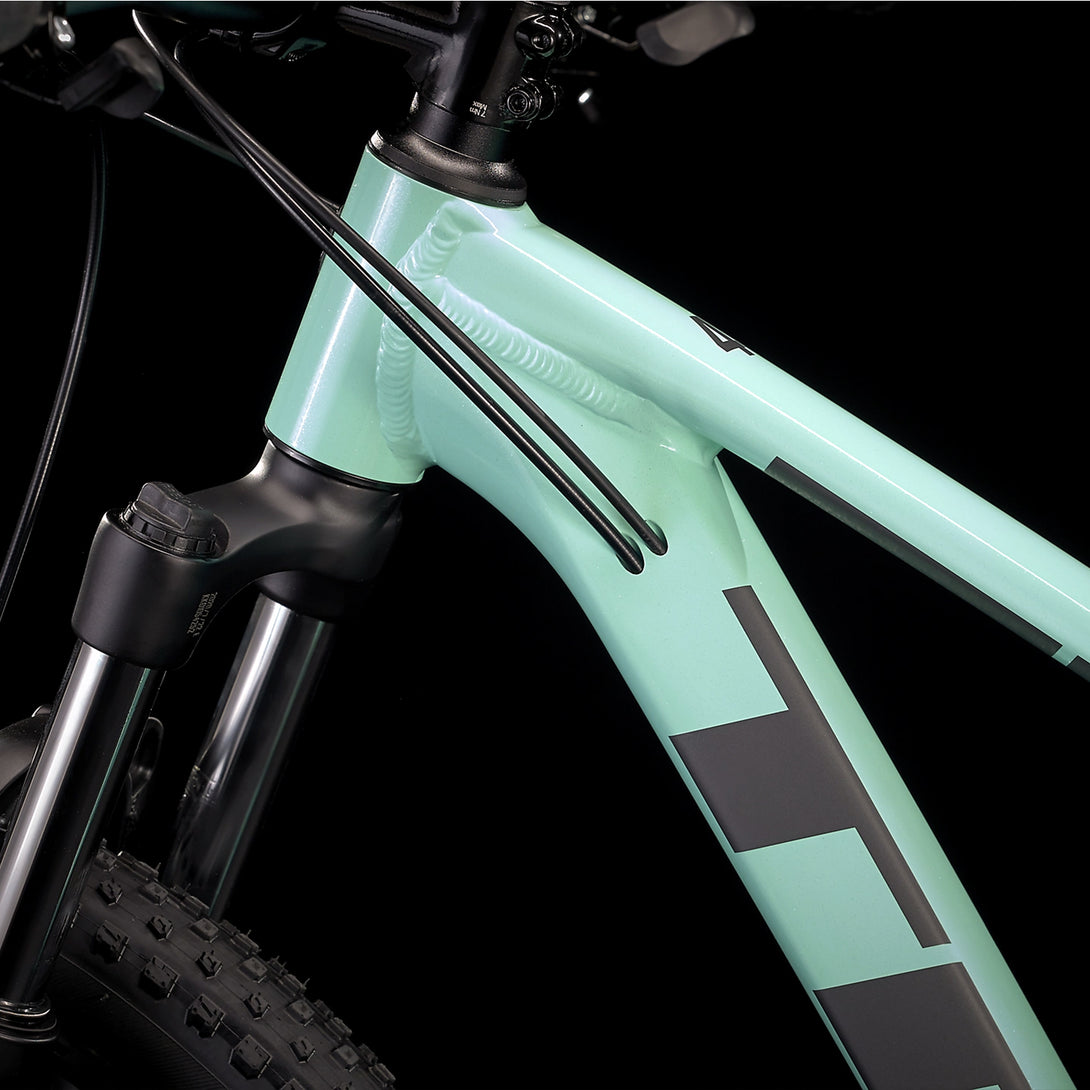

Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.

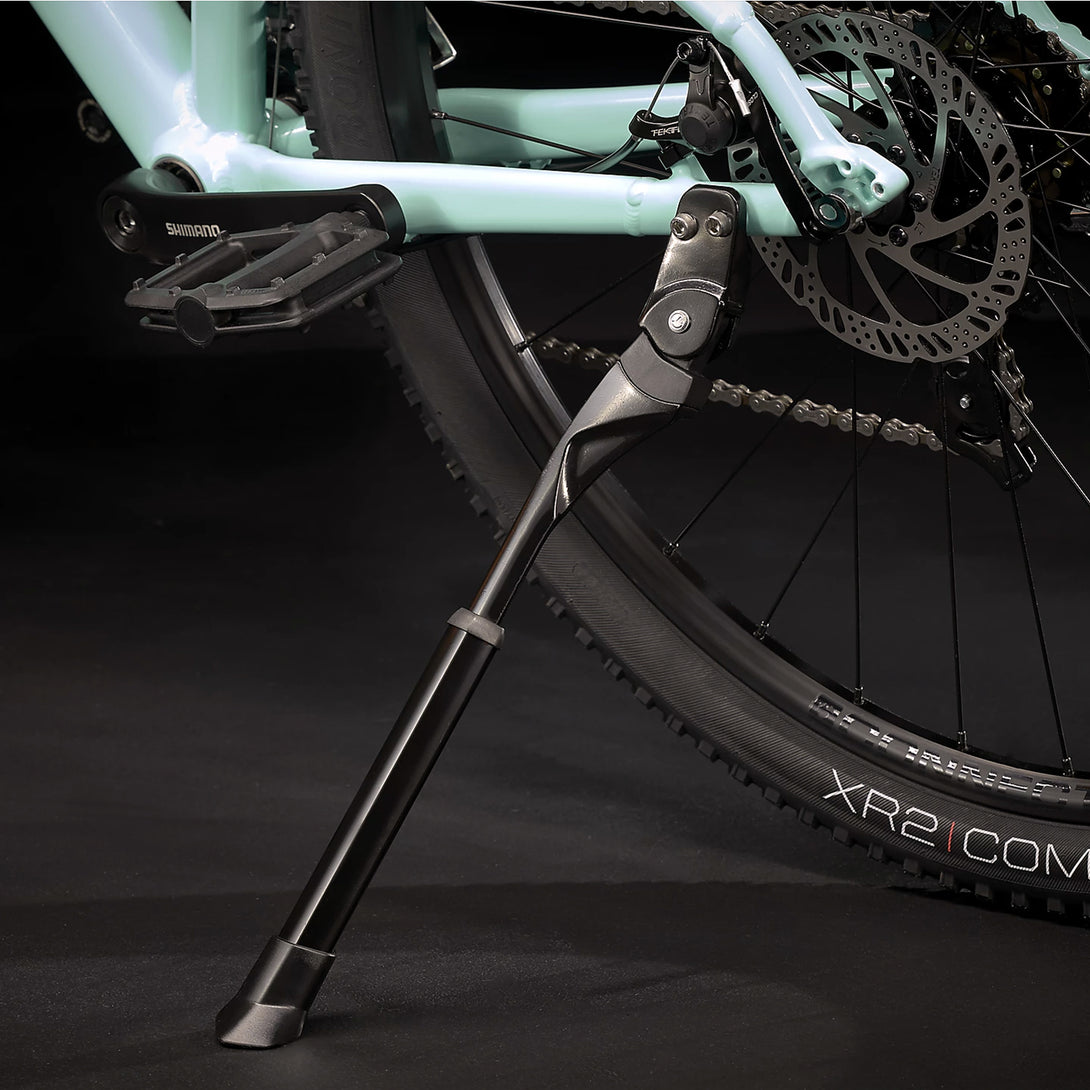

Rear Kickstand Mount, Chainstay mounts make it easy to install a rearkick standthat stays out of your wayand support bikes of all sizes, no more laying or leaning
Specifications :
| Frame Sizes: XXS - S | Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR | Frame Sizes: M - XXL | Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR |

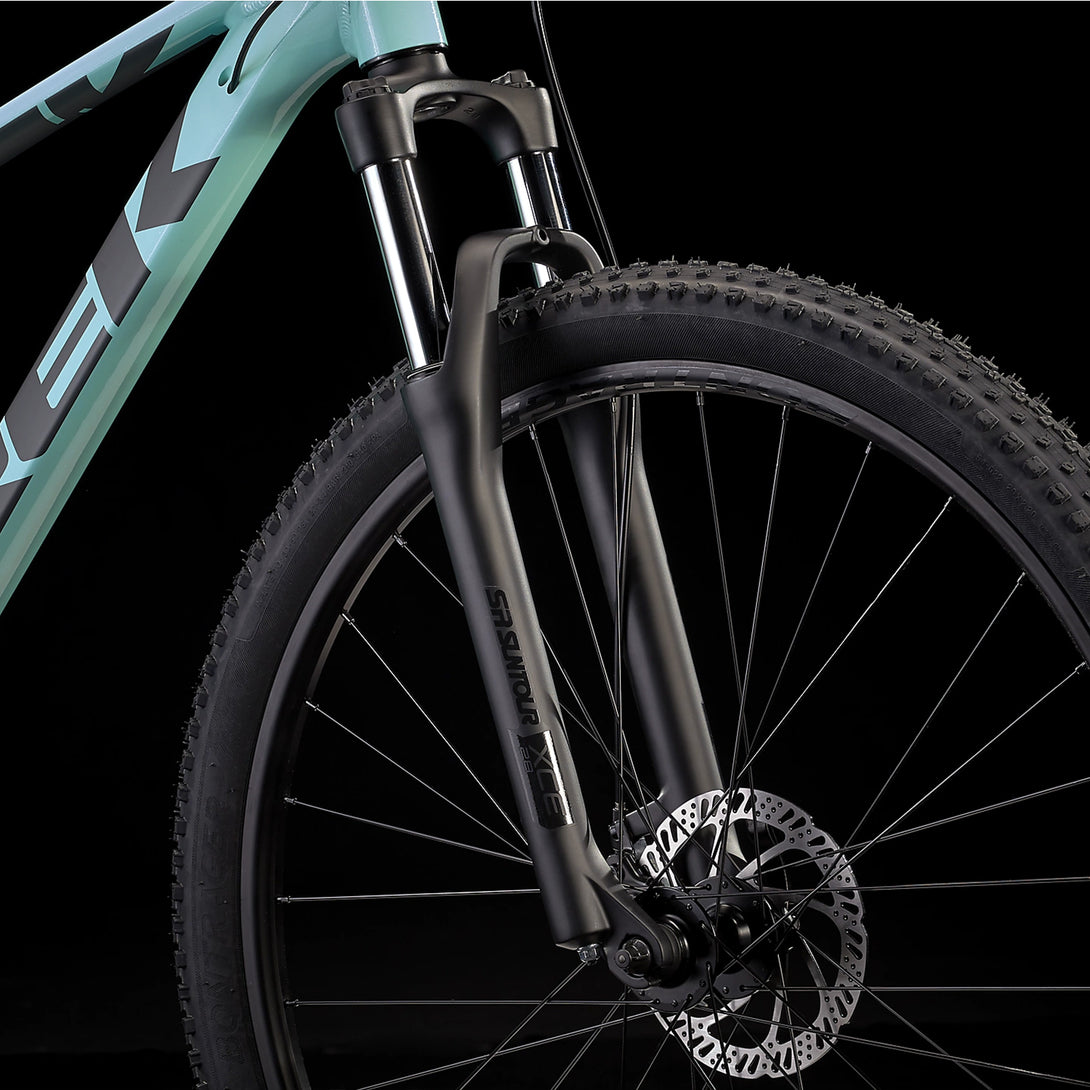

| Fork Frame Size S | SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel | Fork Frame Size M - XXL | SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
| Max Fork Travel |
100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
||
| Front Hub |
Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
Rear Hub | Formula DC-31, alloy, 6-bolt, 6/7/8-speed freewheel, 135x5 mm QR |
| Rear Skewer | 152x5 mm QR | Rim |
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Frame Size XS,S Tyre |

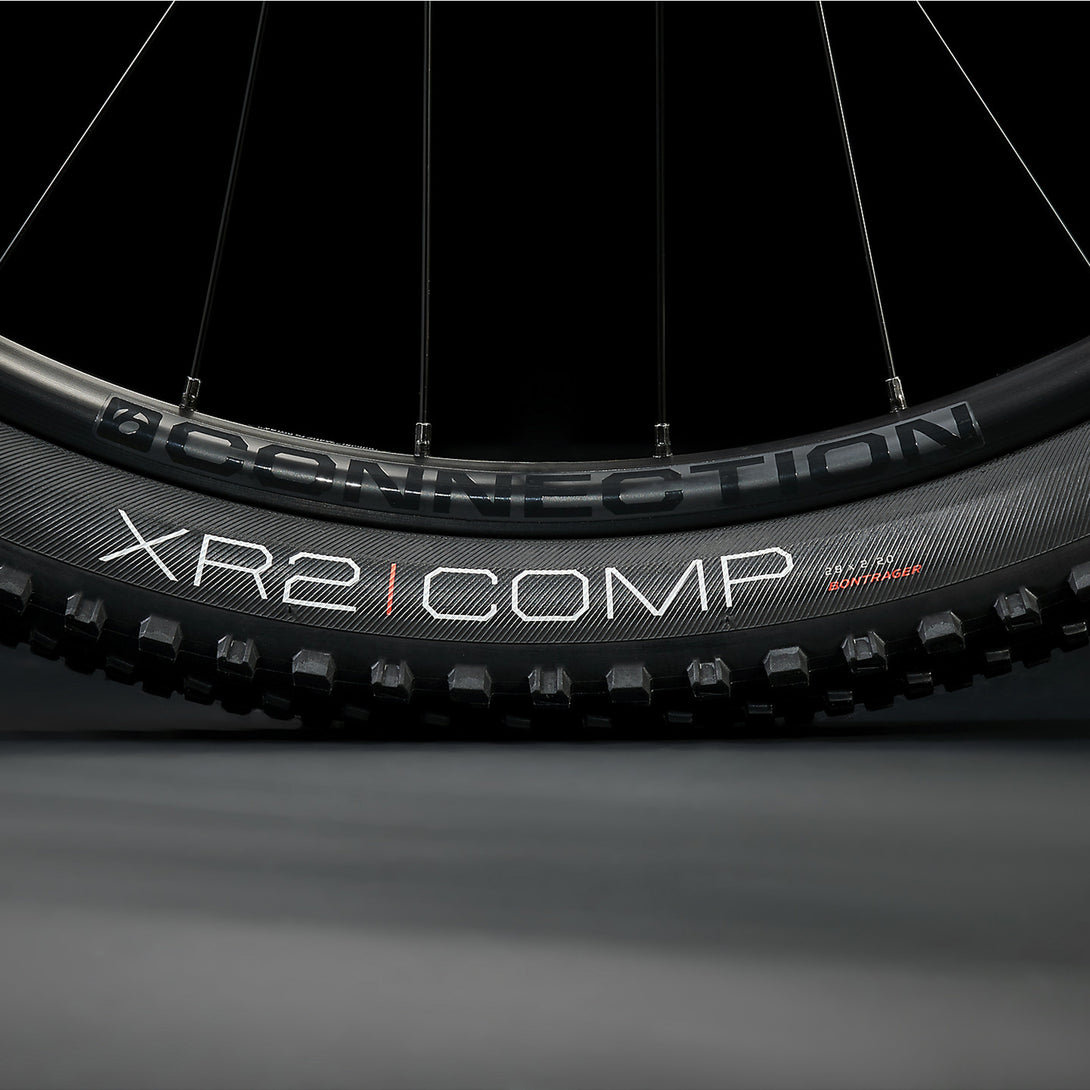

Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20" |
Frame Size M-XXL Tyre |
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20" |
| Max Tyre Size |
Frame: 29x2.20" (XS & S: 27.5x2.4") |
Shifter | Shimano Altus EF500, 7 speed |
| Front Derailleur |
Shimano Tourney TY300, 34.9 mm clamp, down swing, down pull |

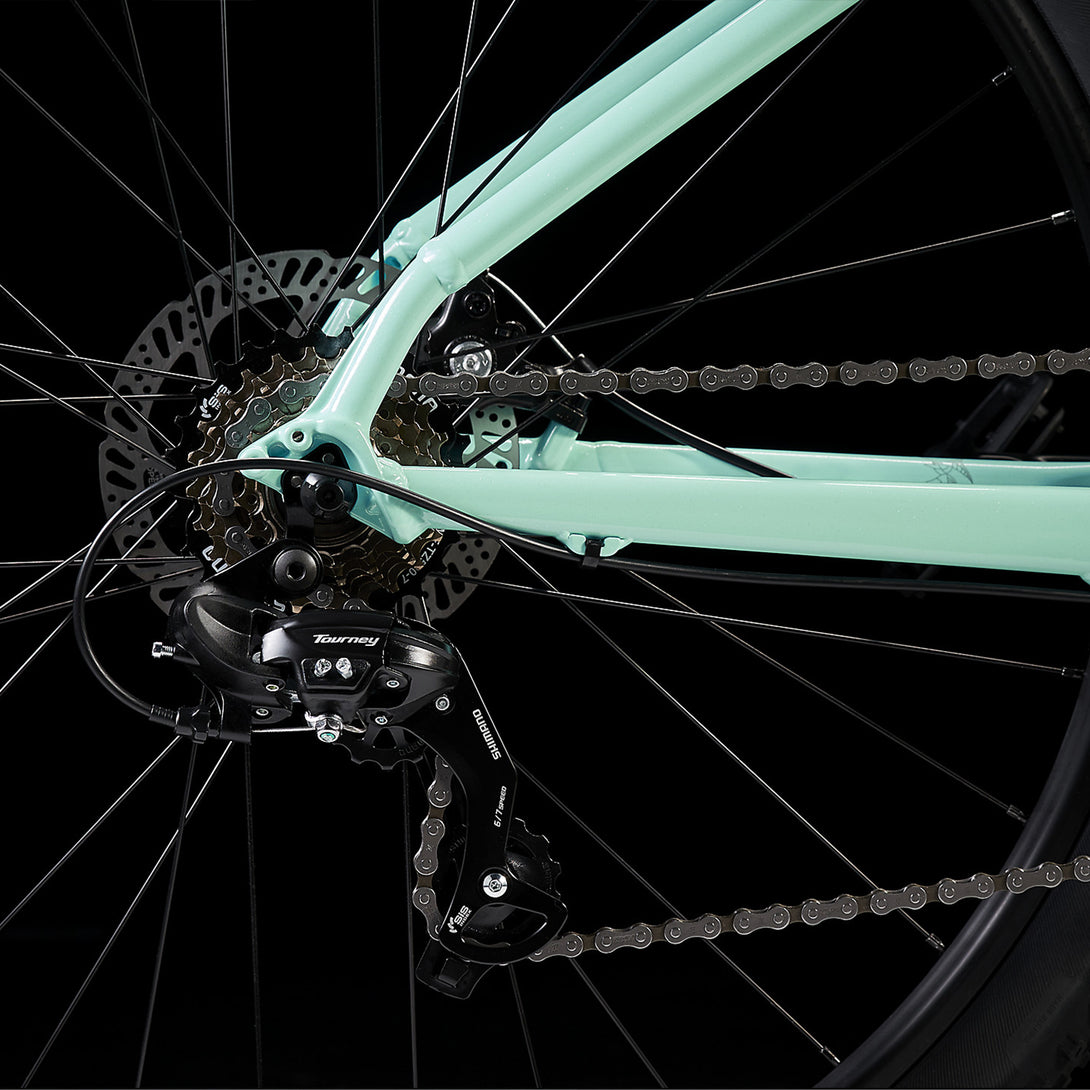

Rear Derailleur | Shimano Tourney TY300 |

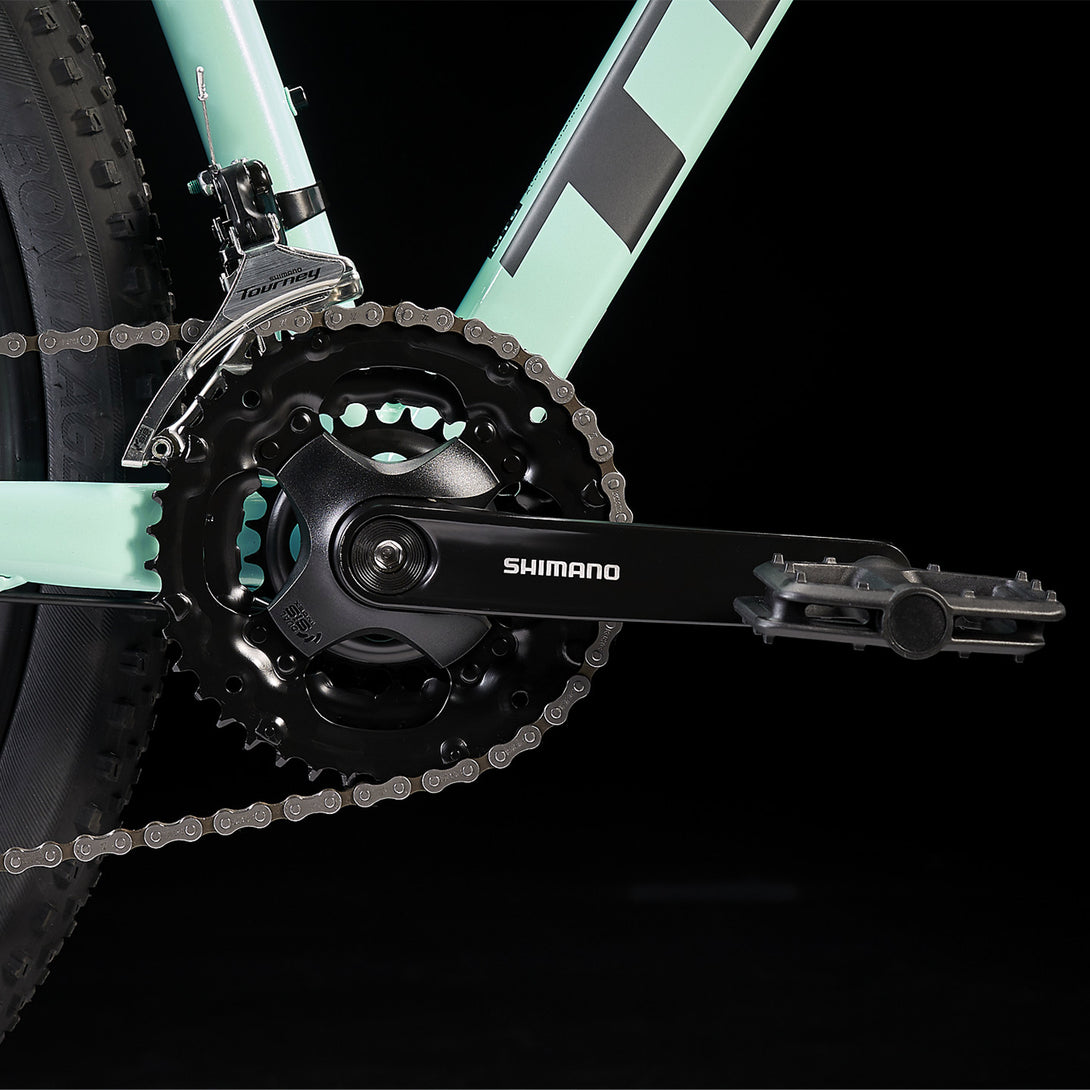

| Crank | Shimano Tourney TY301, 42/34/24, 170-175mm length | Bottom Bracket | VP BC73, 73 mm, threaded cartridge / Sealed cartridge, 73mm |
| Cassette |
Shimano TZ500, 14-28, 7-speed |
Chain |
KMC Z7, 7-speed |
| Max Chain Ring Size | 1x/2x: 34T, 3x: 42T | ||
| Saddle | Bontrager Arvada, steel rails, 138 mm width | Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 330-400mm length, Frame Size S-XXL |

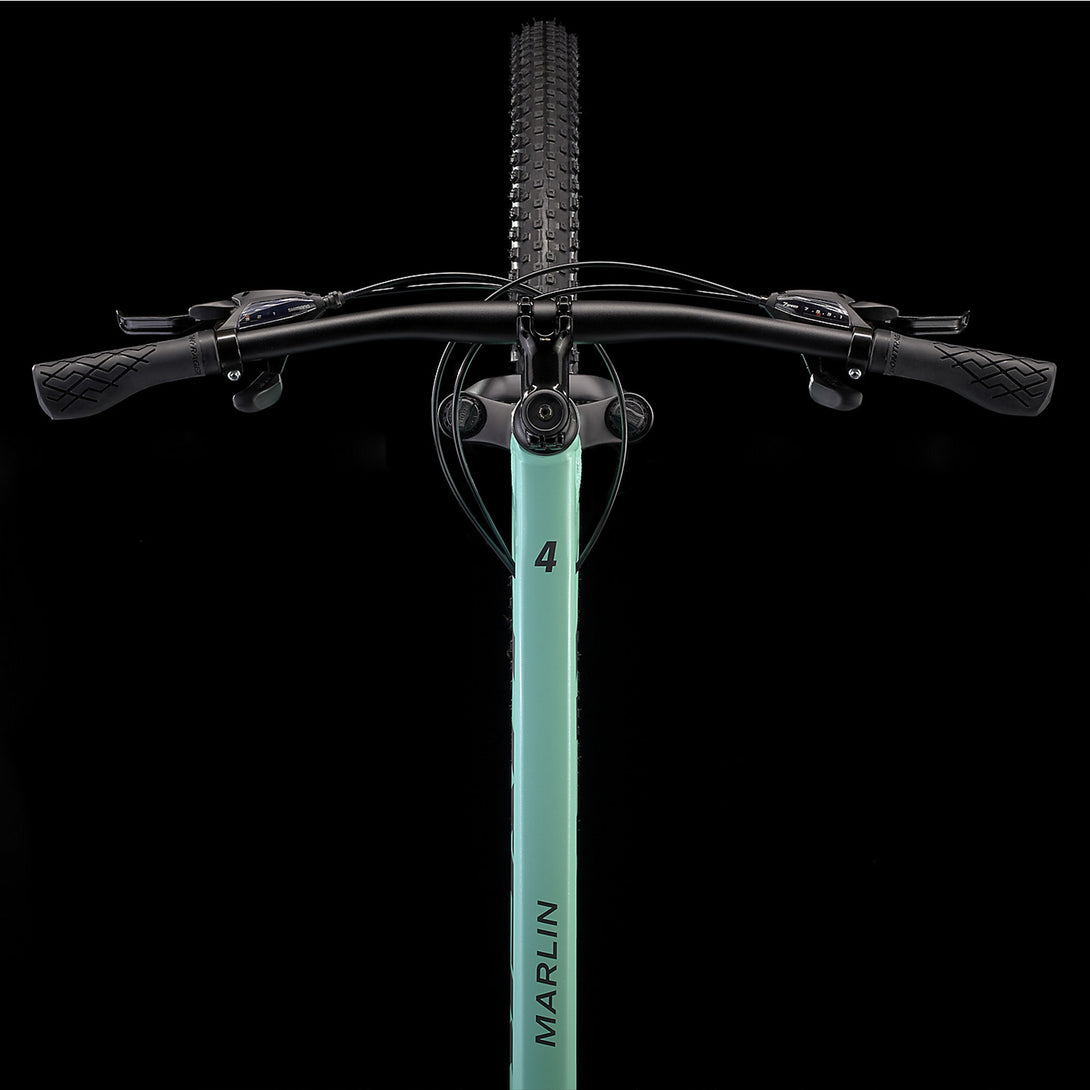

| Handlebar | Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width | Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60-90mm length, Frame Size S-XXL |
| Headset | Semi-integrated, 1-1/8" | Brake |

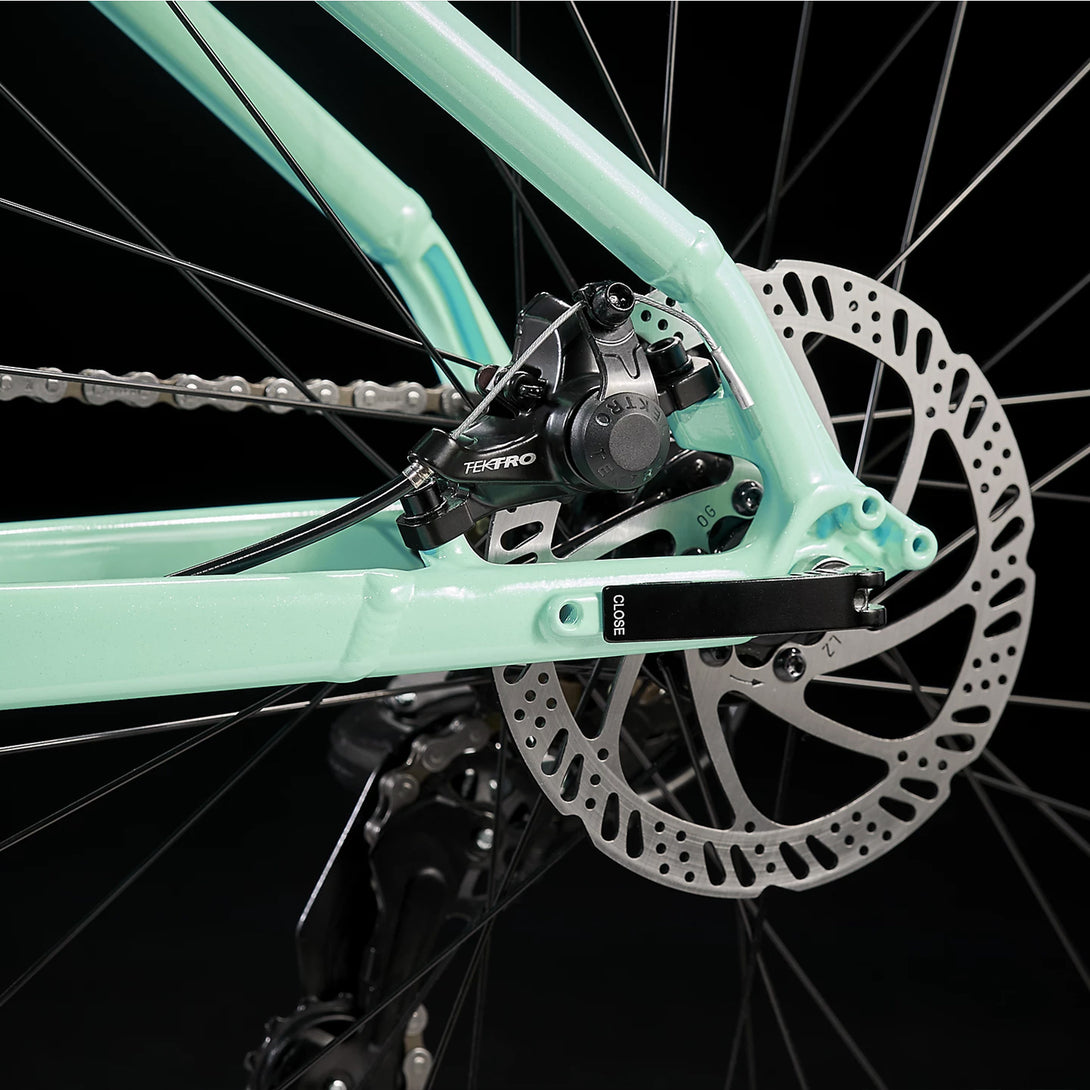

Tektro MD-M280 mechanical disc, 160 mm rotor / Tektro MD-M281 mechanical disc, 160 mm rotor |
| Brake Set | Mechanical disc, 160mm rotor | Weight | M - 13.97 kg / 30.81 lb |
Professionally assembled and ready to ride!
All bikes are assembled by our team of professional Cycle Souq technicians with quality checks at every stage to ensure the bike is delivered to you in perfect condition.
