ITALIAN TECHNOLOGY TAKING IT TO THE NEXT EVOLUTION

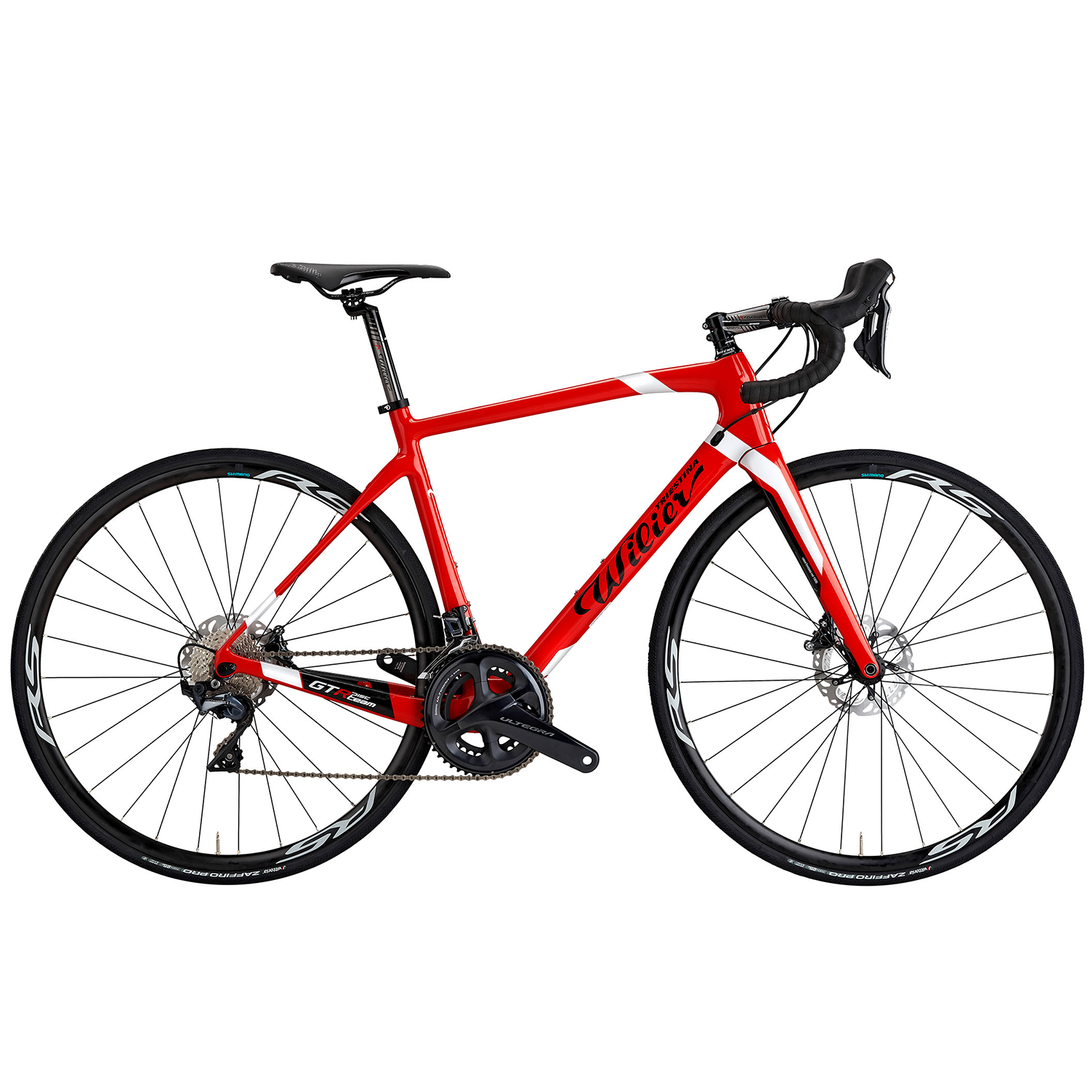

GTR TEAM DISC is a special version of GTR TEAM available with Flat Mount disc brakes, a new technology from Shimano. The rear triangle, in addition to being designed asymmetrically, is designed to accommodate 28mm tires, in line with the latest market trends that see strong growth in the disc gravel bike sector. GTR TEAM DISC can also be used in UCI races for the coming seasons.
Frame Size Guide :
| SIZE | C/C | L | H | A | H1 | L1 | A1 | REACH | STACK | |
| [cm] | [cm] | [cm] | [°] | [cm] | [cm] | [°] | [mm] | [mm] | ||
| XS | 39,5 | 51,1 | 45,0 | 75,0 | 11,4 | 40,6 | 71,0 | 373 | 515 | |
| S | 42,5 | 52,5 | 48,0 | 74,5 | 13,0 | 40,8 | 71,5 | 378 | 531 | |
| M | 44,5 | 54,1 | 50,0 | 74,0 | 14,8 | 40,8 | 72,0 | 383 | 549 | |
| L | 46,5 | 55,6 | 52,0 | 73,5 | 16,6 | 40,8 | 72,5 | 389 | 566 | |
| XL | 49,5 | 57,2 | 55,0 | 73,0 | 18,4 | 41,1 | 72,5 | 394 | 583 | |
| XXL | 52,5 | 58,7 | 58,0 | 72,5 | 20,3 | 41,1 | 72,5 | 399 | 602 |
Specifications :
| Drivetrain |
SHIMANO ULTEGRA R8020 |
|---|---|
| Wheelset |
SHIMANO RS171 |
| Frame |
GTR TEAM DISC - CARBON MONOCOQUE 46TON |
| Fork |
GTR TEAM DISC - CARBON MONOCOQUE 46TON |
| Handlebar |
FSA OMEGA |
| Stem | FSA OS-168 - CUSTOM WILIER |
| Headset |
RITCHEY COMP TAPERED PRD18228 |
| Shifters |
SHIMANO ULTEGRA ST-R8020 |
| Brakes |
SHIMANO ULTEGRA BR-R8070 |
| Rotors | SHIMANO ULTEGRA CENTER LOCK SM-RT800 160 MM / 140 MM |
| Frame Weight | 1190g + / -5% |
| Front Derailleur | SHIMANO ULTEGRA FD-R8000 |
| Rear Derailleur | SHIMANO ULTEGRA RD-R8000-SS |
| Crankset | SHIMANO ULTEGRA FC-R8000 50-34T |
| BB Shell | SHIMANO PRESSFIT BB-RS500-PB |
| Cassette | SHIMANO ULTEGRA CS-R8000 11-30T |
| Chain | SHIMANO ULTEGRA CN-HG701-11 |
| Tires | VITTORIA ZAFFIRO PRO 4 700X25 |
| Saddle | SELLE ITALIA MODEL X |
| Seatmast | FSA GOSSAMER SB20 |
| Fork weight | 390g + / -5% |
Professionally assembled and ready to ride!
All our bikes are assembled by our team of professional technicians at Cycle Souq with quality check at every stage to ensure the bike is delivered to you in perfect condition.
