The Look X-Track Race pedals are designed for cross-country and gravel riders seeking a high-performance, reliable, and versatile clipless pedal. With a lightweight composite body and a wide platform optimized for power transfer, they maintain an exceptional power-to-weight balance. Their SPD-compatible mechanism features excellent mud-shedding performance and a secure clip-in feel, even in demanding conditions. Adjustable tension lets you customize release force to your preference, ensuring consistent, accurate engagement on every ride.
FEATURES
Optimized support surface – 515 mm² contact area, providing 12% more coverage than previous models to enhance power transfer
Composite construction – Durable yet lightweight body suitable for rigorous off-road use
SPD-compatible system – Reliable engagement using standard Look X-Track or SPD cleats
Adjustable tension – Fine-tune entry and release tension across levels 6 to 14
Mud-shedding geometry – Designed to clear dirt and maintain consistent performance in muddy conditions
Lightweight performance – Engineered for the best combination of weight and platform support
SPECIFICATIONS
Body Material: Composite
Spindle: Chromoly+
Platform Area: 515 mm²
Platform Width: ~60 mm
Total Stack Height (Pedal + Cleat): 16.8 mm (10.7 mm pedal + 6.1 mm cleat)
Q-Factor: 53 mm
Retention Tension: Adjustable from 6 to 14
Float Angle: 6°
Release Angle: 13°
Weight: ~182 g per pedal; pair with cleats weighs approx. 468 g

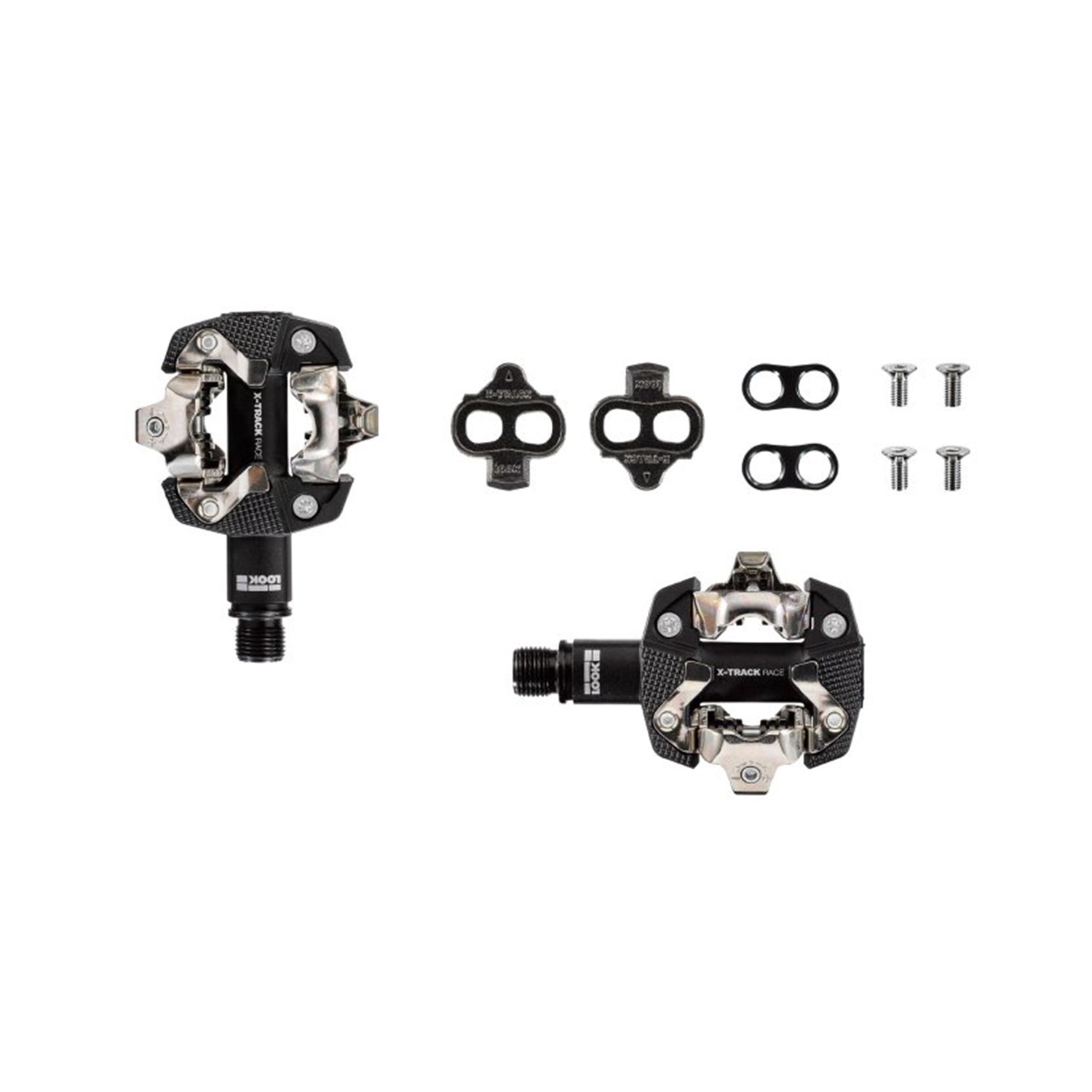

Included Accessories: X-Track or SPD compatibility cleats, mounting hardware
