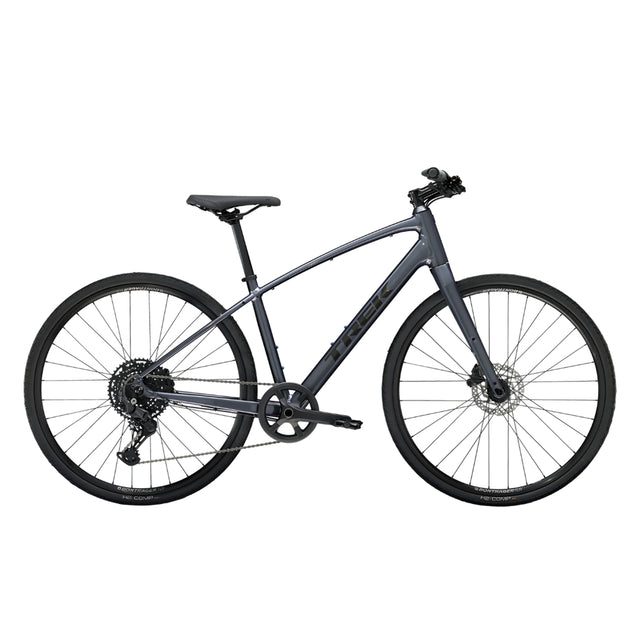

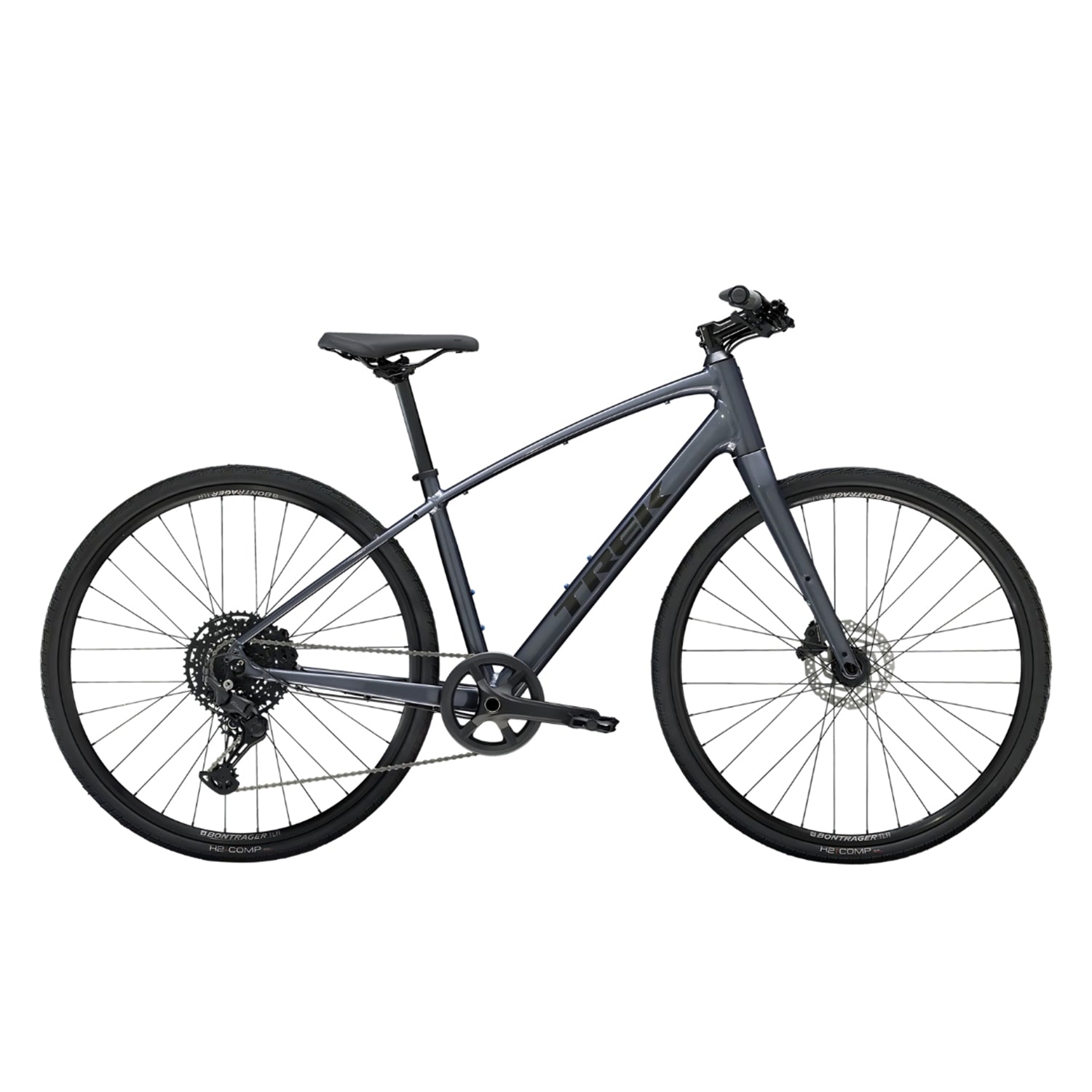

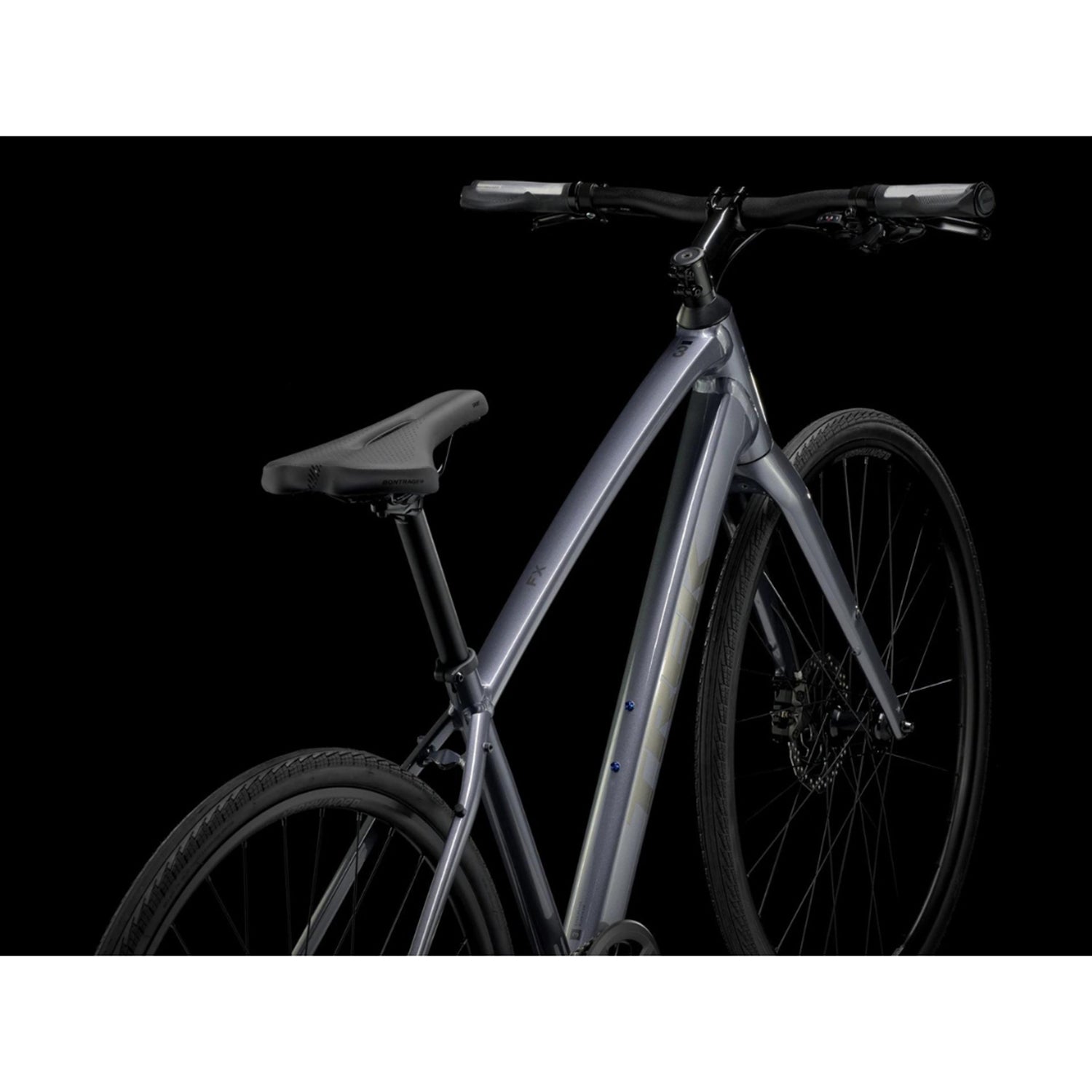

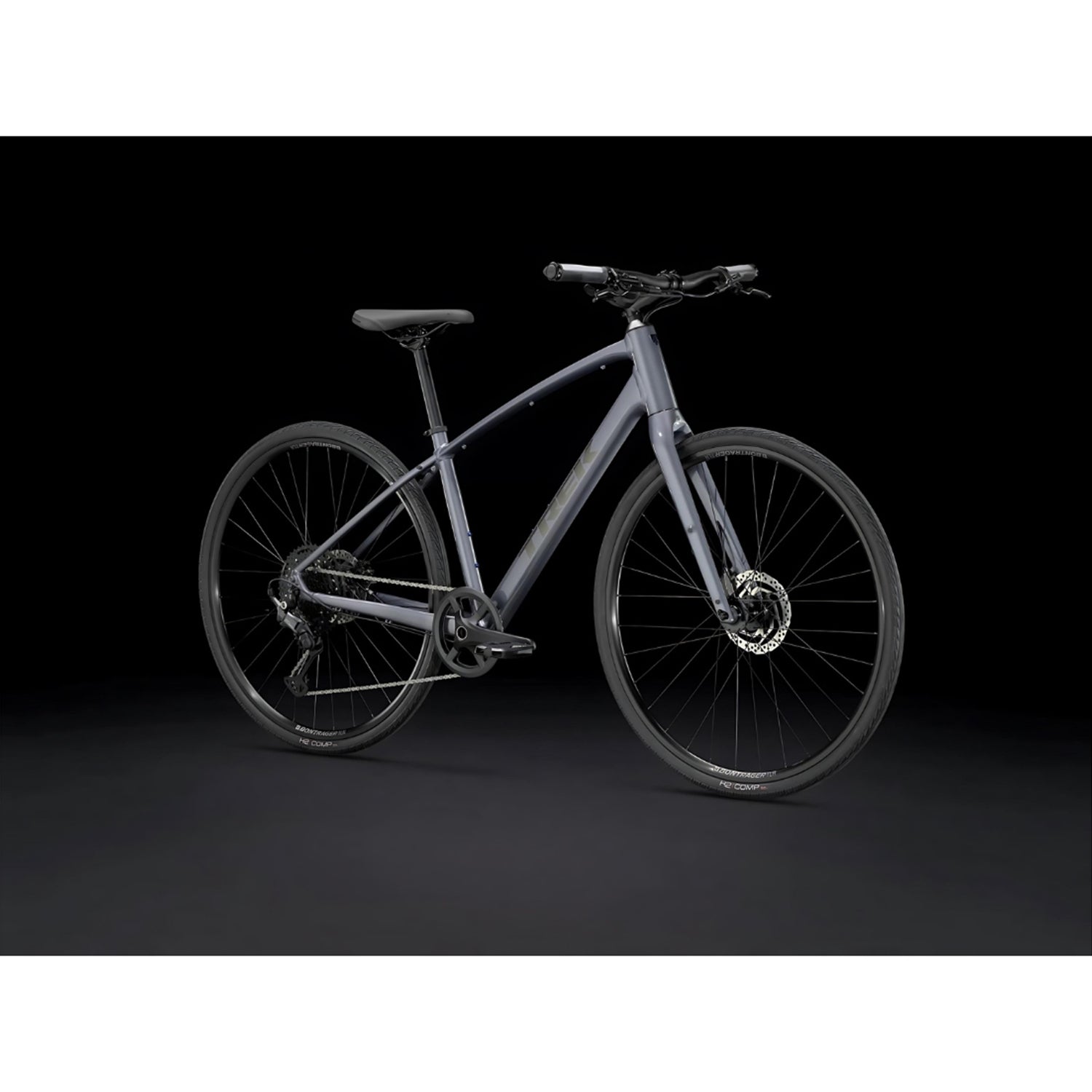

The FX 3 2024 is a versatile hybrid bike that's primed for performance, comfort, and utility. It has features like a lightweight aluminum frame, a carbon fork, a 1x drivetrain, and powerful disc brakes that stop in any weather. It's a commuting pro if you want it to be, or the perfect fitness companion on pavement and rail trails.
It's right for you if...
You're a commuter or fitness rider who’s having fun spending more time in the saddle. You want a great-looking bike that's versatile, comfortable, and built with quality parts that will perform on longer rides.
The tech you get
A lightweight aluminum frame, a carbon fork, hydraulic disc brakes for all-weather stopping power, and a simple 1x drivetrain that ditches the front derailleur for less clutter and easier operation. Don't worry, with the wide-range 11-46 cassette still gives you all the gears you need to conquer hills and crush flats. Plus, you get vibration-absorbing handlebars with ergonomic grips for more comfort on every ride.
The final word
FX 3 is a lightweight and fast fitness bike, commuter, and neighborhood cruiser all in one. For all the great things about this bike, the best tech upgrade is the simple-yet-capable 1x10 drivetrain.
PRODUCT HIGHLIGHTS

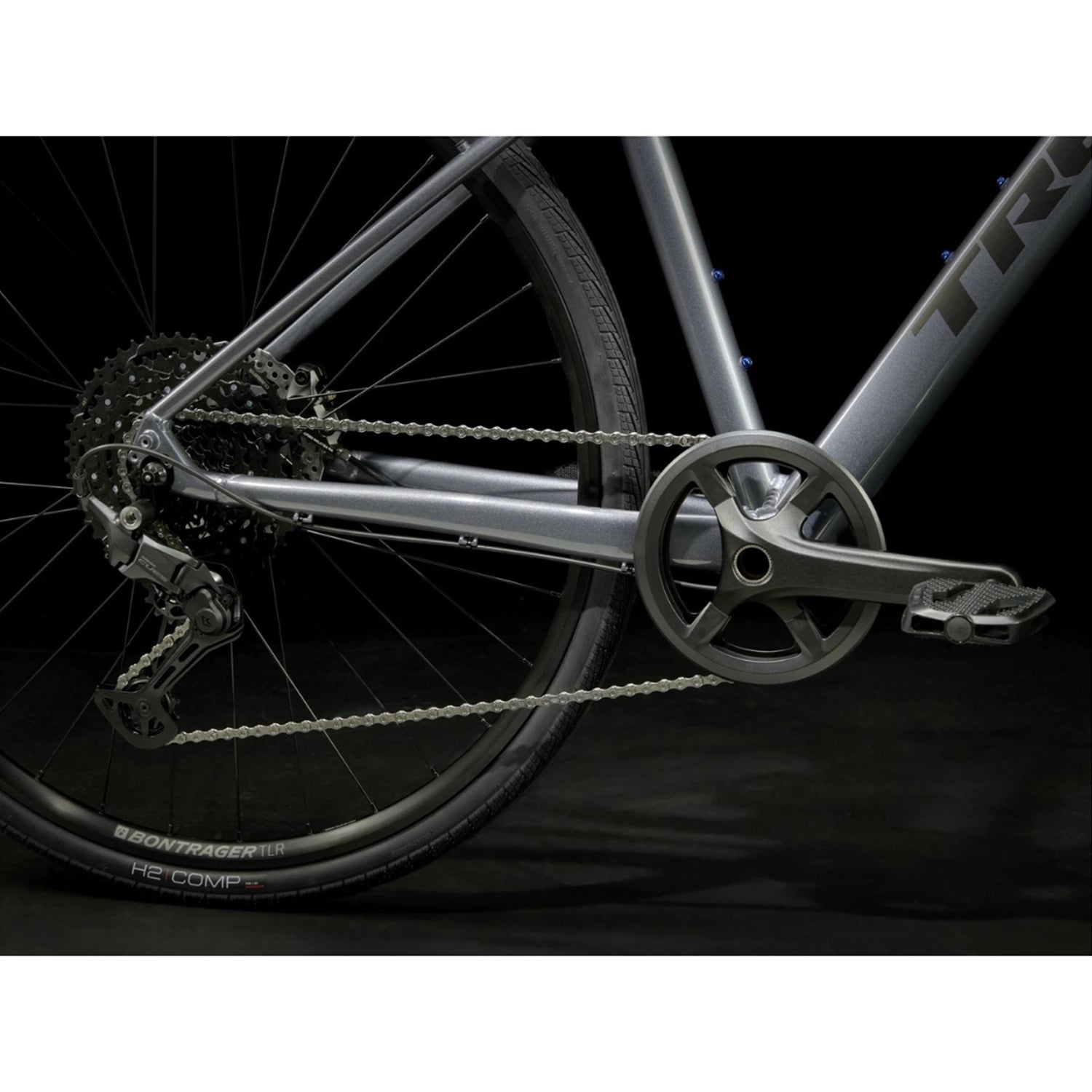

1x10 Shimano Cues drivetrain means more versatility, simpler shifting. You still have a wide range of gears, but with lighter and more intuitive shifting.
Internal Cable Routing - we route shift and brake cables through the frame to keep things clean and simple. And it looks great too.
Hydraulic Disc Brakes - FX 3 Disc offer the absolute strongest stopping power even in wet and muddy conditions.

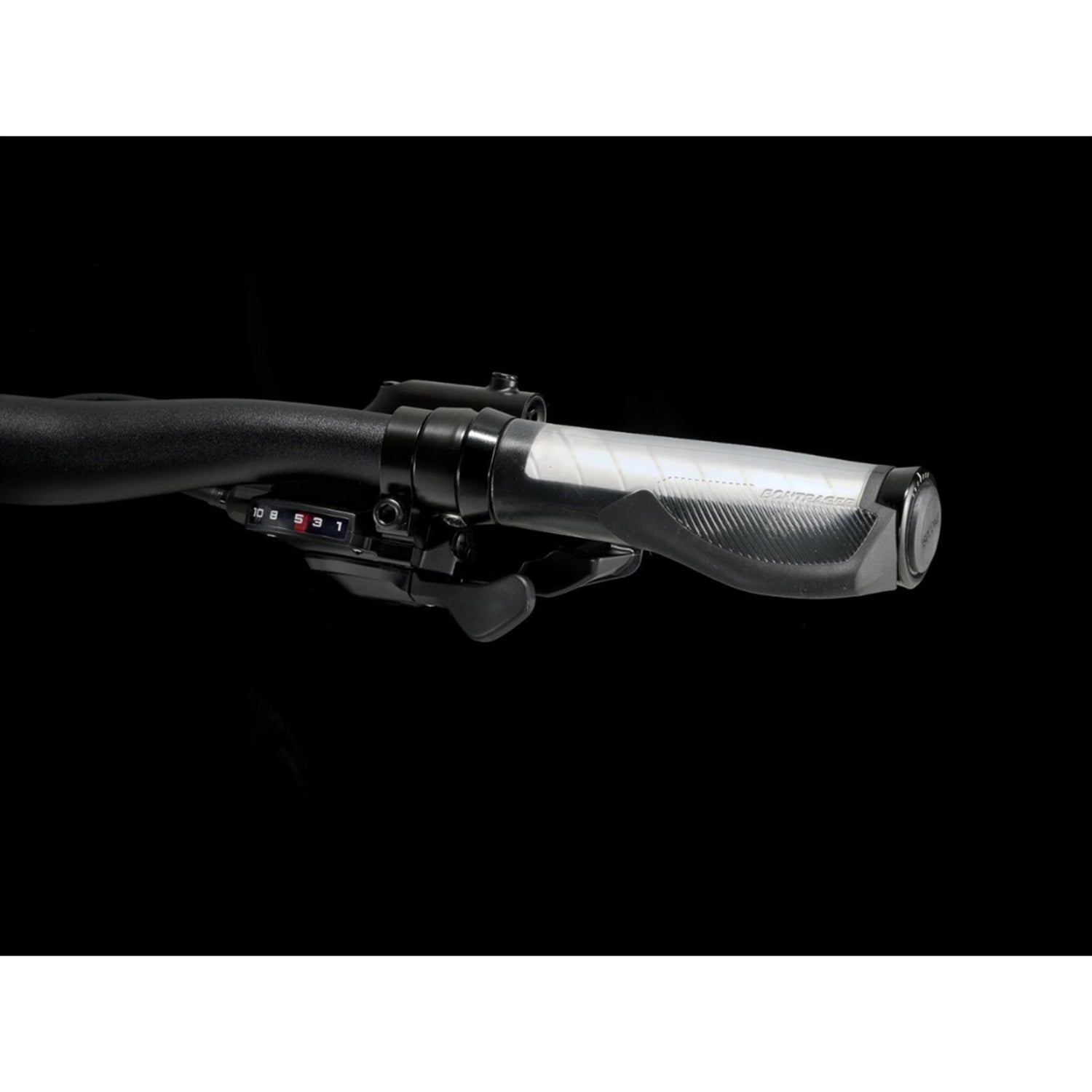

Isozone handlebar and grips - Suspension for your hands, our exclusive vibration-damping Isozone materials absorbs road bumps and buzz, giving you more control & an incredibly comfortable ride.
Specifications:

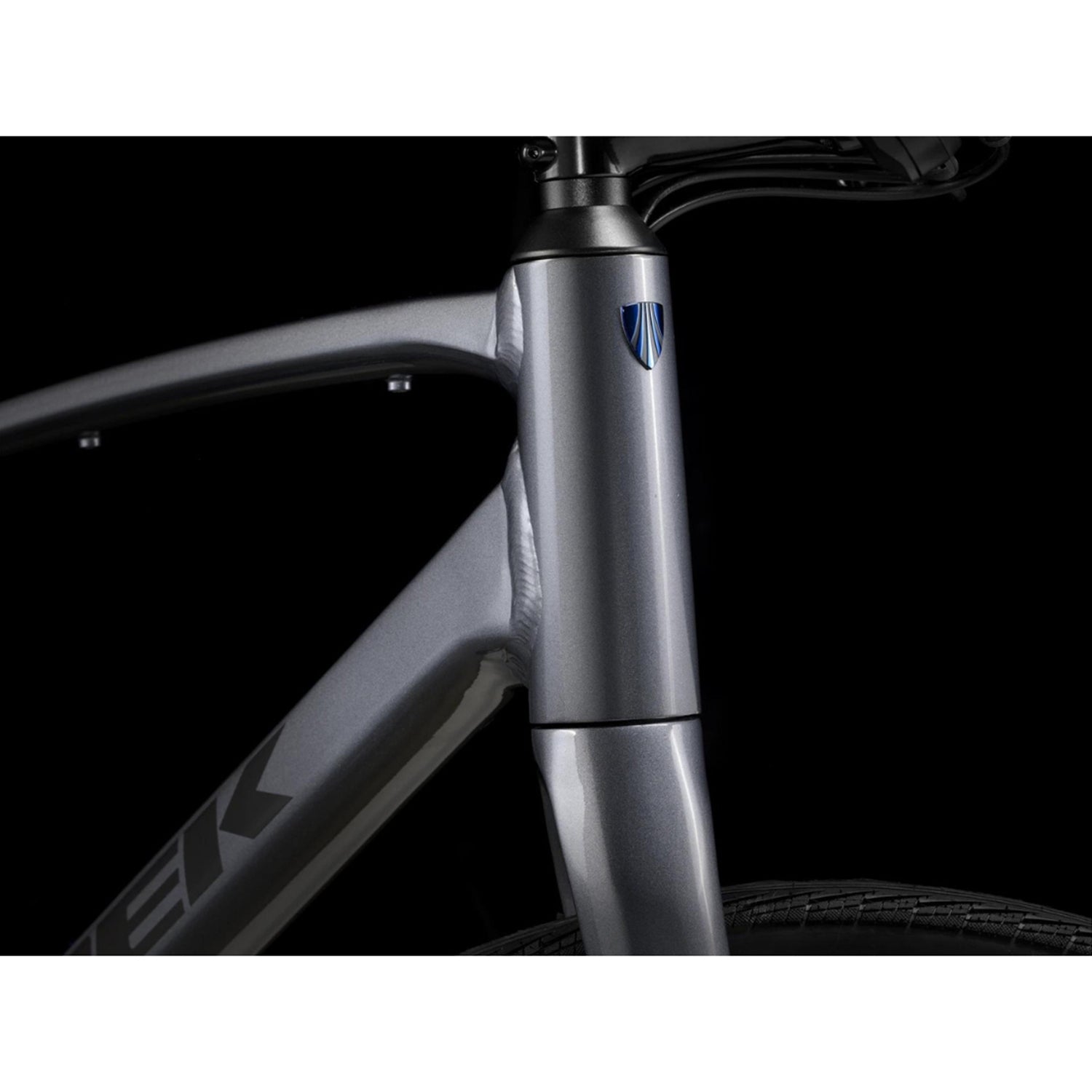

Frame: Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork: FX carbon, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR
Front Hub: Formula DC-20, alloy, 6-bolt, 5x100mm QR
Front Skewer: 139x5mm bolt-on
Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rear Skewer: 152 x 5mm QR

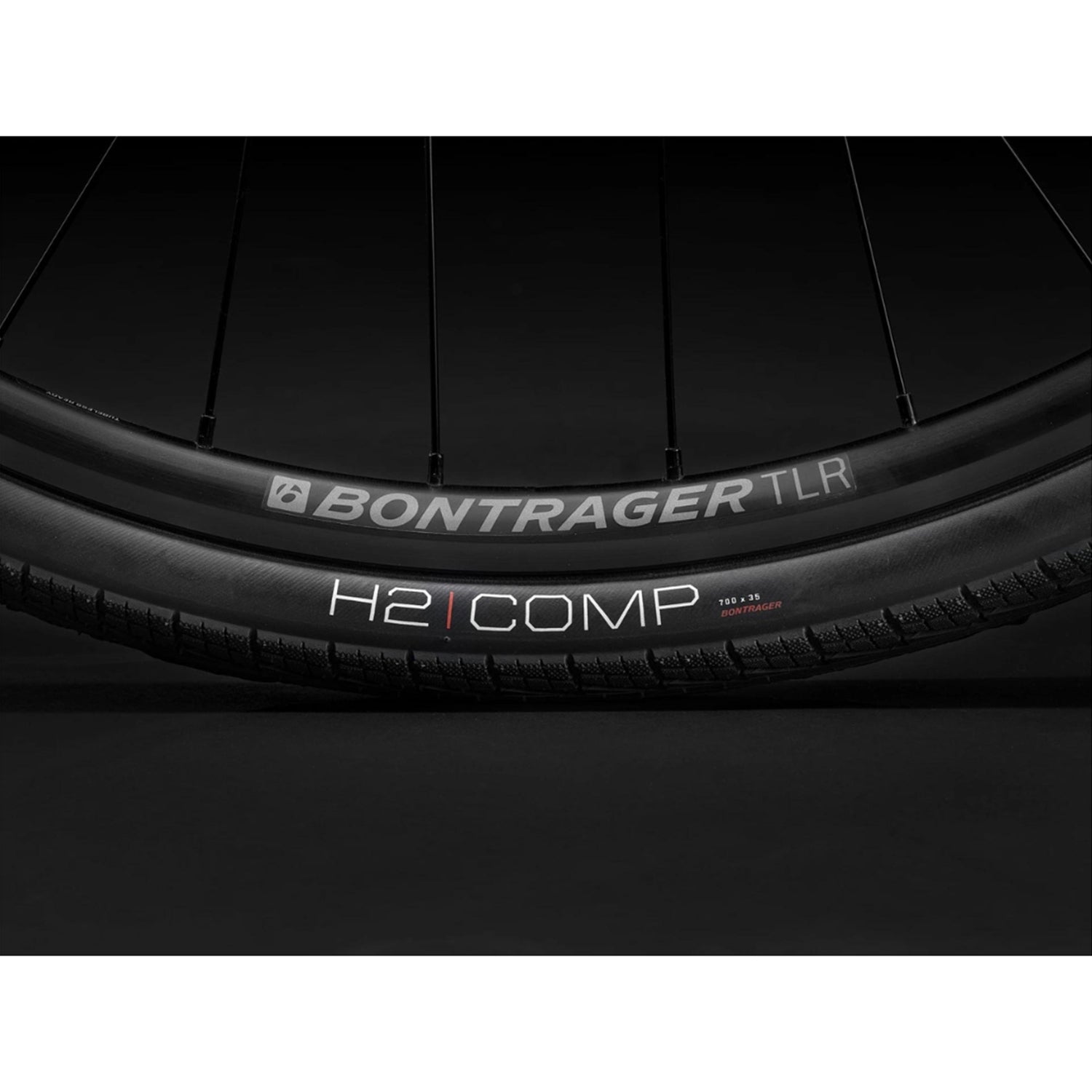

Rim: Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Tyres: Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Max Tyre Size: 700x40mm
Shifter: Shimano CUES U6000 w/optical gear display, 10 speed
Rear Derailleur: Shimano CUES U6000 GS
Crank: Prowheel alloy, 40T narrow-wide ring, 170mm length
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain: Shimano LG500, 9/10/11 speed
Pedal: Bontrager City
Max Chain Ring Size: 1x: 44T, 2x: 46/32

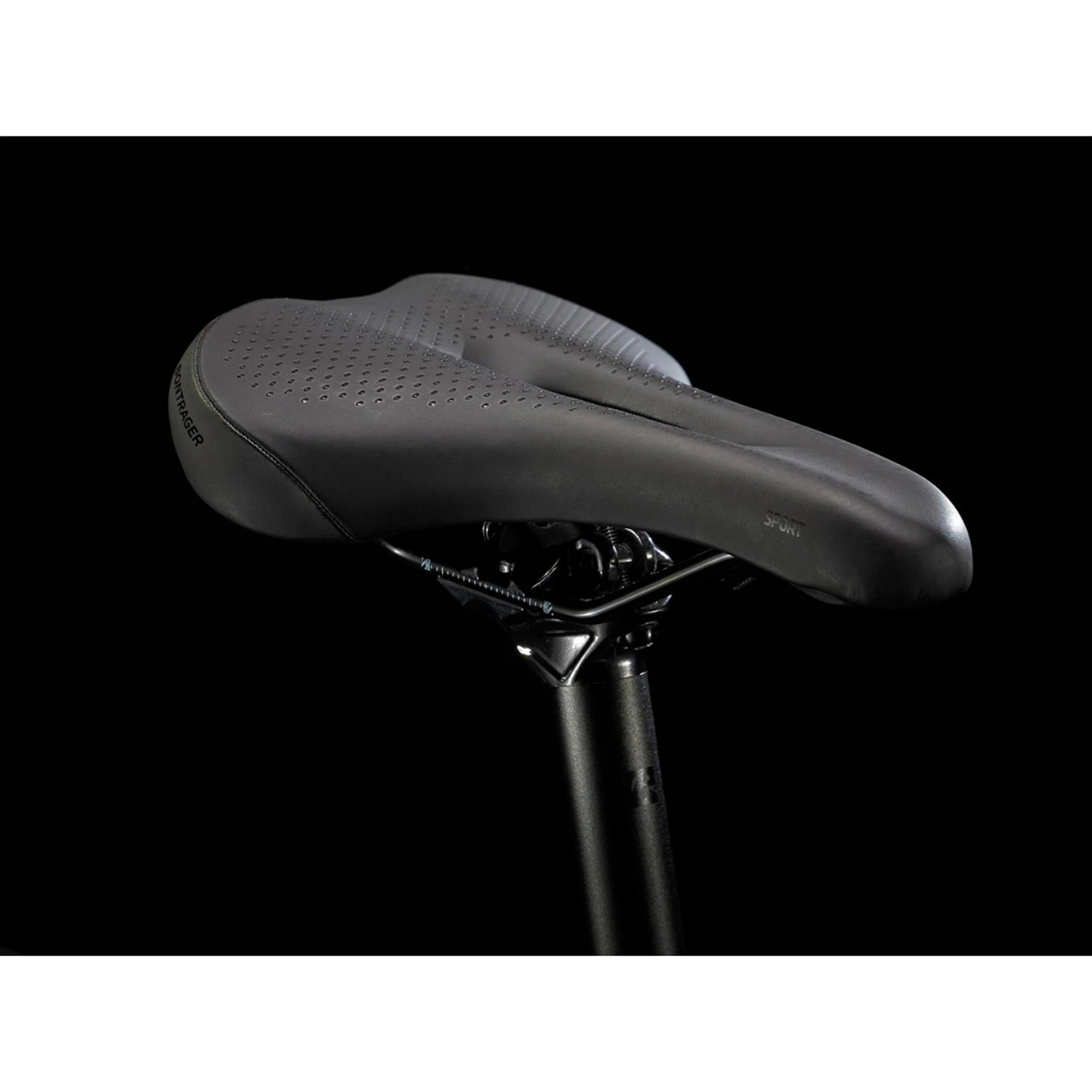

Saddle: Bontrager H1
Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length

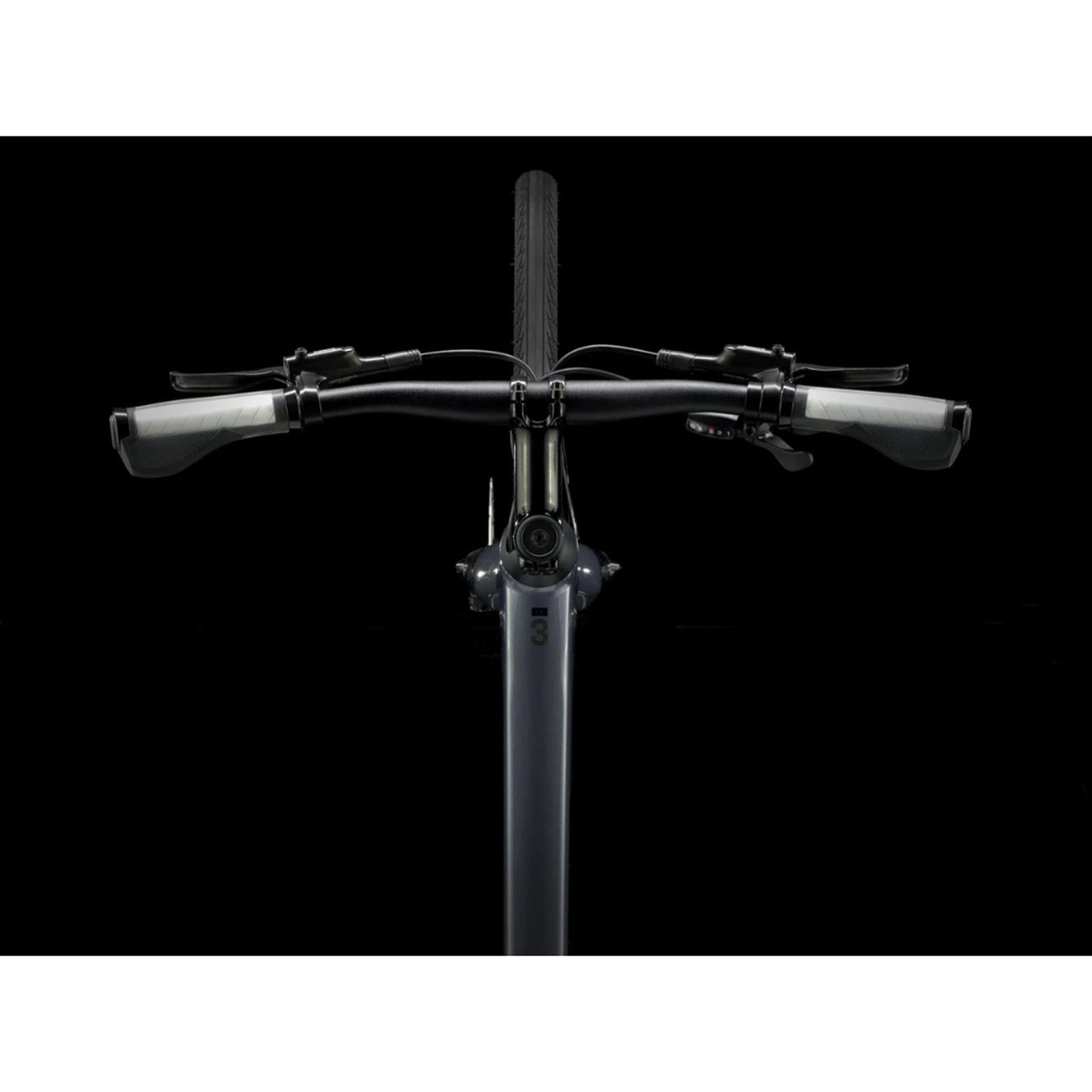

Handlebar: Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width
Grips: Bontrager Satellite IsoZone Plus, lock-on, ergonomic

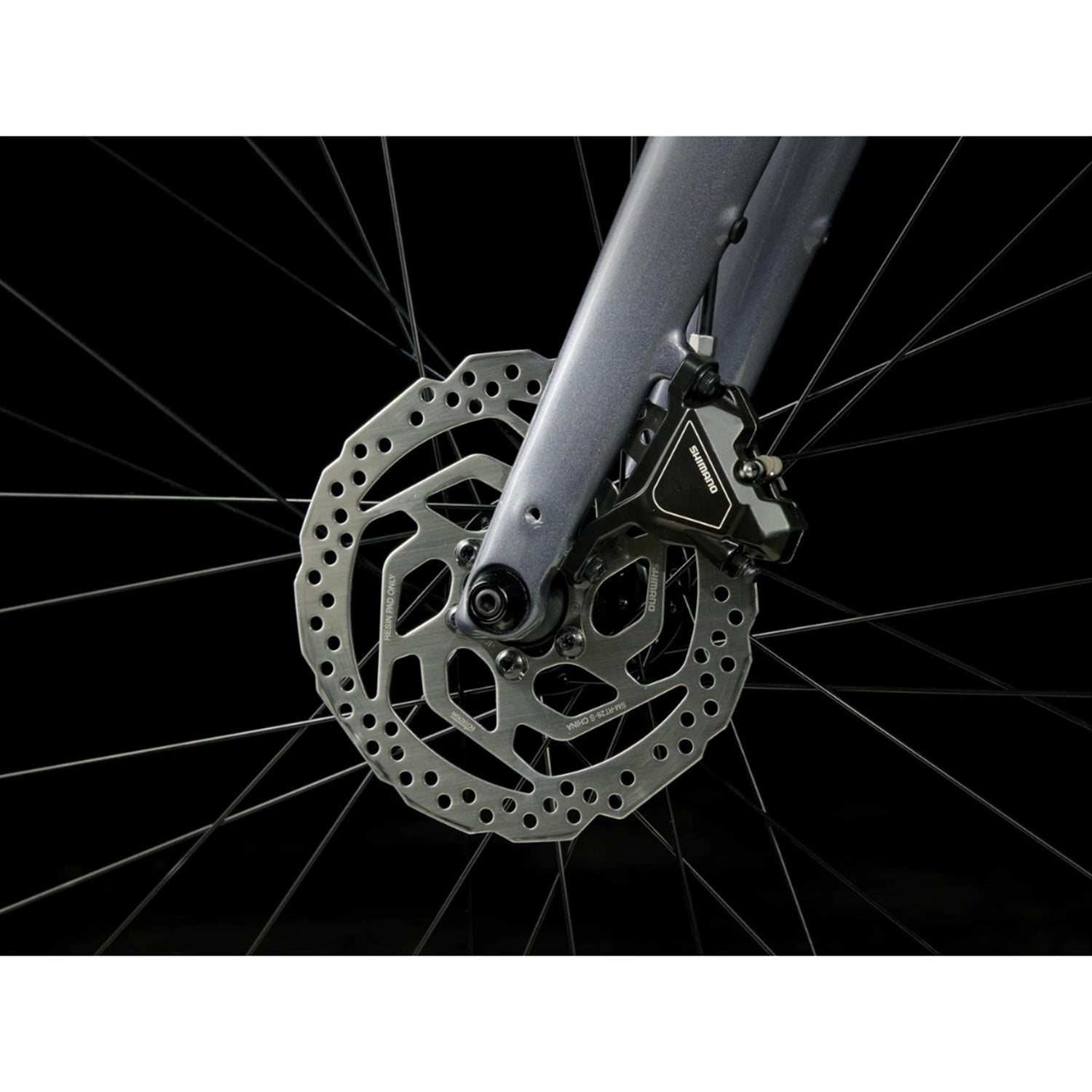

Brake: Shimano hydraulic disc, MT201 lever, UR300 caliper
Brake Rotors: Shimano RT26, 6-bolt, 160mm
Rotor Size: Max brake rotor sizes: 160mm front & rear
Weight: Approximately 11kg
