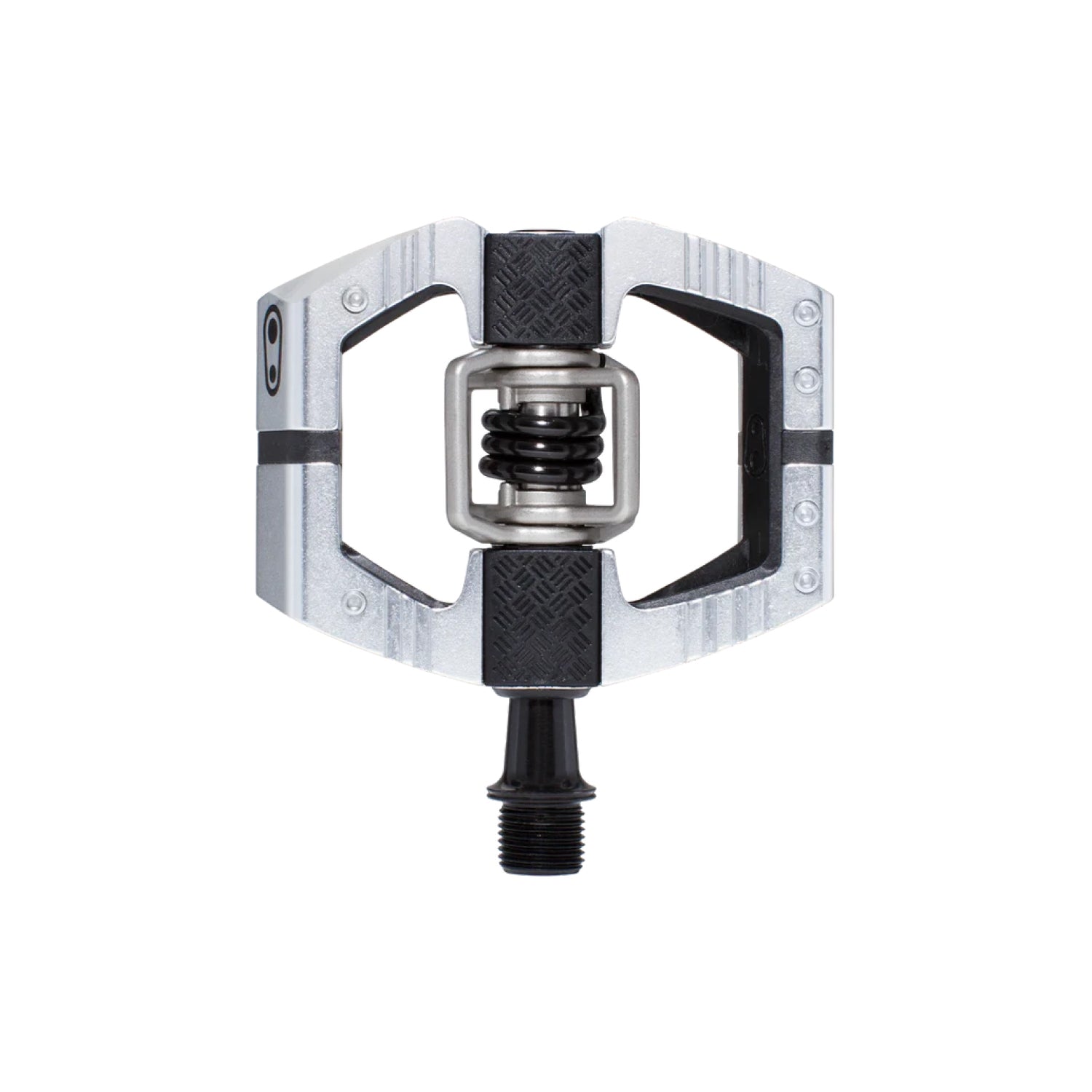

Crankbrothers Mallet E LS Enduro Pedal
The Crankbrothers Mallet E LS Enduro Pedal is designed for enduro and aggressive trail riders who want clipless efficiency with the added support and confidence of a platform pedal. Its concave 6061-T6 aluminium body, adjustable pins, and traction pad technology help create a secure shoe-to-pedal connection across technical terrain.
Built with 4-sided entry, superior mud shedding, customizable float and release angle, premium bearings, and a double seal system, the Mallet E LS delivers reliable engagement and control in demanding off-road conditions. With chamfered edges, ribbed traction, stainless steel wings, and a strong forged chromoly spindle, it is made for riders who need confidence on tight trails, rough descents, and enduro riding.
FEATURES
Enduro Platform Design: Built for aggressive trail and enduro riding with a stable platform and secure clipless control.
Concave Platform: Concave pedal body supports a secure foothold and helps keep the shoe positioned confidently on the pedal.
Adjustable Grip Pins: 6 adjustable pins per side allow riders to fine-tune grip and shoe support based on riding style.
Traction Pad Technology: Integrated traction pads help optimize the shoe and pedal interface for improved connection and control.
Ribbed Pedal Body: Ribbed body design improves traction when riding unclipped or repositioning the foot quickly.
Chamfered Edges: Angled pedal edges help reduce rock strikes when riding through technical terrain.
4-Sided Entry: Easy clip-in access from four sides makes engagement faster and more convenient on the trail.
Superior Mud Shedding: Open pedal design helps clear mud and debris for reliable performance in wet and rough conditions.
Premium Bearing System: Igus LL-glide inner bearing and Enduro MAX cartridge outer bearing support smooth and durable rotation.
Standard Release Cleats Included: Supplied with 15° / 20° standard release cleats and 6° float for a complete clipless pedal setup.
SPECIFICATIONS
Body Material: 6061-T6 aluminium
Wing Material: 17-4PH stainless steel
Spindle Material: Forged SCM 435 chromoly steel
Spring Material: 300 series stainless steel
Platform Shape: Concave platform
Footprint: 94 mm x 75 mm
Spindle Length: 57 mm
Q-Factor: 57 mm
Adjustable Pins: 6 per side
Entry System: 4-sided entry
Mud Clearance: Superior mud shedding design
Float: 6°
Release Angle: 15° / 20°
Included Cleat Type: 15° / 20° Standard Release cleats with 6° float
Inner Bearing Type: Igus LL-glide bearing
Outer Bearing Type: Enduro MAX cartridge bearing
Seal System: Double seal system
Endcap: Hex alloy
Maximum Rider Weight: No restriction
Weight: 424 g per pair
