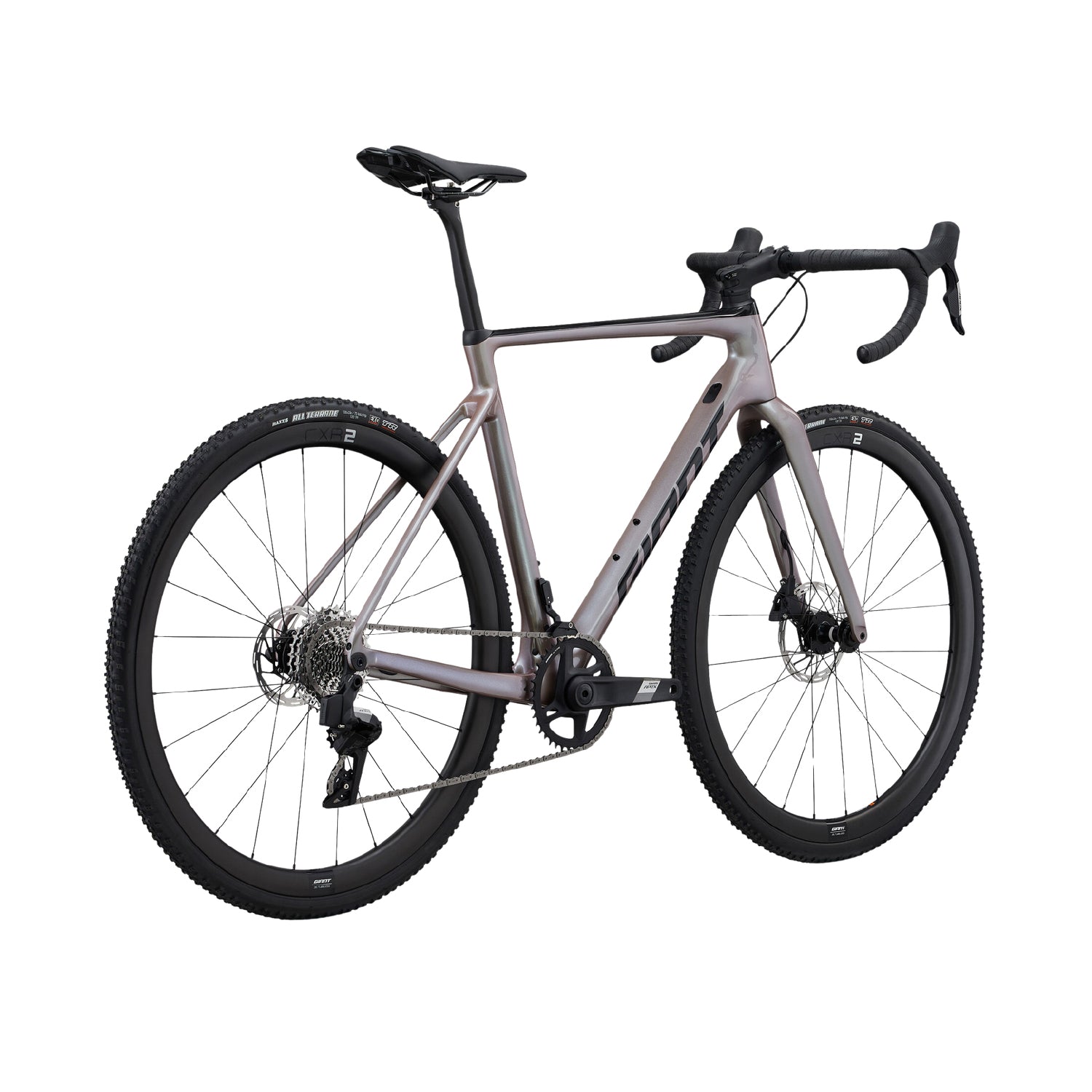

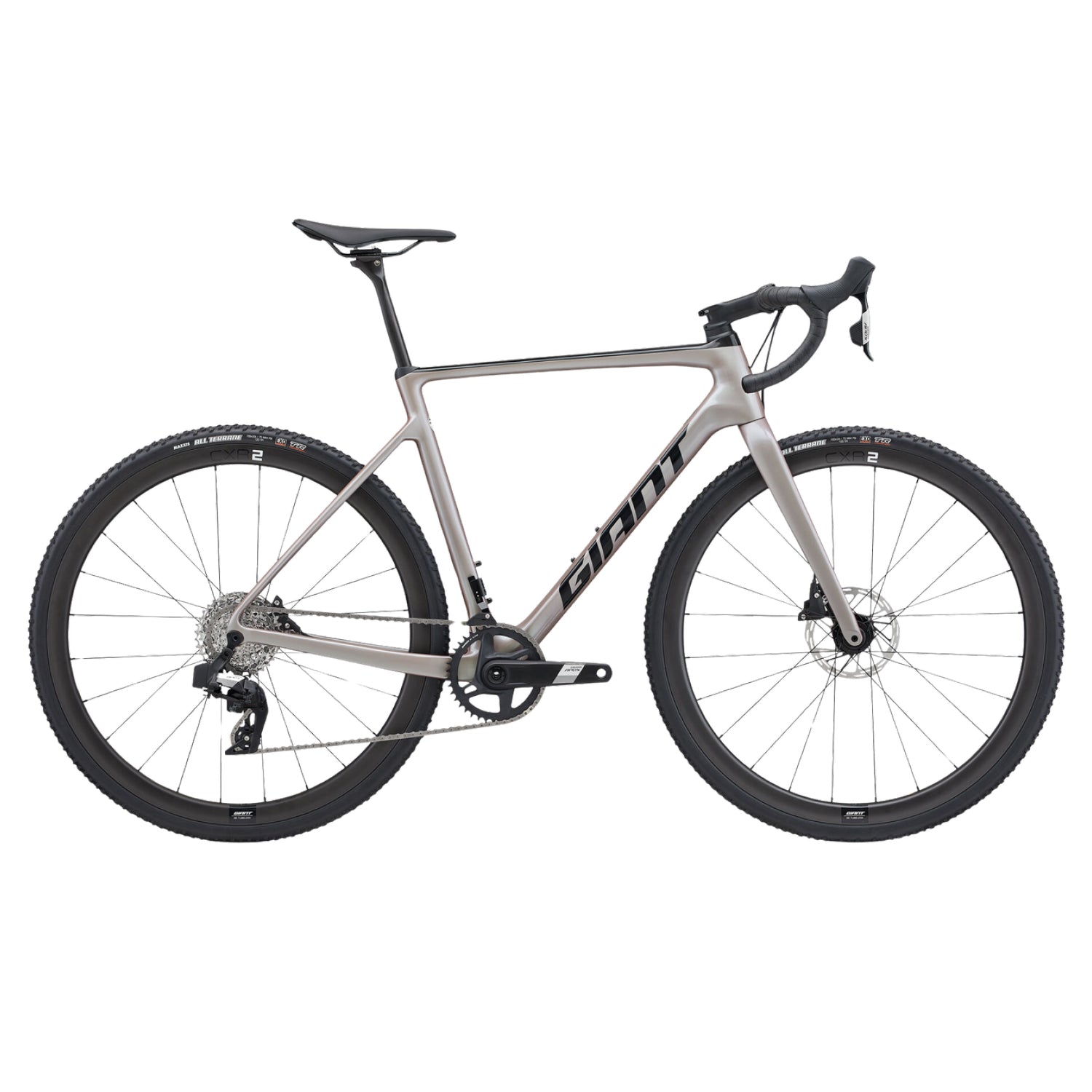

Giant TCX Advanced Pro 1 SRAM Apex AXS Gravel Bike
Fast starts, tight corners, a blur of speed through dirt, sand and mud. Proven by elite cyclocross pros for years, the latest TCX Advanced Pro is built to win.
Key Performance Factors
Elite Level Efficiency
Advanced-grade composite frameset is 17.5 percent lighter than the previous generation while retaining its best-in-class torsional/pedaling stiffness.
Total Control
Integrated disc brake technology with flat mounts and thru-axle hubs, combined with tubeless ready Giant WheelSystem, delivers added control in variable conditions and all types of weather.
Smooth Ride Quality
D-Fuse composite seatpost helps absorb bumps and vibrations, and you also have the option to switch to a standard 30.9mm round or dropper post depending on your riding style and terrain.
Highlights
The superlight composite frame is handcrafted with race-proven geometry and asymmetrical chainstays for optimal power transfer. The D-Fuse composite seatpost helps smooth out bumps and vibrations, and you also have the option to use a 30.9mm round standard or dropper seatpost. Other innovations include a lightweight composite WheelSystem and tubeless tires right out of the box; flat-mount disc brakes; and 12mm front and rear thru-axles for total control and fast cornering, sprinting and climbing in all conditions.
Tech & Features
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
Overdrive 2
The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
Powercore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Specifications
Frame: Advanced-grade composite, 12 x 142 mm thru-axle, disc

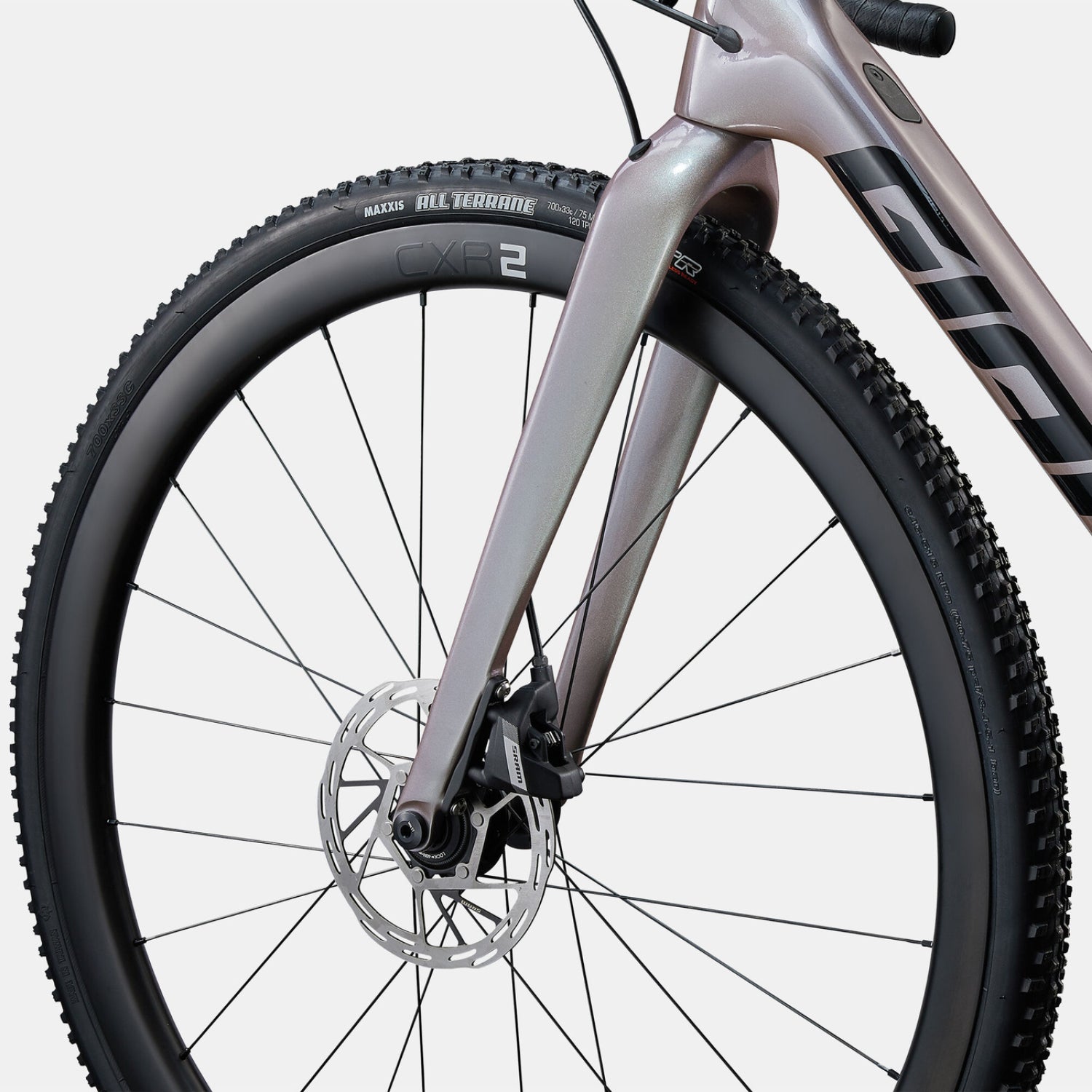

Fork: Advanced-grade composite, full-composite OverDrive 2 steerer, 12 x 100 mm thru-axle, disc
Shifters: SRAM Apex AXS 1x12-speed
Front Derailleur: Not included
Rear Derailleur: SRAM Apex AXS 1x12-speed

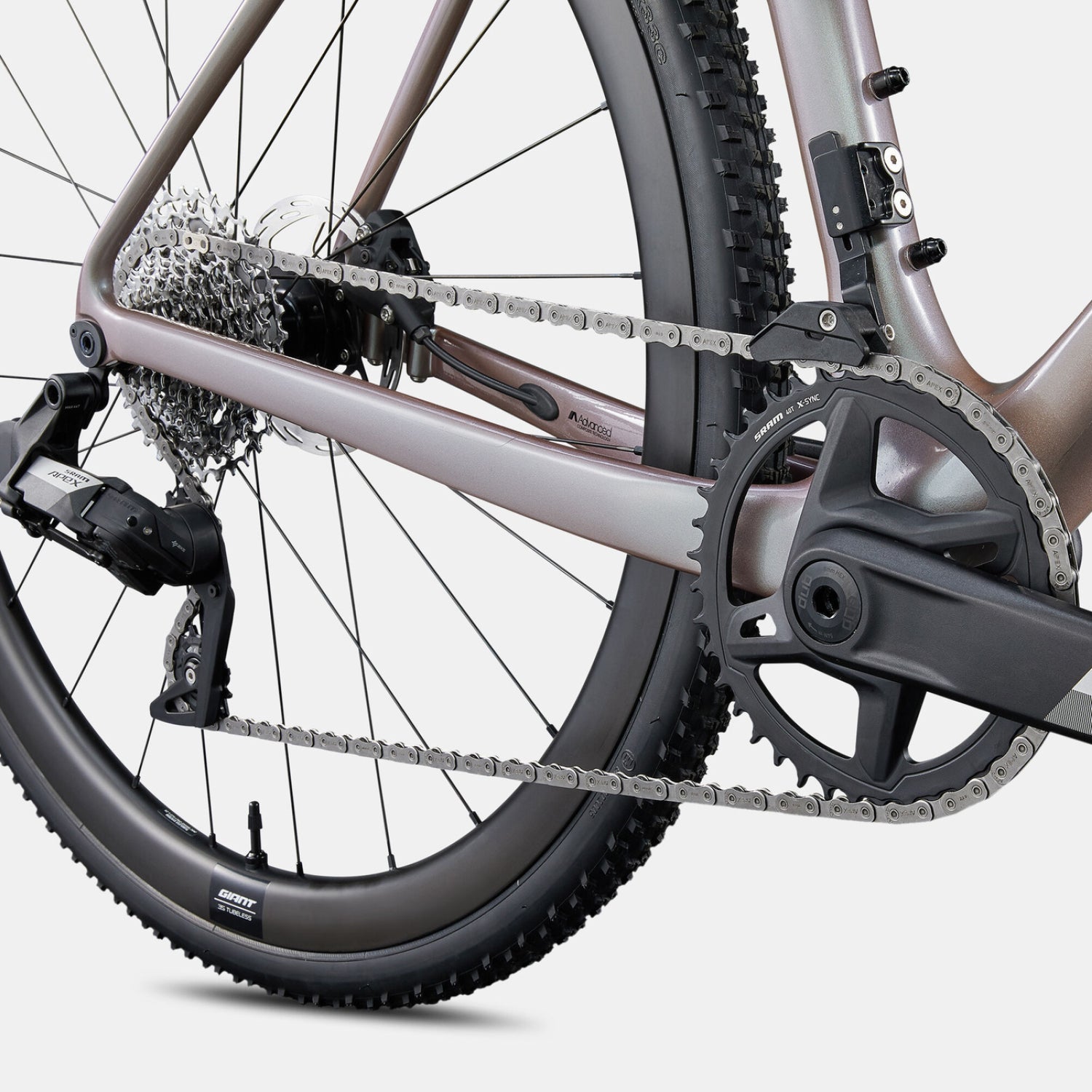

Crankset: SRAM Apex 1 Wide, DUB, 1x 40T
Bottom Bracket: SRAM DUB, press fit
Cassette: SRAM Apex AXS, 12-speed
Chain: SRAM 12-speed
Brakes: SRAM Apex AXS 1x12 HRD hydraulic disc
Brake Levers: SRAM Apex AXS
Rims: Giant WheelSystem, as per specification
Hubs: Giant WheelSystem, as per specification
Spokes: Giant WheelSystem, as per specification
Tyres: Maxxis tubeless tyre, All-Terrene, 700 x 33c, 120 TPI
Wheel Size: 700c

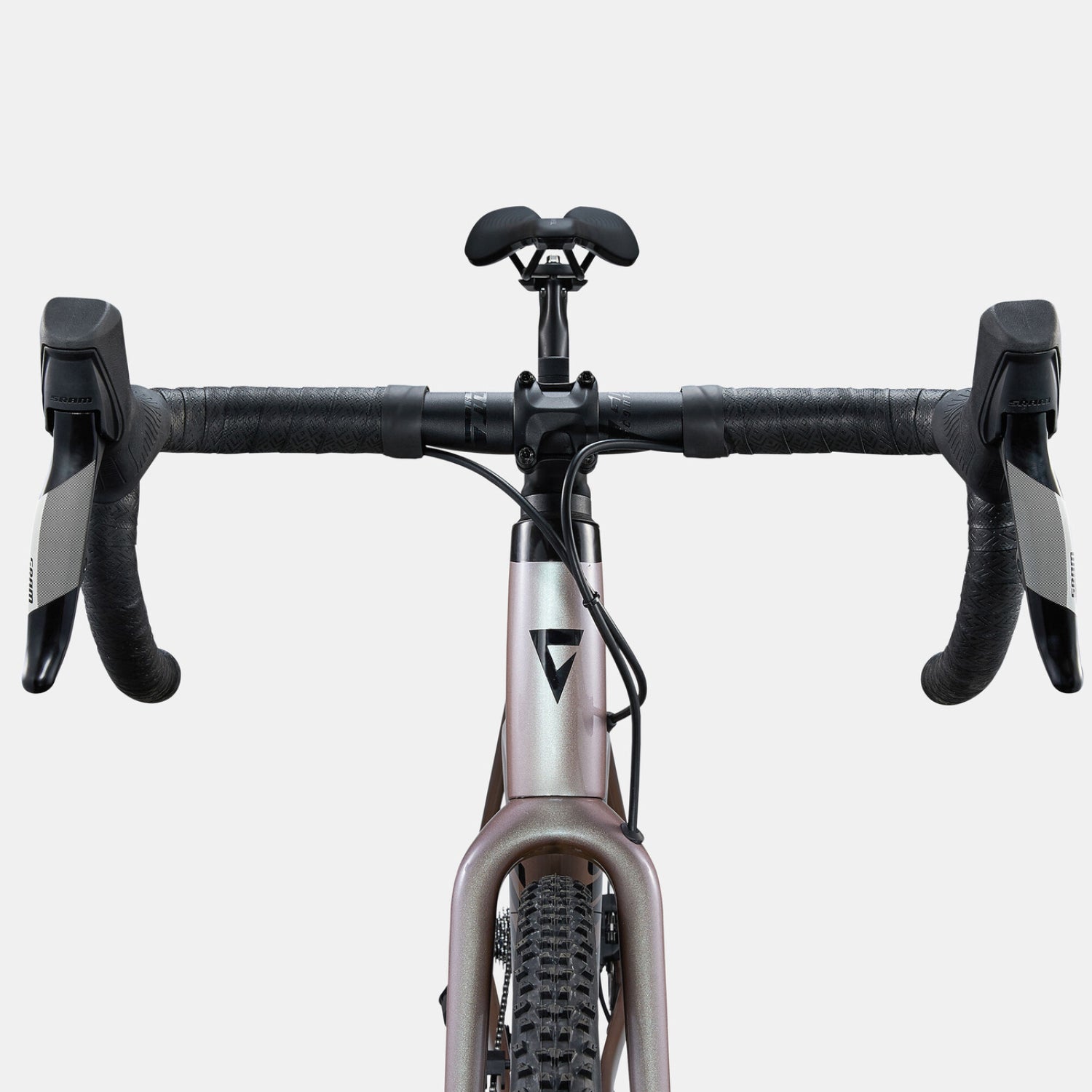

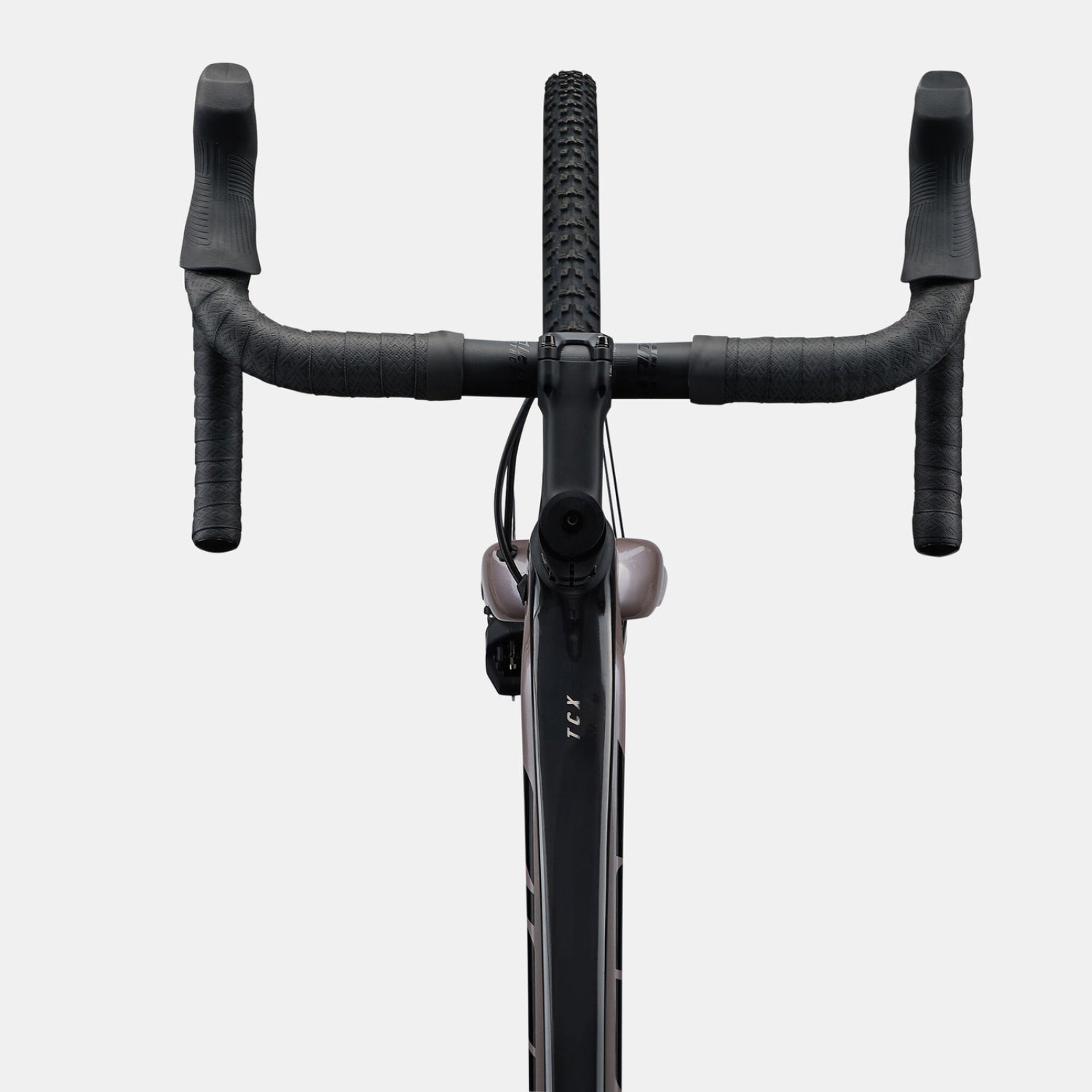

Handlebar: Giant Contact SL
Stem: Giant Contact SL, 0°
Grips: Stratus Lite 3.0
Seatpost: Giant D-Fuse SLR, -5/+15 mm offset
Saddle: Giant Approach SL with Giant patented UniClip and accessories
Pedals: Not included
