Marlin 5 2023 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

PRODUCT HIGHLIGHTS

Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.

Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.

Rear Kickstand Mount, Chainstay mounts make it easy to install a rearkick standthat stays out of your wayand support bikes of all sizes, no more laying or leaning

Specifications :

Frame Sizes: XXS - S	Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR	Frame Sizes: M - XXL	Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
Fork Frame Size S	SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel	Fork Frame Size M - XXL	SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Max Fork Travel	100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)
Front Hub	Formula DC-20, alloy, 6-bolt, 5x100 mm QR	Rear Hub	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rear Skewer	152x5mm QR	Rim	Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Frame Size XS,S Tyre	Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"	Frame Size M-XXL Tyre	Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Max Tyre Size	Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer	Shifter	Shimano Altus M315, 8-speed
Front Derailleur	Shimano Altus M315, 34.9 mm clamp, top swing, dual pull	Rear Derailleur	Shimano Altus M310

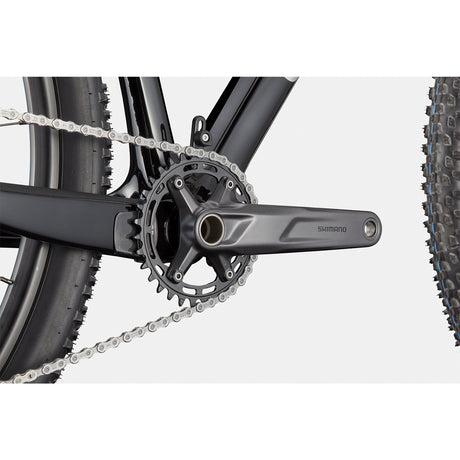

Crank	Shimano M315, 36/22, 170-175mm length, Frame size S-XXL	Bottom Bracket	Sealed cartridge, 73mm
Cassette	Shimano HG200, 8-speed	Chain	KMC Z8.3, 8 speed
Max Chain Ring Size	1x/2x: 34T, 3x: 42T
Saddle	Bontrager Arvada, steel rails, 138 mm width	Seatpost	Bontrager alloy, 31.6 mm, 12 mm offset, 330-400mm length, Frame Size S-XXL
Handlebar	Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width	Stem	Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60-90mm length, Frame Size S-XXL
Headset	Semi-integrated, 1-1/8"	Brake	Tektro HD-M275 hydraulic disc, 160mm rotor
Brake Set	Tektro HD-M275 hydraulic disc, 160mm rotor	Weight	M - 13.97 kg / 30.81 lb

Professionally assembled and ready to ride!

All bikes are assembled by our team of professional Cycle Souq technicians with quality checks at every stage to ensure the bike is delivered to you in perfect condition.
