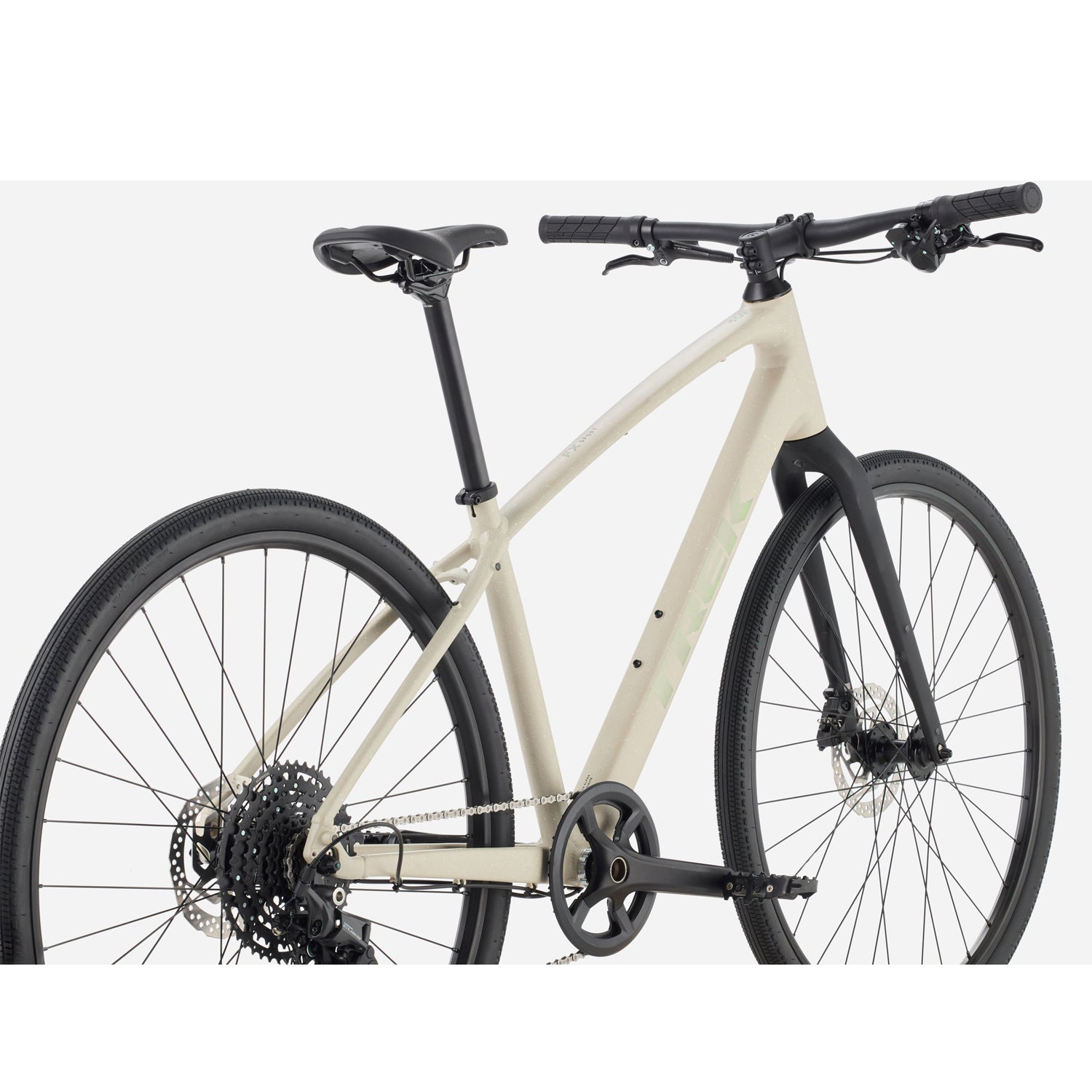

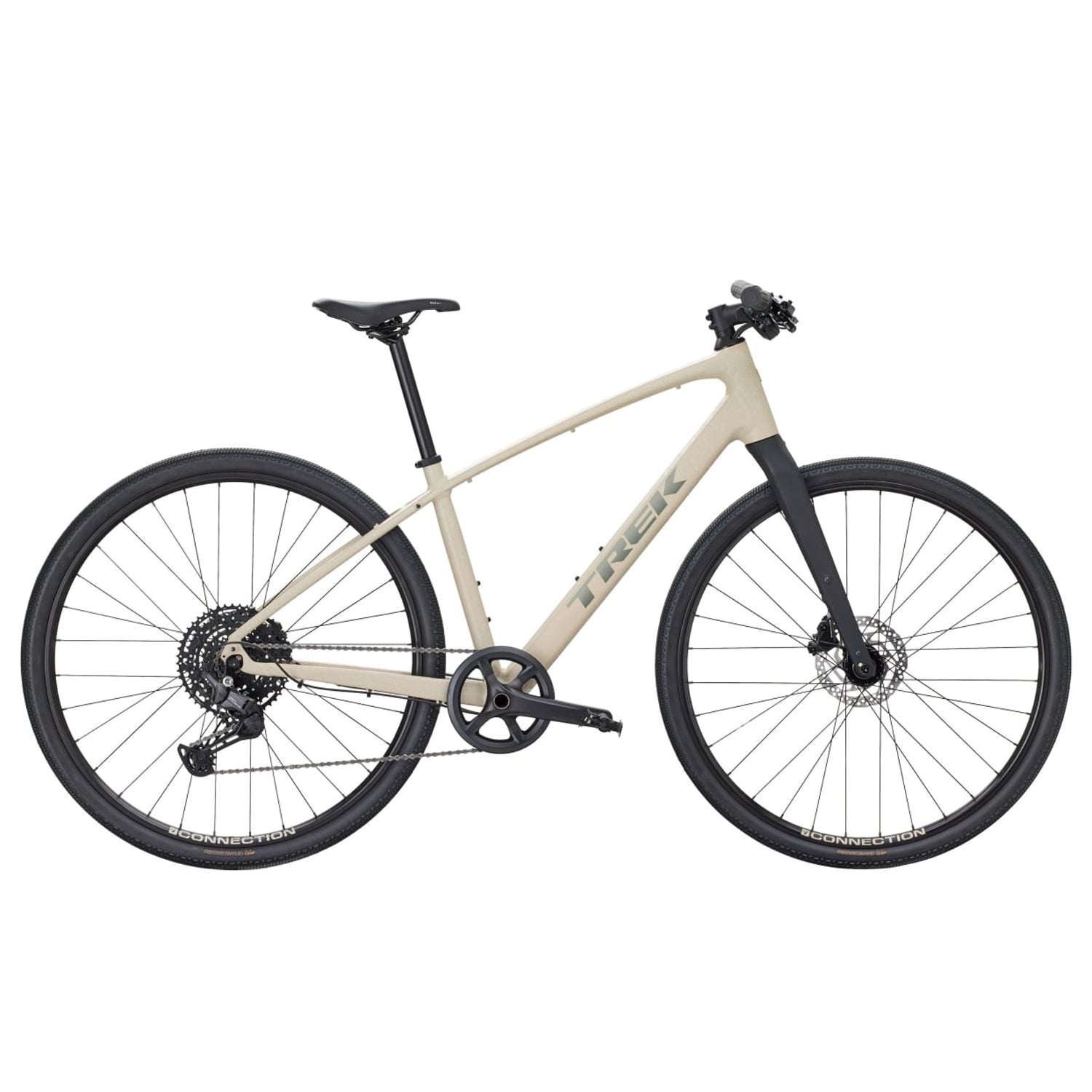

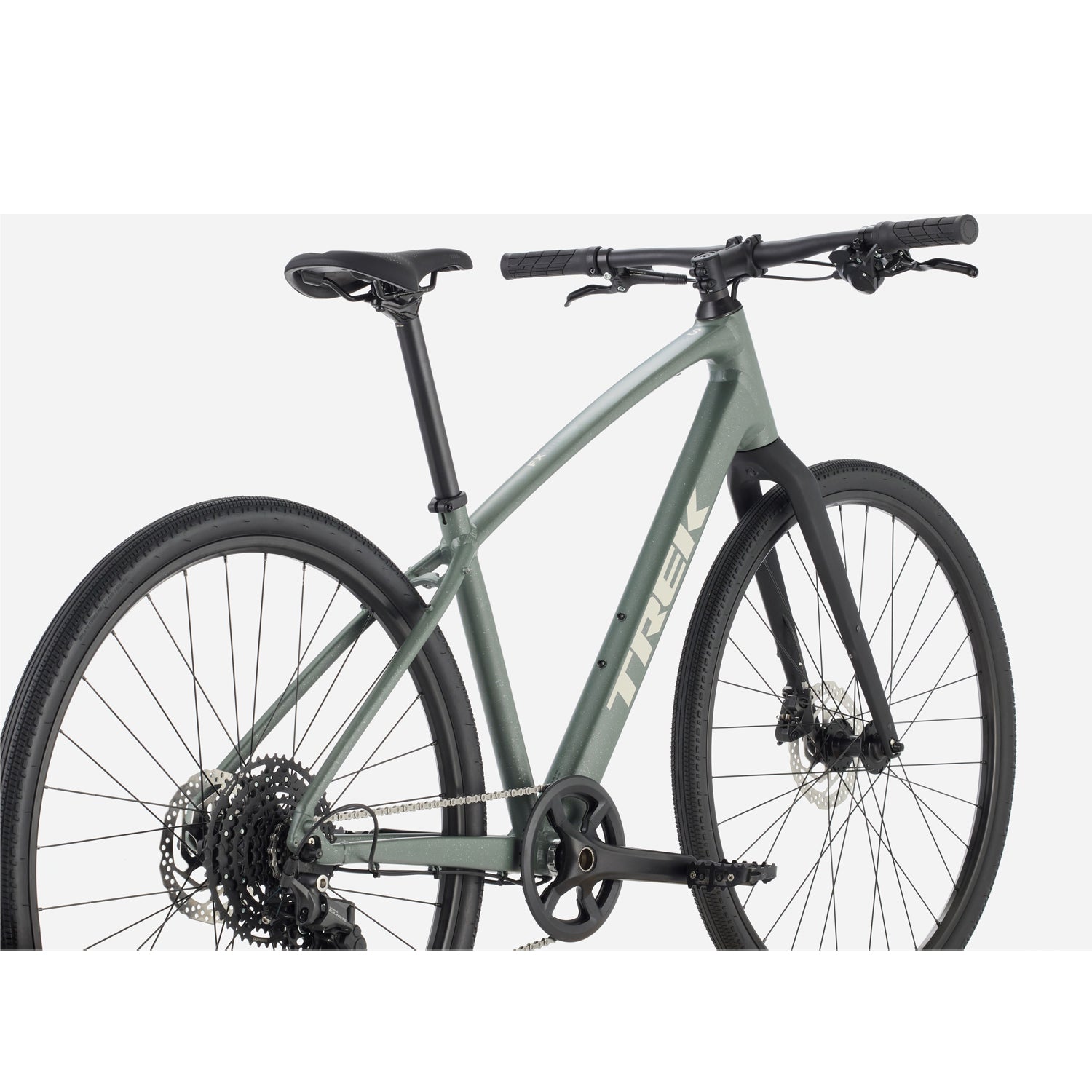

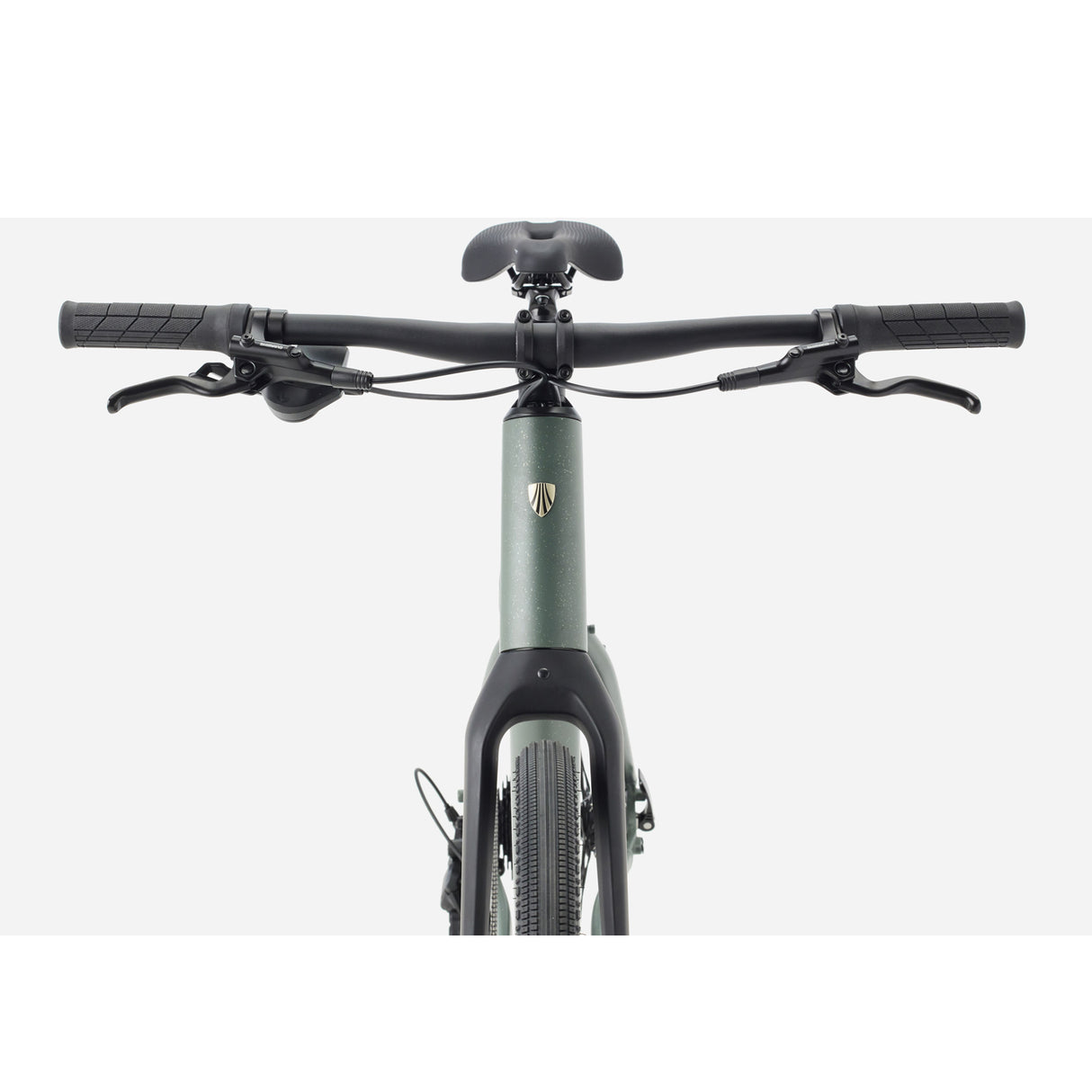

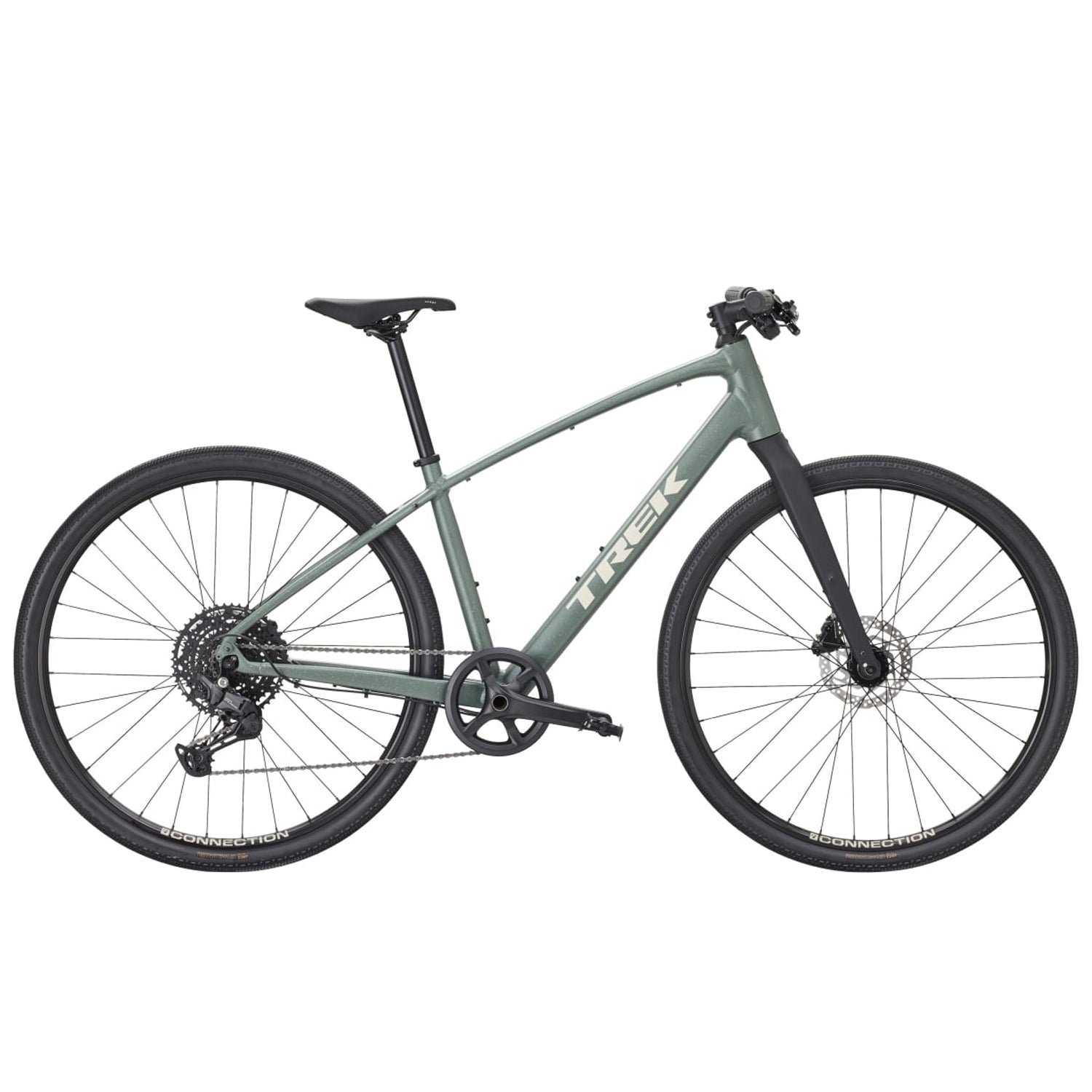

Trek FX Sport AL 3 Hybrid Bike 2026

The FX Sport AL 3 is a lightweight, versatile aluminium bike, perfect for exploring the road less travelled. It comes ready for anything, with a reliable and light Alpha Gold Aluminium frame, 10-speed Shimano CUES shifting, go-anywhere Bontrager Girona gravel tyres and hydraulic disc brakes. With active geometry puts you in a slightly more forward position to give you more pedalling efficiency while staying comfortable on long rides.

FEATURES

Fast & Comfortable

Our Active geometry puts you in a slightly more forward position to give you more pedalling efficiency while staying comfortable on long rides.

All-Road Capable

Wide 42c Girona tyres offer traction and control on tarmac or rough tracks.

Reliable & Durable

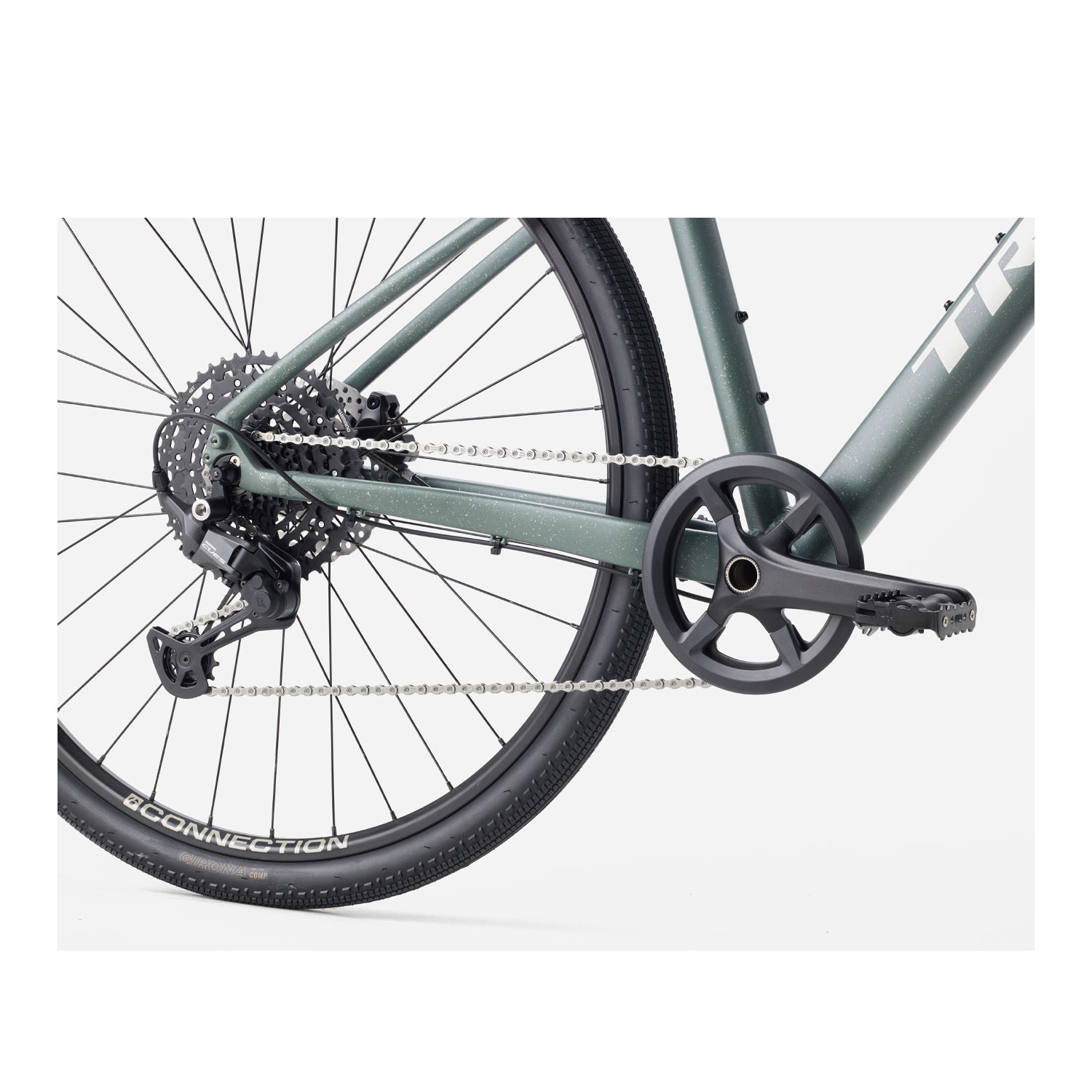

The Shimano CUES drivetrain offers a hassle-free, low-maintenance performance riders can rely on for the long haul. CUES features Shimano's new LINKGLIDE drivetrain technology for less wear and tear on chains, cassettes and chainrings.

Better Product Aluminum

Starting in 2024, we began removing high-emission aluminium from our manufacturing and replacing it with low-emission aluminium made with renewable energy. By October 2025.

SIZE GUIDE

XS Frame 147 - 155cm Height

S Frame 155 - 165cm Height

M Frame 165 - 175cm Height

L Frame 175 - 186cm Height

XL Frame 186 - 197cm Height

SPECIFICATIONS

Frame: Alpha Gold Aluminium, internal cable routing, rack & fender mounts, post-mount disc, kickstand mount, 135×5 mm QR

Fork: Dual Sport full carbon fork, internal brake routing, rack & fender mounts, ThruSkew 5 mm QR

Wheel Size: 27.5" front / 27.5" rear

Shifters: Shimano CUES U6000 optical gear display 1 x 10

Rear Derailleur: Shimano CUES

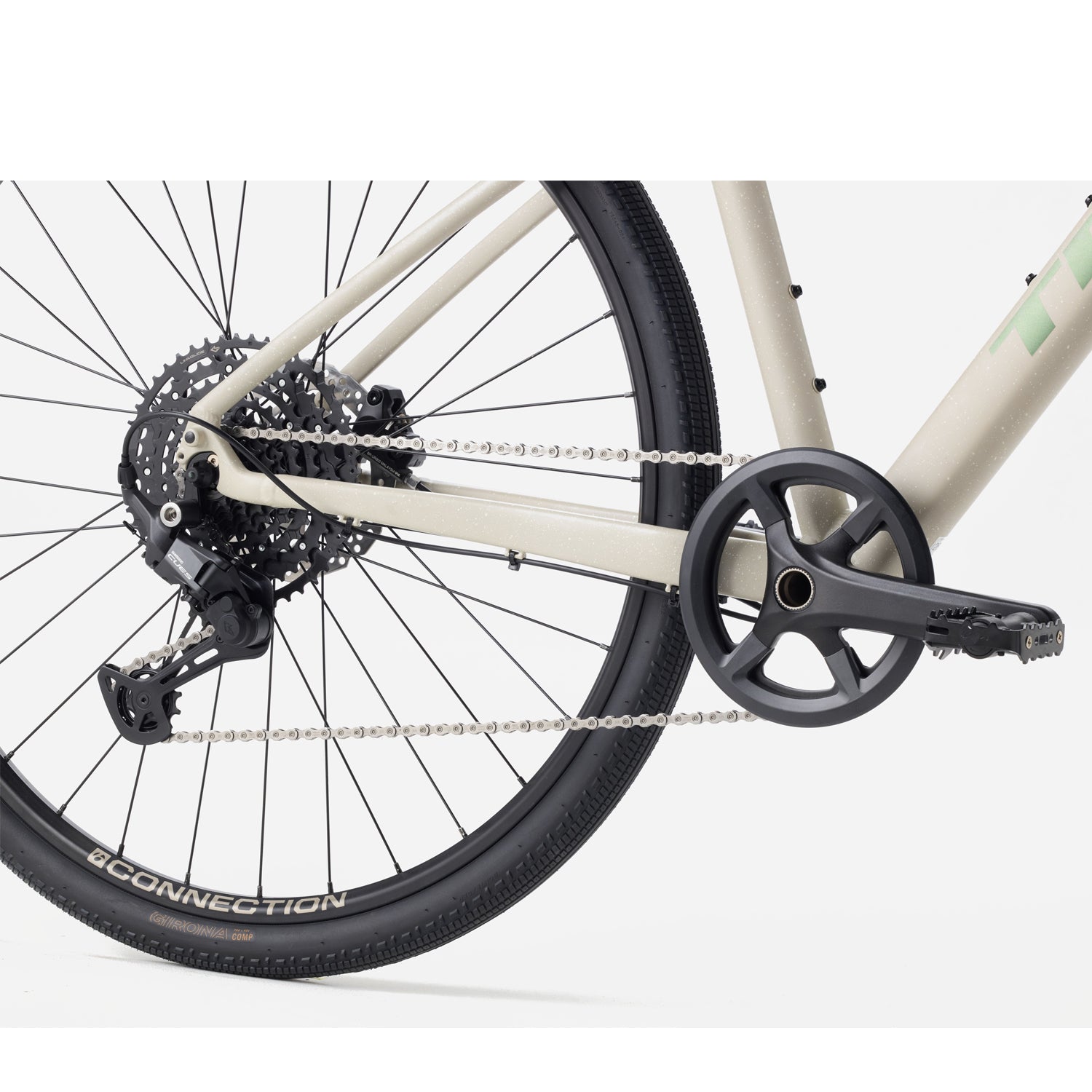

Crankset: Prowheel alloy, 40T narrow-wide chainring, 170 mm

Chain: Shimano LG500, 10-speed compatible

Brakes: Shimano hydraulic disc brakes, MT201 levers, UR300 calipers

Rotors: Shimano RT26, 6-bolt, 160 mm front & rear

Wheels: Bontrager Connection, double-wall alloy rims, 32H, 20 mm internal width, Schrader valve

Front Hub: Formula DC-20, alloy, 6-bolt, 100×5 mm QR

Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR

Tyres: Bontrager tyres (spec varies by market)

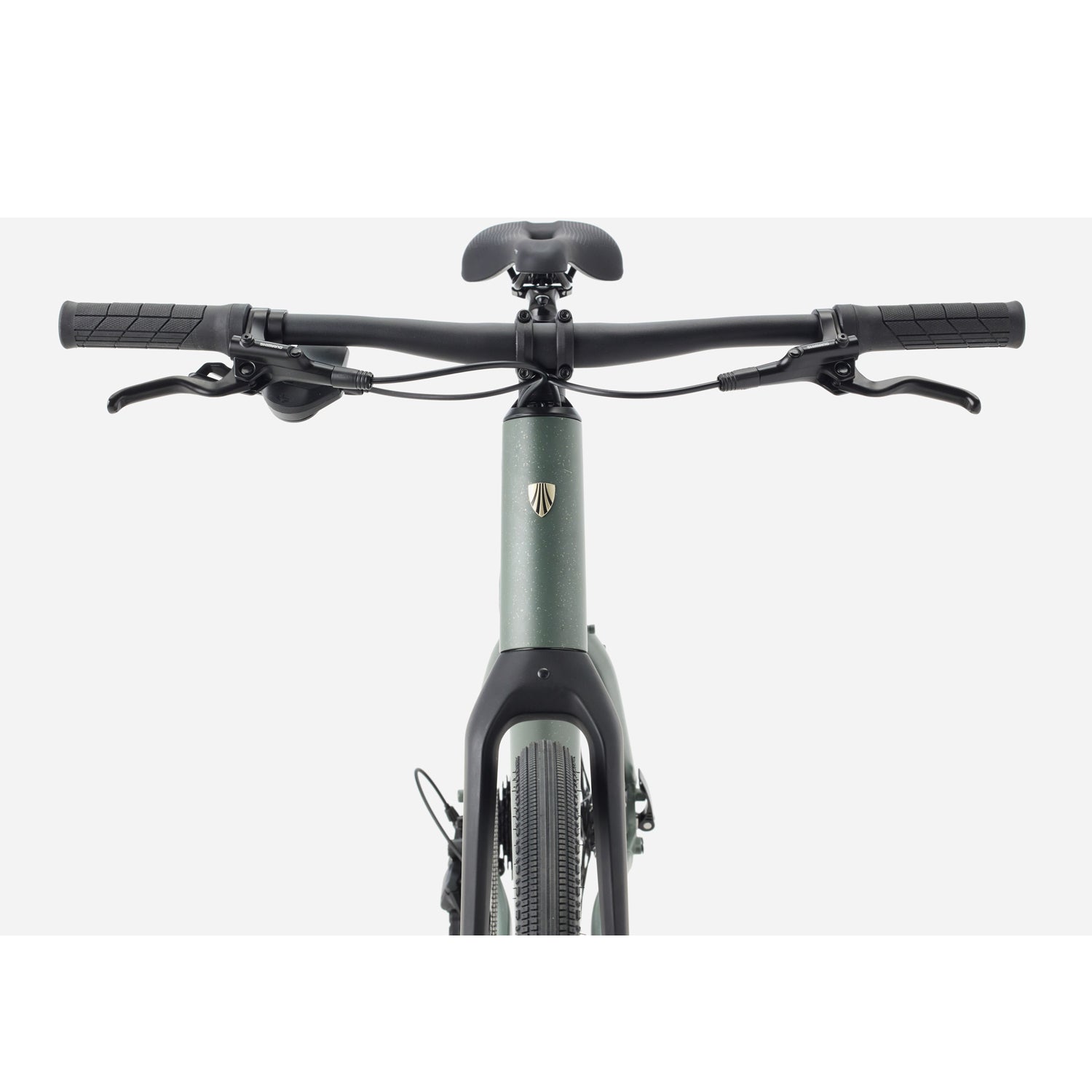

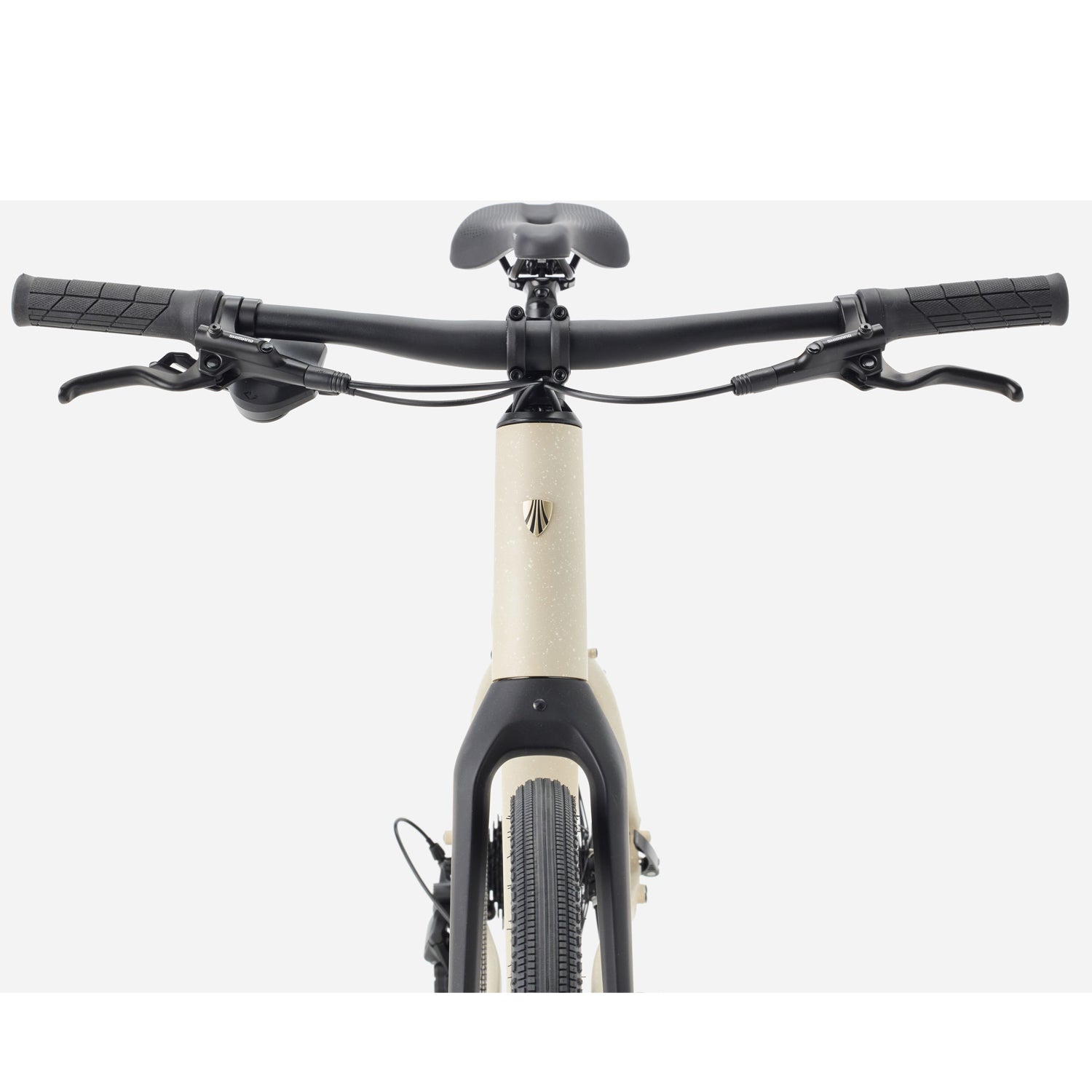

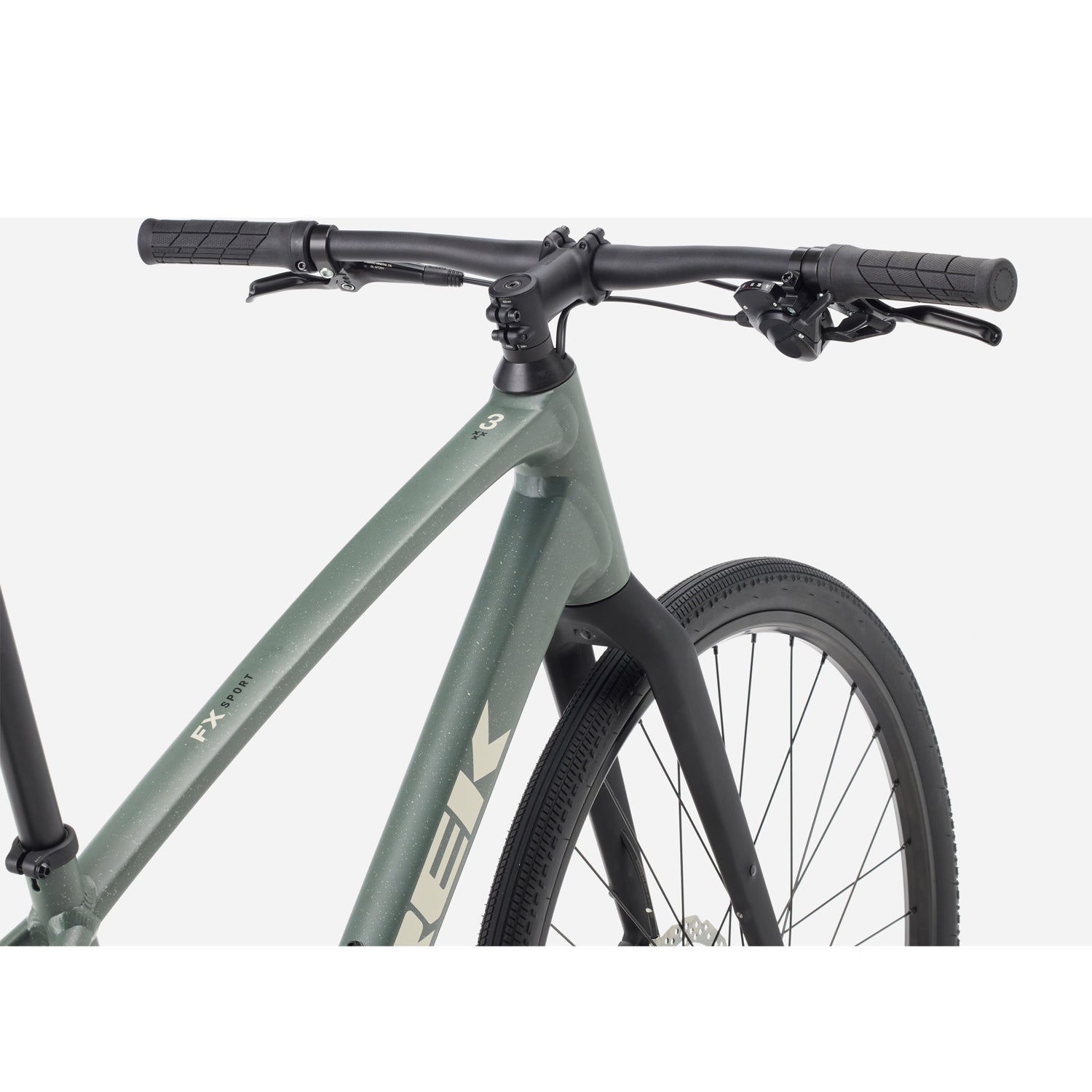

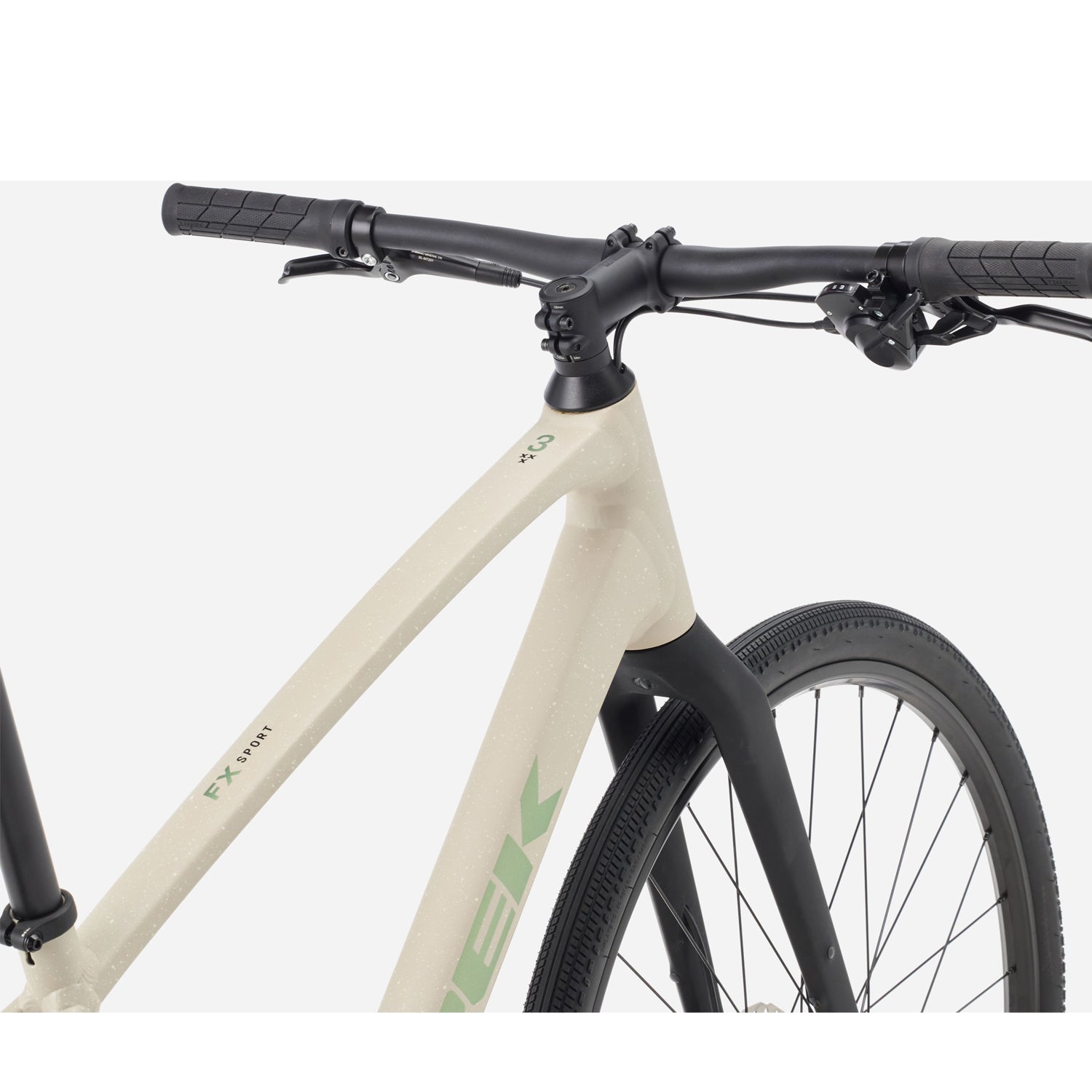

Handlebar: Bontrager Comp Lowriser, alloy, 31.8 mm clamp, 15 mm rise, 660 mm width

Stem: Bontrager Elite, 31.8 mm, Blendr compatible, 7°, 80 mm

Grips: Trek grips

Seatpost: Bontrager Seatpost

Saddle: Verse Short saddle, chromoly rails, 145 mm width

Pedals: Wellgo platform pedals

Weight: 11 kg (Size M)
