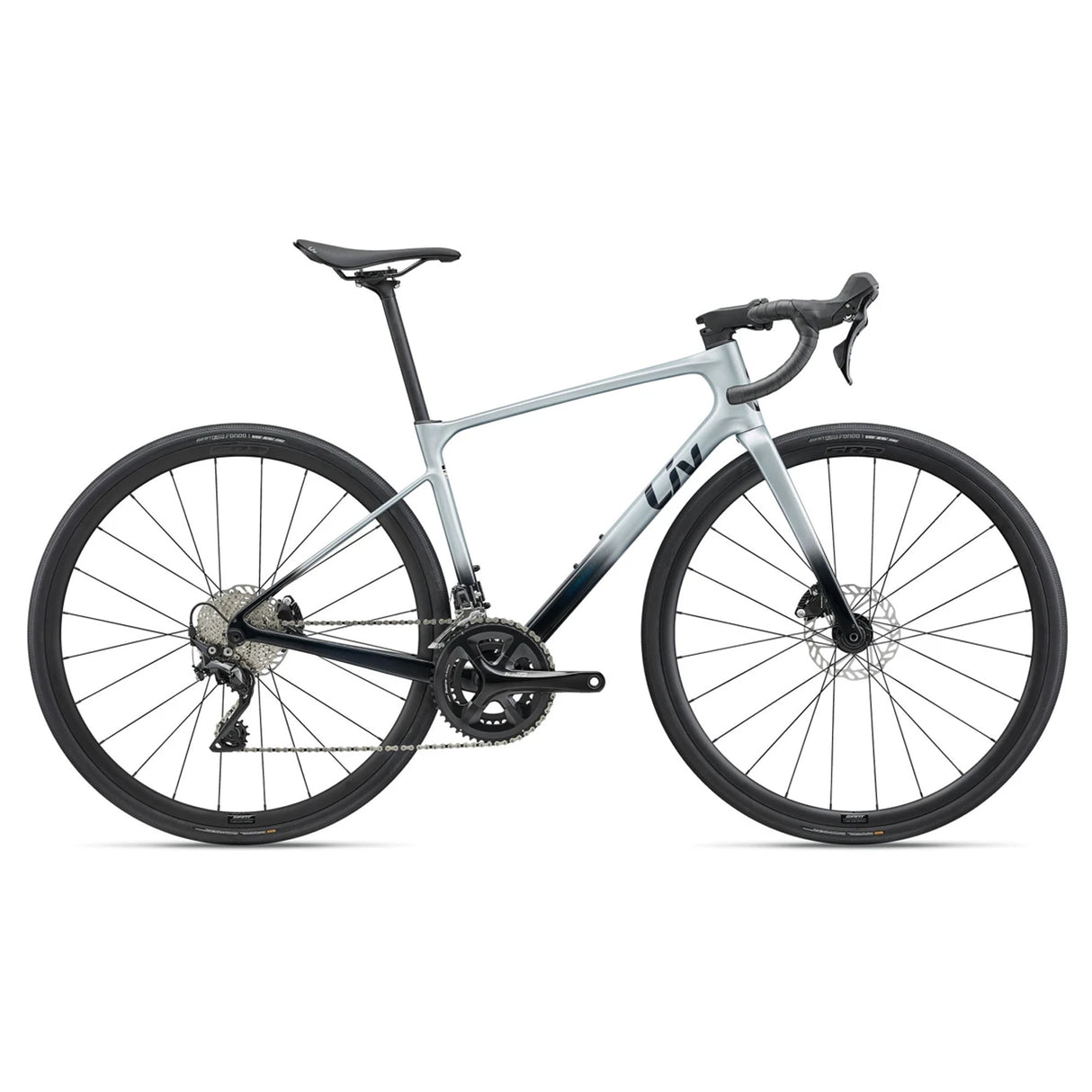

Liv Avail Advanced 3 Shimano Tiagra Road Bike 2027

The Avail Advanced is that riding buddy who’s up for any adventure on the road—from solo backroad explorations to after-work shop rides to all-day epic rides with friends. Designed for performance and capable on any surface, this road warrior is ready to take you as far as you can go, which is always farther than you think.
Key Performance Factors
Lightweight Advantage
The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.
Superior Compliance
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.
Maximum Control
The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those sunrise-to-sunset rides. Wide, alloy rims are designed for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to pavé.
Tech & Features
Advanced Composite Technology
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
Compact Road Design
When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
D-Fuse Seatpost
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
Overdrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Specifications
Frame: Advanced-grade composite, 12 x 142 mm thru-axle, disc brakes
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12 x 100 mm thru-axle, disc brakes
Headset: OverDrive
Front Axle: 12 x 100 mm thru-axle
Rear Axle: 12 x 142 mm thru-axle
Gear Group: Shimano Tiagra 2 x 10 Speed
Shift Levers: Shimano Tiagra R4000
Front Derailleur: Shimano Tiagra R4000
Rear Derailleur: Shimano Tiagra R4000
Crankset: Shimano FC-R4000, 50/34T, XXS: 160 mm, XS: 165 mm, S: 165 mm, M: 170 mm, L: 172.5 mm
Bottom Bracket: Shimano Press Fit
Cassette: Shimano CS-RS400, 11-36T
Chain: KMC X11
Brakes: Shimano BR-RS405 hydraulic disc
Brake Levers: Shimano Tiagra R4000
Rotors: Giant MPH, 160 mm front and 160 mm rear
Wheels: Giant S-R2 Disc WheelSystem
Rims: Aluminium, 25 mm inner width
Hubs: Giant alloy, 12 mm thru-axle
Spokes: Sapim
Tyres: Giant Gavia Fondo 1, 700 x 32c
Tyre Type: Folding, tubeless
Wheel Size: 700c
Maximum Tyre Width: 40 mm
Tubeless Compatibility: Yes, tubeless prepared
Handlebar: Liv Contact SL D-Fuse, 31.8 mm
Stem: Giant Contact AeroLight, -10°
Saddle: Liv Approach
Seatpost: Giant D-Fuse carbon, 14 mm offset
