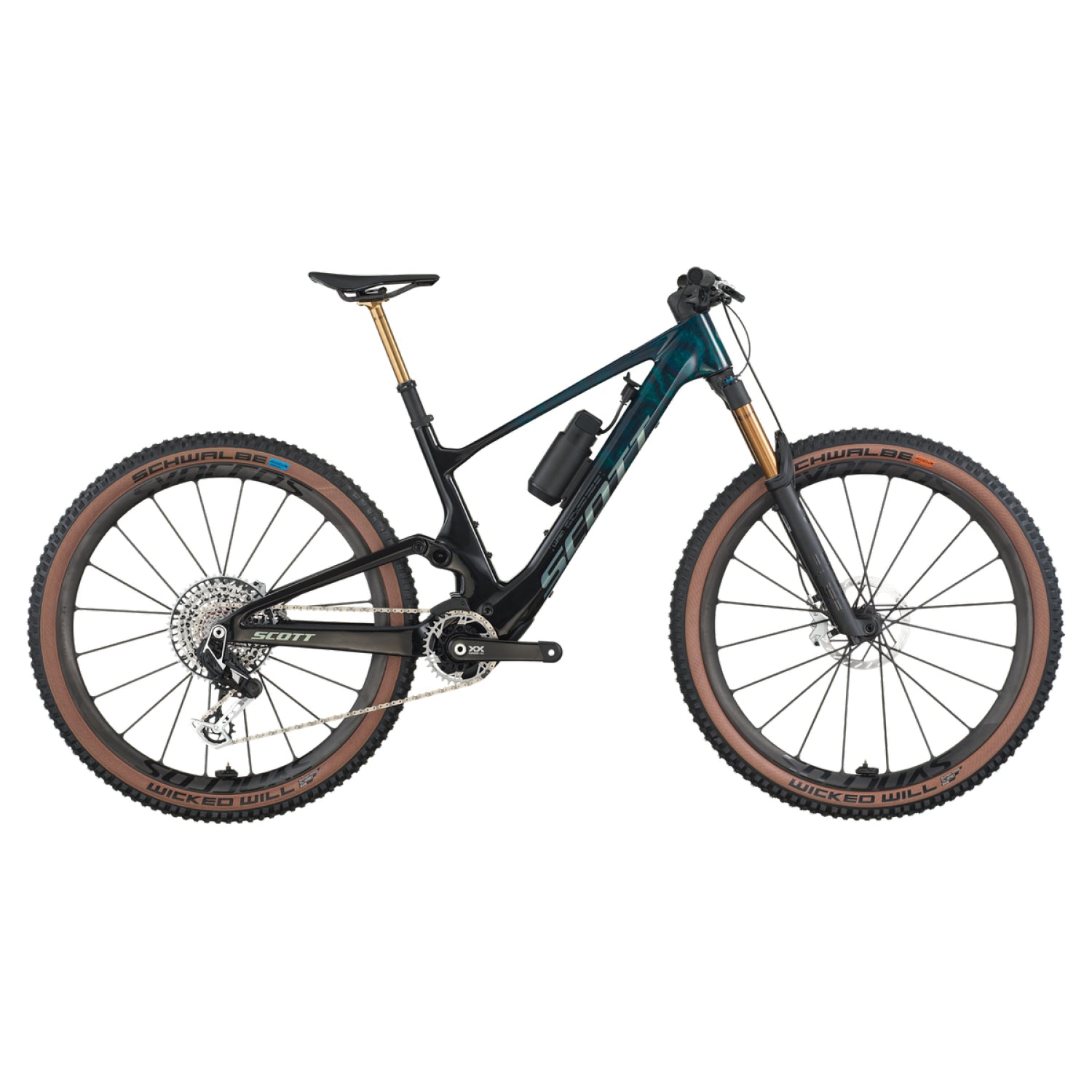

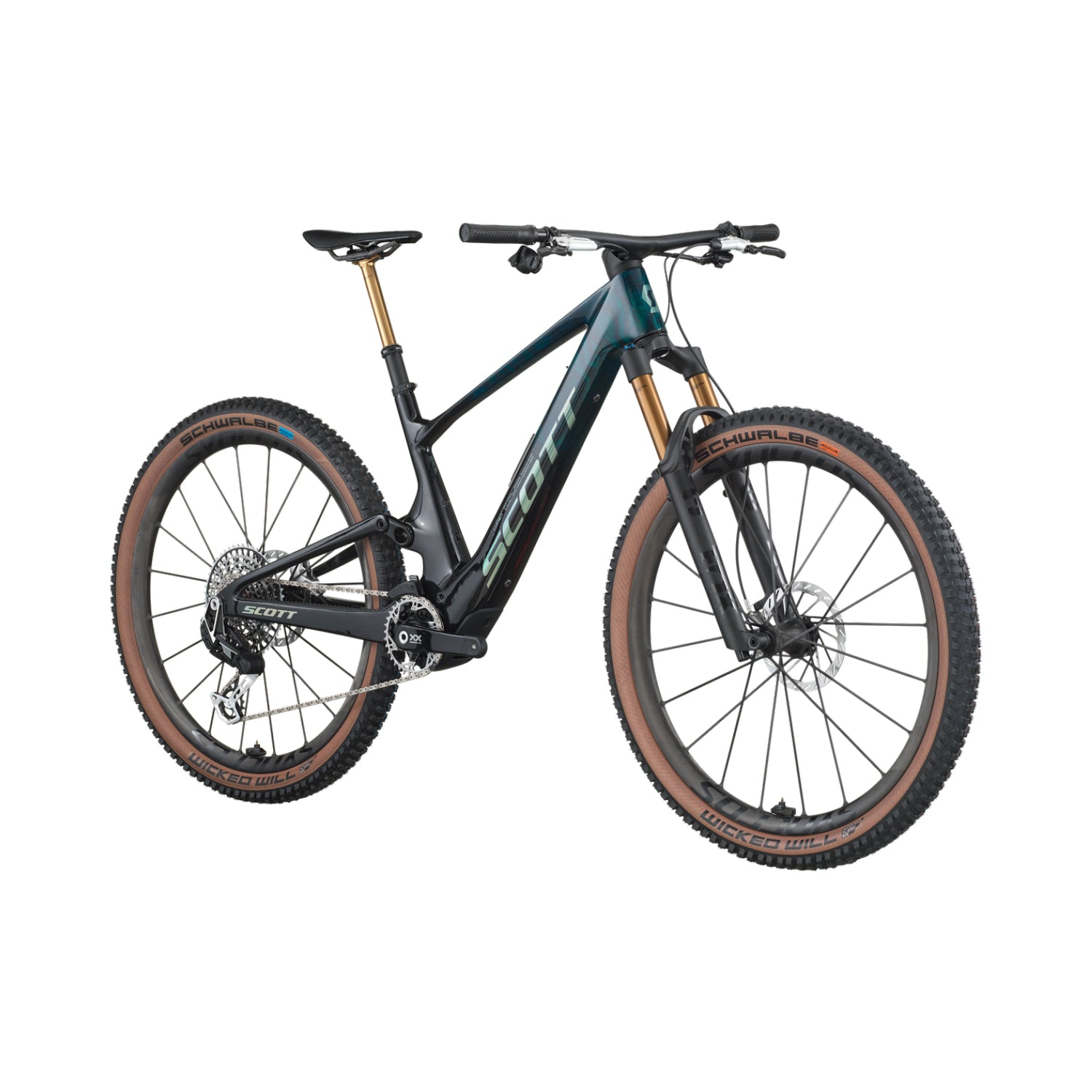

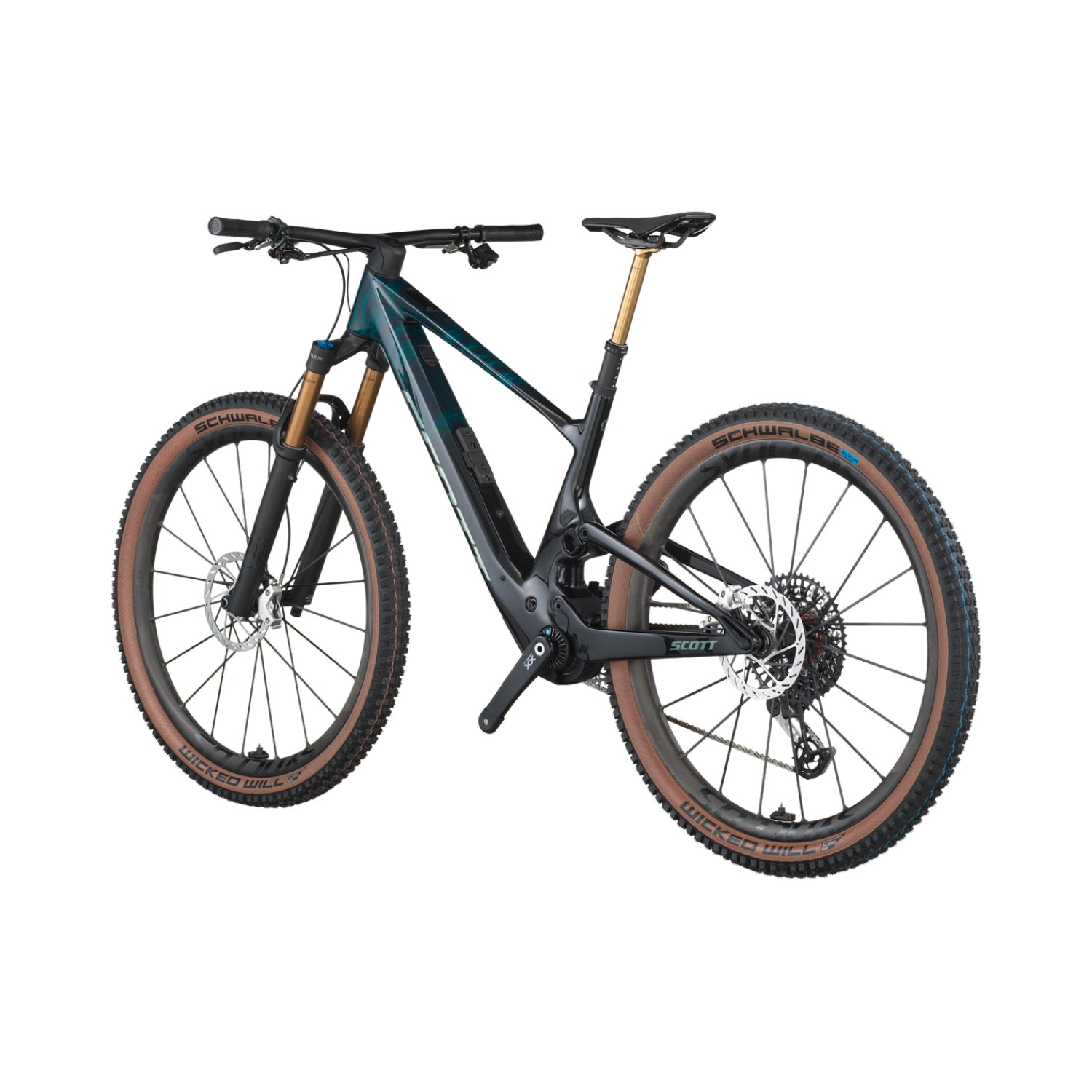

Scott Lumen 900 SL 29" Full Suspension E-MTB
For mountain bikers looking to wring every last ounce of fun out of the trail, the updated Lumen 900 SL eMTB is the ultimate ride. At 15.5kg and specced with more torque than ever, it tricks like a down-country bike and pulls like a full-power torque to blast you out of hairpins and easily overcome monster inclines. The extra juice is courtesy of TQ’s new HPR60 motor unit, which boosts torque from 50Nm—as on the previous Lumen 900—to 60Nm of thrust that might make you feel like you’ve got a World Champion’s legs. Typically, that improvement comes at the cost of a heavier system weight, but that’s not the case with the HPR60. It’s the same weight as the outgoing motor drive used on the previous Lumen 900, but 20% stronger.
FEATURES
Carbon HMX Frame: Lightweight carbon frame with integrated suspension technology, Flex Pivot design, adjustable head angle, and clean Syncros cable integration.
TQ HPR60 Motor: Compact mid-drive motor delivers up to 60Nm of torque for smooth, natural, and powerful trail assistance.
Extended Battery Setup: Includes a TQ internal 360Wh battery plus 160Wh range extender for added support on longer rides and demanding trail days.
FOX Factory Suspension: FOX 36SL Factory fork and FOX NUDE 6T Factory rear shock provide premium control, adjustability, and trail performance.
TwinLoc 2 Remote System: SCOTT TwinLoc 2 Technology controls suspension and dropper settings with three suspension modes for climbing, traction, and descending.

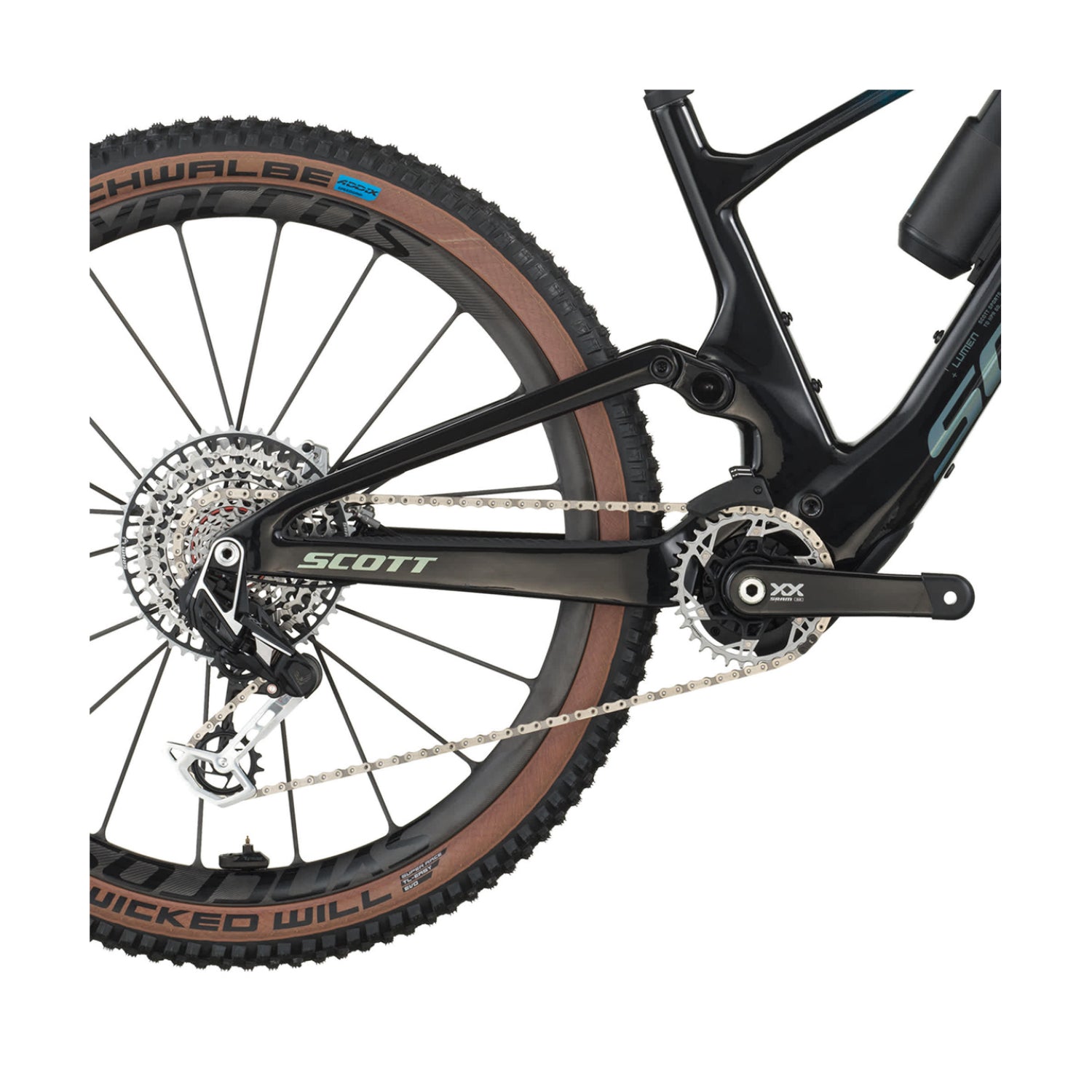

Wireless AXS Drivetrain: SRAM XX Eagle AXS Transmission 12-speed wireless electronic shifting delivers precise, fast, and reliable gear changes.
Powerful 4-Piston Brakes: SRAM Motive Ultimate Stealth 4-piston disc brakes with 180 mm rotors provide confident stopping power on technical trails.
Carbon Wheelset: Syncros Silverton SL2-30 CL full carbon wheels offer lightweight performance, stiffness, and tubeless-ready trail capability.
Schwalbe Trail Tyres: Wicked Will 29 x 2.4" tyres provide fast-rolling grip, control, and confidence across mixed mountain bike terrain.
Premium Trail Build: Carbon cockpit, FOX Transfer Factory dropper, Syncros Tofino carbon rail saddle, TyreWiz, and integrated tools complete the high-end setup.
SPECIFICATIONS
Frame: Carbon HMX with integrated suspension technology, Flex Pivot, adjustable head angle, Syncros Cable Integration System, UDH interface, 12 x 148 mm with 55 mm chainline

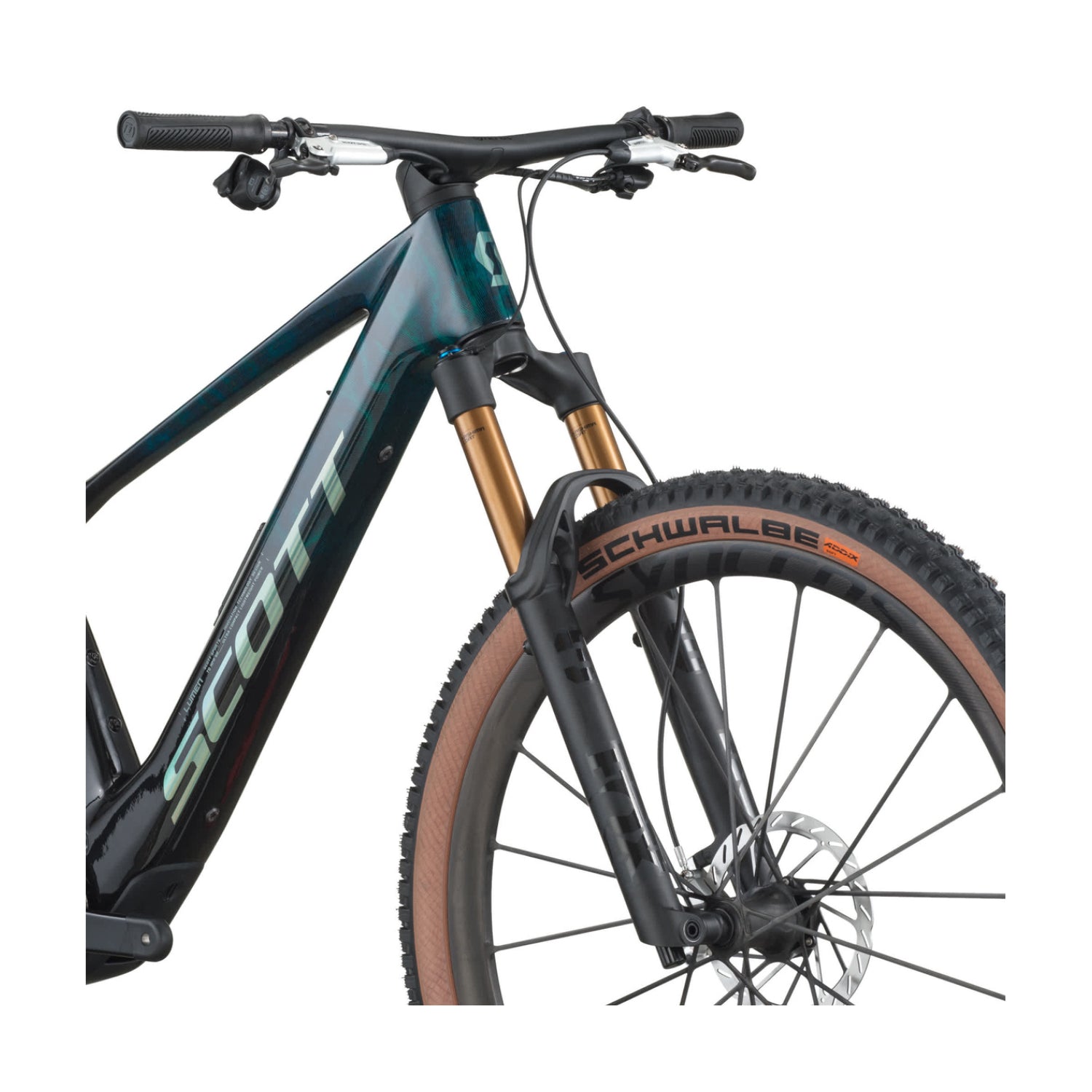

Fork: FOX 36SL Factory Air, Kashima, Grip SL, 3 modes with low speed adjust, Kabolt 15 x 110 mm axle, 44 mm offset, tapered steerer, lockout, rebound adjust, 140 mm travel

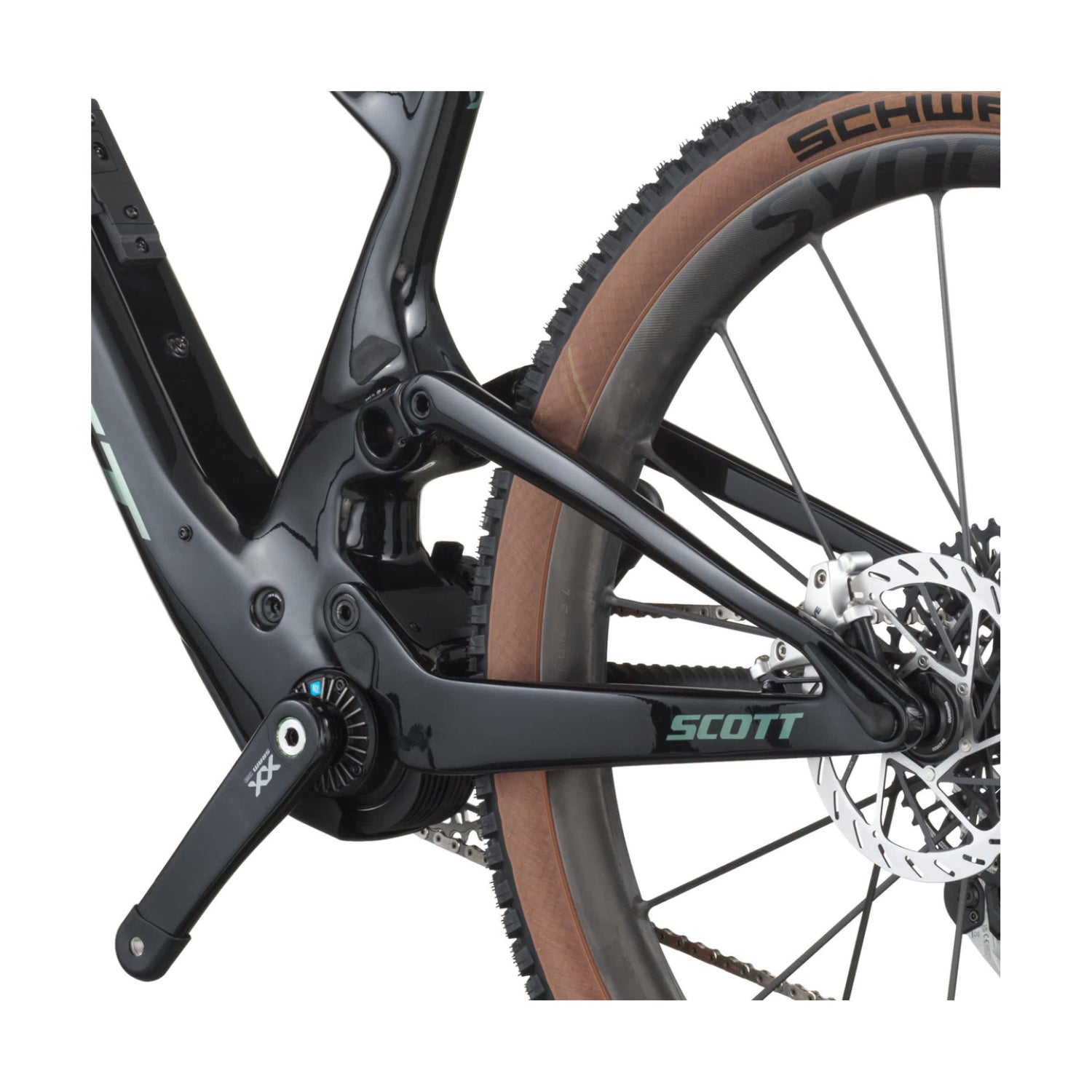

Rear Shock: FOX NUDE 6T Factory EVOL Trunnion, SCOTT custom with travel and geometry adjust, 3 modes, Lockout / Traction Control / Descend, low speed adjust, custom large air volume, Kashima, rebound adjust, bearing hardware, 130-90-lockout travel, T165 x 45 mm
Front Travel: 140 mm
Rear Travel: 130 mm
Remote System: SCOTT TwinLoc 2 Technology, suspension and dropper remote, 3 suspension modes
Rear Derailleur: SRAM XX Eagle AXS Transmission, 12-speed wireless electronic shift system
Shifters: SRAM AXS Pod Rocker Controller

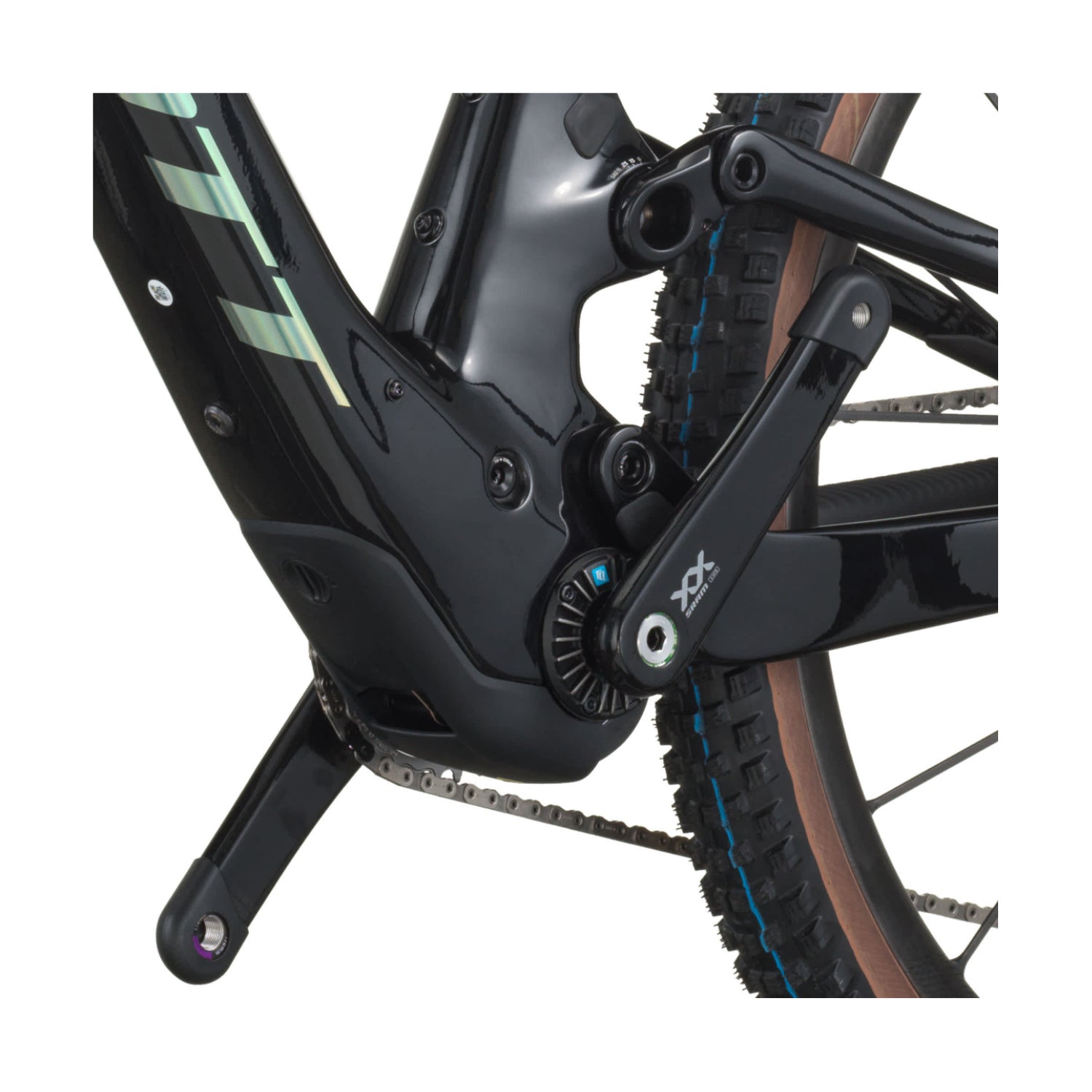

Crankset: SRAM XX carbon
Chainguide: ethirteen espec Slider
Chainring: SRAM XX Eagle Transmission 34T chainring
Chain: SRAM CN XX Eagle Transmission
Cassette: SRAM XX Eagle XS 1297 Transmission, 10-52T
Brakes: SRAM Motive Ultimate Stealth 4-piston disc brakes
Rotors: SRAM HS2 Center Lock rotors, front and rear 180 mm
Wheelset: Syncros Silverton SL2-30 CL full carbon, front 15 x 110 mm, rear 12 x 148 mm, 30 mm tubeless ready rim, DT Swiss 240 Ratchet EXP 36, XD driver, SRAM TyreWiz, Syncros SL axle with removable lever and 6 mm Allen, T30 and T25 tools
Front Tyre: Schwalbe Wicked Will 29 x 2.4" EVO Super Race, TLE, 67EPI, Addix Speed Soft
Rear Tyre: Schwalbe Wicked Will 29 x 2.4" EVO Super Race, TLE, 67EPI, Addix Speed Grip
Drive Unit: TQ HPR60 mid motor, 60Nm maximum torque
Assist Speed: EU 25 km/h / US 20 mph
Battery: TQ internal 360Wh plus range extender 160Wh
Display: TQ HPR colour display, Bluetooth, ANT+, dedicated smartphone app
Charger: TQ 100-240V-4A

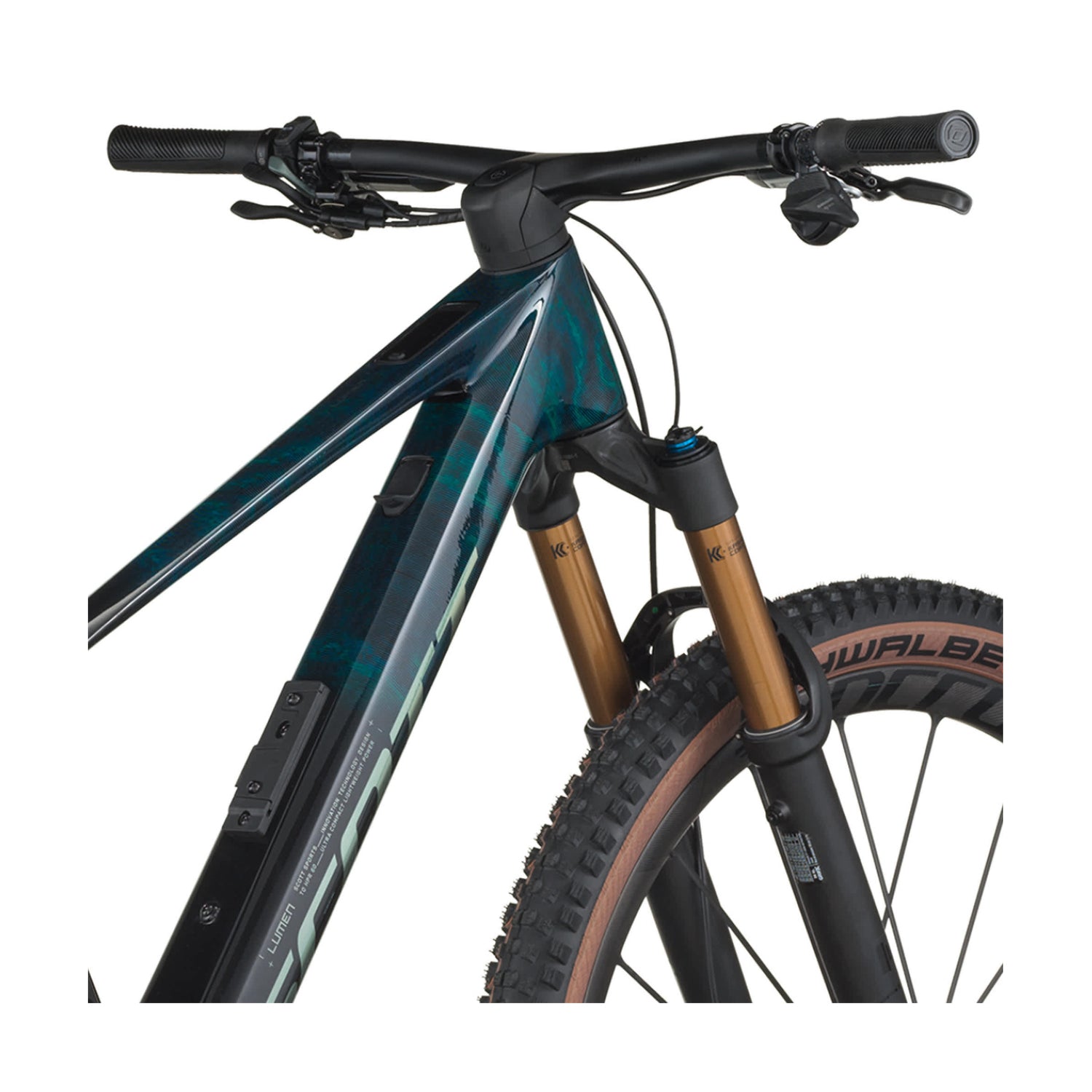

Handlebar: Syncros Fraser iC SL DC carbon, 0° rise, 8° backsweep, mini rise, 760 mm, Syncros Performance XC lock-on grips
Seatpost: FOX Transfer Factory Dropper Post Kashima, 31.6 mm, S 120 mm / M 150 mm / L 180 mm / XL 210 mm
Seat: Syncros Tofino Regular 1.0 with carbon rails
Headset: Syncros / Acros angle adjust and cable routing headset system, stainless, ±0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Accessories: Tire sealant and transport axle
Approximate Weight: 16.0 kg / 35.27 lbs tubeless setup without range extender
Range Extender Weight: 1.1 kg
