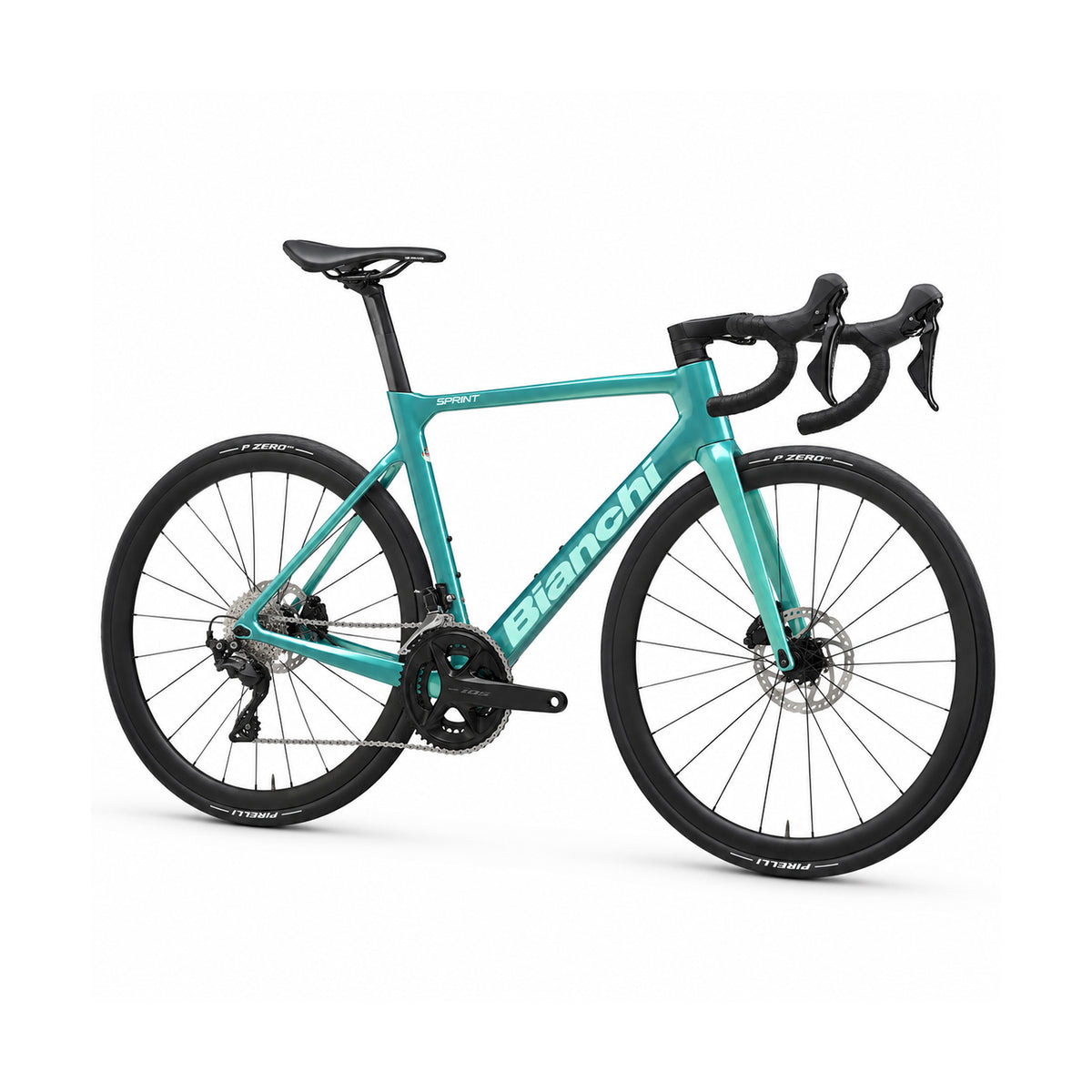

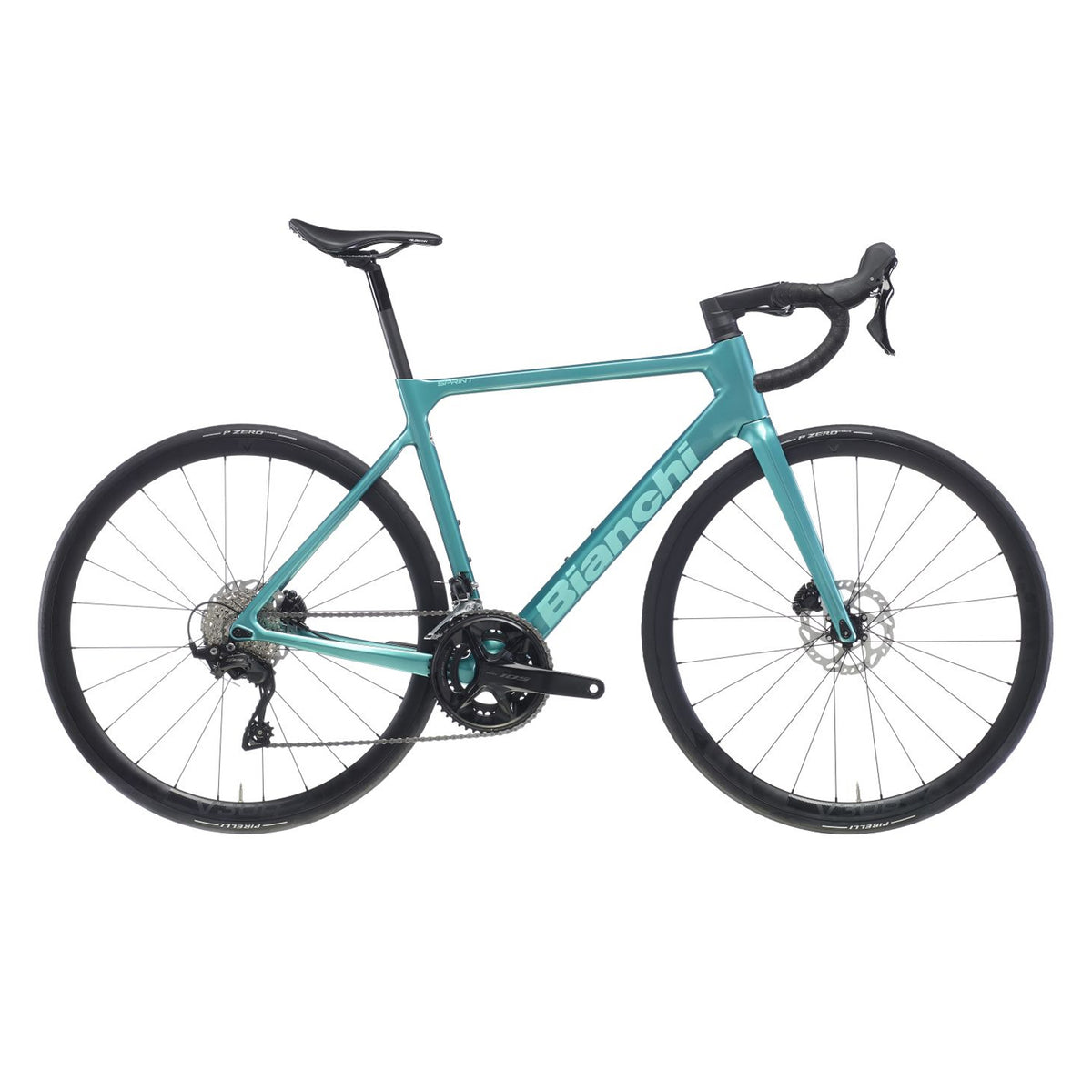

Bianchi Sprint ICR Shimano 105 Road Bike

The Bianchi Sprint ICR Shimano 105 Road Bike combines a carbon monocoque frameset with Shimano 105 mechanical 12-speed shifting and hydraulic disc brakes. A full-carbon aero fork and internal cable routing give the Sprint a clean finish, with a build suited to fast training rides, weekend group rides and longer road outings.
Velomann alloy wheels feature a 30mm rim profile and Vittoria Rubino IV G2.0 tyres with a graphene compound. A compact alloy handlebar, cork bar tape and Velomann Seta saddle complete the cockpit and contact points.
FEATURES
- Carbon Monocoque Frame: The Sprint carbon frame features full-carbon dropouts, an integrated seat clamp and flat-mount disc brake fittings.
- Full-Carbon Aero Fork: Aero shaping and a 12mm thru-axle complement the carbon frameset.
- Shimano 105 Mechanical Drivetrain: A 2×12-speed setup provides precise, cable-operated shifting.
- Hydraulic Disc Brakes: Shimano hydraulic braking provides controlled stopping with Center Lock rotors.
- Internal Cable Routing: An ACROS & FSA headset supports cable routing for a tidy cockpit.
- Velomann Alloy Wheels: A 30mm rim profile, J-bend spokes and thru-axle hubs provide a practical road wheel setup.
- Vittoria Graphene Tyres: Rubino IV G2.0 tyres feature a graphene compound and a 60 TPI casing.
-
Compact Road Cockpit: A Velomann compact handlebar offers an 80mm reach and 130mm drop for accessible hand positions.
SPECIFICATIONS
- Frame: Bianchi Sprint carbon monocoque, integrated seat clamp, full-carbon dropouts and flat-mount disc brake fittings
- Fork: Full Carbon Aero Road, 1.4″–1.5″ steerer, integrated fork head, flat-mount disc brake fittings, 12×100mm thru-axle
- Drivetrain: Shimano 105 mechanical, 2×12-speed
- Rear Derailleur: Shimano 105, 12-speed, direct attachment, maximum sprocket 36T
- Front Derailleur: Shimano 105, 12-speed, compatible with 50–54T outer chainrings, 16T capacity
- Shifters: Shimano 105 mechanical shifting with hydraulic disc brake levers
- Crankset: Shimano 105, 12-speed
- Crank Length: 170mm (47–53cm); 172.5mm (55–59cm); 175mm (61cm)
- Chain: Shimano
- Bottom Bracket: Shimano SM-BB72-41B, road PressFit
- Bottom Bracket Shell: PressFit 86.5×41mm
- Brakes: Shimano hydraulic disc
- Brake Rotors: Shimano SM-RT70, Center Lock, 160mm
- Wheels: Velomann alloy clincher, supplied with rim tape
- Rim Depth: 30mm
- Rim Size: 622×19C
- Hubs: Team TC, J-bend
- Spokes: Round, 2mm, black
- Front Axle: 12×100mm thru-axle
- Rear Axle: 12×142mm thru-axle
- Tyres: Vittoria Rubino IV G2.0 Graphene, 700×25C
- Tyre Casing: 60 TPI
- Headset: ACROS & FSA, for internal cable routing
- Head Tube: 1.4″–1.5″
- Stem: Velomann Alloy 6061, −7° rise
- Stem Length: 90mm (47–50cm); 100mm (53cm); 110mm (55–57cm); 120mm (59–61cm)
- Handlebar: Velomann Compact, Alloy 6061, 31.8mm clamp diameter
- Handlebar Width: 400mm (47–53cm); 420mm (55–59cm); 440mm (61cm)
- Handlebar Reach: 80mm
- Handlebar Drop: 130mm
- Bar Tape: Bianchi cork, black
- Seatpost: Velomann Alloy 6061, 27.2mm diameter
- Seatpost Offset: 15mm
- Seatpost Length: 350mm (47–61cm)
-
Saddle: Velomann Seta
