A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.
Where it thrives
Low-impact trails, gravel roads, leisurely ride
What it's built for
- Light and durable SmartForm C3 Alloy frame
- SR Suntour XCM suspension fork, 100mm travel
- microSHIFT Advent X 10-speed shifting / Shimano hydraulic disc brakes
- Smartform C3 Alloy - simple yet sophisticated aluminum construction yields a light, lively frame that outperforms anything in its class.
- Save Micro-suspension - delivers a smooth, more controlled ride thanks to strategically engineered flex zones built into the frame's rear triangle.
- Slack & stable - a slack of 68degrees head angle creates exceptionally stable handling.
- Right-sized wheel - the smaller sizes of trail roll on 27.5" wheels, while the larger sizes comes with 29" wheels to deliver the best blend of fit, fast and fun for every rider.
- Straightshot internal cable routing - for an integrated look and east maintenance, the shift and dropper post cables route cleanly through the straightshot window in the downtube, while the rear brake line is secured outside the frame.
Bike Details :
- Platform Trail, Model Name Trail 5, Model code C26501M
Frame set :

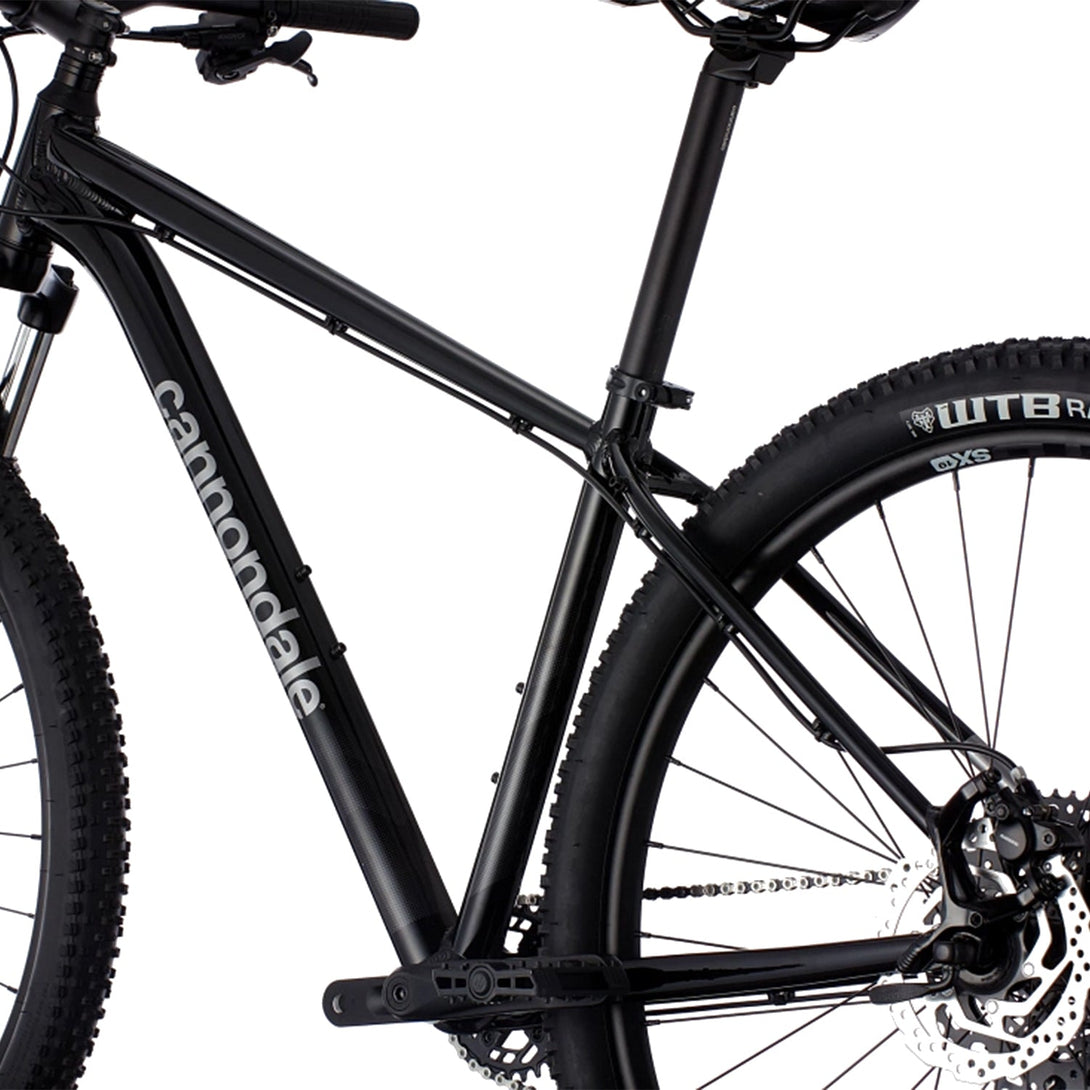

- Frame - SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73
- Fork - SR Suntour XCM, 100mm, coil, 42mm offset (27.5") 46mm offset (29")
- Headset - Semi-Integrated, 1-1/8"

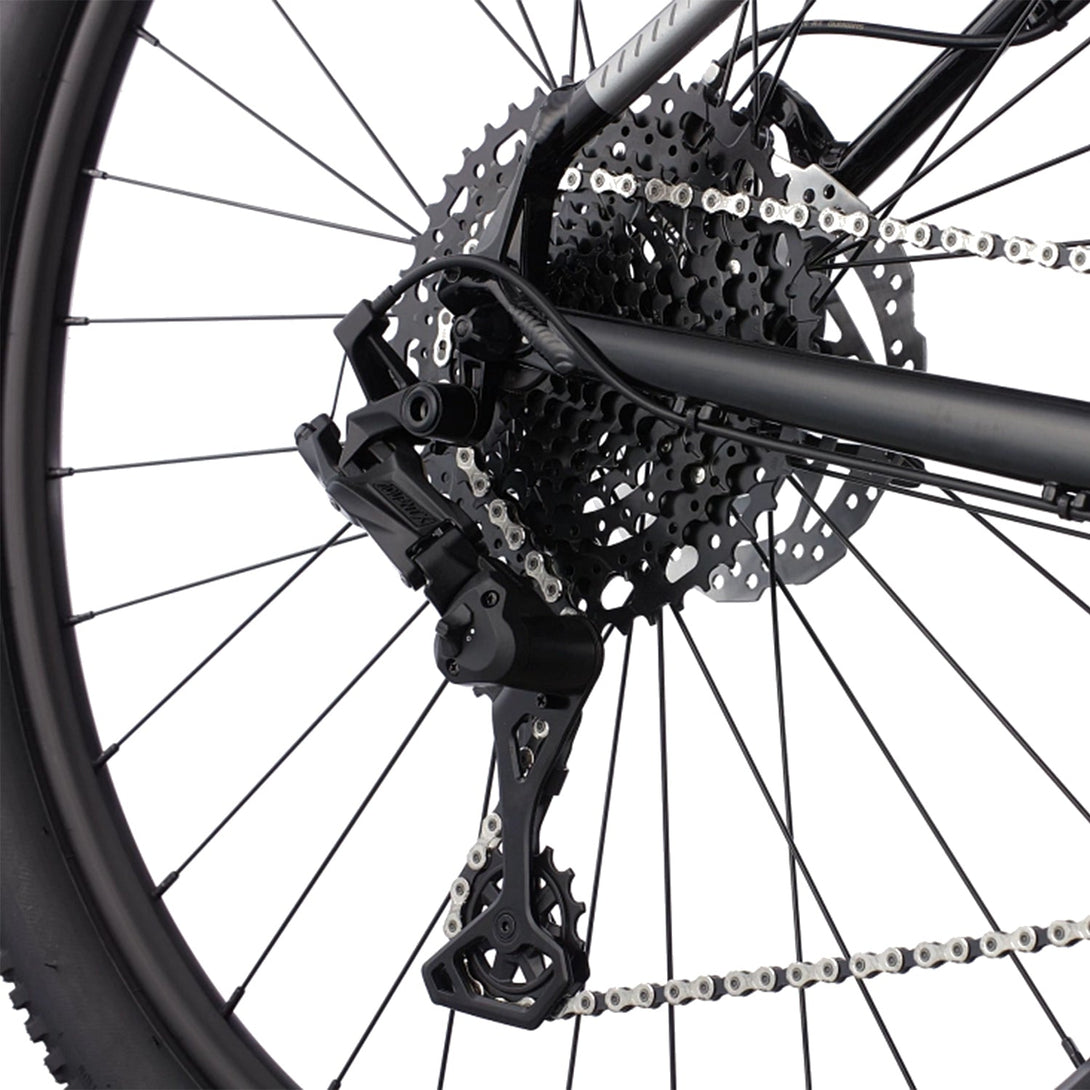

- Rear Derailleur - microSHIFT Advent X
- Shifters - microSHIFT Advent X, 10-Speed
- Chain - KMC X10, 10-speed

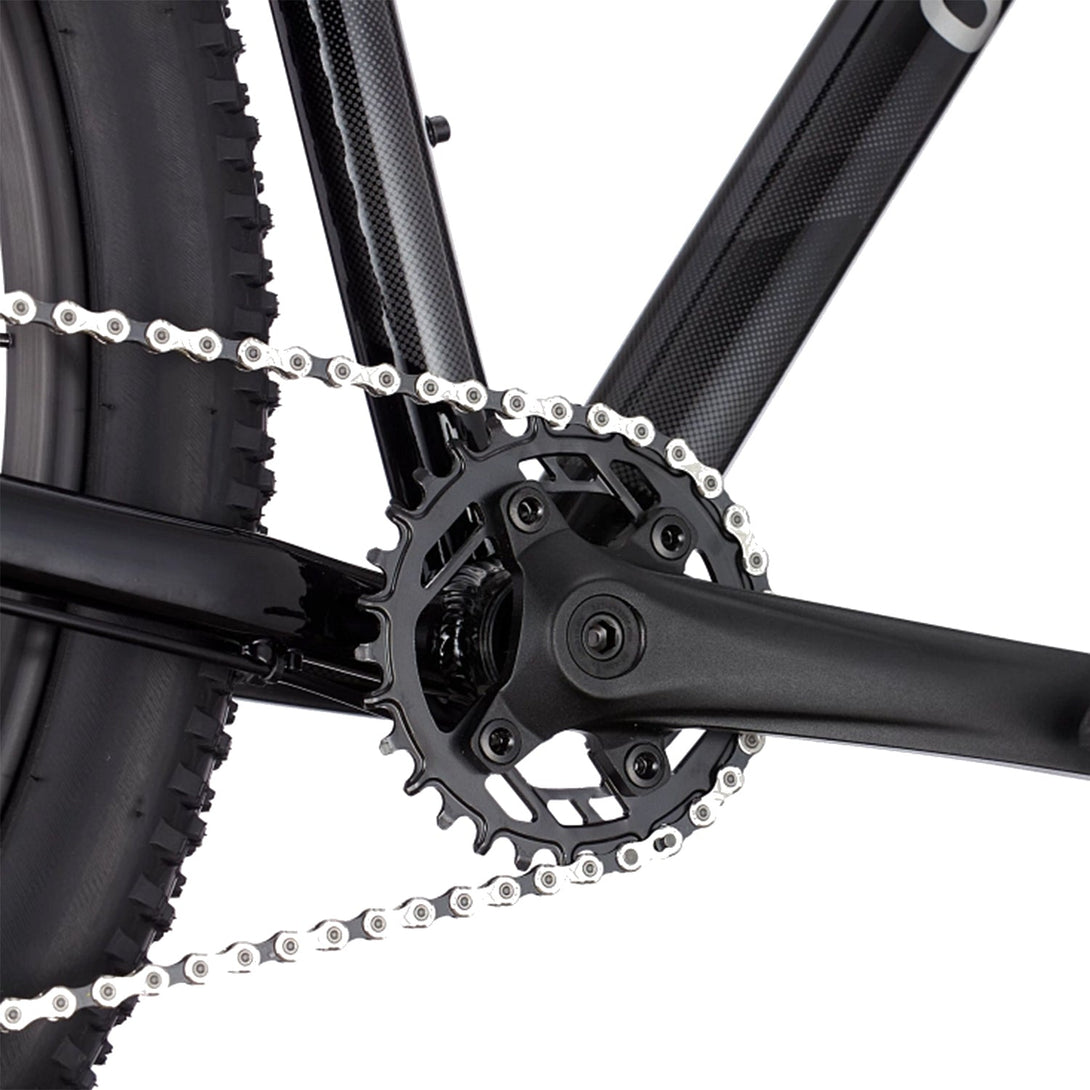

- Crank - Prowheel, Charm 30T
- Rear Cogs - microSHIFT, 11-48T, 10-speed
- Bottom Bracket - Sealed bearing cartridge, square taper

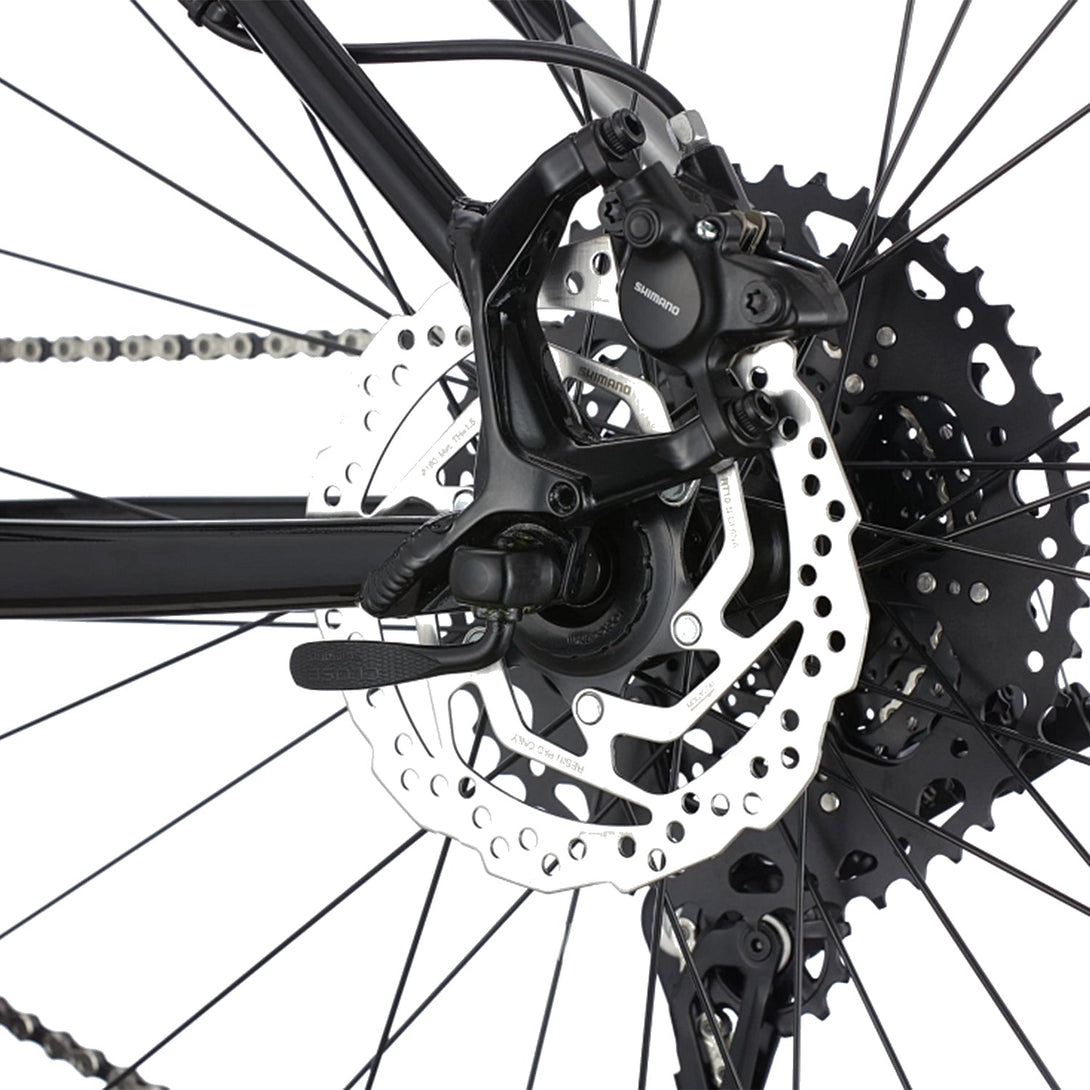

- Brakes - Tektro M275 hydraulic disc, 160/160mm rotors
- Brake levers - Tektro hydraulic disc
- Rims - WTB SX19, 32h
- Front hub - Shimano HBTX 505
- Rear hub - Shimano FHTX505
- Spokes - Stainless Steel, 14g
- Tires - WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound
- Tire size - 2.25
- Wheel size - 29
- Front tire - WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound
- Rear tire - WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

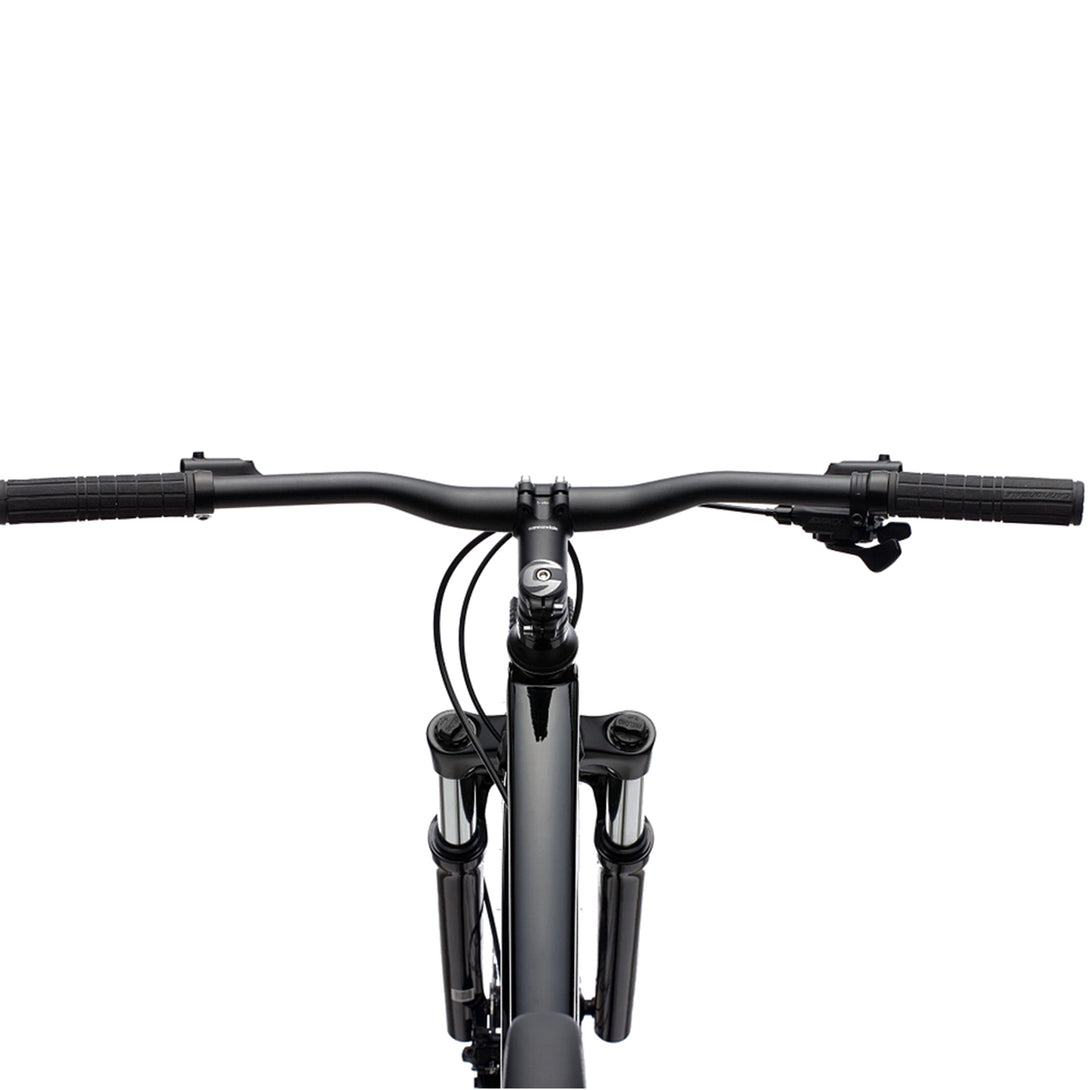

- Handlebar - Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
- Stem - 6061 Alloy, 31.8, 7°
- Grips - Cannondale Dual-Density
- Saddle - Cannondale Stage 3
- Seatpost - Cannondale 3, 6061 Alloy, 31.6 x 350mm (XS - SM), 400mm (MD-XL)
Professionally assembled and ready to ride!
All bikes are assembled by our team of professional technicians at Cycle Souq with quality checks at every stage to ensure the bike is delivered to you in perfect condition.
