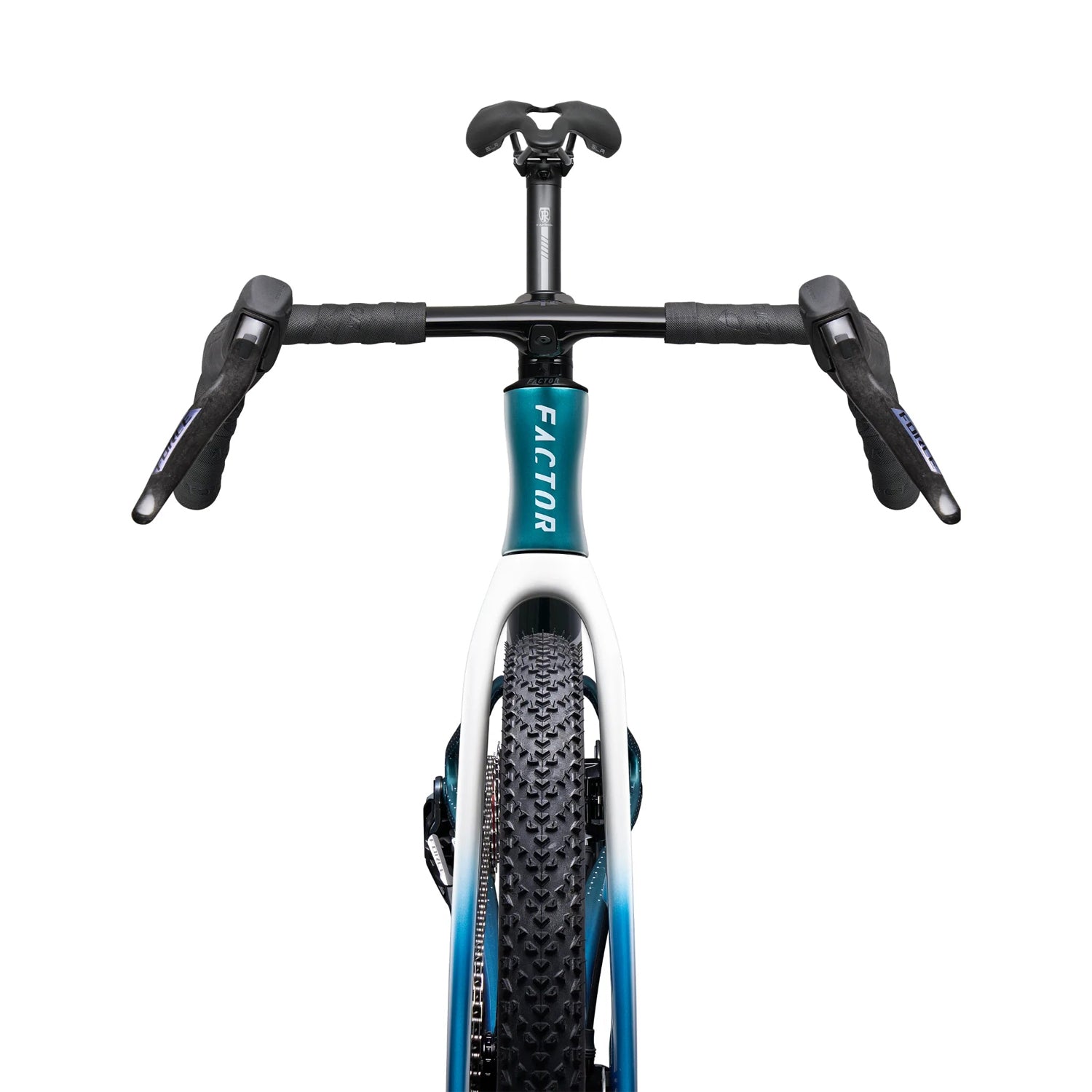

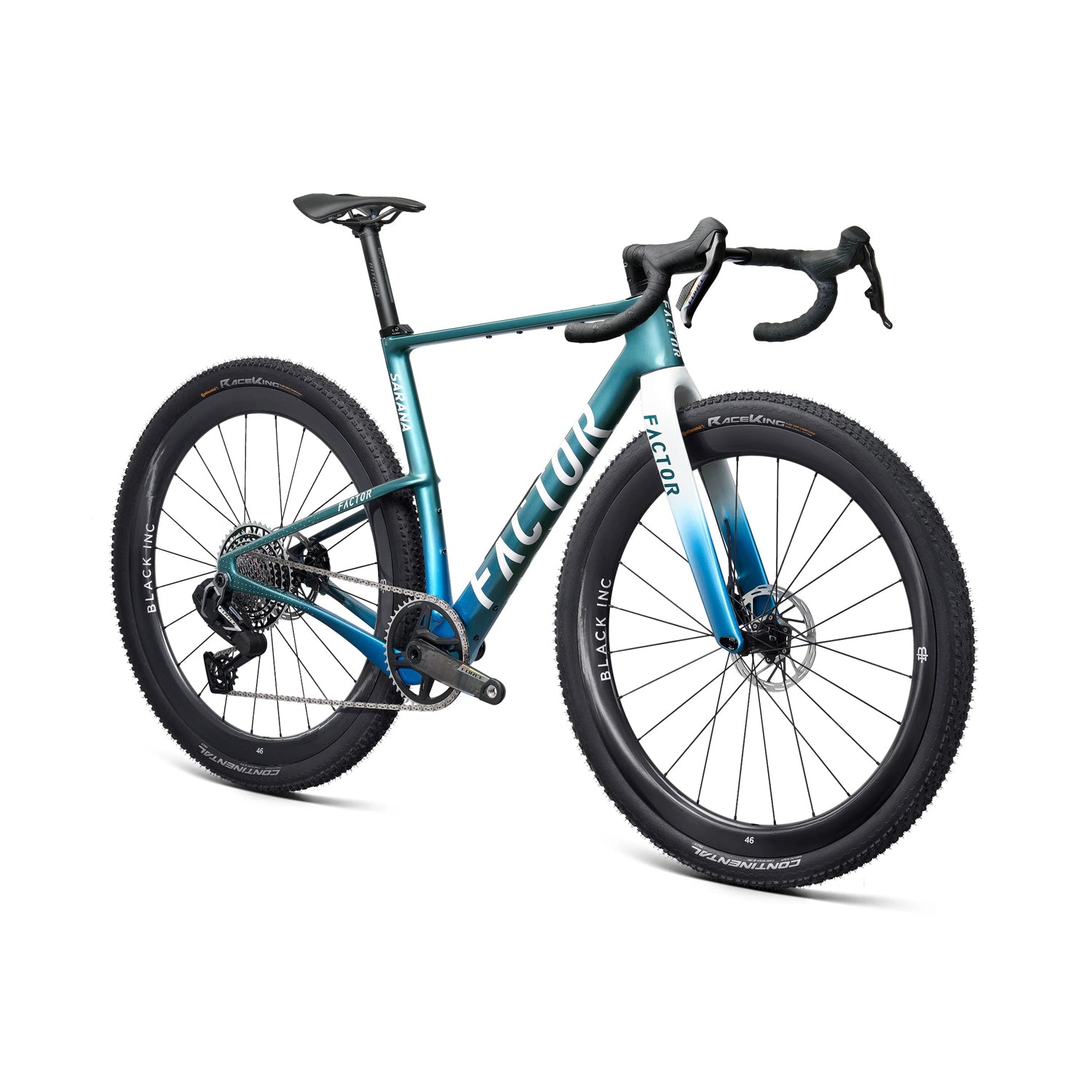

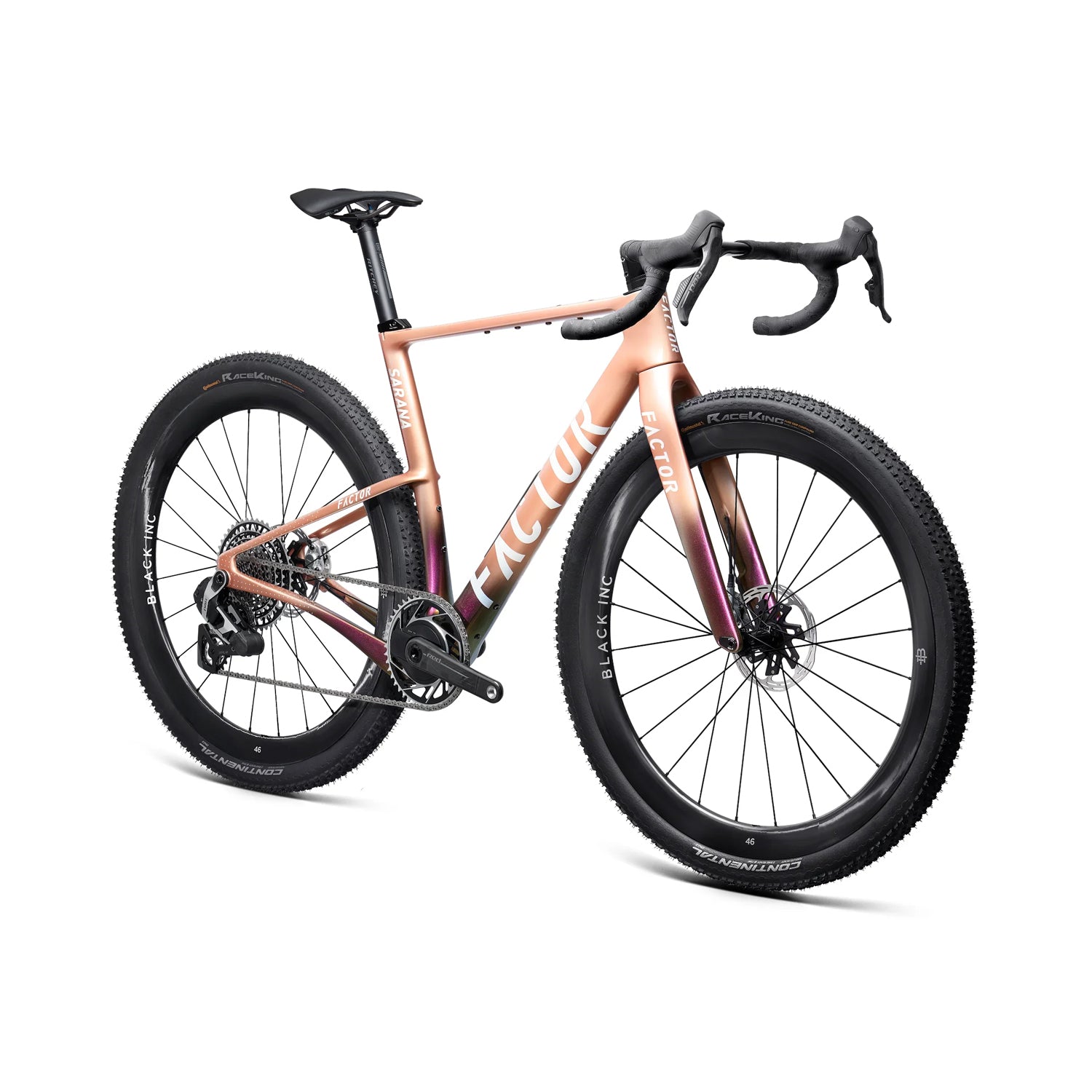

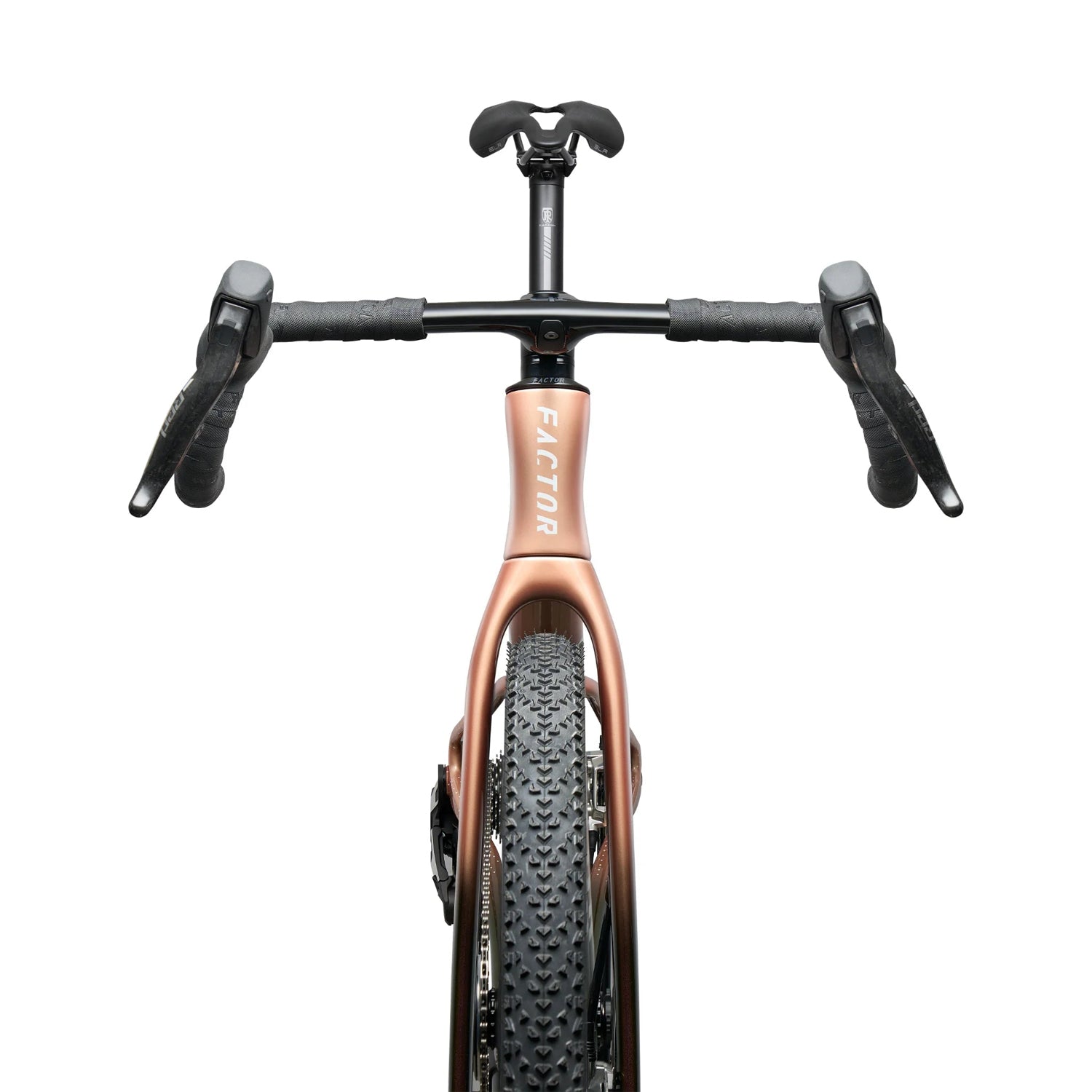

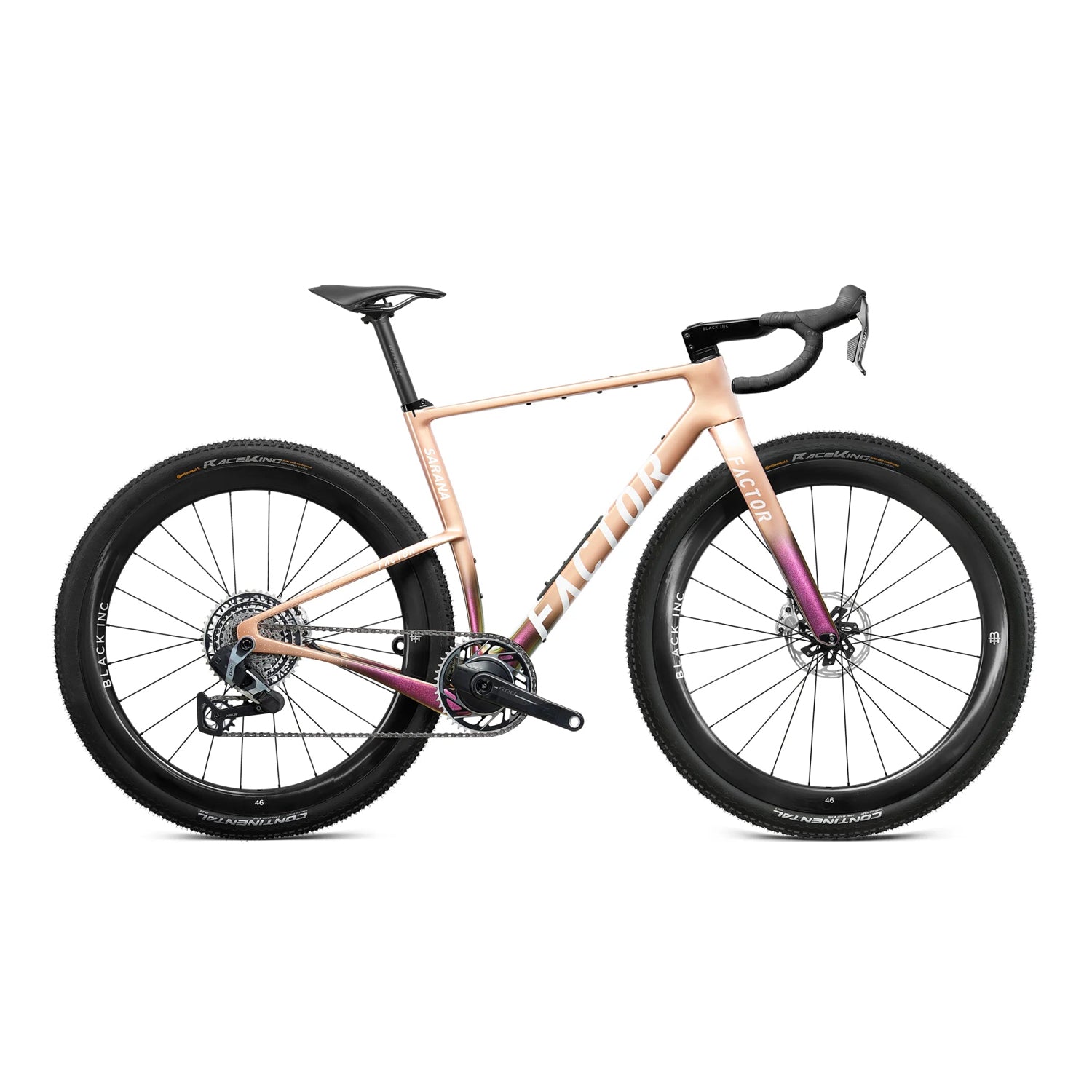

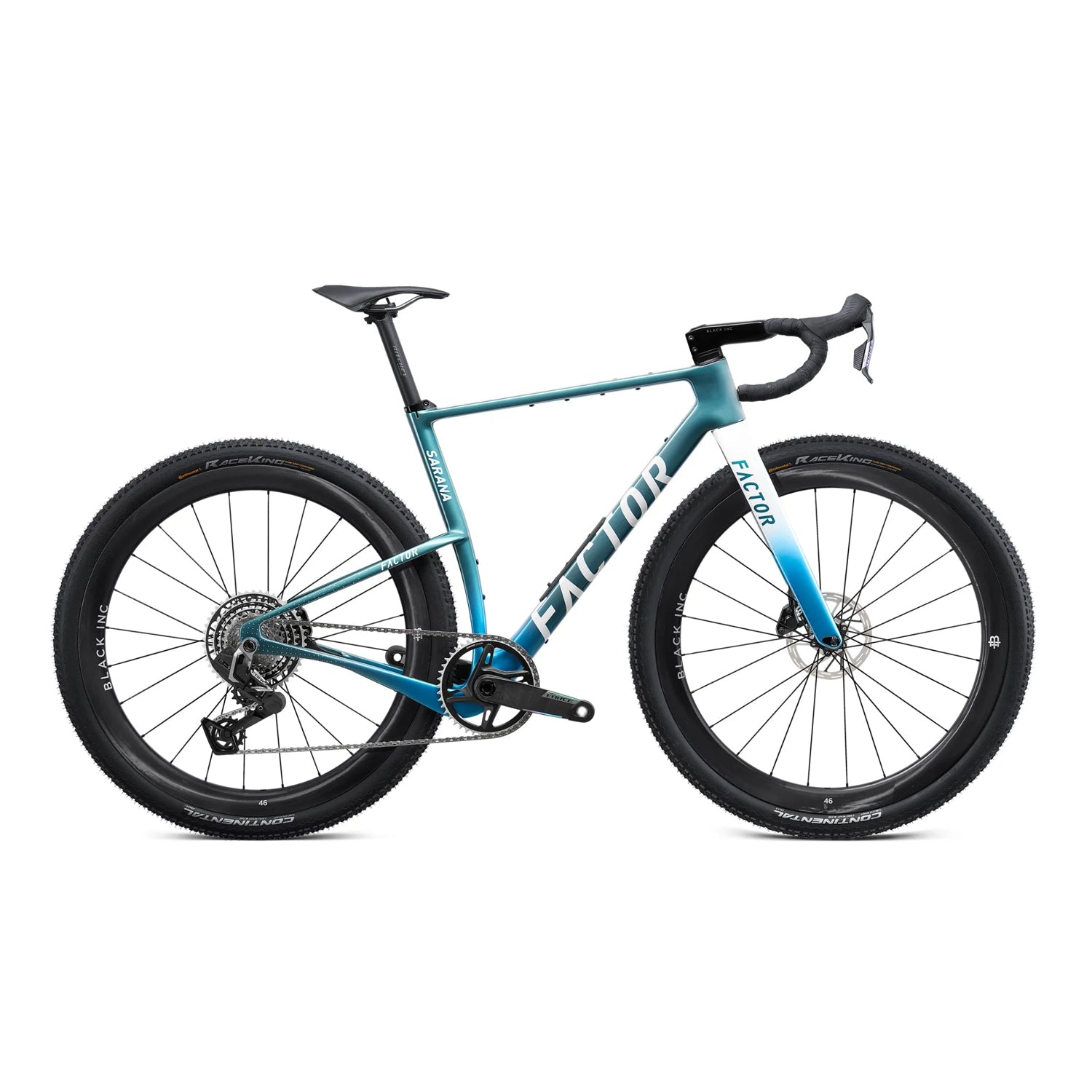

Factor Sarana SRAM Force XPLR AXS Gravel Bike 2026
The Factor Sarana Gravel Bike is built for ultra-distance racing, self-supported exploration and demanding days beyond the tarmac. Its carbon frame combines endurance-focused geometry with responsive handling, helping riders maintain efficiency and control as the kilometres accumulate.
A leaf-spring seatstay system helps absorb rough-surface vibrations while preserving lateral stiffness, and generous clearance for tyres measuring up to 57 mm allows a wide range of gravel setups. Integrated downtube storage keeps essentials close at hand, while compatibility with a dropper seatpost and 30 mm travel suspension fork adds versatility for more challenging terrain.
Equipped with SRAM Force XPLR AXS 1×13 electronic shifting, a 10–46T cassette, Black Inc FORTY SIX gravel wheels and an integrated Black Inc cockpit, the Sarana brings race-focused performance to long-distance gravel riding.
FEATURES
Ultra-Distance Geometry: Carefully tuned stack, reach and steering geometry support sustained riding efficiency and confident control through fatigue.
Premium Carbon Frame: Toray and Nippon Graphite PAN-based carbon fibres form the foundation of a performance-focused gravel frameset.
Leaf-Spring Seatstays: Dropped seatstays and an offset seat tube allow controlled flex to reduce rough-road vibration while maintaining lateral stiffness.
Responsive Rear-End Geometry: Consistent 425 mm chainstays across all frame sizes help retain agile handling alongside generous tyre clearance.
SRAM Force XPLR AXS: Wireless electronic 1×13 shifting pairs with a 10–46T cassette for precise gear changes across varied gravel terrain.
Black Inc FORTY SIX Wheels: A 46 mm rim depth, 27 mm internal width and aerodynamic steel spokes balance speed and durability.
Generous Tyre Clearance: Clearance for tyres measuring up to 57 mm provides flexibility to prioritise traction and comfort.
Integrated Downtube Storage: A dedicated internal compartment with a custom bag provides space for tools, clothing and other ride essentials.
Gravel-Specific Cockpit: The Black Inc HB05 integrated barstem combines a short drop and wide flare for confident handling on demanding surfaces.
Dropper Seatpost Compatibility: The 30.9 mm seatpost interface and external clamp allow an optional compatible dropper post.
Suspension Fork Compatibility: Designed to accommodate an optional 30 mm travel suspension fork without compromising the intended geometry or handling.
Custom Frame Bag Options: Purpose-designed Post Carry bags offer additional carrying capacity for self-supported rides.
SPECIFICATIONS
Frame: Toray and Nippon Graphite PAN-based carbon fibre
Frame Design: Leaf-spring seatstay system with offset seat tube
Fork: Factor Sarana carbon
Suspension Fork Compatibility: Optional 30 mm travel fork
Cable Routing: Internal
Headset: 1.5-inch bearings
Head Tube Diameter: 1.5-inch upper and lower
Chainstay Length: 425 mm across all sizes
Groupset: SRAM Force XPLR AXS
Drivetrain: 1×13-speed electronic
Cassette: 10–46T
Bottom Bracket: CeramicSpeed T47A Wide with aluminium cups
Bottom Bracket Compatibility: CeramicSpeed bearing options for DUB and 24 mm spindles
Maximum Chainring Size: 52T
Component Compatibility: Electronic shifting
Brake Type: Disc
Rotors: 160 mm
Maximum Rotor Size: 160 mm front and rear
Wheelset: Black Inc FORTY SIX
Wheel Size: 700c
Rim Depth: 46 mm
Internal Rim Width: 27 mm
Spokes: Aerodynamically shaped steel
Maximum Tyre Clearance: 57 mm measured tyre width
Front Axle: 12 × 100 mm thru-axle
Rear Axle: 12 × 142 mm thru-axle
Handlebar / Stem: Black Inc HB05 integrated barstem
Handlebar Reach: 75 mm
Handlebar Drop: 116 mm
Cockpit Sizing: Multiple stem lengths and handlebar widths available
Seatpost: FSA SL-K SB0
Dropper Seatpost Compatibility: 30.9 mm
Seatpost Clamp: External
Saddle Rail Clamp Compatibility: 7 × 7 mm and 7 × 9 mm
Storage: Integrated downtube compartment with custom internal bag
