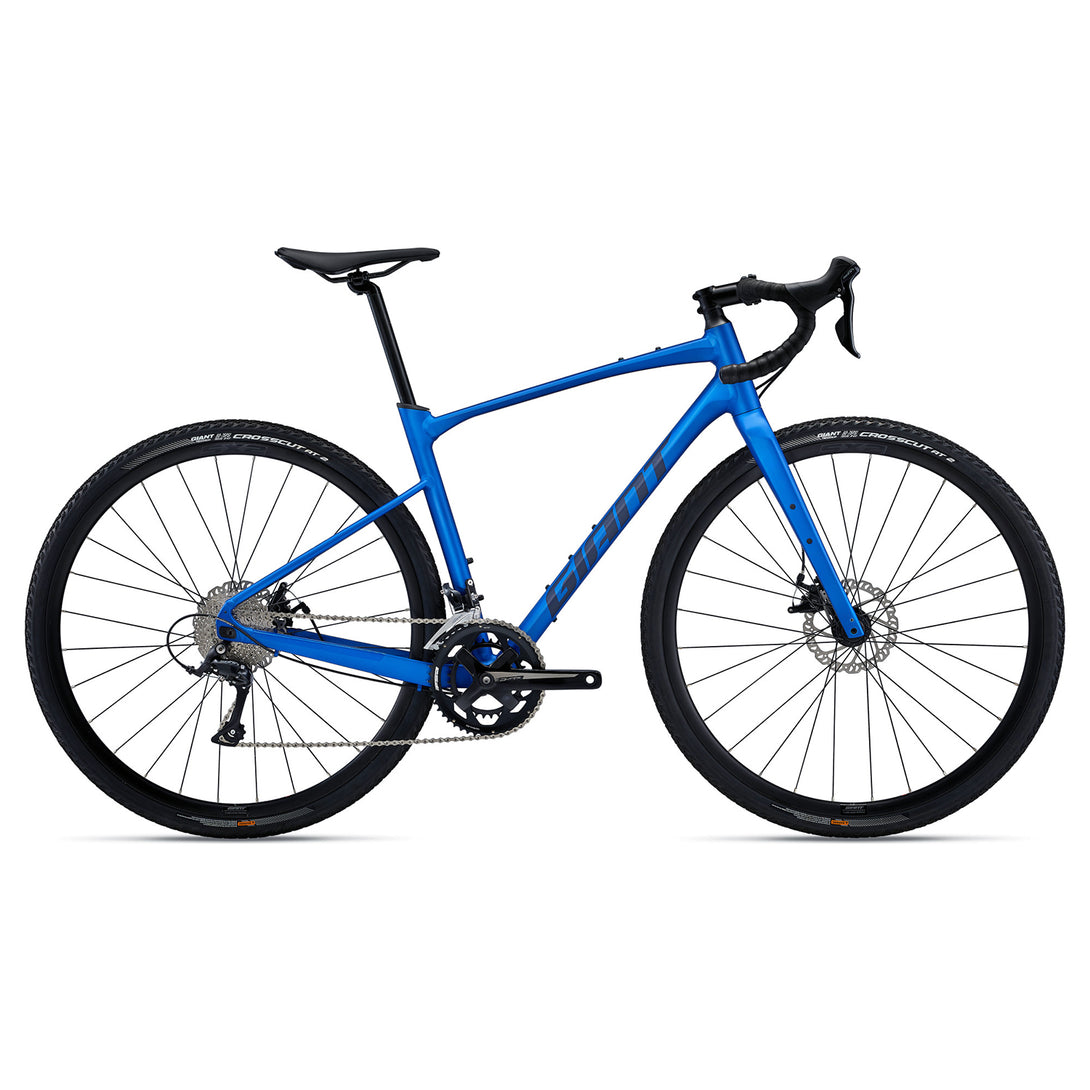

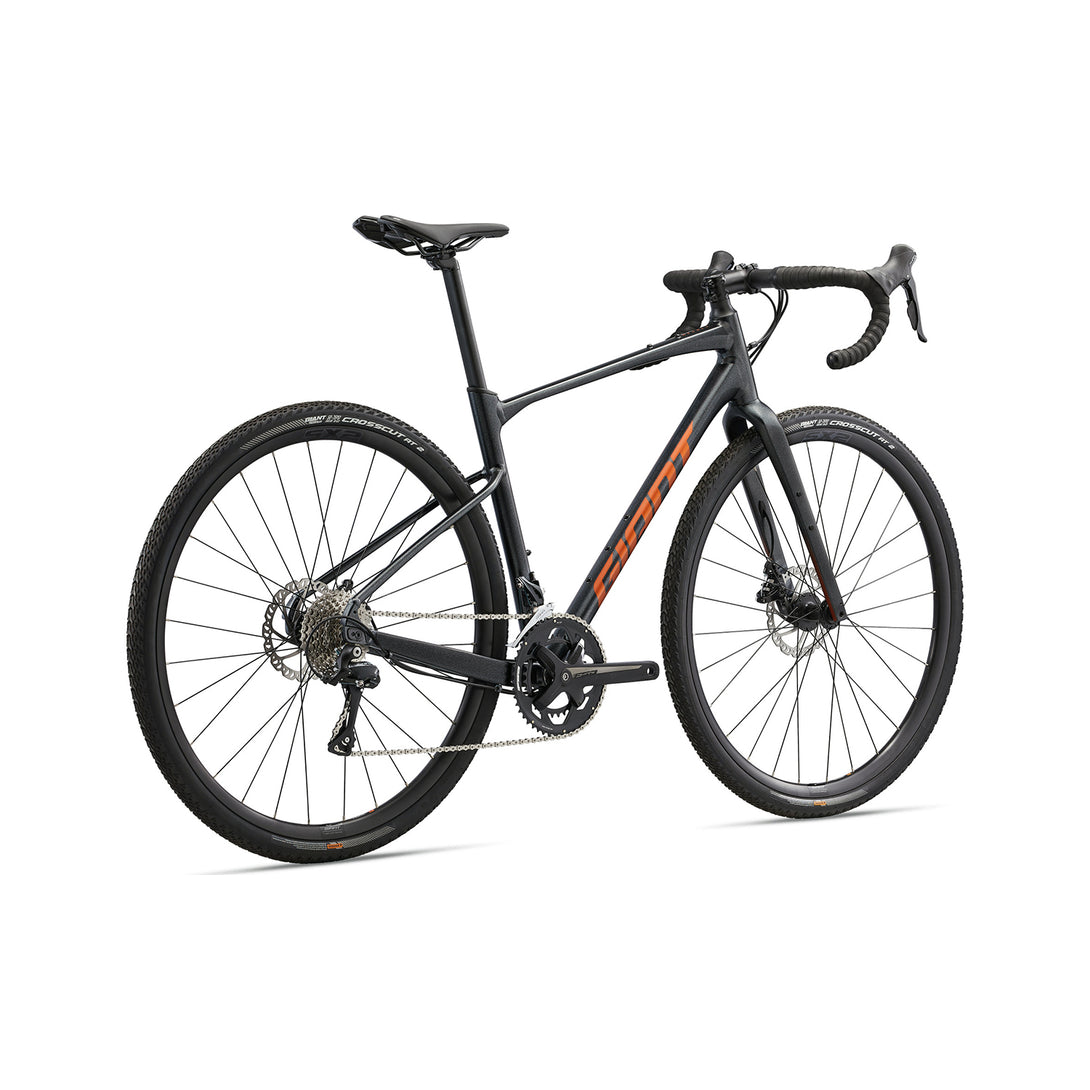

Giant Revolt 2 Sora Gravel Bike
Need help choosing a bike or technical advice?
Feel free to call us on 800 - CYCLE(29253)
Frequently Bought Together

RIDE ROADS, GRAVEL OR DIRT WITH THIS ALL-NEW ALUMINUM ALL-ROUNDER. A COMPOSITE FORK GIVES IT A SMOOTH RIDE, AND A FLIP CHIP LETS YOU ADJUST WHEELBASE AND TIRE CLEARANCE.
The all-new Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.
Key Performance Factors
Confident Handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned Compliance
New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Specifications
Sizes | S, M, L |
Frame | ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout |
Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc | Handlebar | Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
Grips | cork tape with gel | Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
Seatpost | Giant D-Fuse, alloy, 14mm offset | Saddle | Giant Approach |
Shifters | Shimano Sora, 2x9 | Front Derailleur | Shimano Sora |
Rear Derailleur | Shimano Sora, long cage | Brakes |
Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
|
Brake Levers | Shimano Sora | Cassette | Shimano HG400, 11x34 |
Chain | KMC X9 with Missing Link | Crankset | FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
Bottom Bracket | cartridge | Rims | Giant S-X2 Disc wheelset |
Hubs | Giant S-X2 Disc wheelset | Spokes | Giant S-X2 Disc wheelset |
Tyres | Giant CrossCut AT 2, 700x38c, tubeless | Extras | tubeless prepared, 53mm max tire size in "long" flip chip position, 42mm max tire size in "short" flip chip position |
Highlights
The all-new Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.
Sizing Guide and Geometry


Techs & Features
