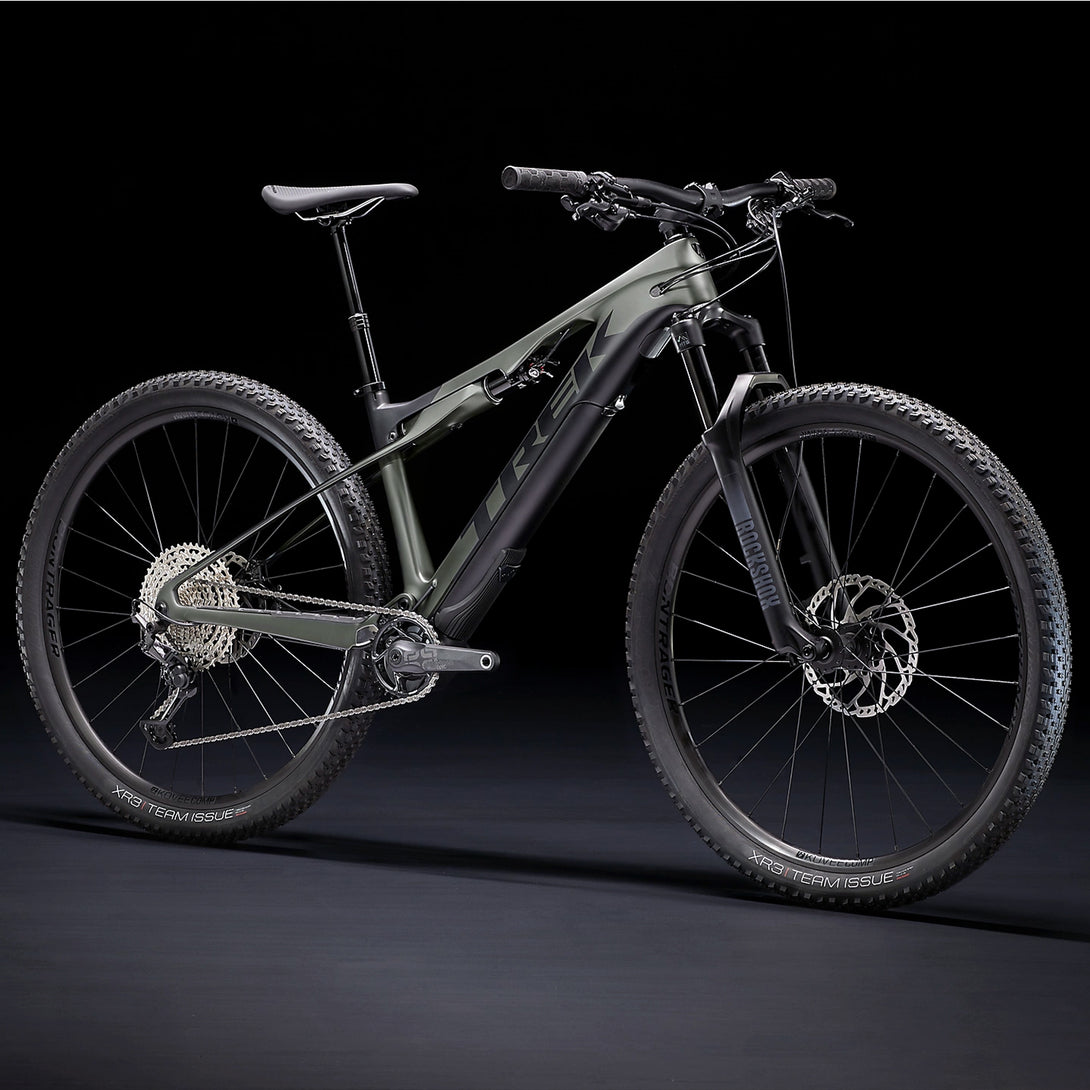

An OCLV Mountain Carbon frame with 60 mm of travel, a 120 mm RockShox Gold RL fork and Trek's IsoStrut FOX Performance shock. A Fazua Ride Trail 50 drive system that can assist up to 20 mph (25 km/h in Europe) when it's on, and gives zero drag when it's off, plus a Shimano Deore 12-speed drive train, dropper post for getting low on descents and Bontrager Kovee Comp 23 wheels. The E-Caliber is a fast and smooth XC bike that just happens to have a compact drive system that'll give you a little boost when you want it.

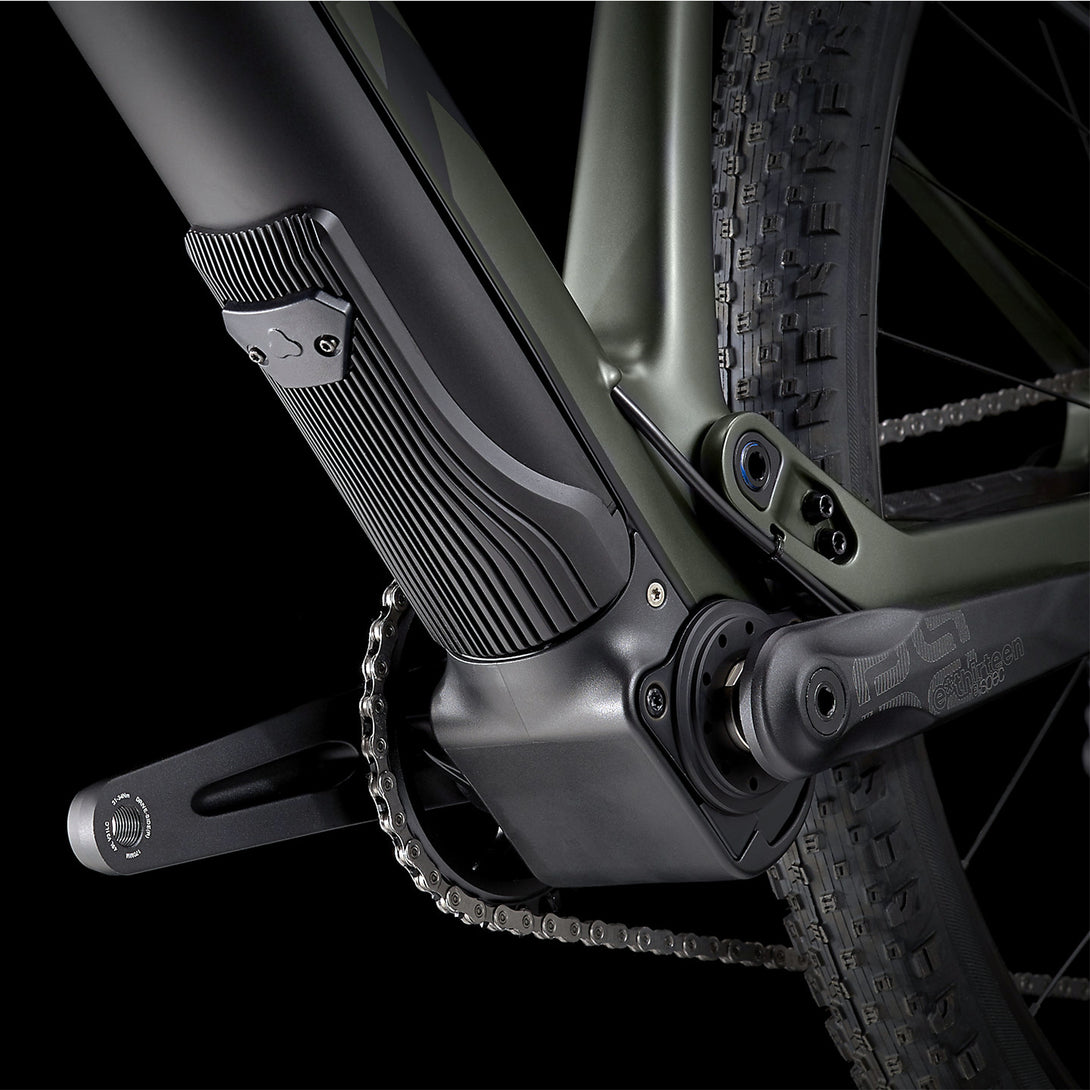

Fast & Efficient - Fazua's lightweight drive system adds a punch of power when you need it, but rides and feels like a traditional bike when you don't. You won't feel much drag or resistance when you turn it off or pass the max level of assist. The system is also compatible with a smartphone app to let you check battery status and customise your ride.
The E-Caliber is equipped with intelligent Fazua software called BLACK PEPPER, which allows the motor to respond immediately as you start to pedal, delivers more power over a wider cadence range and lets you customise your user settings.

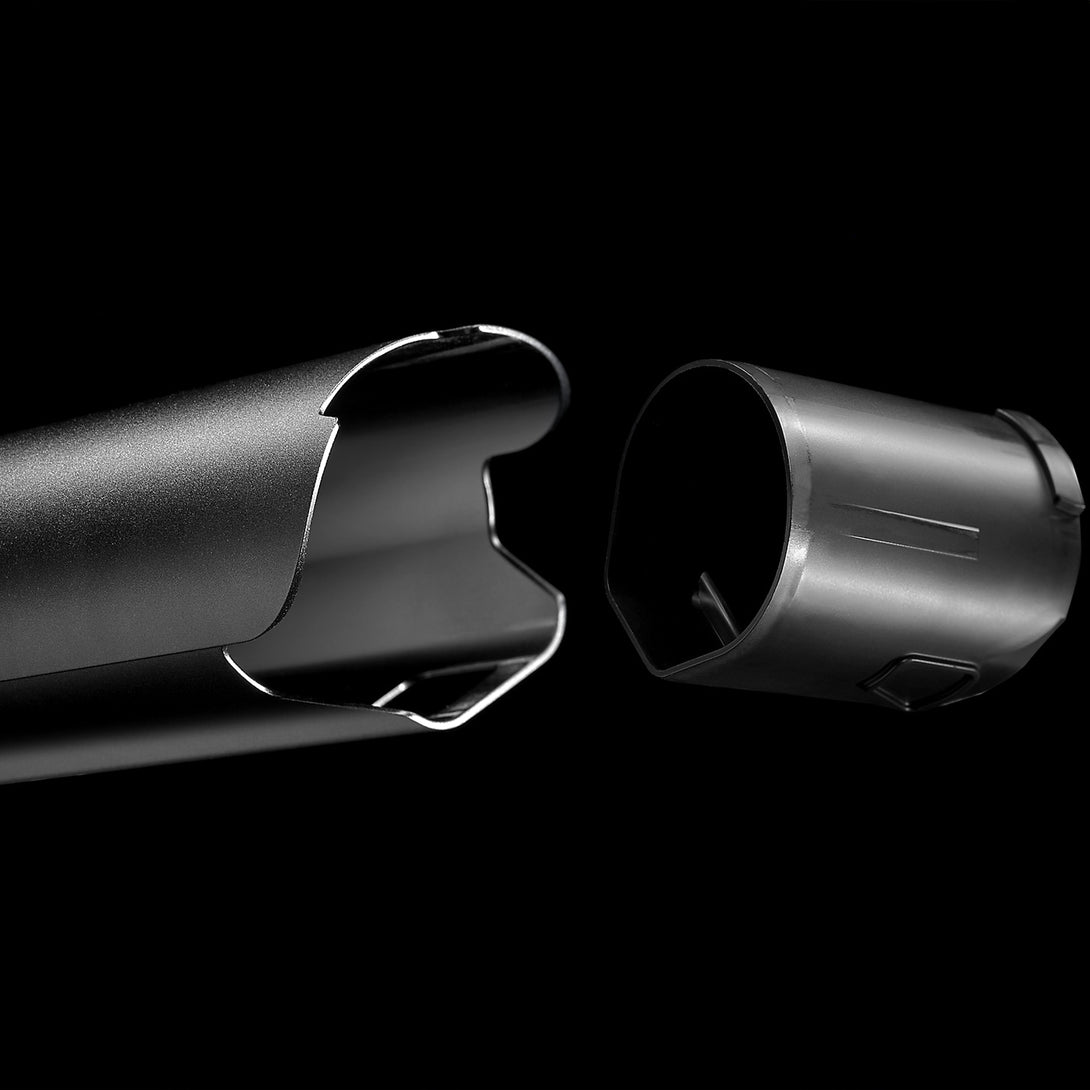

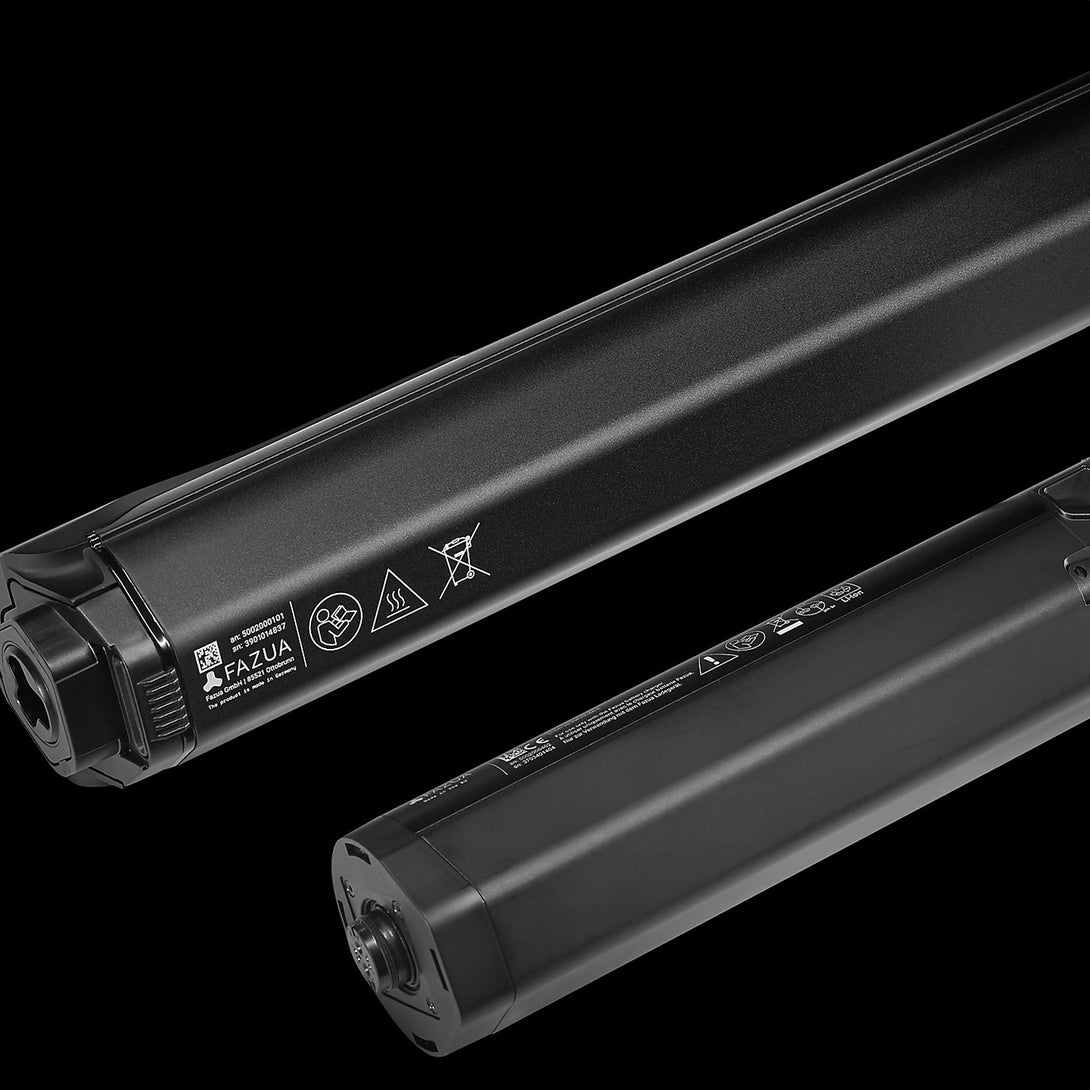

Removable Drive Pack - Remove the motor and drivepack to save 2.9 kg/6.4 lb on days when you don't need the boost. The included cover also turns the down tube into extra storage.

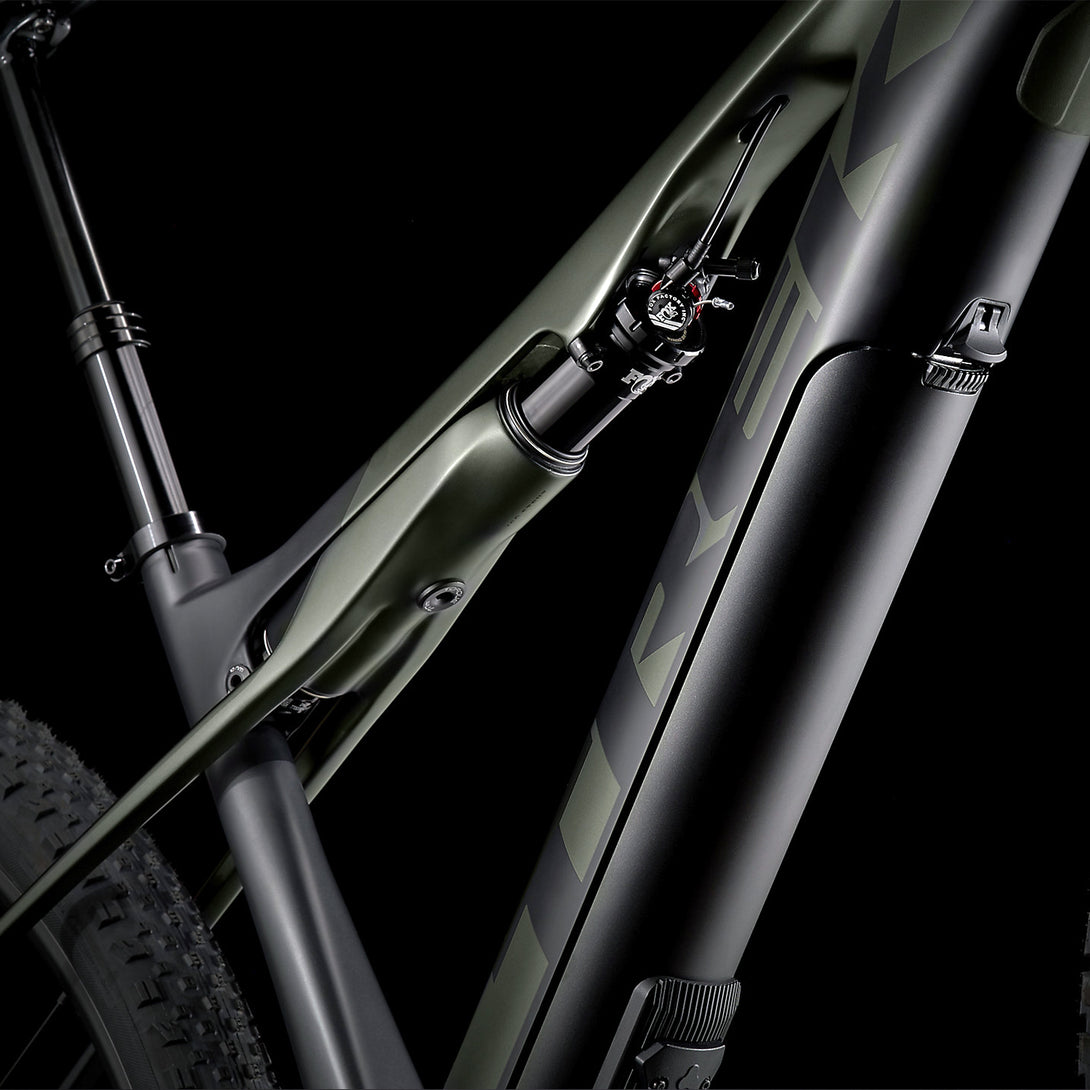

IsoStrut - The E-Caliber has the same innovative IsoStrut rear suspension as the World Cup-winning Supercaliber. You get 60 mm of integrated rear travel – just the right amount of comfort and traction, without the weight or flex of traditional full suspension.
|Frame||OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel||Fork||RockShox 35 Gold RL, DebonAir spring, Motion Control damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel|
|Frame Size S Shock||Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5 mm||Frame Size M-XL Shock||Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235 mm x 32.5 mm|
|Max Fork Travel||
120mm (531mm axle-to-crown)
|Rear Skewer||Bontrager Switch thru axle, removable lever|
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40"
|Tyre Part||Bontrager TLR sealant, 180 ml/6 oz|
Shimano Deore M6100, 12 speed
Shimano XT M8100, long cage
Shimano Deore M6100, 10-51, 12-speed
Shimano Deore M6100
|Max Chain Ring Size||
32T with 52mm chainline
Bontrager Arvada, hollow chromoly rails, 138 mm width
|Frame Size S Seatpost||TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length|
|Frame Size M-XL Seatpost||TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length||Frame Size S Handlebar||Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width|
|Frame Size M-XL Handlebar||
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Bontrager XR Trail Comp, nylon lock-on
|Frame Size S-M Stem||Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length||Frame Size L-XL Stem||Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length|
|Brake||Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper||Brake Rotor||Shimano RT66, 6-bolt, 180 mm|
|E-Bike System||Fazua Ride Trail 50 motor||Battery||Fazua Evation battery, 250 Wh|

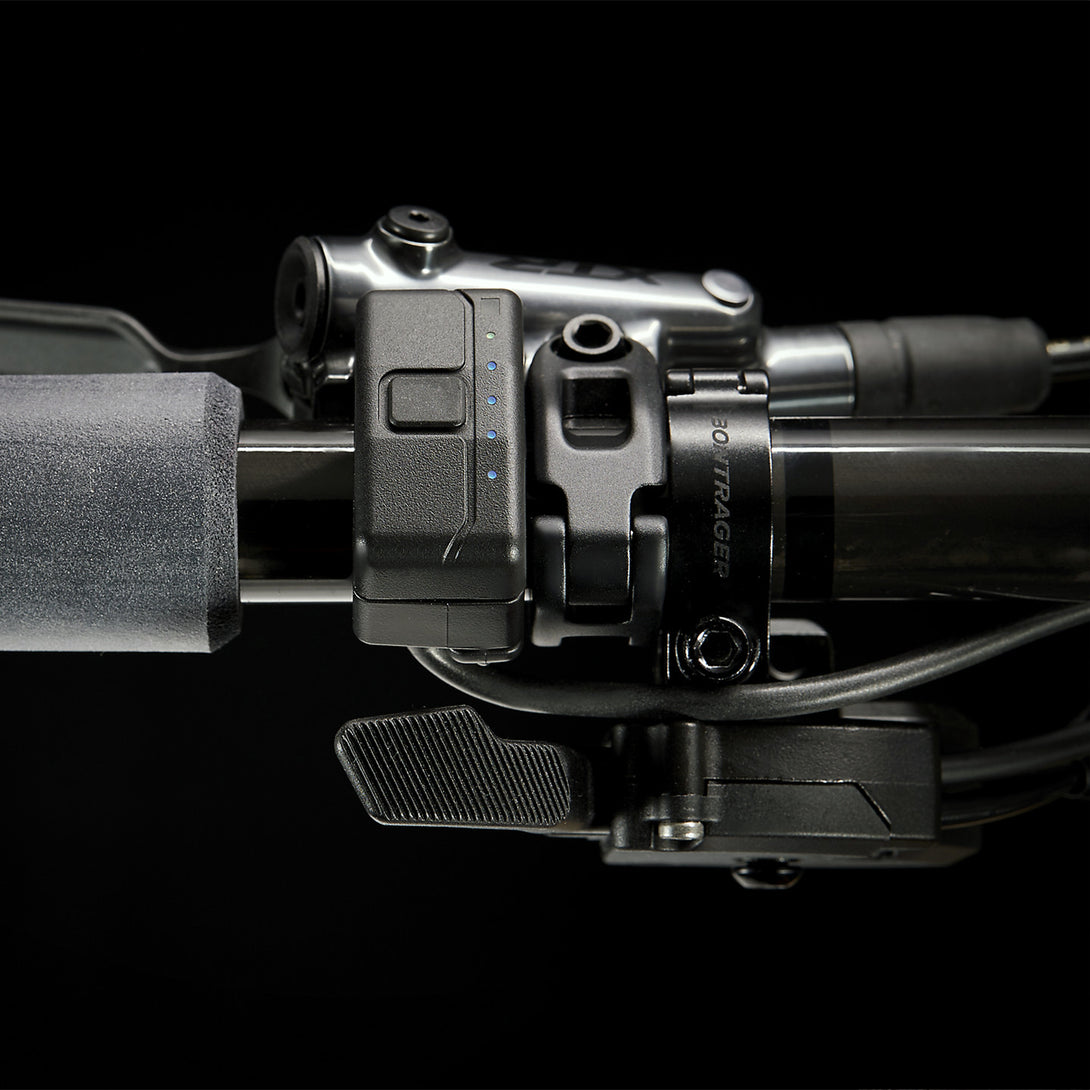

||Fazua Evation charger, 220-240V||Controller||Fazua Remote bX|
|Weight||M - 18.48 kg / 40.75 lbs (with TLR sealant, no tubes)||Weight Limit||This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).|
Professionally assembled and ready to ride!
All bikes are assembled by our team of professional Cycle Souq technicians with quality checks at every stage to ensure the bike is delivered to you in perfect condition.
