For Whom is the 625wh? For the Alpine Tourer. There are hardly any other bikes that can be used as variably as Hardtails. With new drives and increasingly sophisticated technology, these bikes are taking the market by storm. Own performance classes in competitive sports are being planned. This category proves that with a pedelec, fun and sportiness do not go astray. Even in technically demanding trails, these hardtails make an agile impression. If you can't get enough of mountain biking, you've come to the right place!
PRODUCT HIGHLIGHTS
Smaller frames (S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

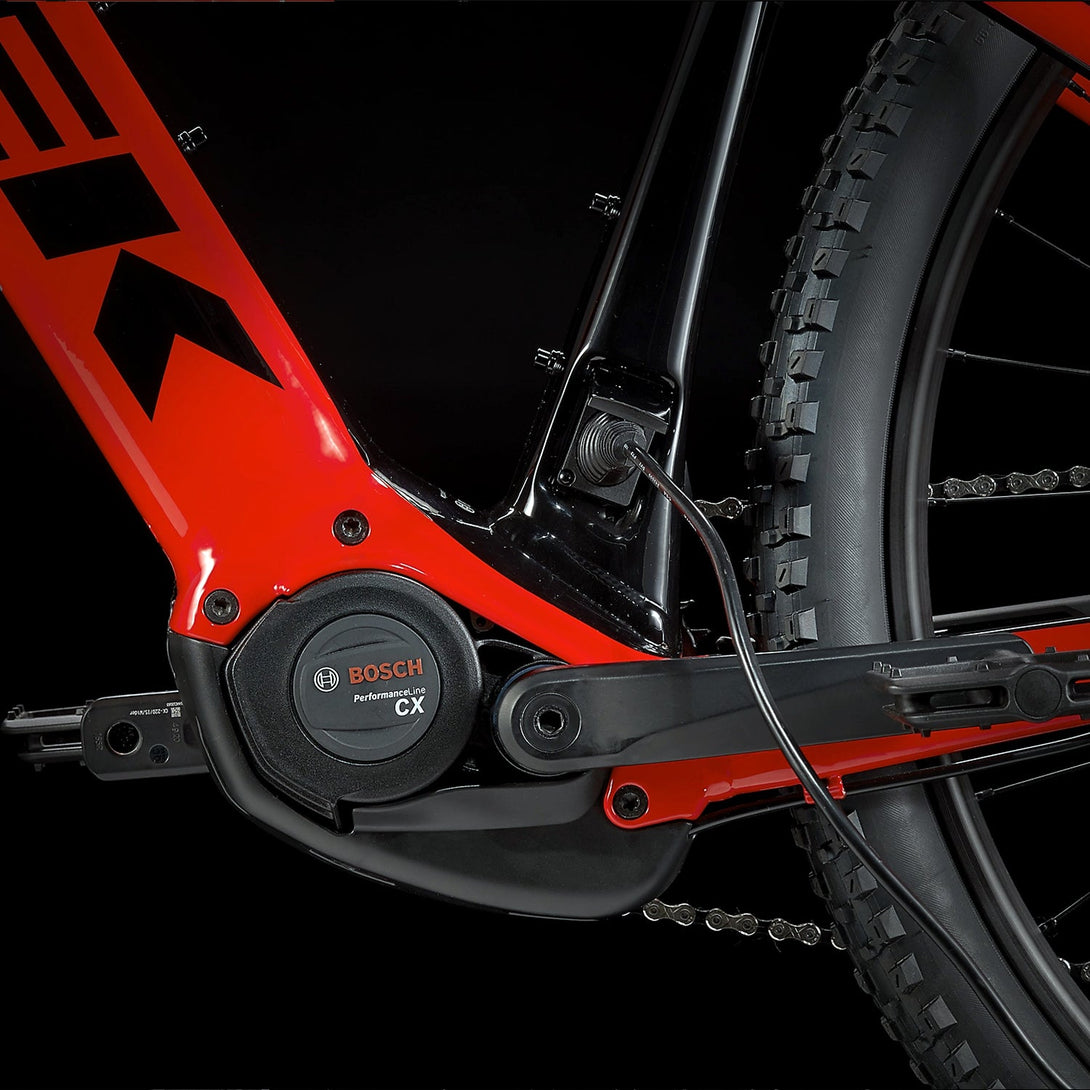

Bosch Performance Line CX sets the standard for eMTB performance with up to 85Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.
The bike is internally wired to accept additional lights

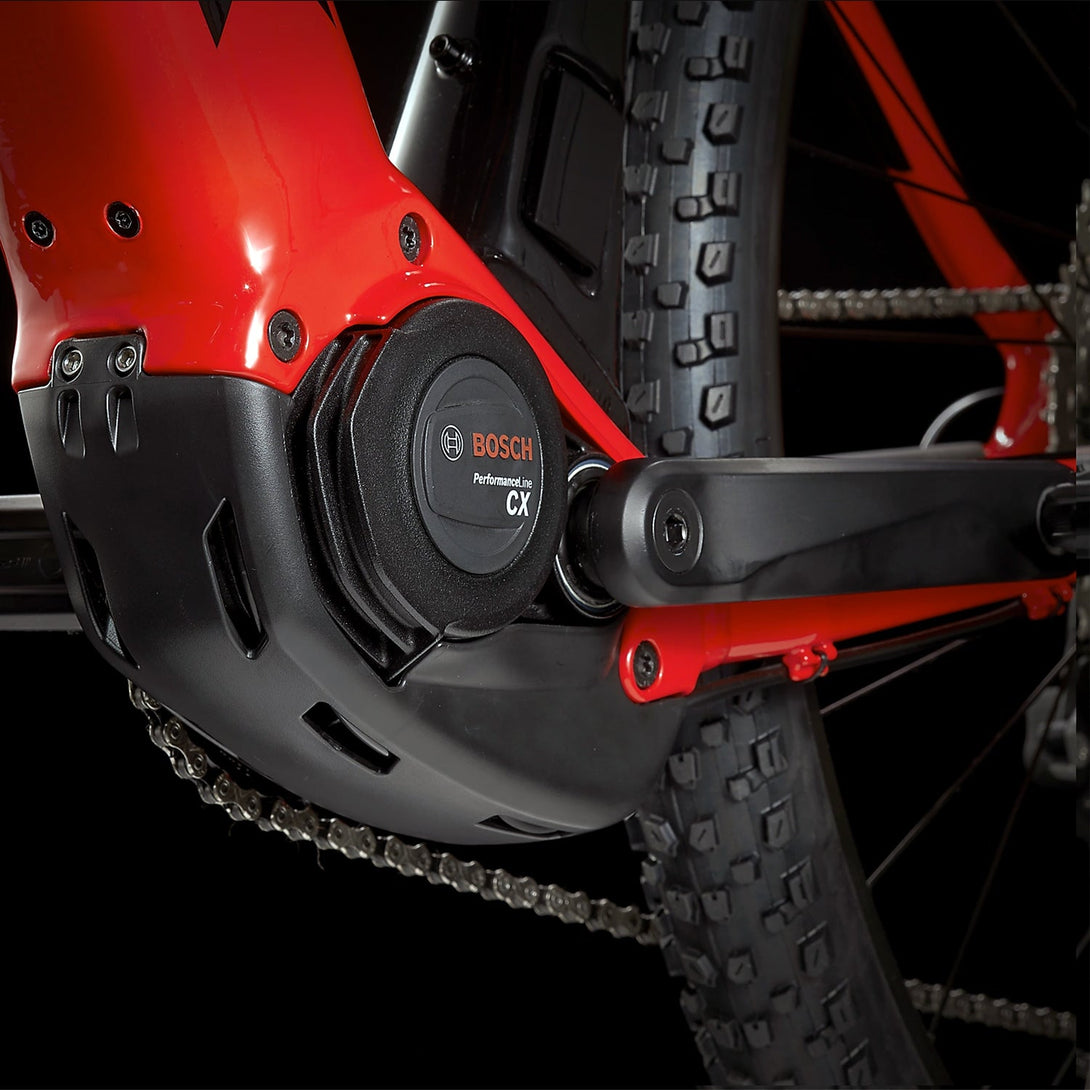

This unique protection shield is lightweight yet robust and protects the motor from rocks, logs and other debris
Specifications :

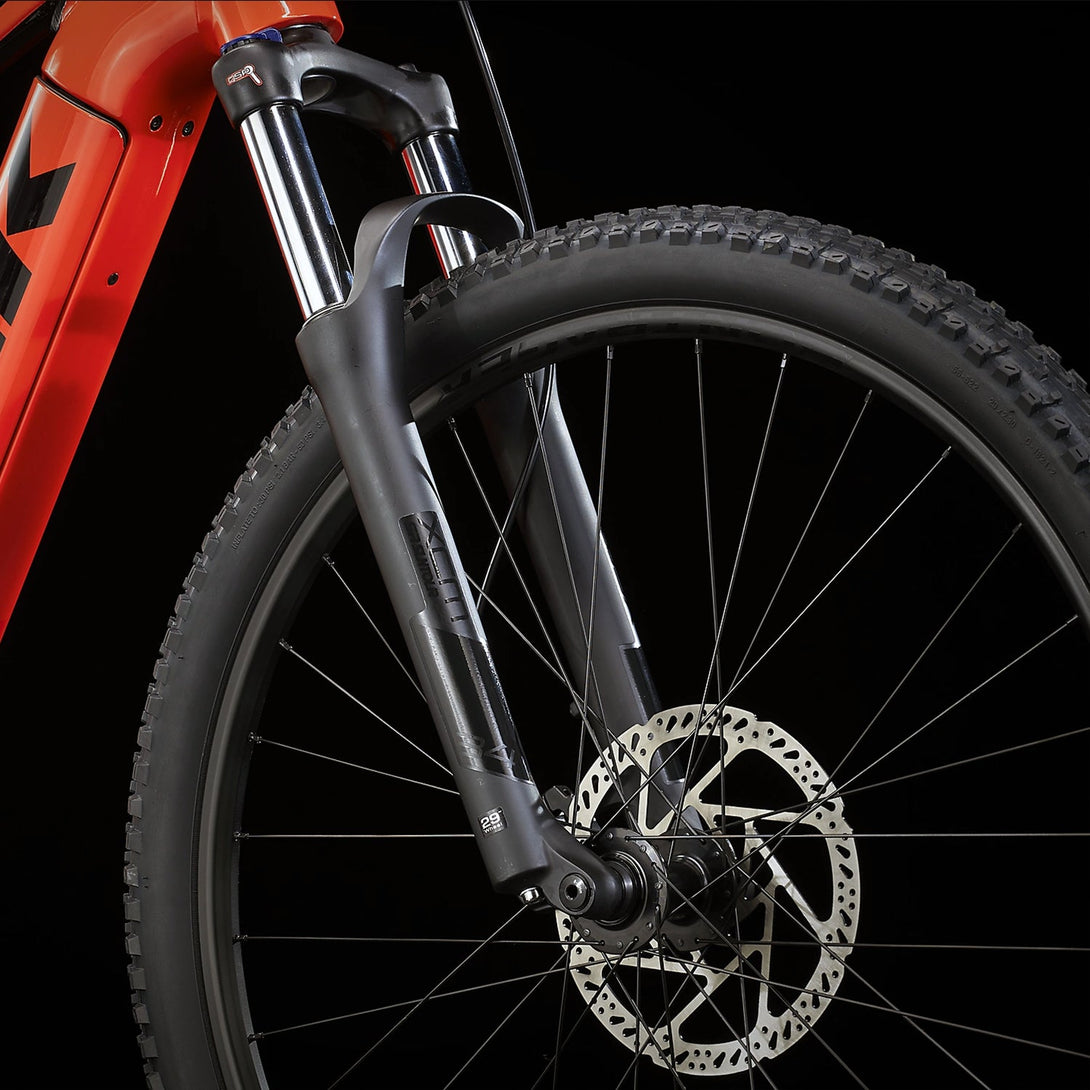

| Size XS-S Frame | Alpha Platinum Aluminum, Curved Top Tube, Removable Integrated Battery (RIB), Tapered Crown Tube, Control Freak Internal Cable Routing, Motor Armor, Boost148, 12mm Thru Axle | Frame Size XS-XL Fork | SR Suntour XCM 34, metal spring, preload, lockout, tapered head tube, 44mm offset, Boost110, 15mm thru axle, 80-120mm travel |
| Max Fork Travel |
120mm (XS & S: 100mm) |
Front Hub | Formula DC-511, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub |
Bontrager alu, closed bearing, alu axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru-axle |
Plug Axle Rear Wheel | Bontrager Switch thru axle, removable grip |
| Rim |

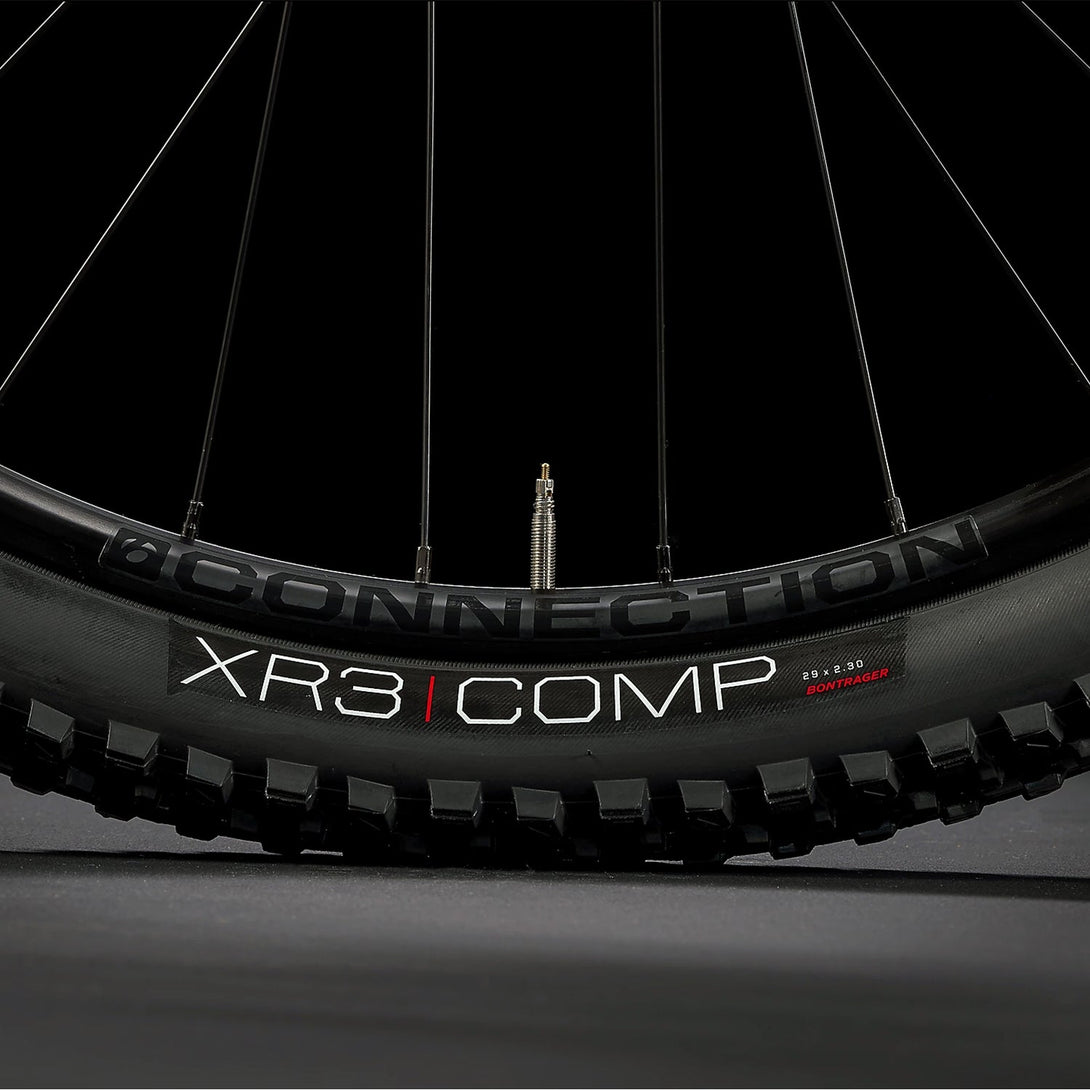

Bontrager Connection, double bottom, 32-hole, 20mm width, racing valve |
Tyres |
Bontrager XR3 Comp, steel wire, 30 tpi, 27.5x2.35"
|
| Max Tyre Size | 27.5x2.8" (XS & S: 27.5x2.60") |
|
|
| Shifters |
Shimano Deore M4100, 10 gears |

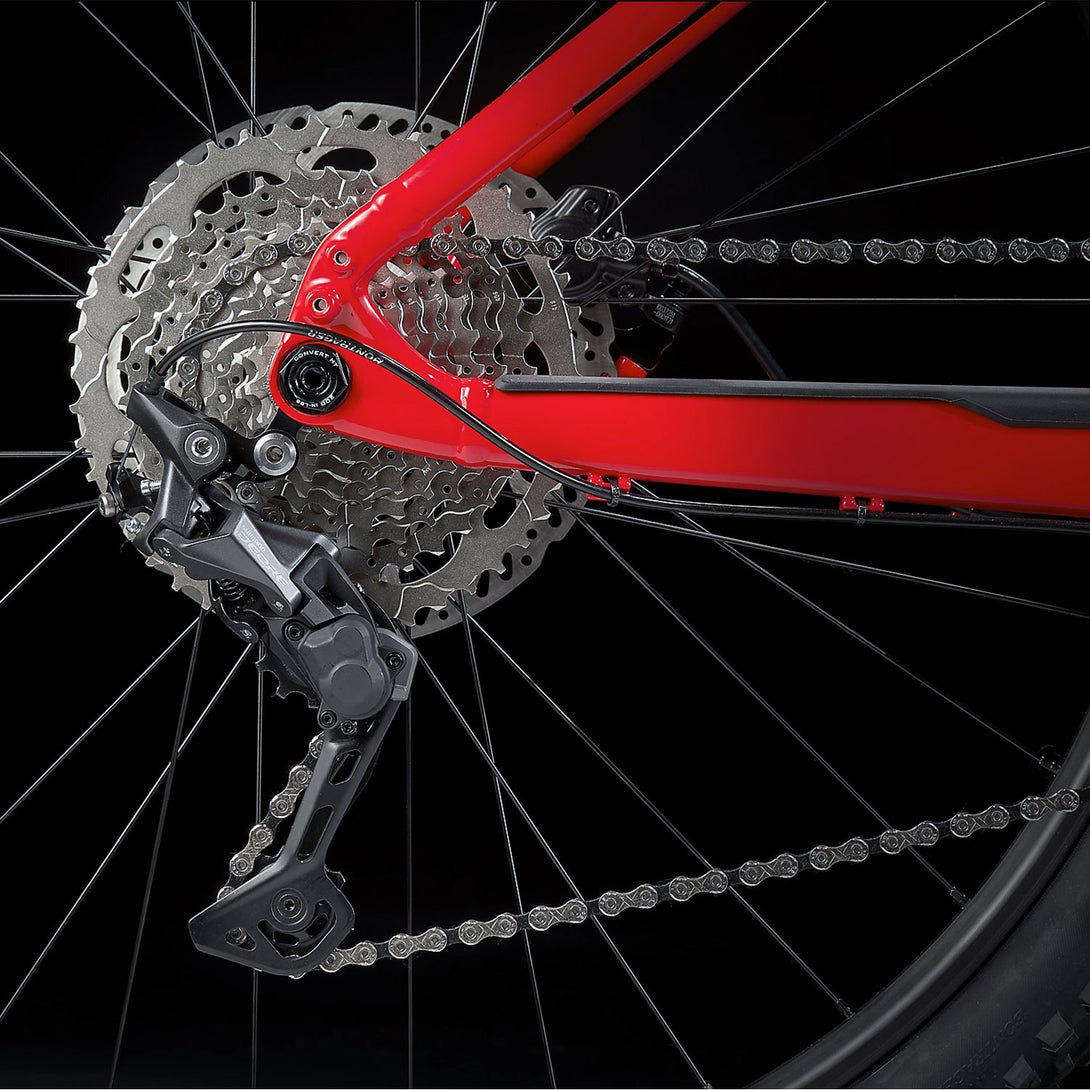

Rear Derailleur | Shimano Deore M5120, long shifter arm |
| Crankset |
FSA Bosch CK-220, 36T ring, 165mm length |
Sprocket | FSA, 36T, steel |
| Cartridge | Shimano Deore M4100, 11-46, 10 gears | Chain | KMC X10, 10-speed |
| Pedal |
VP-536 nylon platform |
Max Blade Size |
38T |
| Seatpost | Bontrager alu, 31.6mm, 12mm offset, 330mm length | Steering |
Bontrager alu, 31.8mm, 15mm height, 720mm width |
| Handle | Bontrager XR Endurance Comp | Frame Size XS-S Front Pin | Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 50-60mm length |
| Headset | FSA IS-2, 1 1/8" upper, 1.5" lower | ||
| Brakes | Tektro, 6-bolt, 203 mm | Brake Set | Hydraulic Tektro HD-M275 disc brake |

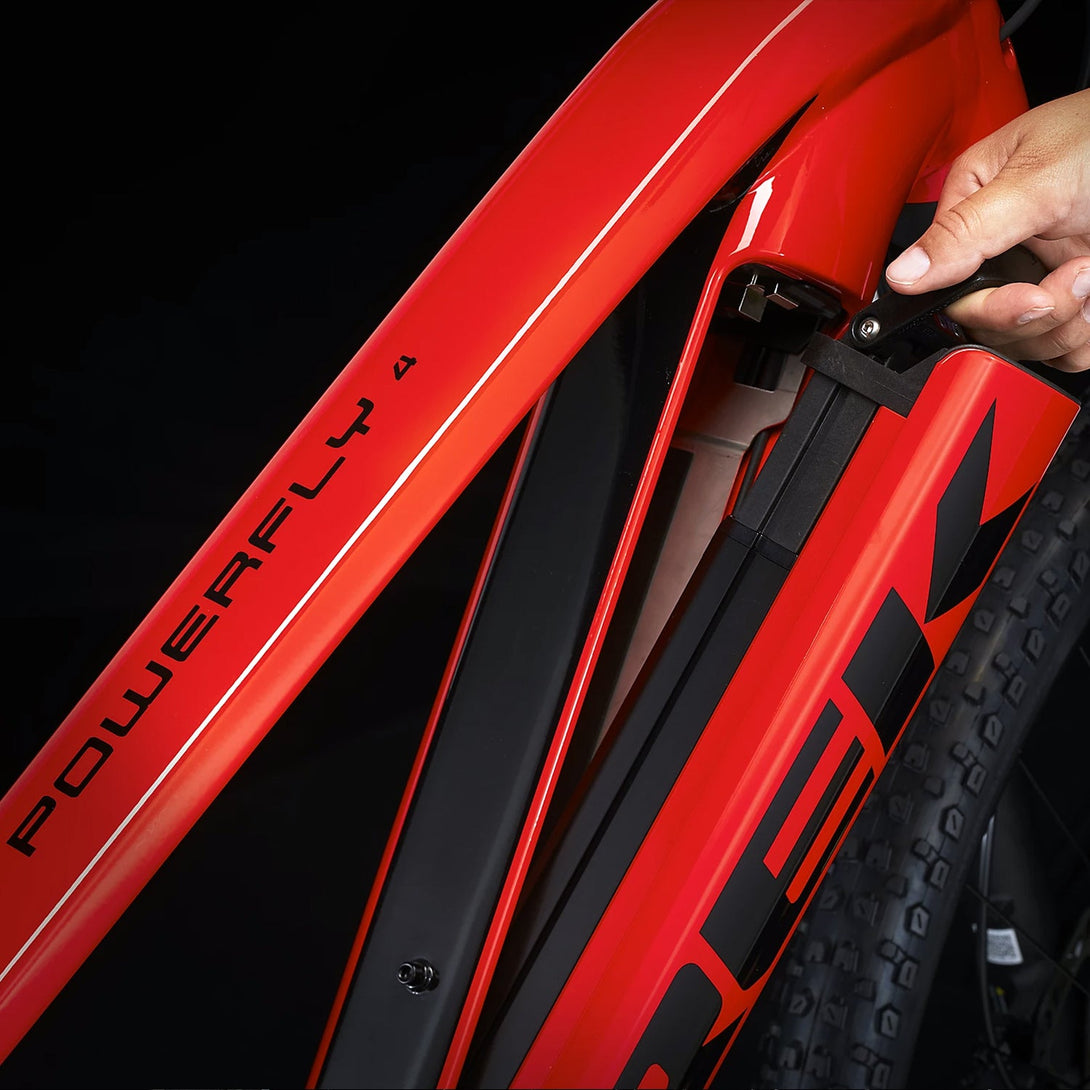

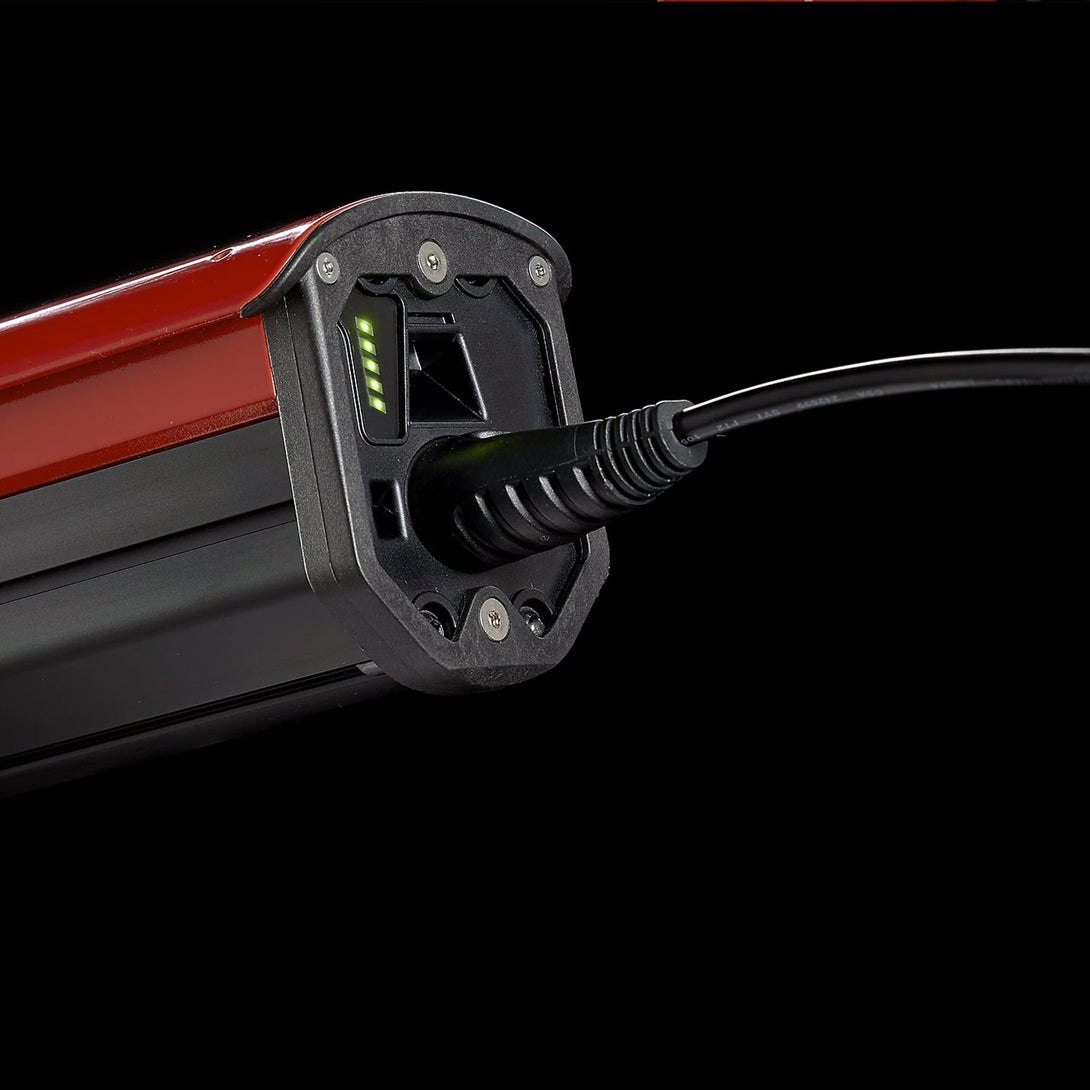

| Battery | Bosch PowerTube 625 | Charger | Bosch compact 2A, 100-240V, Smart System |

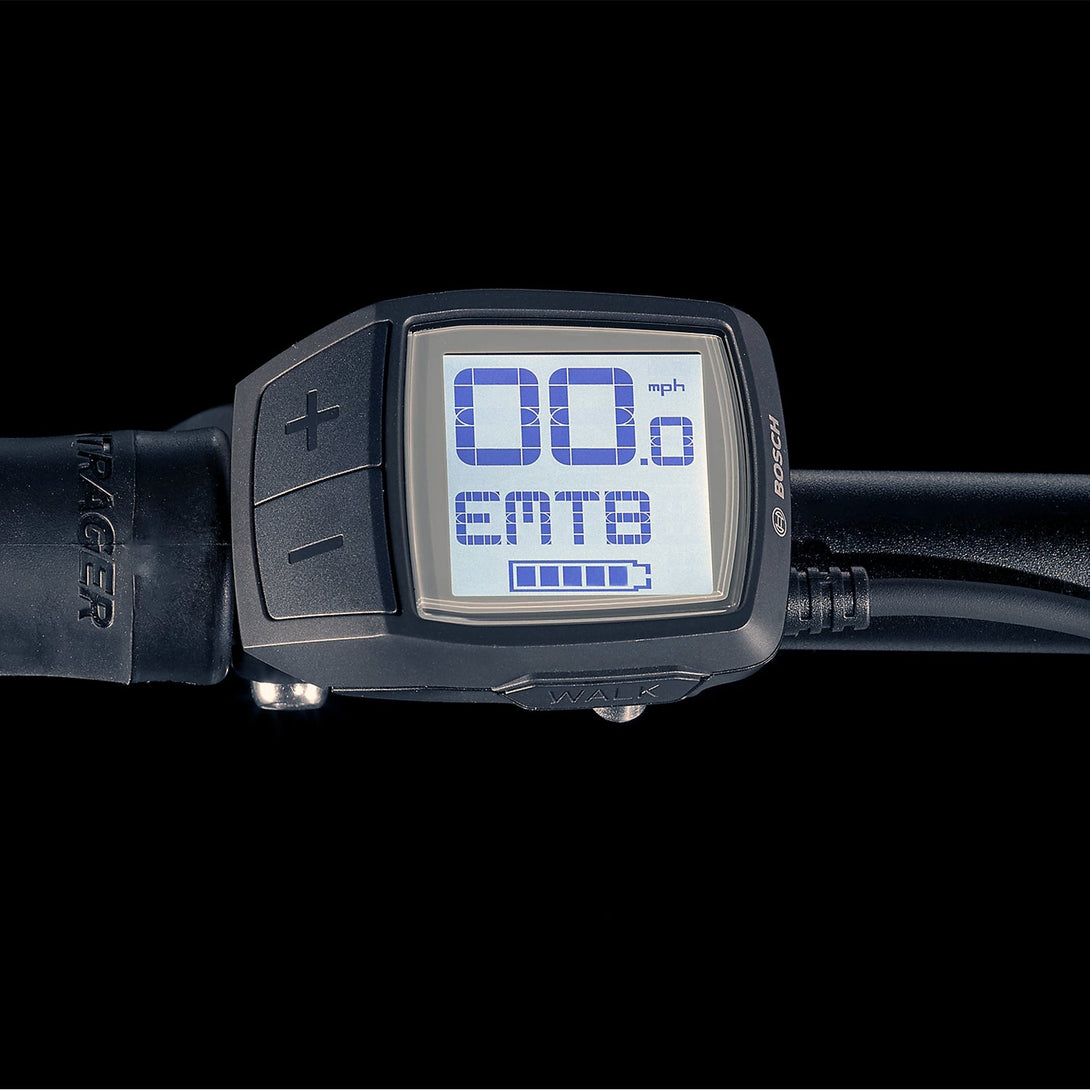

| Engine | Bosch Performance CX, magnesium motor housing, 250 W, 85 Nm, motor power up to 25 km/h | PC | Bosch Purion |
| Weight | M – 23.37 kg | Max Capacity | The maximum permissible weight load for this bike (total weight of bike, rider and load/luggage) is 136 kg. |
Professionally assembled and ready to ride!
All bikes are assembled by our team of professional Cycle Souq technicians with quality checks at every stage to ensure the bike is delivered to you in perfect condition.
