Polygon Colossus N8XE CLS1 Full Suspension 29" E-MTB

FUN REDEFINED

Ride Further, faster, fun like never before. Comes from the bloodline of a champion Collosus N mountain bike, we give you another perspective to have more fun and tame the trails with the combination of our proven suspension platform; the IFS System (Independent Floating Suspension System), and the powerful 85 NM support, and Shimanos free shift that enables seamless shifting without the need to pedal; ensuring a controlled flow as you navigate descents and corners. Welcome to where climbs transform into fun and, of course, your descents triple with the Collosus N8XE electric mountain bike.

FEATURES

160 mm ALX enduro frameset paired with Fox 38 Factory and Float X2 Factory suspension for elite downhill control

Shimano DU-EP801 mid motor delivering powerful, responsive pedal assistance up to 25 kph

Shimano XT Di2 12-speed electronic drivetrain ensuring precise, reliable shifting under load

Race Face Aeffect R cockpit and Fox Transfer Factory dropper post for advanced trail control and adjustability

Tubeless-ready XL2 wheelset paired with Schwalbe Magic Mary EVO Super Gravity tyres for maximum traction and durability

Shimano XT M8120 4-piston hydraulic brakes with 203 mm rotors for exceptional stopping power

Premium enduro geometry designed for steep, technical, and fast all-mountain riding

SIZE GUIDE

S Frame Size 155 to 165cm Height

M Frame Size 165 to 175cm Height

L Frame Size 175 to 185cm Height

XL Frame Size 185 to 195cm Height

SPECIFICATIONS

Frame Material: ALX AM/Enduro, 160 mm travel

Fork: Fox 38 Float Factory

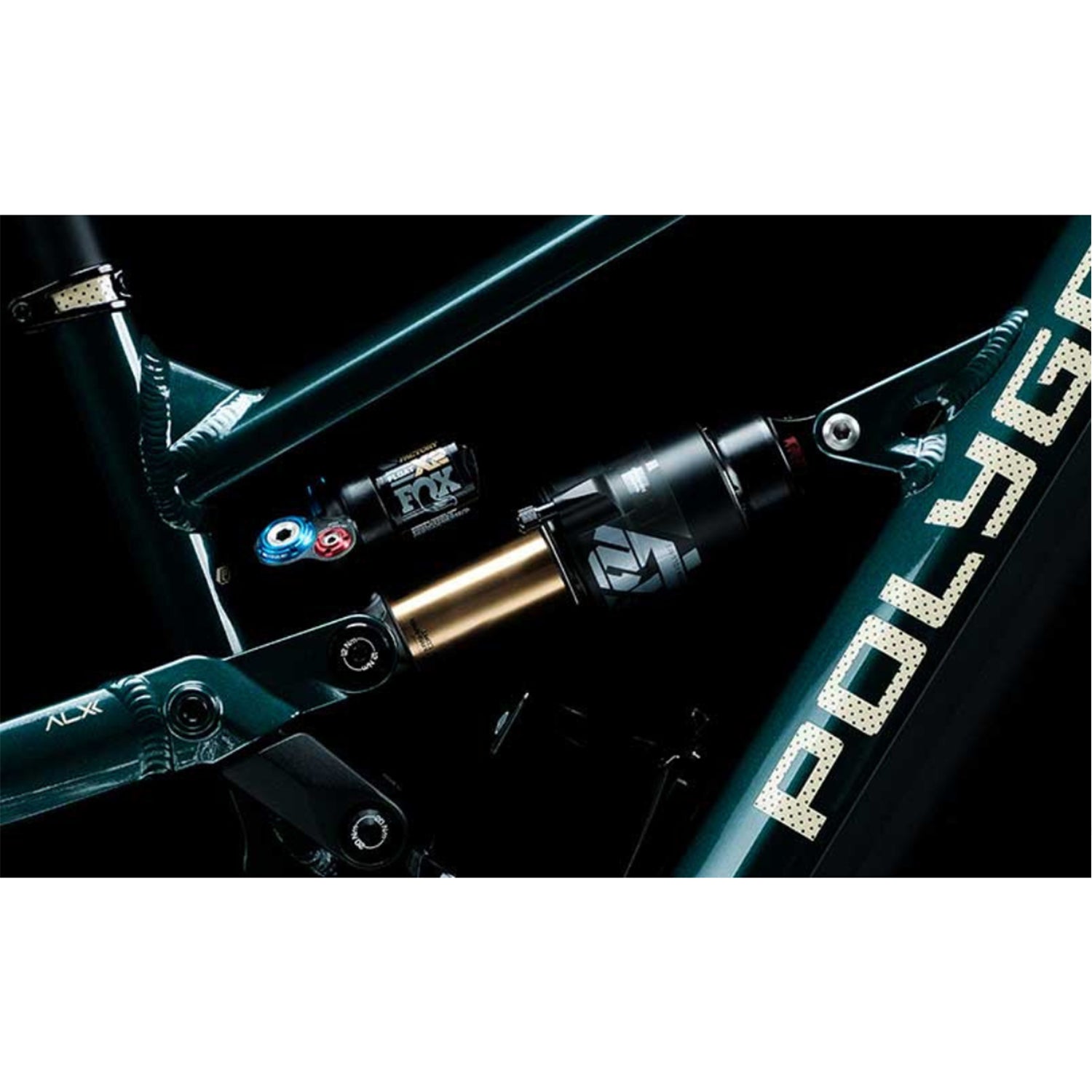

Rear Shock: Fox Float X2 Factory

Shifter: Shimano XT Di2 SW-M8150, 1×12-speed, I-Spec EV

Crankset: Shimano SM-CRE80-12-B, 34T

Cassette: Shimano XT CS-M8100, 10–51T, Microspline

Rear Derailleur: Shimano XT Di2 RD-M8150

Chain: KMC E12, 12-speed

Pedal: Alloy flat pedal with replaceable pins

Saddle: XTEND

Seatpost: Fox Transfer Factory Series
150 mm (S, M) / 175 mm (L, XL) travel
DxL: 30.9×418 mm (S, M) / 475 mm (L, XL)

Handlebar: Race Face Aeffect R 35, width 780 mm, bar bore 35 mm, rise/drop 20 mm, 8° bend

Stem: Race Face Aeffect R 35, extension 40 mm, bar bore 35 mm, 0° rise

Headset: FSA No.57E with sealed bearings

Wheelset: XL2 tubeless-ready

Tyres: Schwalbe Magic Mary EVO 29×2.60", 622×65, Super Gravity, TLE Addix Soft

Rims: Alloy double wall, FV, height 18 mm, 622×36, 32H, tubeless tape installed

Hubs:
Front: Shimano TC500, 15×110 mm, 32H, Center-Lock
Rear: Shimano TC500, 12×148 mm, 32H, Center-Lock, Microspline

Spokes:
Front: Stainless 14G, NDS 294 mm / DS 292 mm, 12 mm brass nipples
Rear: Stainless 14G, NDS 296 mm / DS 294 mm, 12 mm brass nipples

Brake Lever: Shimano XT BL-M8100

Brake Caliper: Shimano XT M8120 hydraulic disc

Rotors:
Front: Shimano RT-MT800, 203 mm, Center-Lock
Rear: Shimano RT-EM810, 203 mm, Center-Lock

Motor: Shimano DU-EP801 mid-motor, 25 kph
