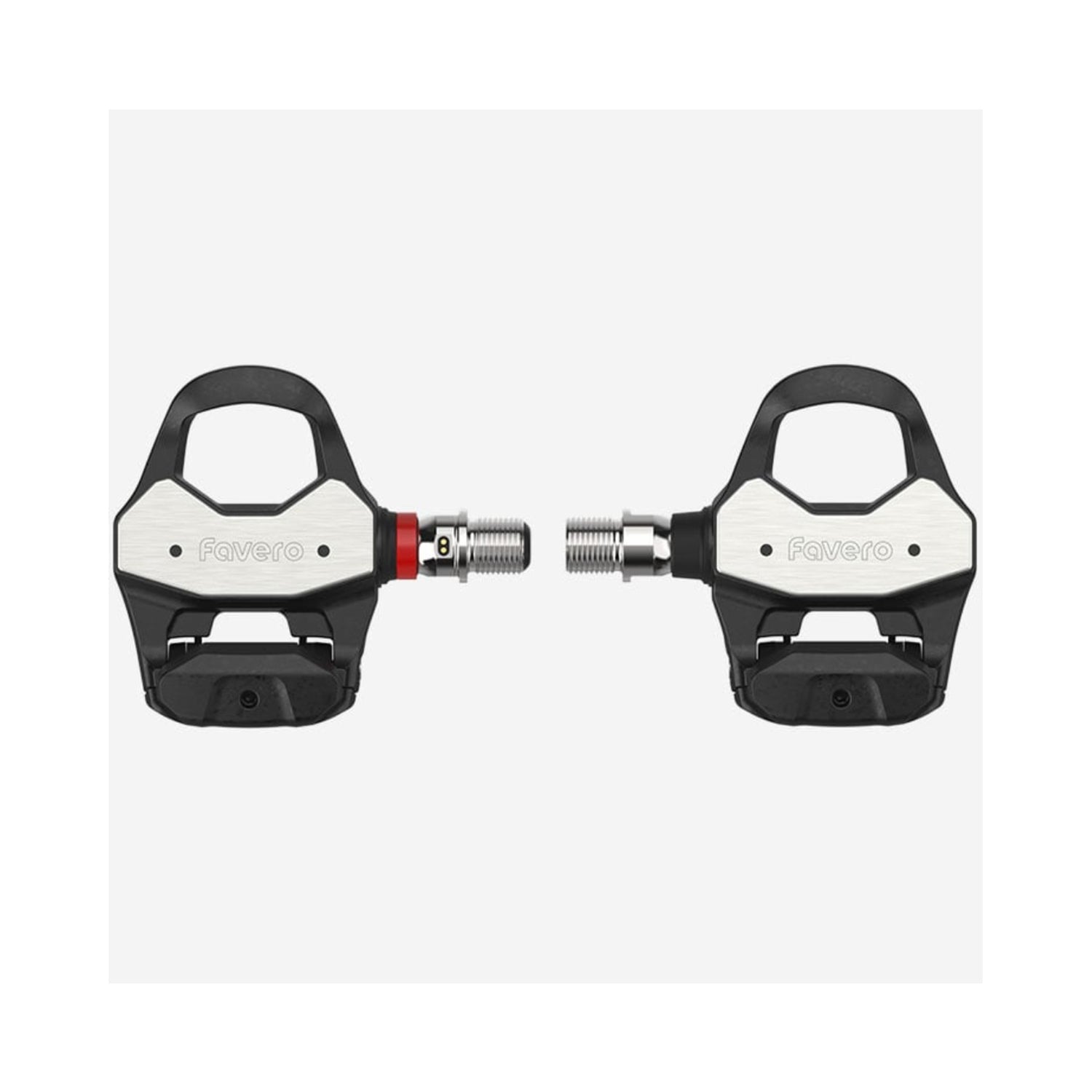

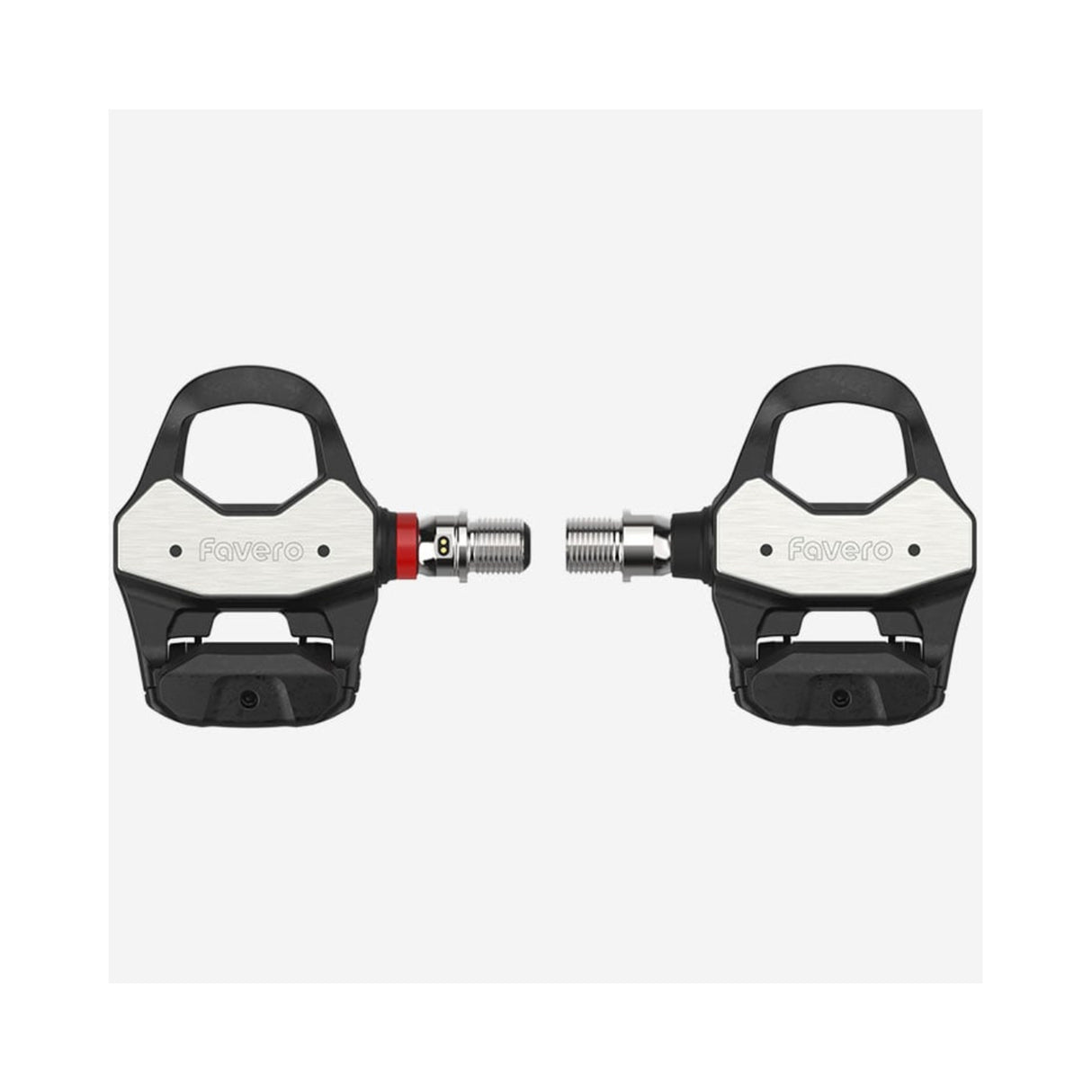

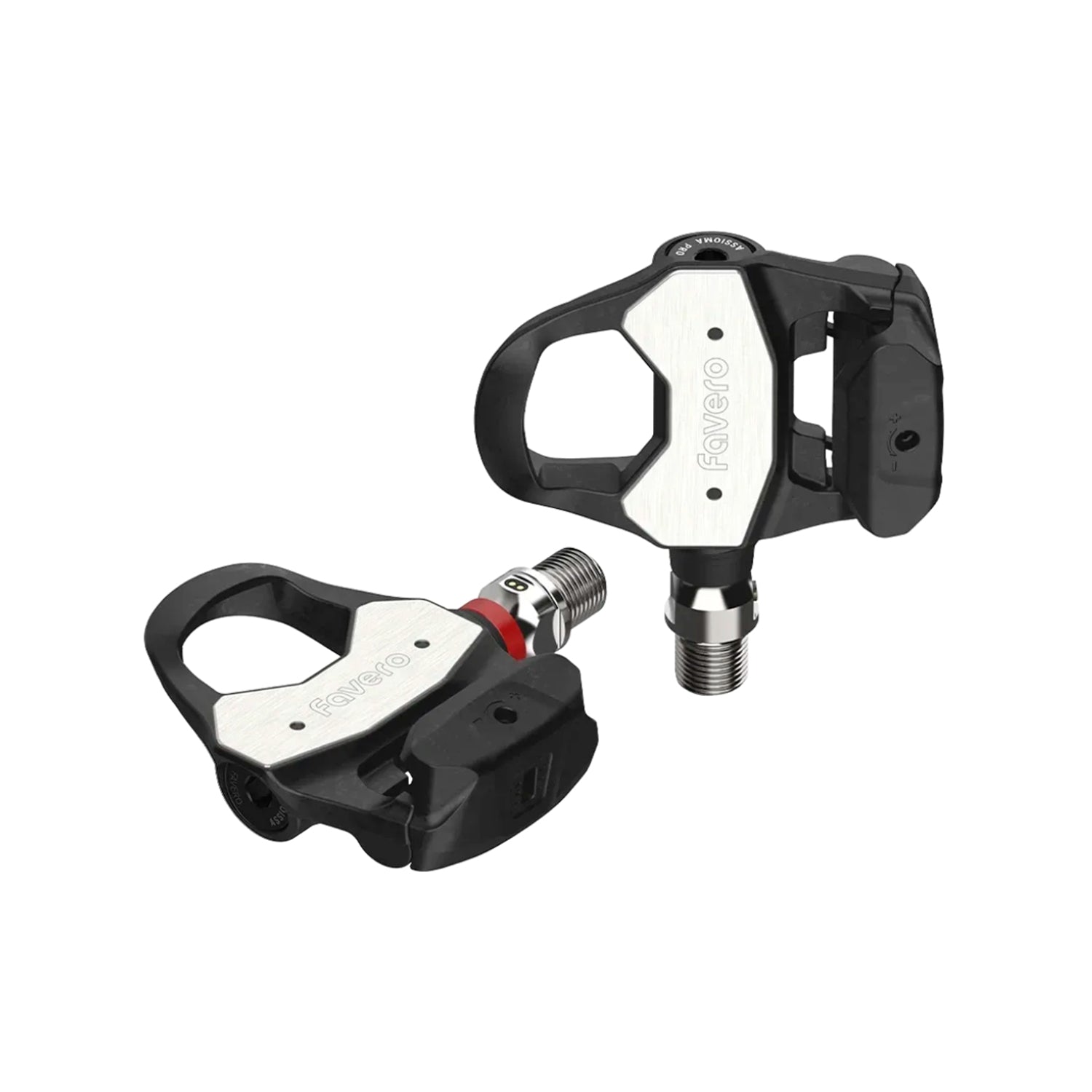

Favero Assioma PRO RL-1 Single Pedal Power Meter

The Favero Assioma PRO RL-1 Single Pedal Power Meter is a road pedal-based power meter designed for accurate training data, clean pedal integration, and reliable everyday performance. Built with the power sensor on the left pedal only, it measures power with ±1% accuracy and calculates total power while also transmitting cadence data and advanced cycling metrics to compatible devices and the Favero Assioma app. With ANT+, Bluetooth, rechargeable internal battery, Look Keo-compatible cleat support, and a lightweight design, it is a strong choice for riders who want precise pedal-based measurement in a practical single-sided setup.

FEATURES

Single-Sided Power Measurement
Built with the power sensor on the left side only, making it a practical option for riders who want accurate pedal-based power data in a simpler setup.

High Accuracy Performance
Delivers power measurement accuracy of ±1%, helping riders track training efforts, pacing, and performance with confidence.

Broad Data Transmission
Transmits power and cadence through ANT+, Bluetooth, and the Favero Assioma app, with support for advanced metrics such as PCO, Power Phase, Torque Effectiveness, and Pedal Smoothness.

Multi-Device Connectivity
Supports up to 3 simultaneous Bluetooth connections, allowing easy pairing with compatible bike computers, apps, and training devices.

Long Battery Life
Features a rechargeable internal lithium battery with up to 160 operating hours for extended use between charges.

Lightweight and Durable Build
Designed with a stainless steel AISI 630 pedal axle, integrated cadence sensor, and a low pedal stack height for efficient and dependable road riding performance.

SPECIFICATIONS

Series: Assioma PRO RL

Model: RL-1

Product Code: 773-30-01

Power Sensor: Left side only

Power Measurement Accuracy: ±1%

Transmitted Data: Power, cadence

Advanced Metrics: Platform Center Offset (PCO), Power Phase (PP), Torque Effectiveness (TE), Pedal Smoothness (PS), Rider Position (RP)

Connectivity: ANT+, Bluetooth v4.2, Favero Assioma app

Bluetooth Connections: Up to 3 devices simultaneously

Radio Protocol: ANT+ PWR (PO) profile

Frequency: 2402-2480 MHz

RF Power: Max 1.4 dBm EIRP

Power Range: 0 - 3000 W

Cadence Range: 10 - 250 rpm

Gyroscope: Integrated

Cadence Sensor: Internal, integrated

Battery Type: Rechargeable lithium battery, 4.2Vdc nominal voltage

Battery Life: Up to 160 operating hours

Charging Input: 5Vdc max 110mA

Pedal Weight With Sensor: 130 g

Pedal Weight Without Sensor: 129 g

Pedal Stack Height: 10.5 mm

Pedal Body Length: 87 mm

Q-Factor / Width Reference: 53 mm

Axle Thread: 9/16”-20 TPI

Pedal Axle Material: AISI 630 stainless steel

Bearings: 2x needle rollers, 1x axial washer in technopolymer

Operating Temperature: -10 / +55 °C

Suggested Charging Temperature: +10 / +45 °C

Protection Degree: IP67

Compatible Cleats: Supplied Favero / Look Keo cleats 5°, other Favero Look-compatible cleats, original Look Keo and Look Keo Grip cleats

Max Cyclist Weight: 120 kg

Power Meter Sensor Base: F-PM2
