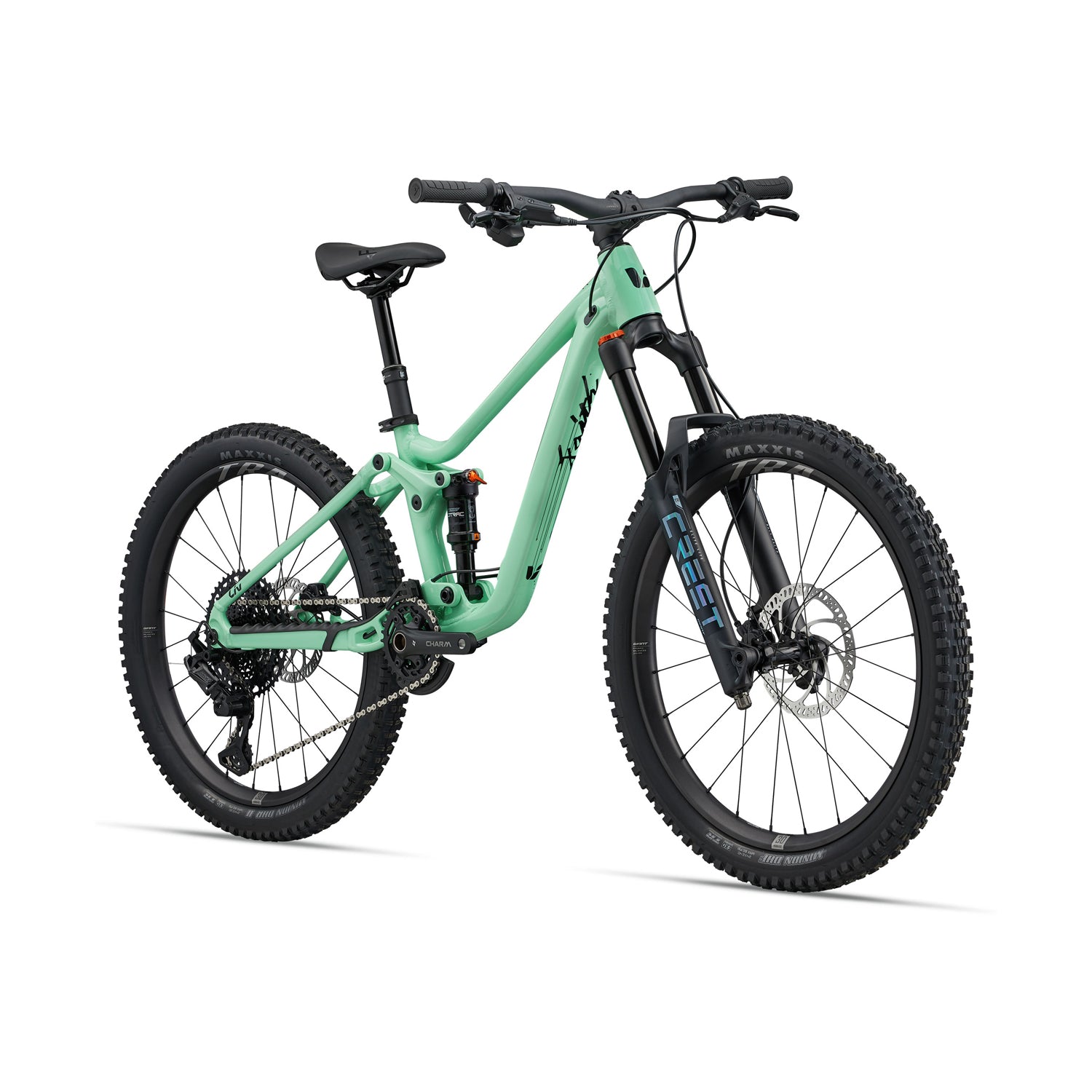

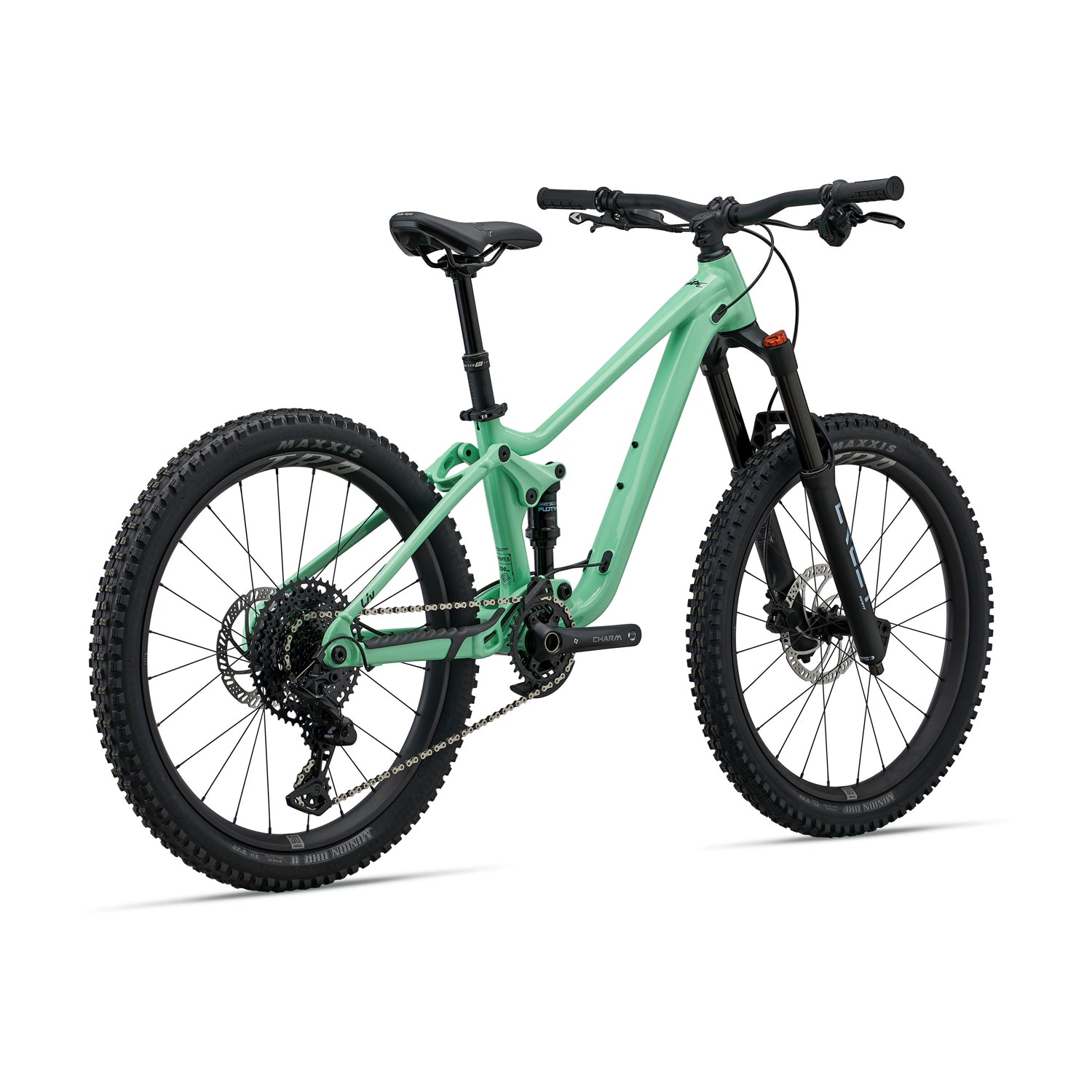

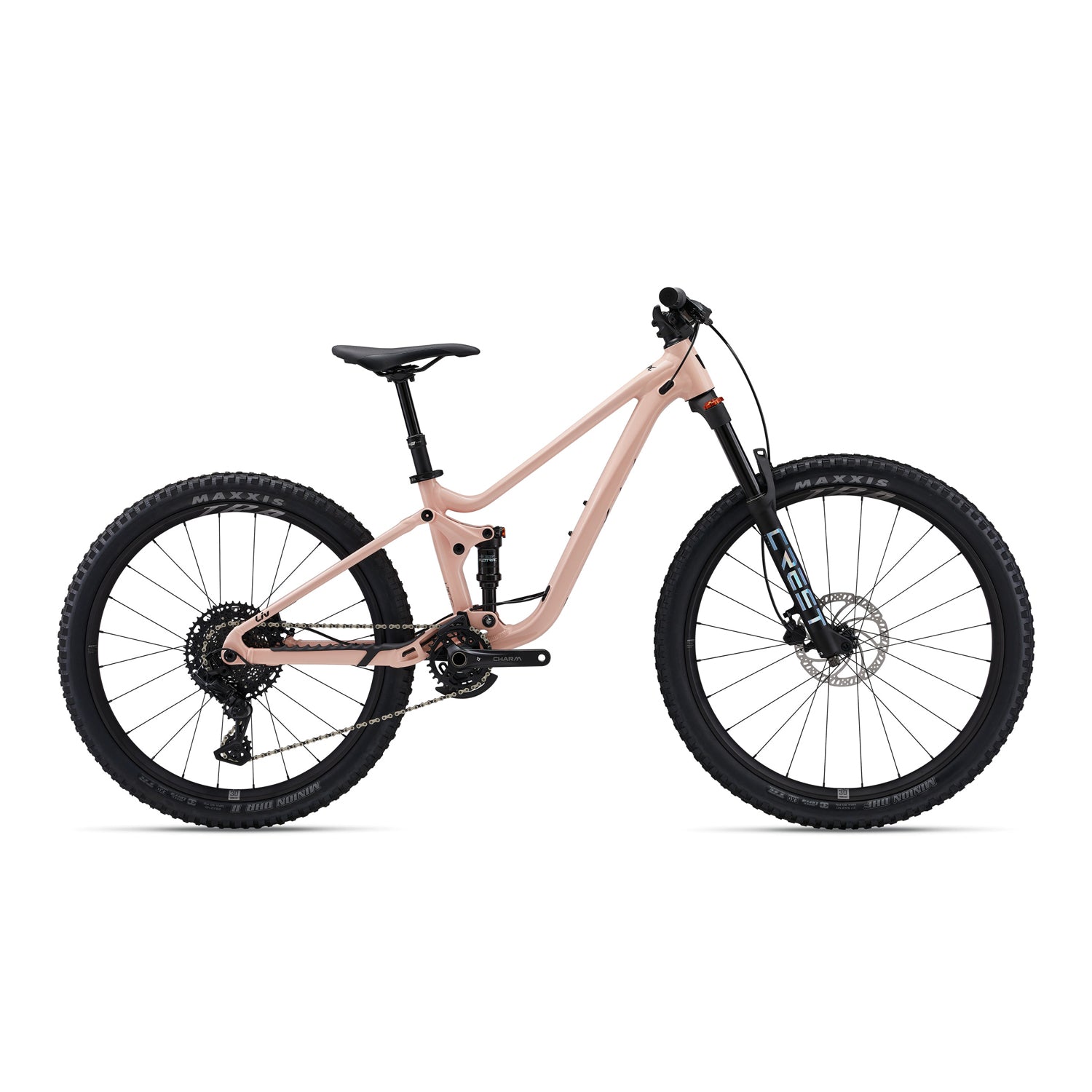

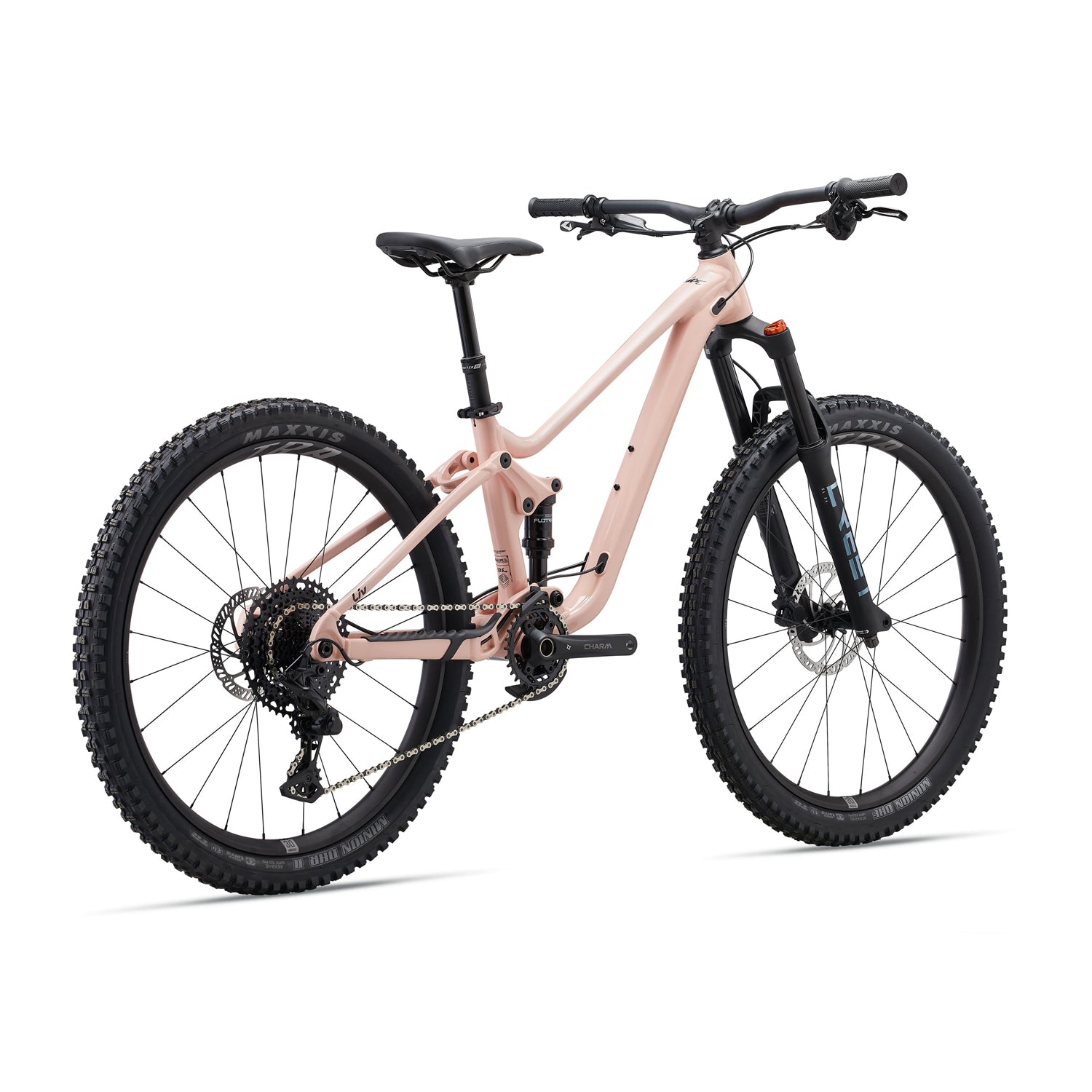

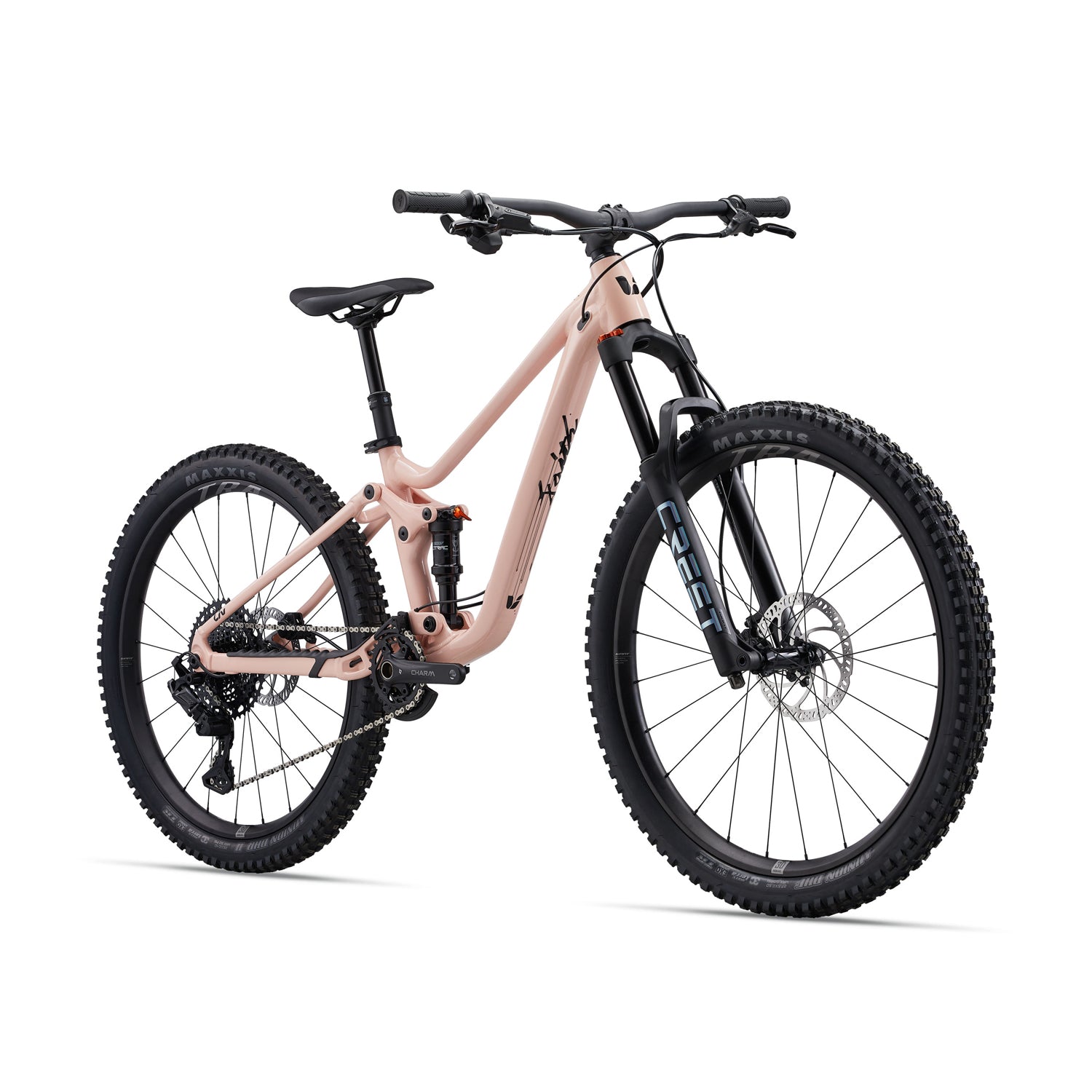

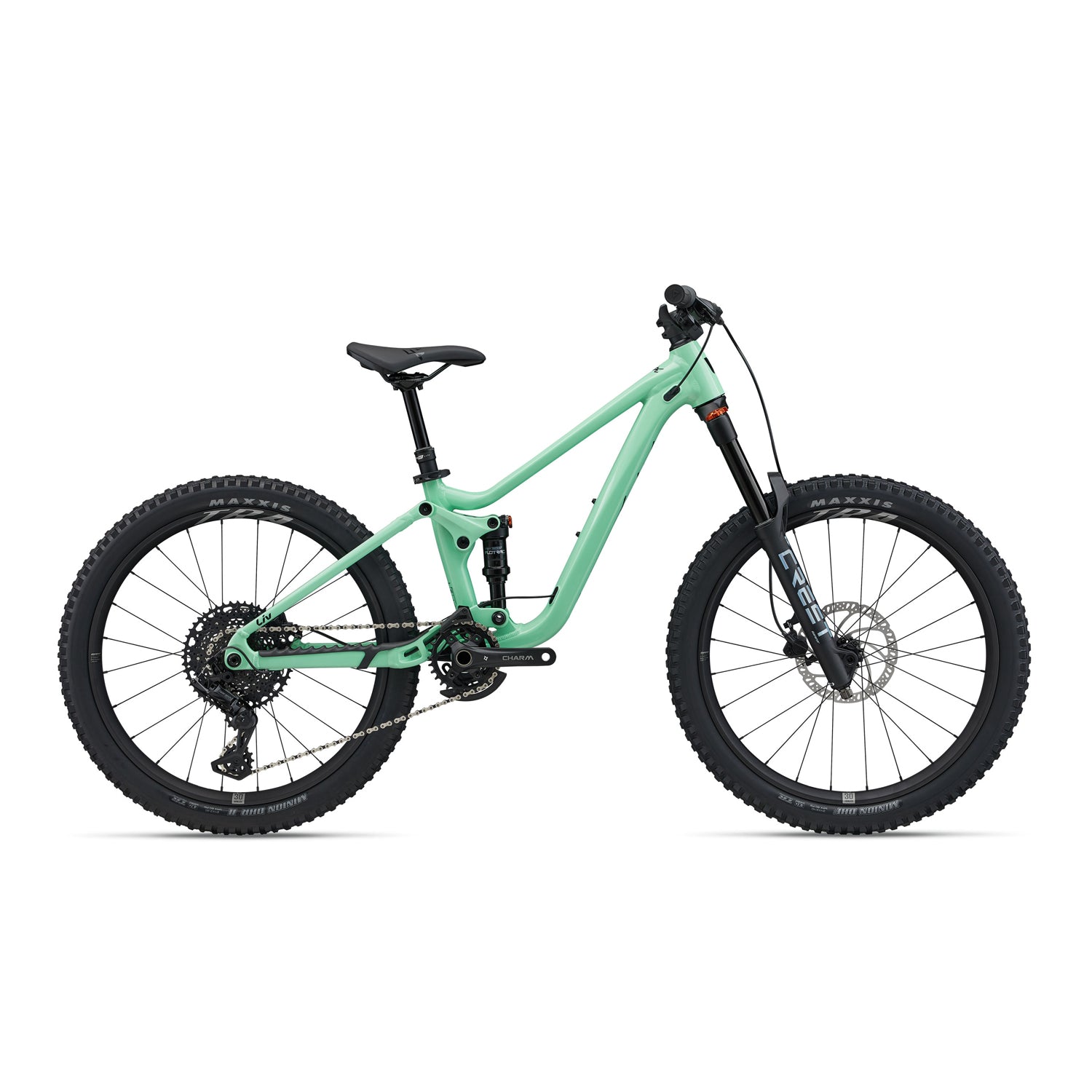

Liv Faith 24 Full Suspension Youth MTB
Built to meet the demands of young shredders, the Liv Faith 24 provides a performance full-suspension platform to fuel limitless possibilities.
Key Performance Factors
Youth-Tuned Suspension

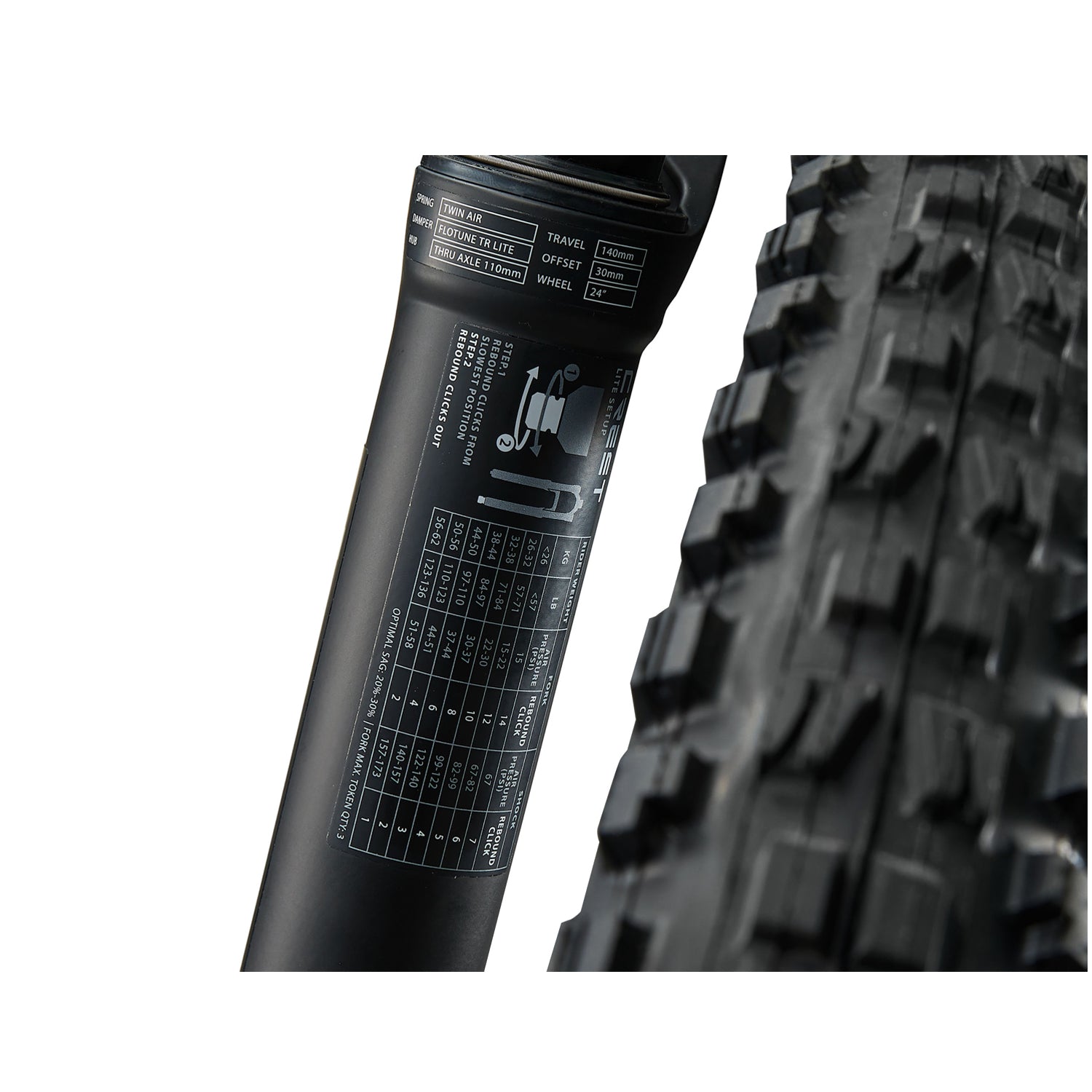

The Crest FloTrac Lite Shock delivers 130mm of smooth travel tuned specifically for lighter-weight riders, up front, the 140mm Crest SL FloTune Lite Fork handles rocks, roots, and ruts. The new Unified Suspension Setup tailors to the rider's body weight, optimal air pressure, and damping clicks are predefined for both the fork and shock to create smooth balance and control. Our dedication to youth optimization guarantees effortless setup and the best youth fit - continuing Liv's commitment to supporting the next generation of female riders.
Agile & Efficient
An ALUXX SL aluminum frame with youth-specific trail geometry provides unmatched robust efficiency, combined with quality lightweight components that minimize weight to help young riders tackle challenging terrain. The FlexPoint single-pivot design maximizes pedaling efficiency and delivers capable control, to help kids stay focused even on bumpy terrain.
Off-Road Control
With the wide-wall technology of TRA WheelSystem, young riders can enjoy enhanced traction through lower tire pressure, increasing grip and stability. For smaller riders, 24-inch wheels bring burly handling, ready for progression. A dropper seatpost makes it easy to optimize riding position while climbing or descending, giving them more control to conquer the trail.
Highlights
This all-new trail bike features a lightweight ALUXX SL aluminum frame with FlexPoint rear suspension and a LiV Crest FloTrac Lite shock that delivers 130mm of fully active travel to help kids advance their trail-riding capabilities. Up front, the new Liv Crest TR Elite Lite fork handles rocks, roots and ruts with smooth efficiency. A youth-specific, 24-inch Liv TRA WheelSystem combines lightweight performance with robust rim strength, helping kids make the leap from neighborhood rides and pump tracks to more challenging singletrack terrain. A dropper seatpost, shorter cranks and cockpit controls designed for small hands all add up to greater control and confidence.
Tech & Features
ALUXX SL Aluminum Technology
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.

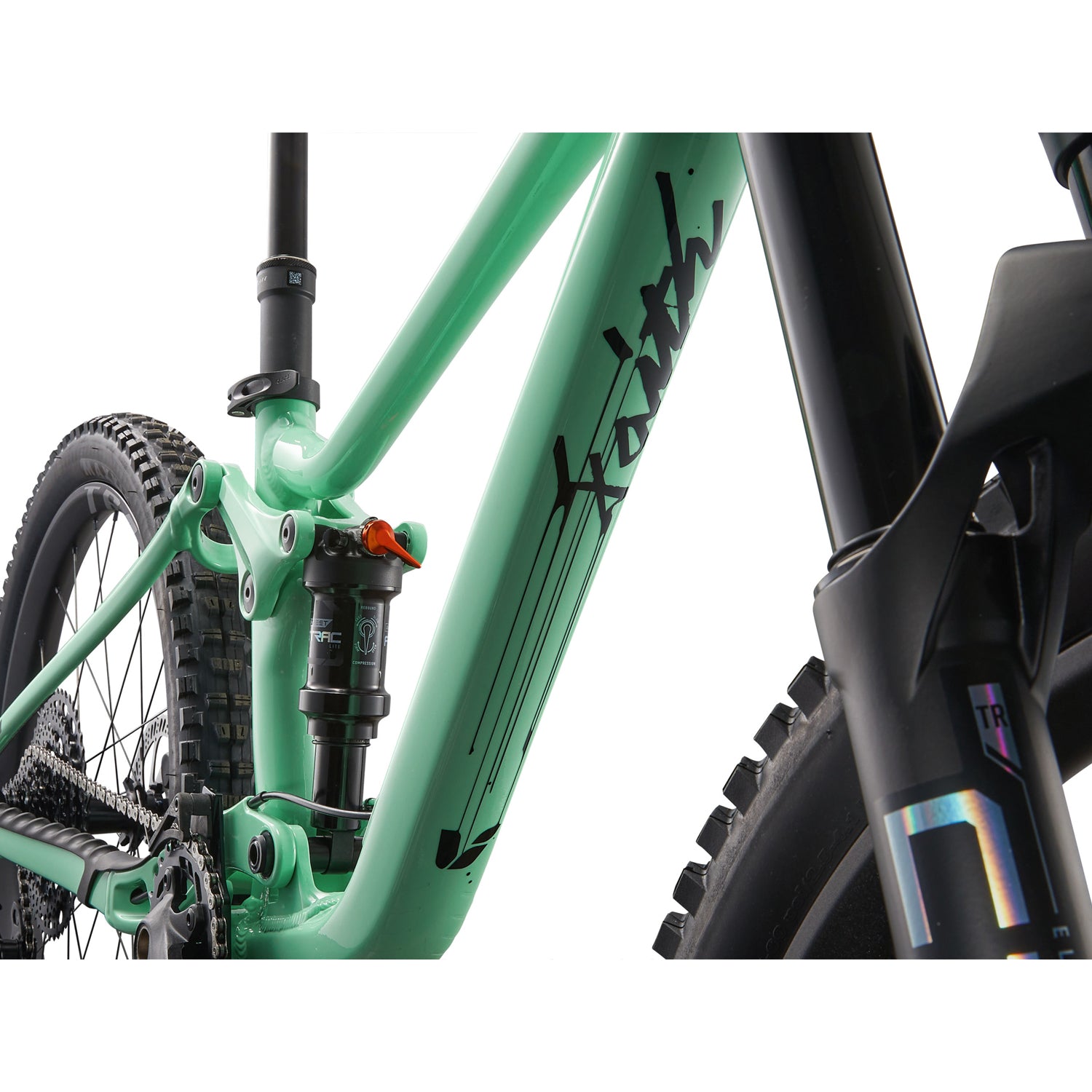

FlexPoint Suspension Technology
A proven “single-pivot” design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.
MegaDrive
A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
PowerCore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
SPECIFICATIONS
Frame: ALUXX SL-grade aluminium front and rear triangles, 130 mm FlexPoint suspension, rear 24 inch wheel only

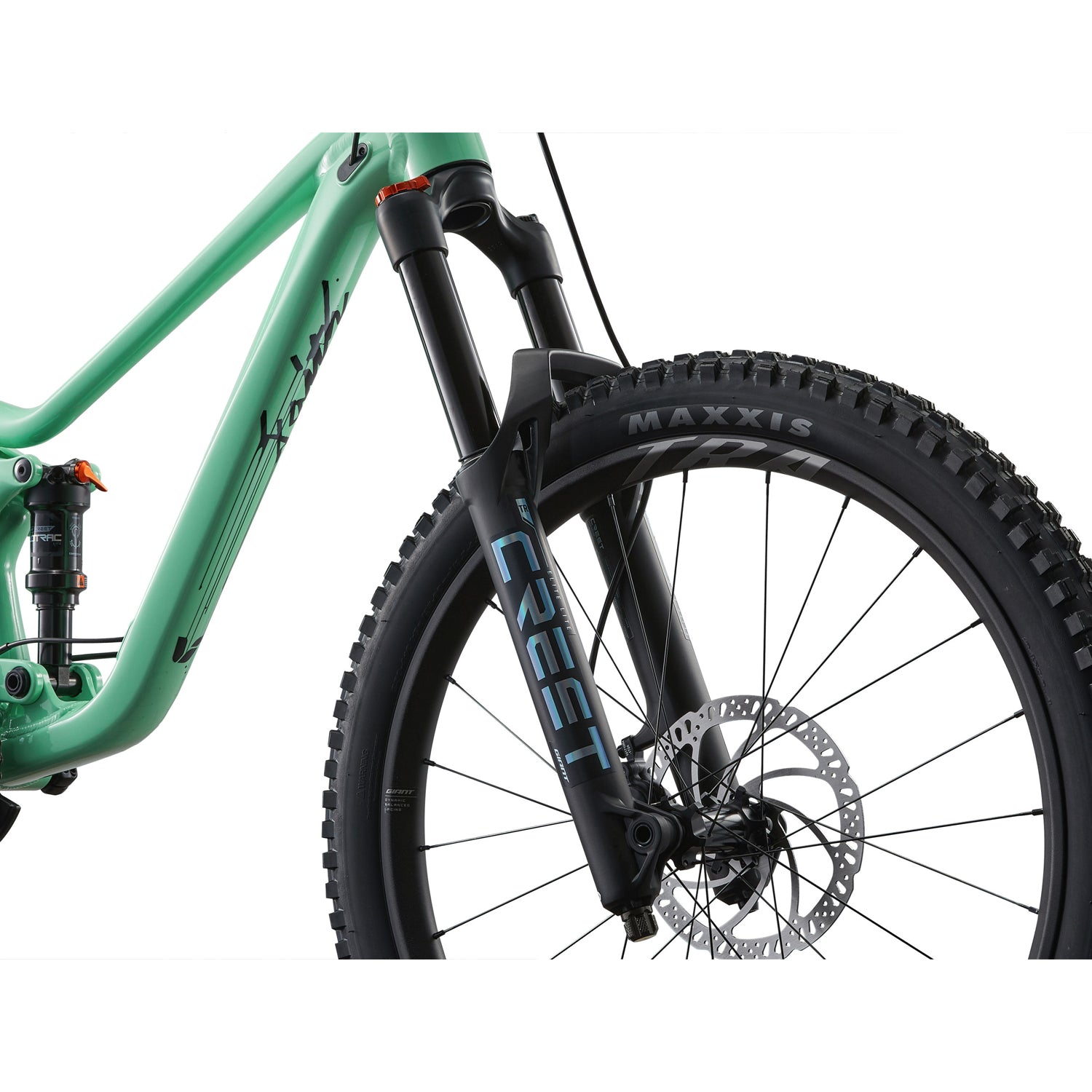

Fork: Crest TR Elite Lite, 140 mm travel, FloTune damper, 24 inch specific

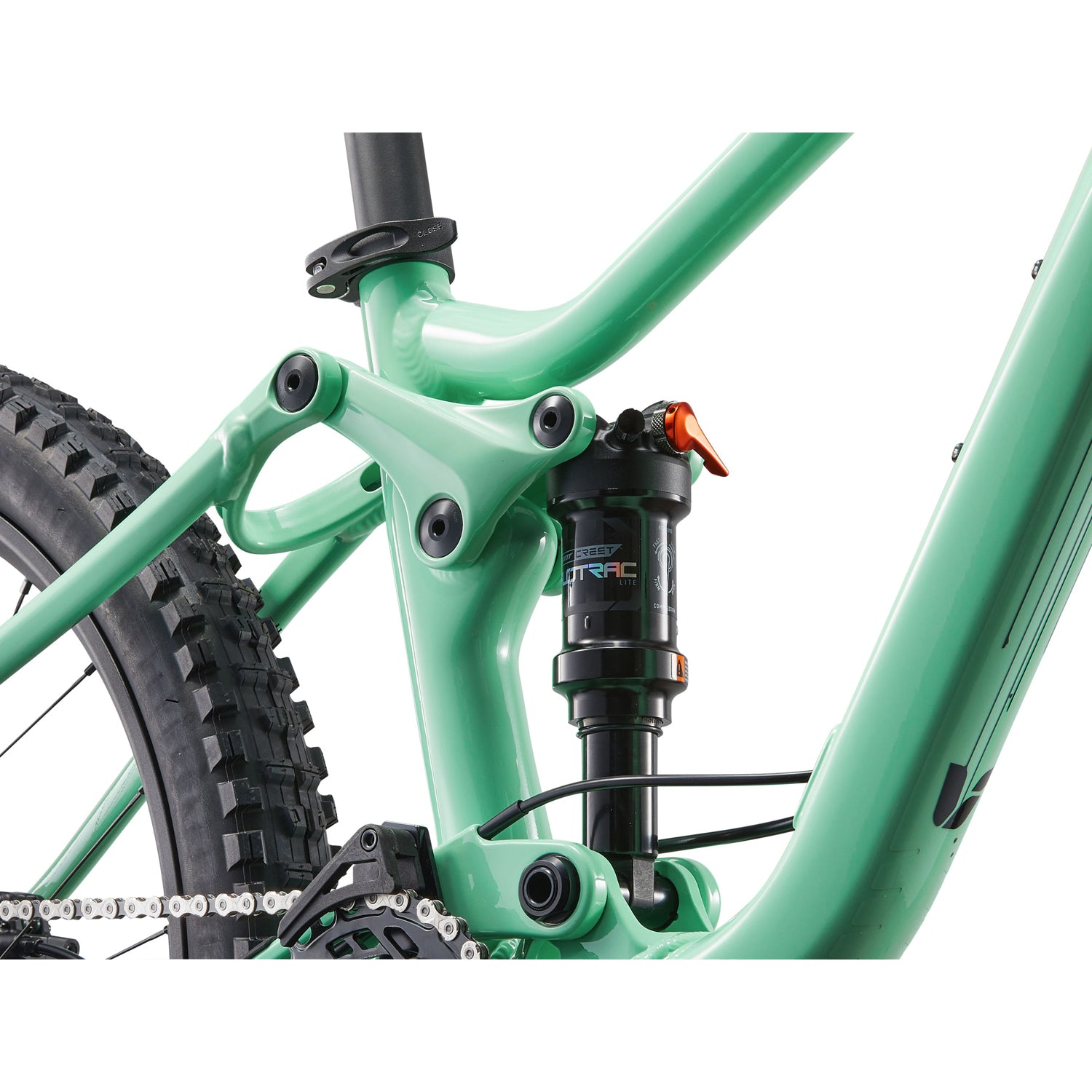

Rear Shock: Crest FloTrac Lite, 165 x 45 mm, custom tuned for youth

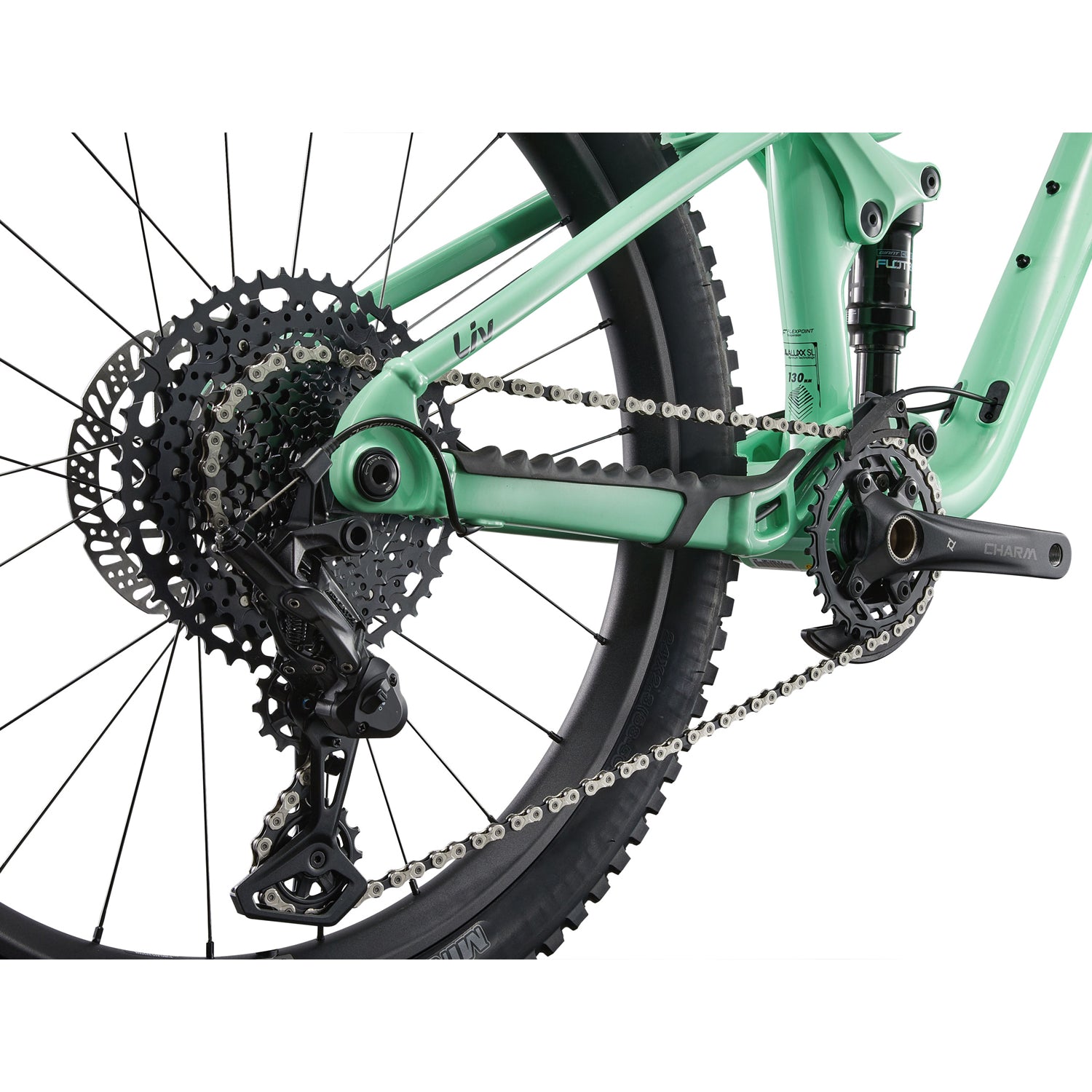

Rear Derailleur: microSHIFT Advent X M6205AM
Shifters: microSHIFT Advent X Trail M9505-R, 1x10-speed
Crankset: Prowheel Charm, 30T, 140 mm
Bottom Bracket: Prowheel, press-fit
Cassette: microSHIFT Advent X G-Series, 11-48T
Chain: KMC X10 with Missing Link
Chainguide: Giant 1x chain guide, ISCG05, 30-34T

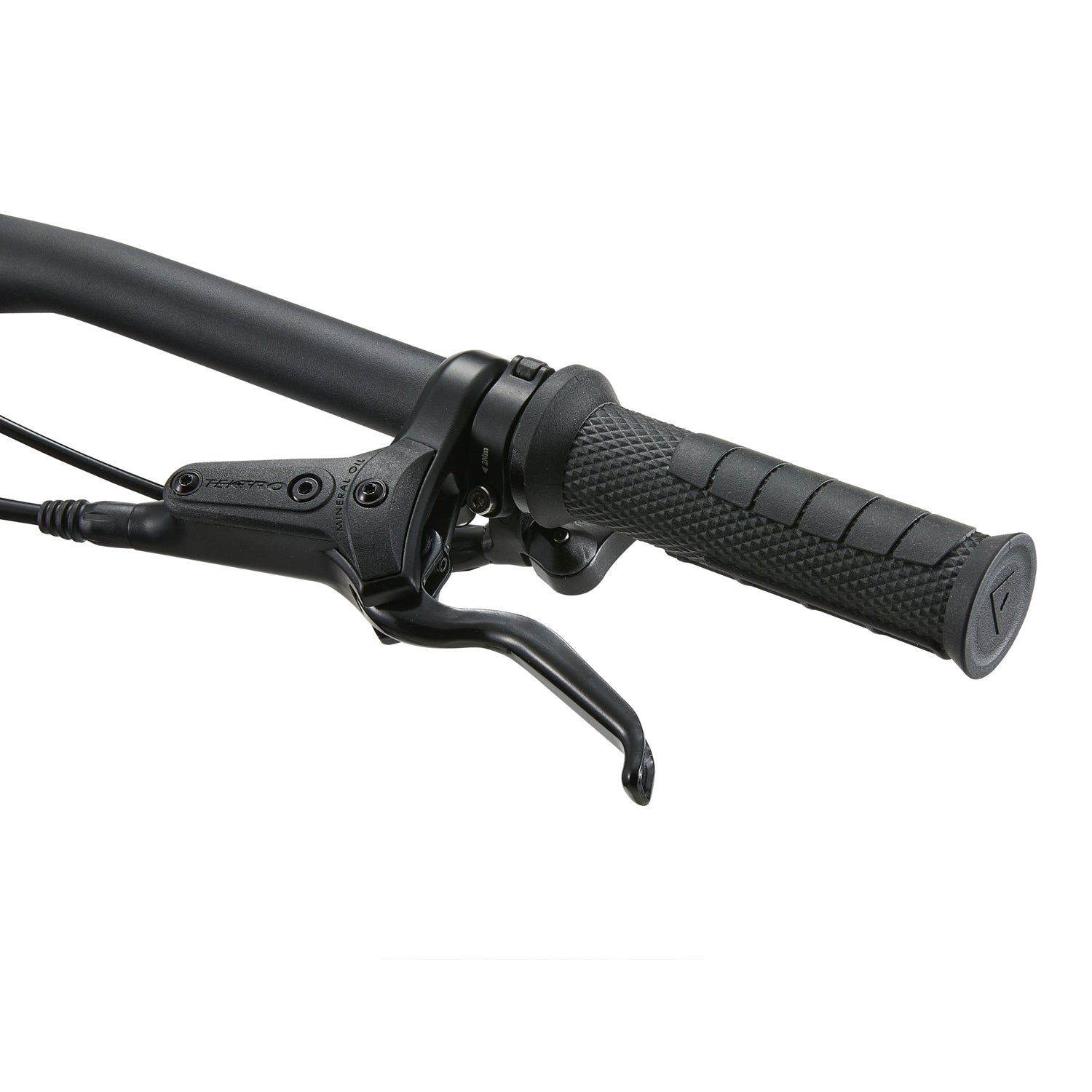

Brakes: Tektro HD-J285 hydraulic disc
Brake Levers: Tektro HD-J285
Rotors: 180 mm front and 160 mm rear
Rims: Giant TRA WheelSystem, 6069 alloy, welded, 30 mm inner width, 40 mm outer width, 21 mm height, Wide Guard technology, 24 inch front and rear
Front Hub: Giant MTB alloy, 6-bolt, sealed
Rear Hub: Giant MTB alloy, 6-bolt, 72T POE, 6-pawl, sealed
Spokes: Sapim Laser straight pull with DBL technology
Front Tyre: Maxxis Minion DHF, 24 x 2.4 inch, EXO, TR, tubeless, 60 TPI, folding
Rear Tyre: Maxxis Minion DHR II, 24 x 2.3 inch, EXO, TR, tubeless, 60 TPI, folding
Wheel Size: 24 inch

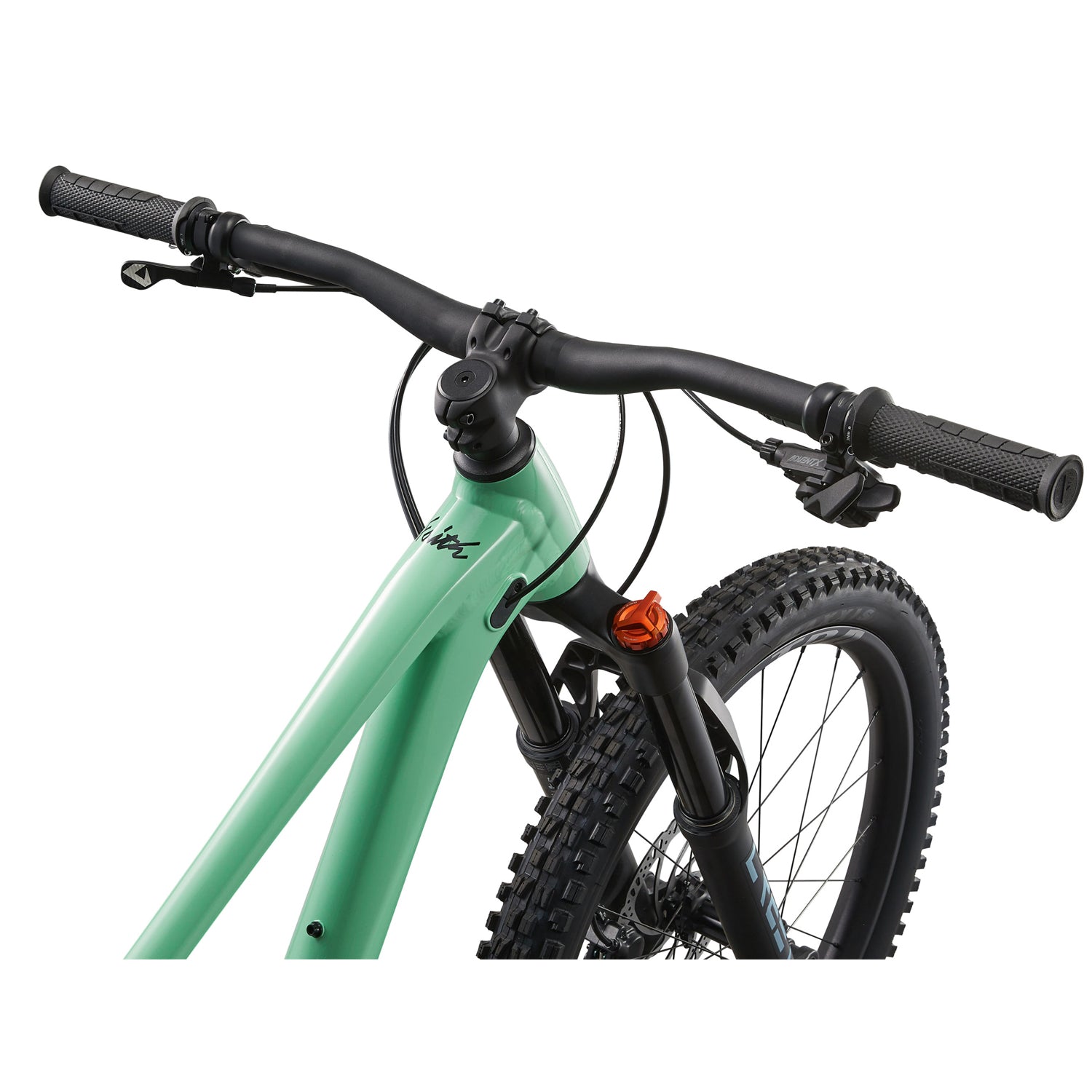

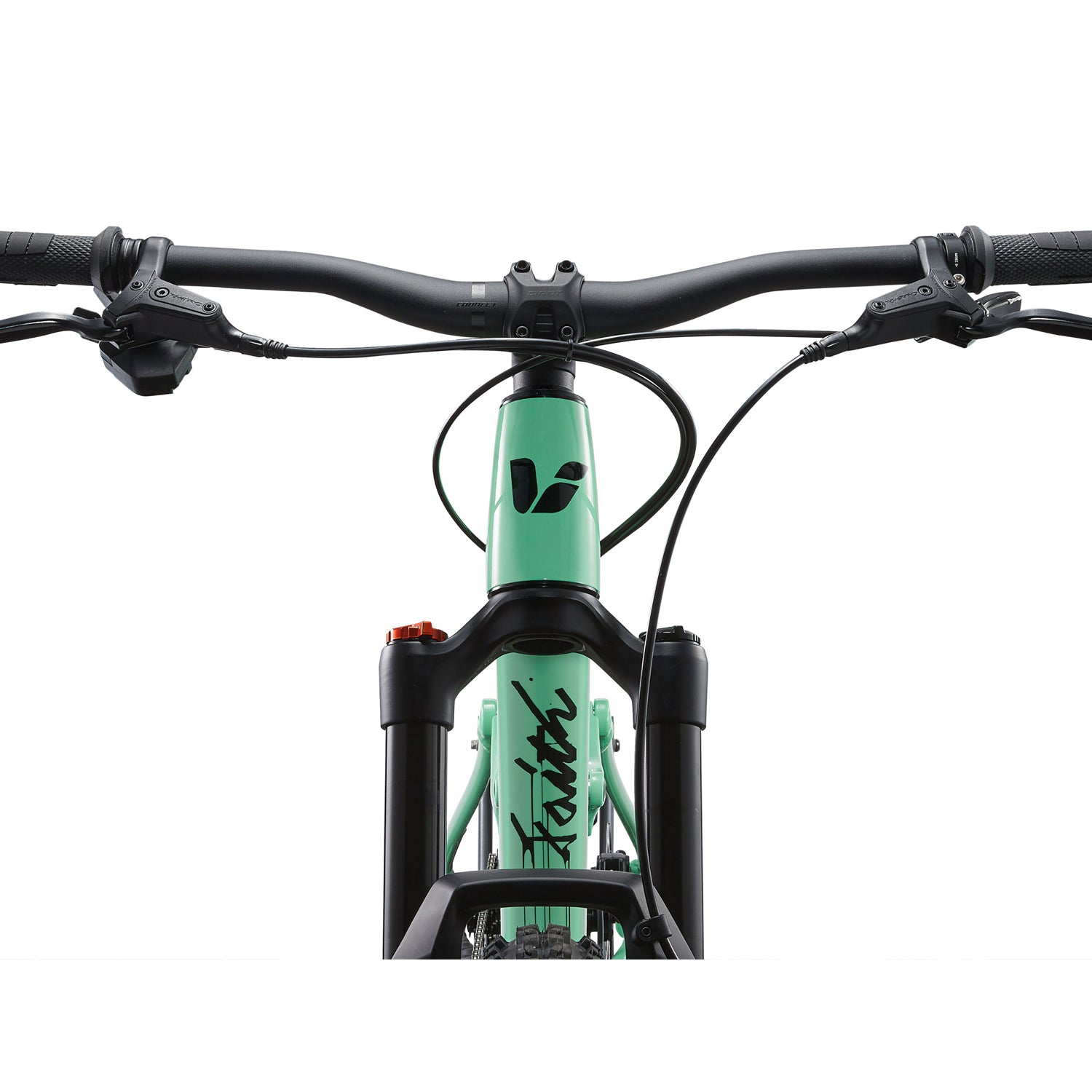

Handlebar: Giant Connect TR, 680 x 31.8 mm, 20 mm rise, alloy
Stem: Giant Contact, 40 mm
Grips: Giant Tactal Pro Lite youth lock-on

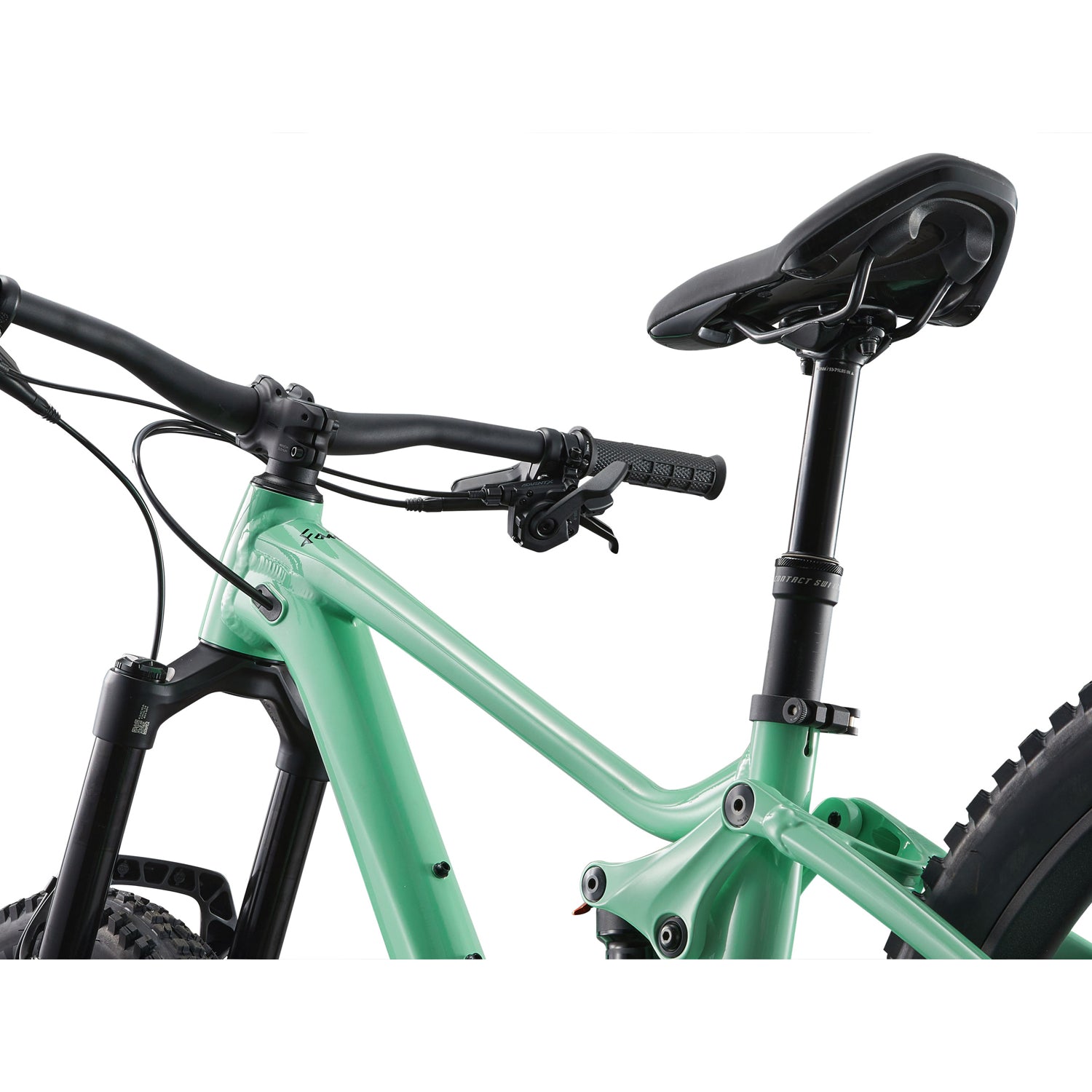

Seatpost: Giant Contact Switch AT Lite adjustable dropper, remote 70-100 mm travel, 30.9 x 315 mm
Saddle: Giant Jr. Sport
Pedals: Giant Pinner Comp Lite
